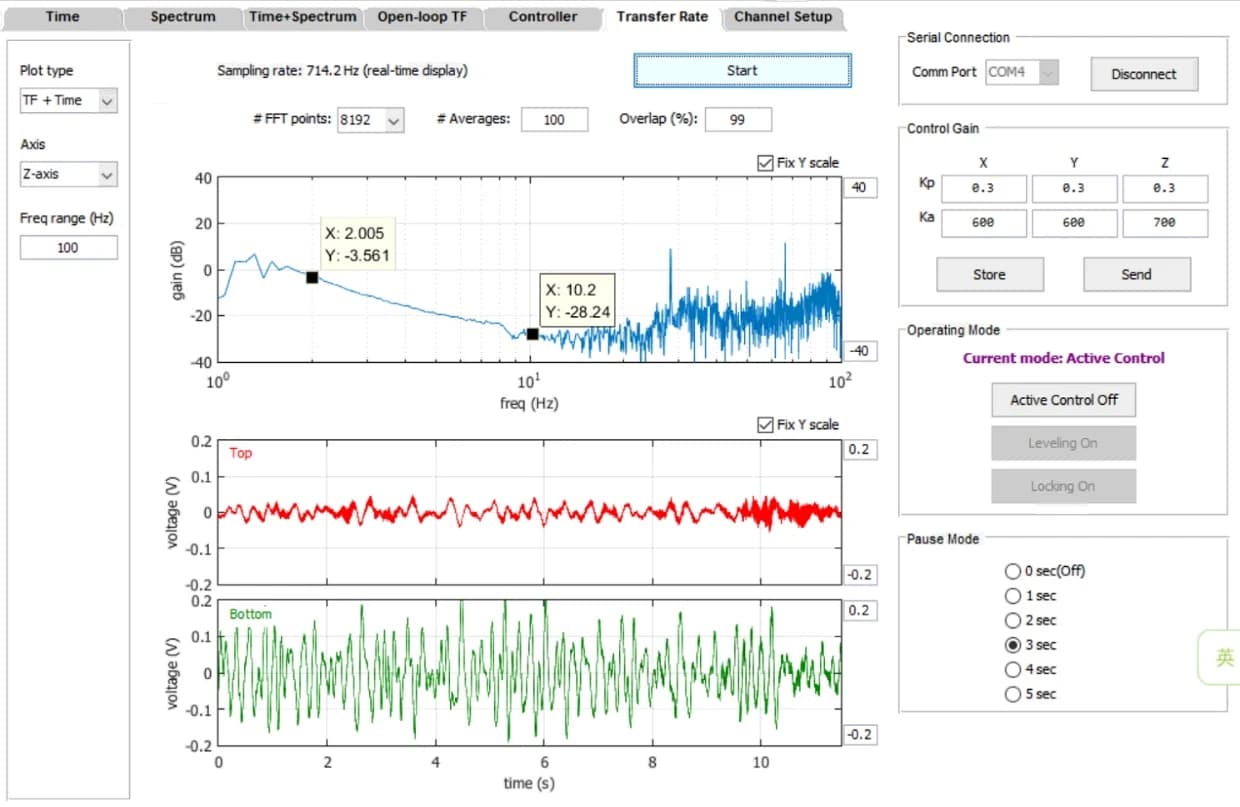

UB700 P3 (S/N 181107R4-2) active-mounting worksheet for Thermoscientific Axia at guangzhou, 广州生物岛: operator Kim, Doohyun (DAEIL SYSTEMS research engineer), setup and reporting 21.10.25, business trip record 17.12.27~17.12.29 per the form. Publishes Transmissibility summary at 2–3–10 Hz and three MB1000 internal-program screenshots (Z, X, and Y axis). The decorative title-line JPEG paired with the UB700 P3(181107R4-2) heading in Word is omitted on the public page. No Reference section appears in the source.

UB700 P3 setup worksheet for Opton (1F) with ZEISS EVO 15. Business trip 18.12.21; report written 18.12.26; operator Choi Sung Won. VC-Class Base vs Top summary (Z/X/Y) and MB1000 internal-program plus vibration-environment measurement screenshots. Decorative header logo and title banner omitted.

UB700 P8 field worksheet at Shanghai Institute of Technical Physics (SITP), 1F; operator Choi Sung Won; business trip 18.12.19 and report written 18.12.26. Posts VC-Class Base/Top summary for ACTIVE (Z/X/Y), MB1000 internal-program Z/X/Y plots, and vibration-environment measurement Z/X/Y plots. Decorative Word header and set-up banner images (image1, image2) omitted.

UB1000 (S/N 210302R1, P20) setup and vibration check for Thermo Scientific Prisma E at end user 深圳维达力 (Place of installation: shenzhen), via remote tuning. Setup 2021-04-27; report 2021-04-28. Publishes 10 Hz transmissibility summary (Z/X/Y) and UB1000 internal program performance plots. Word title-block JPEG omitted from the public page.

Compact remote-tuning worksheet for DVIA-UD350 serial 210929R1 (P26) with OLIMPUS target equipment. Setup 2021-12-15, reporting 2021-12-17, business trip 2017-12-27~29; overview measurement dated 21.12.15(WEN) by Daeil Systems (YU, HoSang). Place of installation and End User are blank in the source (published as N/A). Transmissibility summary at 2 / 5 / 10 Hz and UD350 internal-program Z / X / Y screenshots are published; centered cover banner (image1) omitted as decorative.

DVIA-T78 (serial 211213R1) installation report for WONIK IPS Jinwi site, 4F wafer analysis lab. Re-tuning and vibration measurement on December 12, 2025, with Bruker Nano Indentation tester TS77 on the isolator. Overview notes a return visit due to high vibration against Bruker self-test criteria; conclusion confirms good isolator performance in all directions while Bruker cited rubber pillars below the tool and planned equipment modification with headquarters. UI plots: VC curves, autospectra, and transmissibility by axis. Reference publishes the standard VC criteria table.
