Installation Report
DVIA-ULF Series
05-26-2026
Shanghai Institute of Technical Physics UB700 P8 Installation Report
DVIA-ULF Series
Installation Report
Shanghai Institute of Technical Physics
SITP
DVIA-UB700
UB700 P8
Shanghai
China
Contents
Target equipment
-
Place of installation
1F, Shanghai Institute of Technical Physics(SITP)
Remark
성능 양호
END USER
Shanghai Institute of Technical Physics(SITP)
Operator and dates
출장자 : 최성원
출장일 : 18.12.19
작성일 : 18.12.26
Installation result summary
| Test Direction | VC-Class | ||
|---|---|---|---|
| Base | Top | ||
| ACTIVE | Z | A | D |
| ACTIVE | X | A | D |
| ACTIVE | Y | B | D |
전 방향 성능 양호
수직방향은 100Hz, 수평방향은 47.25Hz가 VC-E Class 도달을 제한하고 있으나, 해당 주파수를 제외한 나머지 부분의 성능은 양호함.
MB1000 internal program performance measurement result

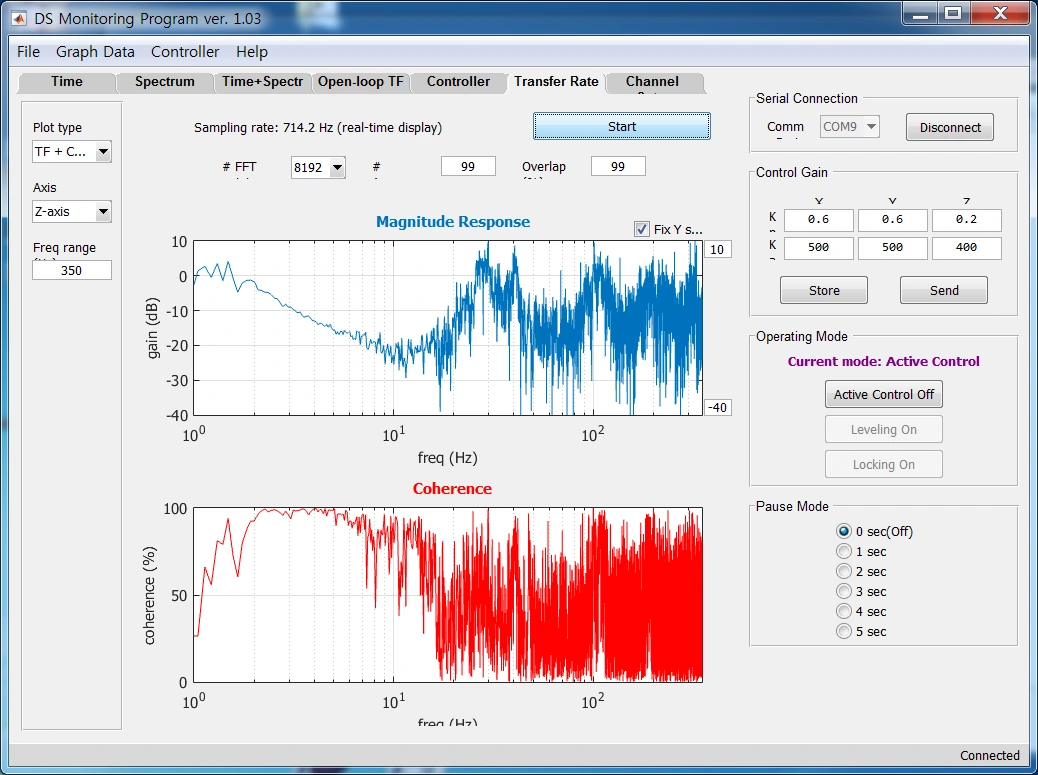

Z axis

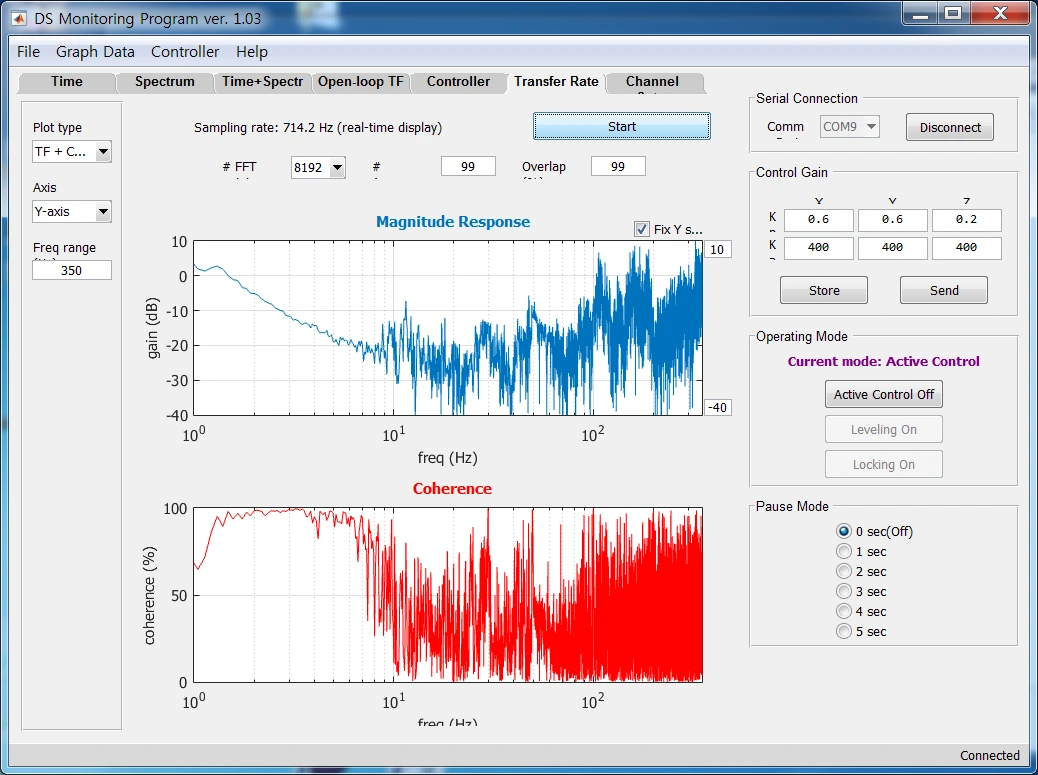

X axis

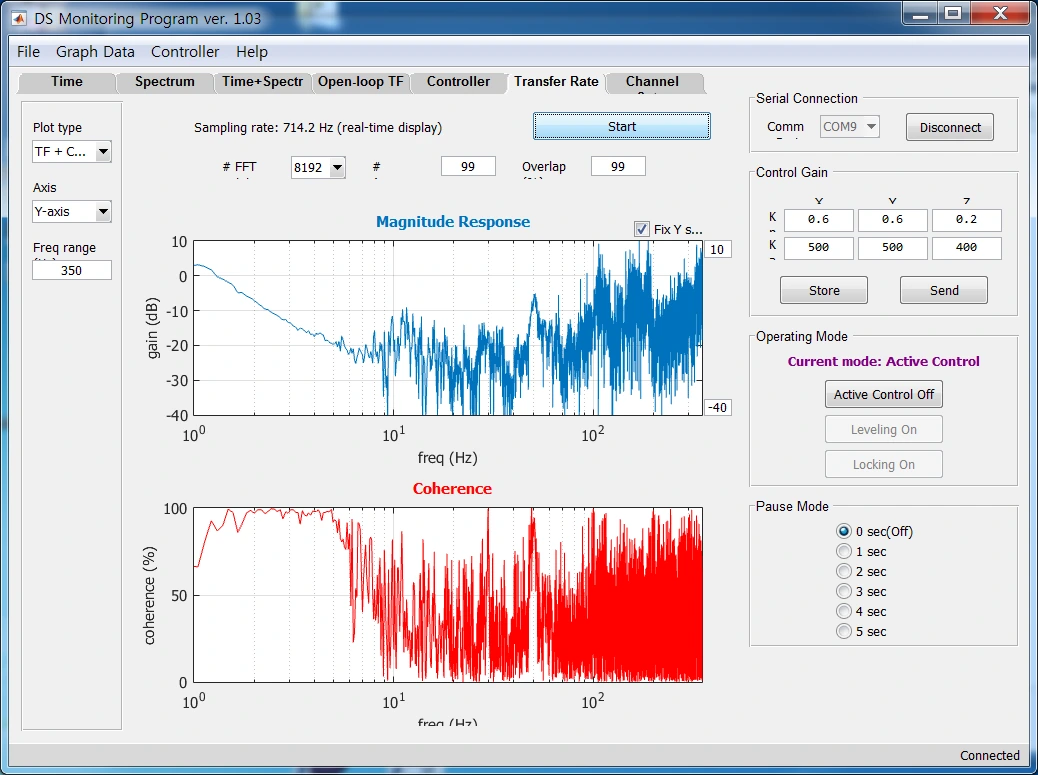

Y axis
Vibration environment measurement result

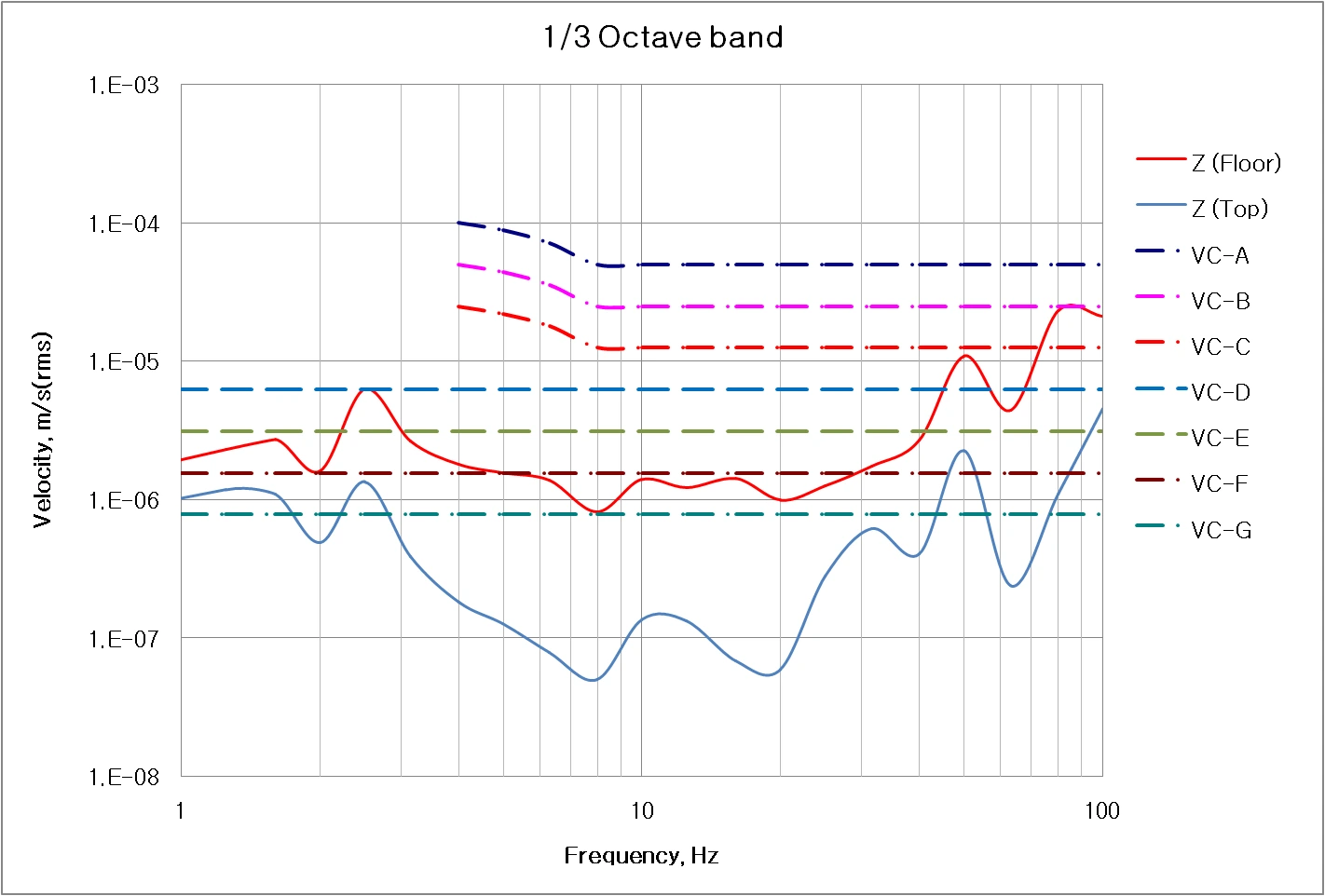

Z axis

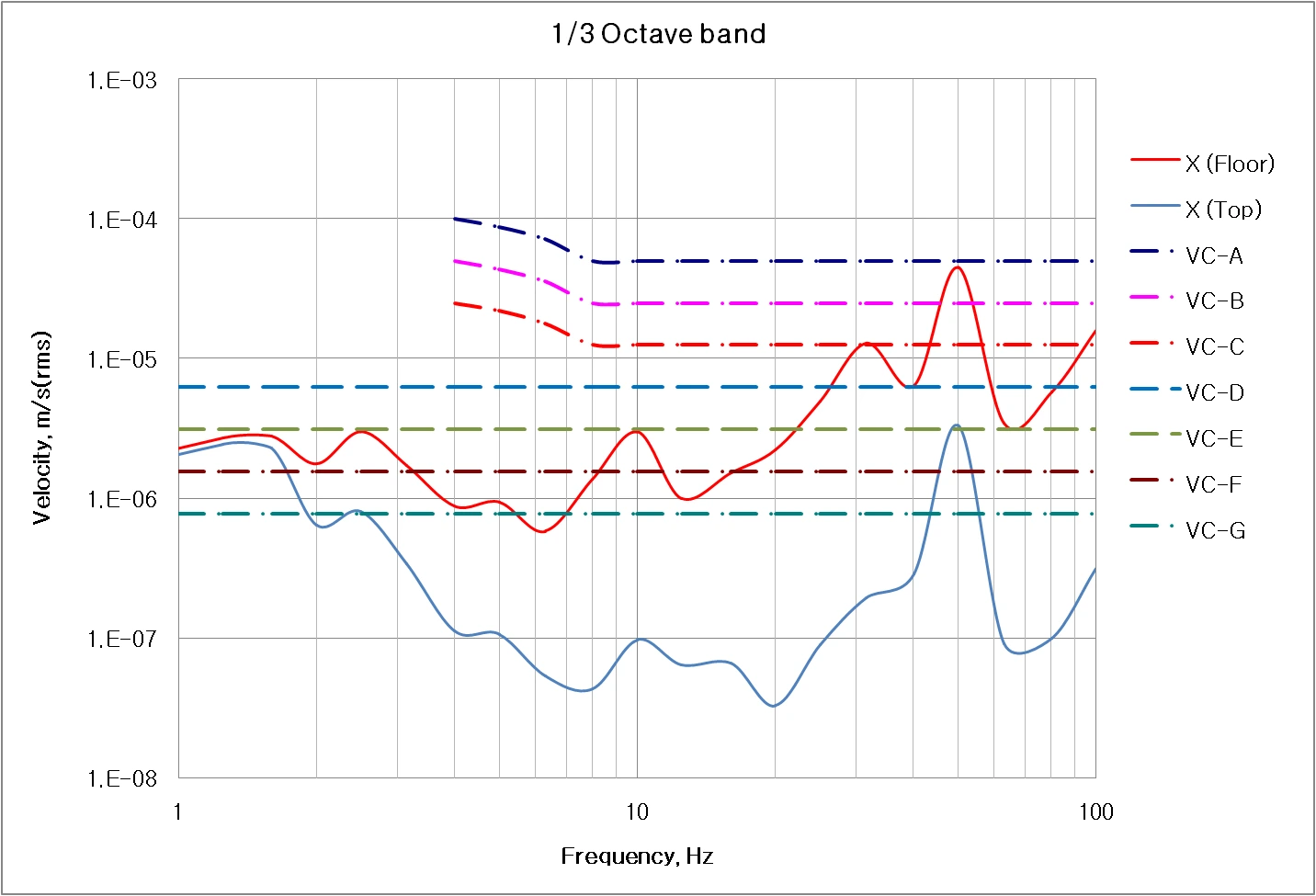

X axis

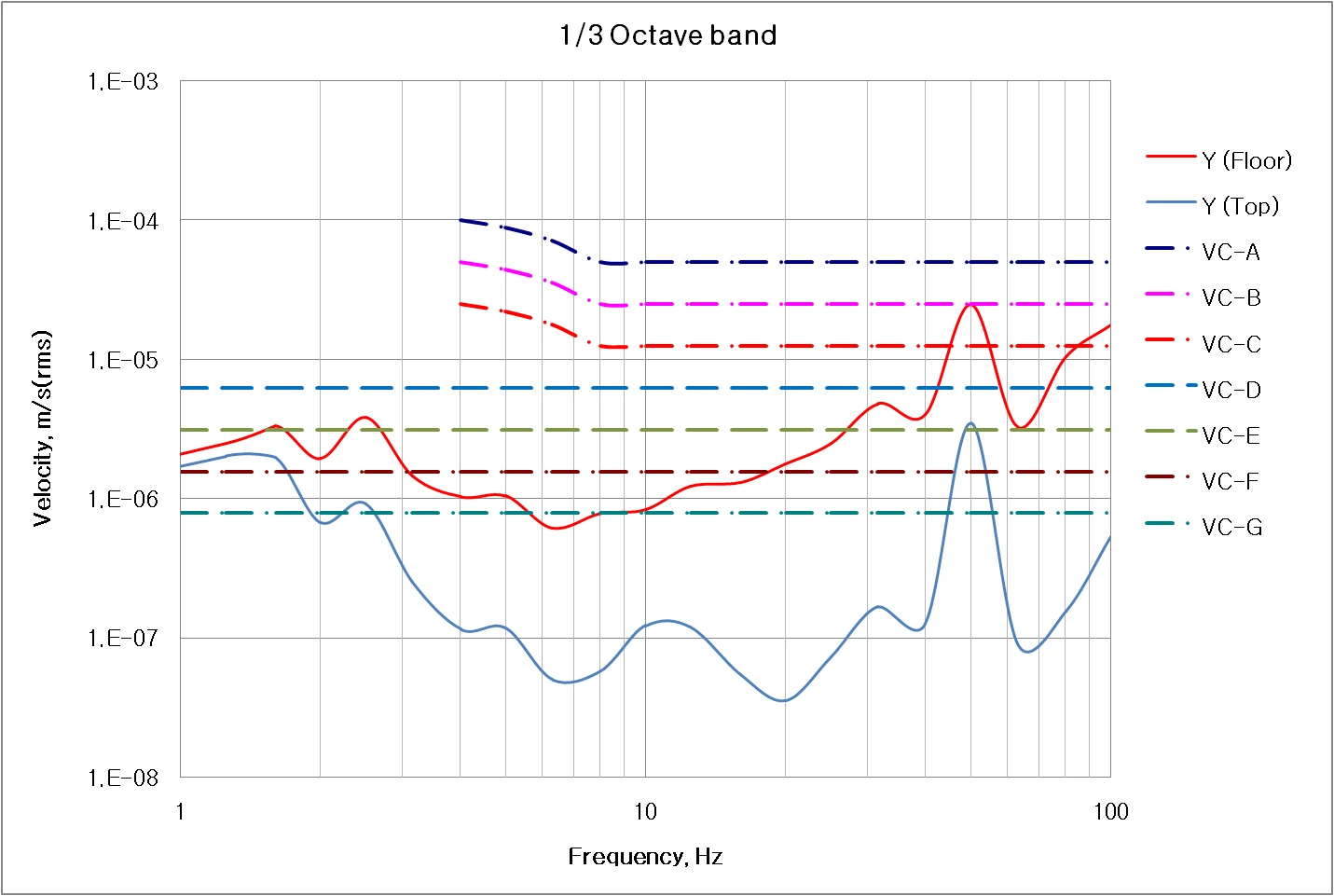

Y axis
