Vibration Isolation Case Studies

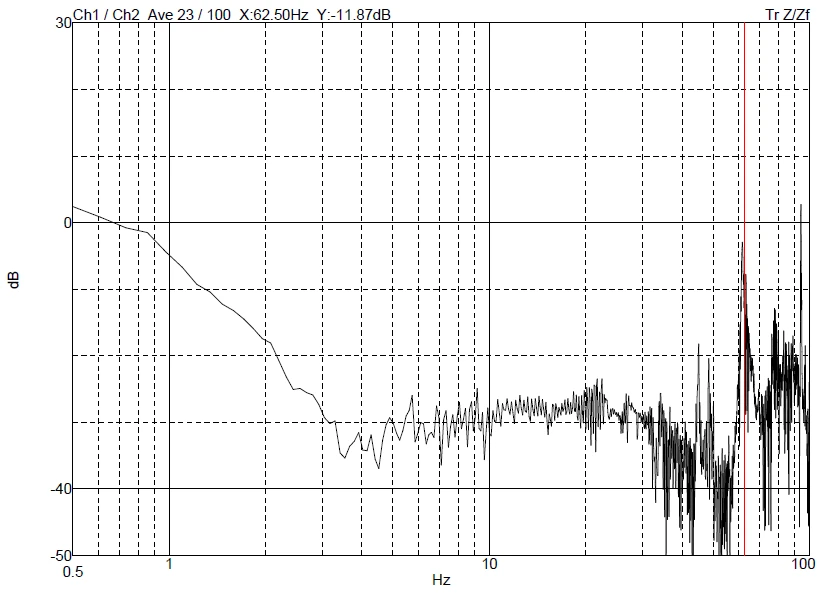

MB1000 program P45 handout for an FEI Apreo HiVac at Tianjin University of Science & Technology: checklist, installation result summary table, MB1000 internal-program Z/X/Y plots, vibration-environment Z/X/Y plots, and PASSIVE vs ACTIVE SEM micrographs. The wide banner image placed before the Word title and the large centered photograph directly under the title line are omitted as title-block decoration.

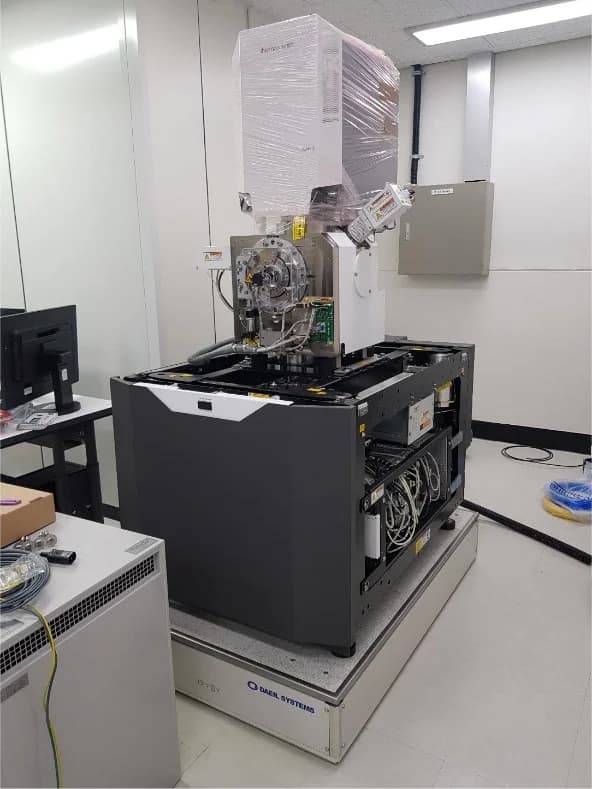

Thermofisher Scientific Apreo 2 SEM DVIA-MB1000 Installation

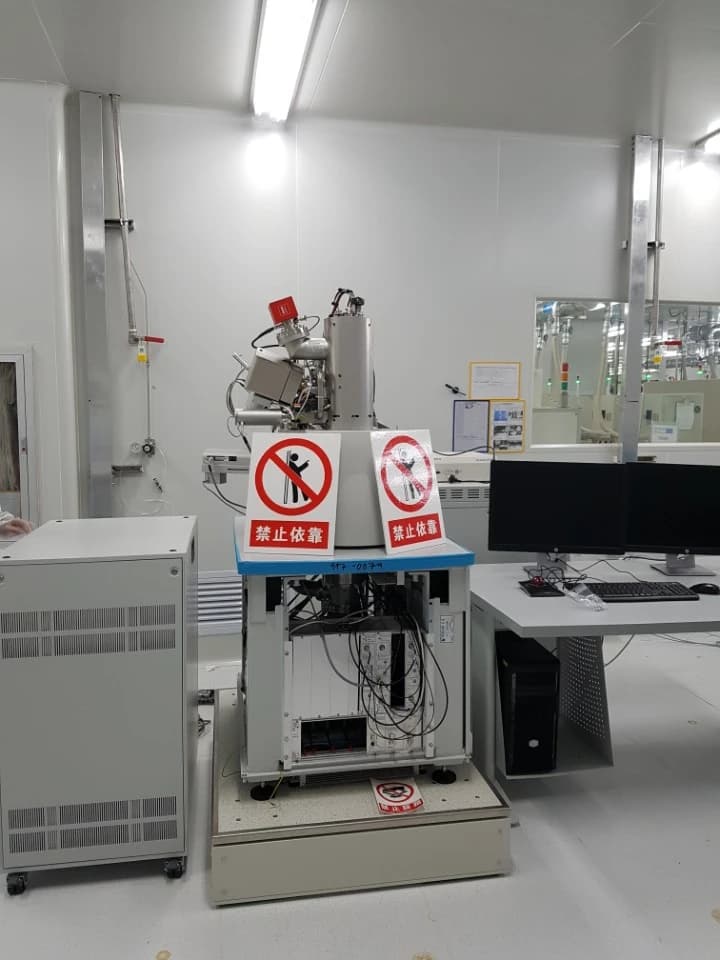

2017-07-20 worksheet for MB1000 program line P44: TESCAN LYRA3 at a corporate R&D lab on the first floor in Yangzhou (China), FAB vibration-isolation context. Trip 2017-07-18 by Lim Jong-wook; VC-Class summary table, on-site installation photograph, MB1000 internal-program Z/X/Y captures, and vibration-environment Z/X/Y plots are published per DOCX §2a (decorative title-strip image1 omitted).

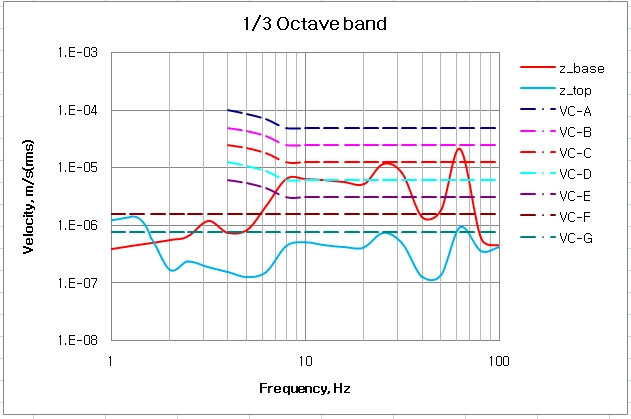

2017 vibration survey at the Tier-1 Electronics Component Manufacturer Suwon site: VC-class summary for floor versus active vibration isolation platform top, plus Z/X/Y 1/3 octave plots with a site photograph.

MB1000 program handout for a JSM-7800F PRIME SEM at a Tier-1 Semiconductor Suwon site (DVIA-MB1000 program P46). Trip 2017-06-30; report 2017-07-05; field engineer Lim, Jong-wook (DAEIL SYSTEMS). Published: target equipment context photo and Z / X / Y vibration environment plots. A decorative header raster from the Word cover block is not published.

2017 field vibration survey at Tier-1 Semiconductor Fabrication Facility Suwon: VC-class summary for floor vs active isolation platform, and Z/X/Y 1/3 octave plots with site equipment photograph.
