Vibration Isolation Case Studies
DAEIL SYSTEMS engineers active vibration isolation systems for the world's most demanding nanoscale imaging and metrology environments.
Series
Equipment Type
Manufacturer
All Case Studies

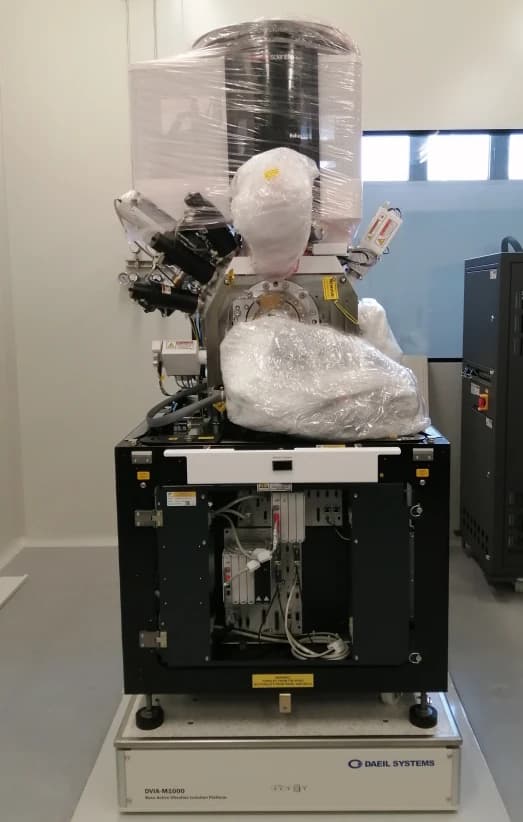

CNITECH Qianwan Institute Thermo Fisher Scientific Helios 5 CX DVIA-MB1000 (191219R3-2) — MB1000 P169 worksheet — 2021.03.11
Ingested from DOCX “MB1000 P169 191219R3-2 21.03.10.docx”. MB1000 P169 worksheet for Thermo Fisher Scientific Helios 5 CX at CNITECH / Qianwan Institute: operator Choi, HyoungMun; setup and measurement 2021-03-10; reporting 2021-03-11. Includes the site summary table, transmissibility summary at 2 Hz / 5 Hz / 10 Hz, the equipment photo used after the report title line, and Z / X / Y MB1000 internal-program plots. No “Reference / Generic Vibration Criteria” section exists in this Word file — the public case does not add one.

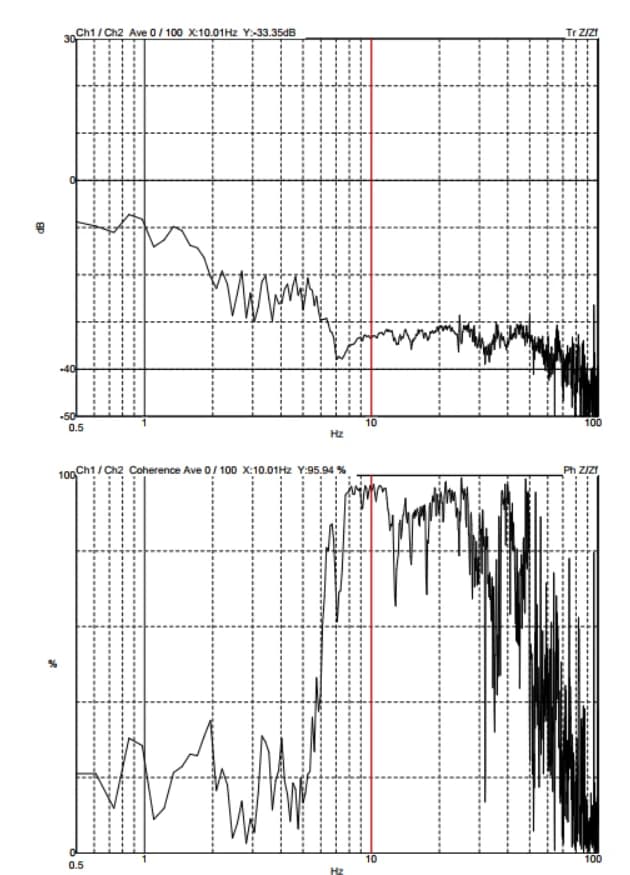

Echeng Iron & Steel (鄂城钢铁) Zeiss Evo 18 DVIA-MB1000 (200630R2 · P198) Remote measurement — Internal program plots — 2021.03.09
DVIA-MB1000 serial 200630R2 (project P198) for Zeiss Evo 18 via channel partner; END USER 鄂城钢铁 (Echeng Iron & Steel) and installation site summary list Hubei. Internal-program plots follow **Z axis**, **X axis**, and **Y axis** headings as in the Word document. The title-line decorative graphic embedded on the centered setup heading paragraph is not republished.

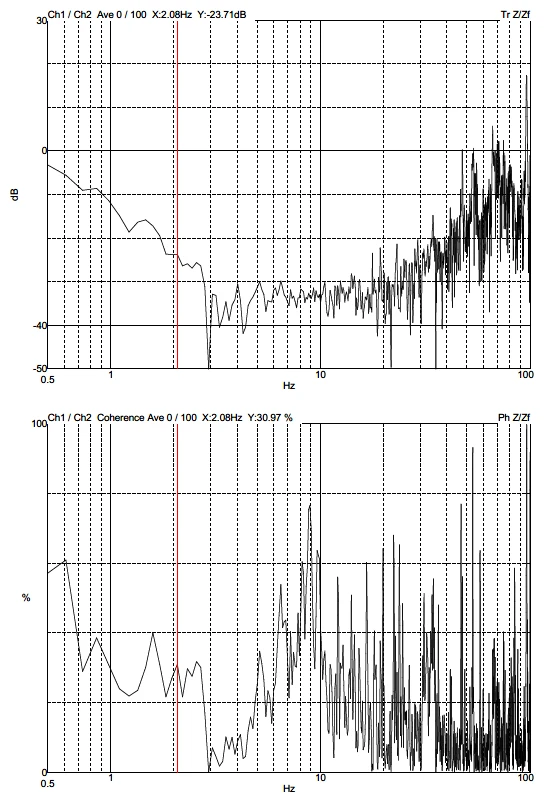

Tsinghua University Thermo Fisher Scientific Aquilos DVIA-MB1000 (201229R2 · P203) Remote tuning worksheet — Internal program plots — 2021.03.02
DVIA-MB1000 serial 201229R2 (project P203) for Thermofisher Aquilos at Tsinghua University, reported via /channel partner channel. Setup and reporting dates 2021-03-02; measurement at Tsinghua University per the form. Publishes transmissibility summary and MB1000 internal-program Z/X/Y screenshots. Decorative image under the MB1000 setup title line is not republished. The source handout has no Reference / Generic Vibration Criteria section — none was added.

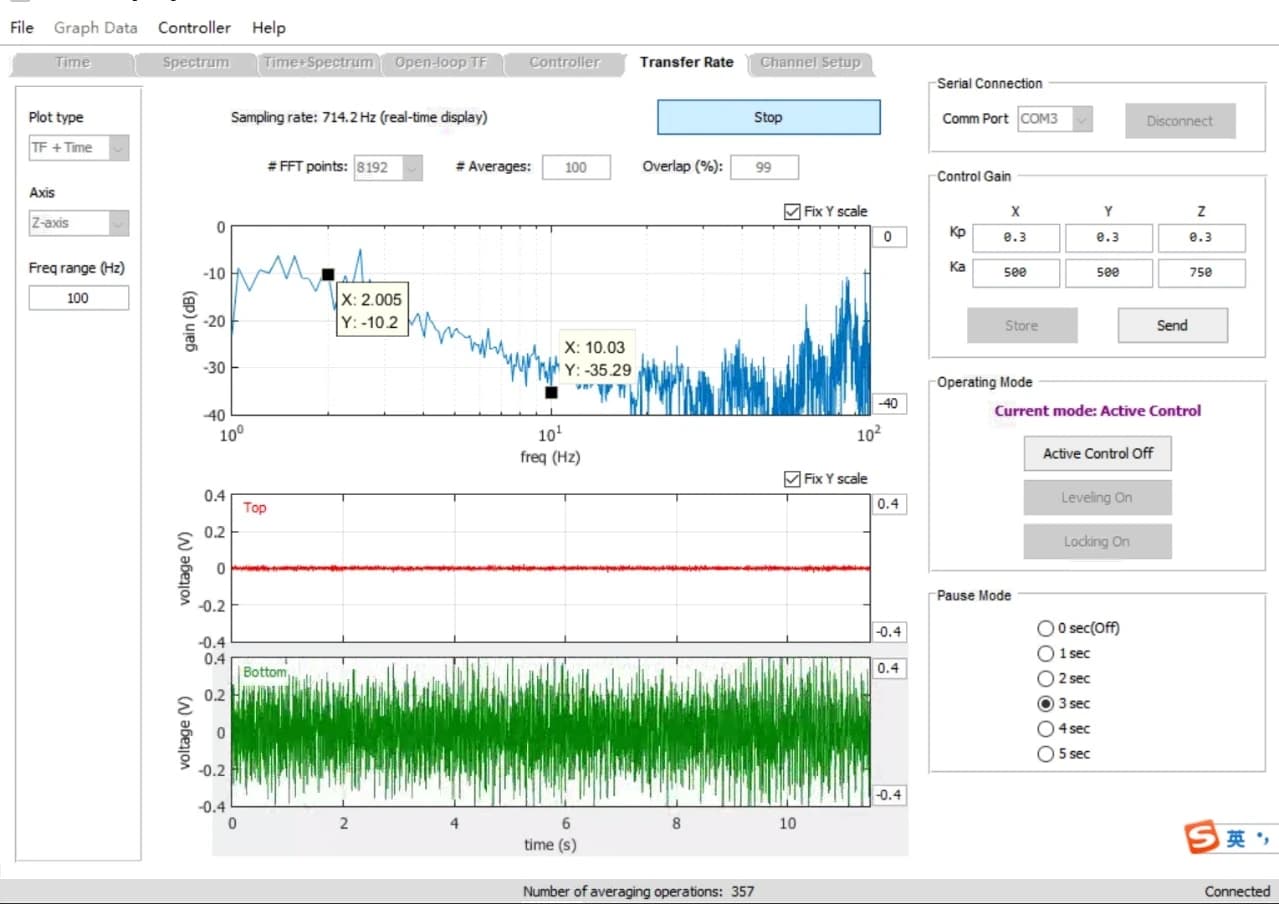

Nanfu Battery Hitachi SU1000 FlexSEM 1000II DVIA-UB350 (201021R4 P1) Remote-Tuning Report
Channel remote-tuning handout (21.02.22) for DVIA-UB350s set 201021R4(P1) under Hitachi SU1000 FlexSEM 1000II at Nanping city, 4F end user 南孚电池. Operator Munho Noh; business trip 17.12.27–17.12.29. Transmissibility at 2 Hz and 10 Hz is tabulated; three MB1000 UI–style internal-program displays are published for Z, X, and Y axes. The JPEG under the title line before the summary tables is omitted as a title-block graphic.

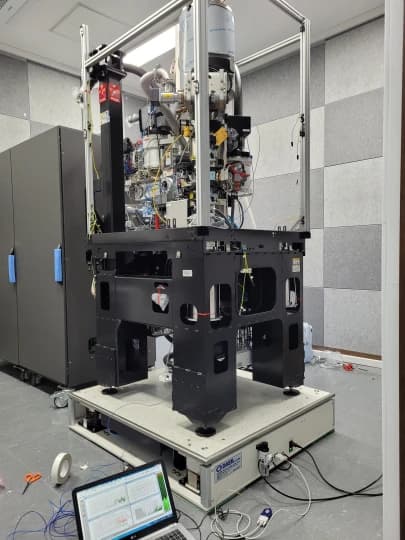

Seoul National University Thermo Fisher Glacios TEM DVIA-MB1000 (MB1000_P218) Installation Report
DVIA-MB1000 field report (MB1000_P218) at Seoul National University with Thermo Fisher BS Glacios (TEM): B&K PULSE measurement VC plots, summary table, MB1000 internal program captures, and vibration criterion curve screens for Z / X / Y.
KIST TESCAN AMBER X DVIA-MB1000 (P219) Installation and Measurement — 2021.02.10
