Vibration Isolation Case Studies
DAEIL SYSTEMS engineers active vibration isolation systems for the world's most demanding nanoscale imaging and metrology environments.
Series
Equipment Type
Manufacturer
All Case Studies
Institute for Basic Science Main Building Ultrasonic Equipment DVIA-UD350 P29 Pulse Worksheet Installation Report
May 2021 B&K PULSE 14 worksheet at Institute for Basic Science (main building, 2F) after active mounting of ultrasonic equipment on DVIA P29: VC-Class Floor vs Above Active summary table, UD350 internal-program Z / X / Y screenshots, and octave-band Floor vs Above Active plots. Pulse VC auxiliary captures (DOCX images 5–6) and orphaned media 2–4 omitted in favour of the summary table; the source form has no Reference section.
Institute for Basic Science Main Building Ultrasonic Equipment DVIA-UD350 P28 Pulse Worksheet Installation Report
May 2021 B&K PULSE 14 worksheet at Institute for Basic Science (main building, 2F) after active mounting of ultrasonic equipment on DVIA P28: VC-Class Floor vs Above Active summary table, UD350 internal-program Z / X / Y screenshots, and octave-band Floor vs Above Active plots. Generic VC reference rasters embedded under the title block (DOCX image5–6) are omitted because the source has no Reference section.
Shanghai University of Science and Technology TESCAN Mira DVIA-MB1000 (210309R5 · P214) Remote measurement — Internal program plots — 2021.04.30
DVIA-MB1000 serial 210309R5 (project P214) for TESCAN Mira reported by /channel partner; installation-site table lists Shanghai university floor 2 while transmissibility and internal-program screenshots were gathered in Shenzhen per the Measurement date block. Figures follow Z axis, X axis, and Y axis as in Word; ornamental title-block photo after the centered heading line is not republished.
ZEISS Gemini 300 DVIA-MB1000 (201123R3) Internal Program Performance — Shenzhen — 2021.04.28
Field handout — DVIA-MB1000 serial 201123R3 (P210) for ZEISS Gemini 300 in Shenzhen; end user Tencent. Earlier transmissibility summary (21.03.09, Hubei, ZEISS Evo 18) and MB1000 internal-program Z/X/Y plots from the Word package. Ornamental JPEG after the setup title line is not republished.

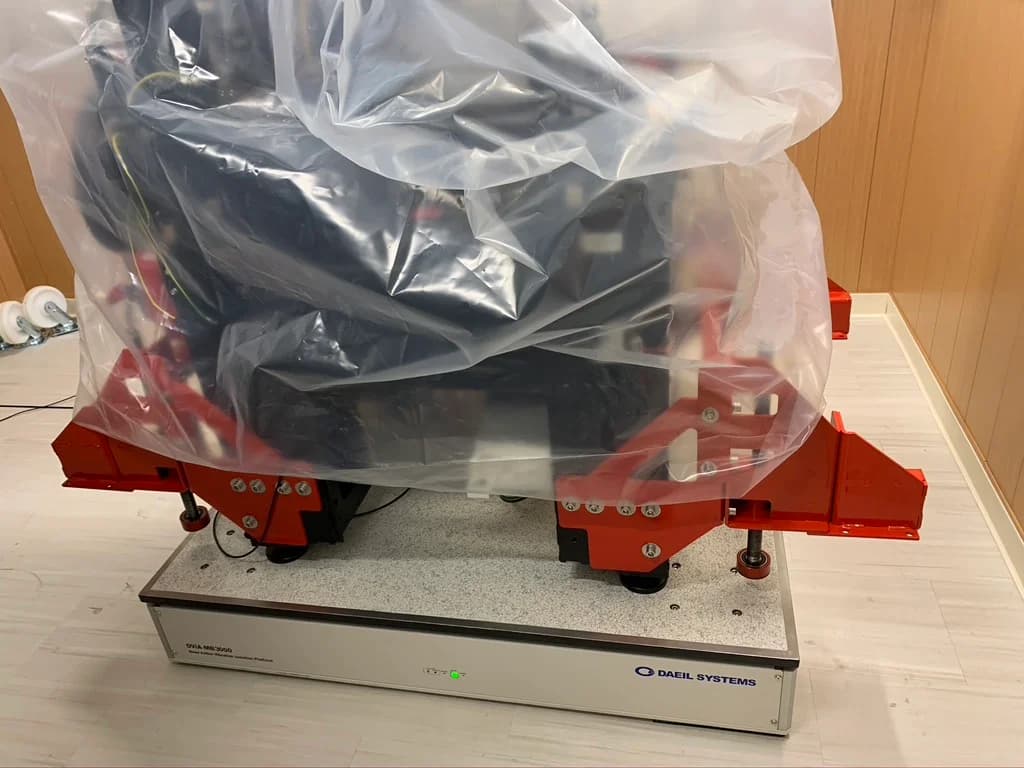

Novartis Thermo Fisher Scientific Glacios DVIA-MB3000 (201012R5) Installation Report — 2021.04.21
DVIA-MB3000 (serial 201012R5, internal P15) remote VEC worksheet for Thermo Fisher Scientific Glacios at Novartis (MA): transmissibility and VC-class summary tables, MB1000 internal program axis plots, and VEC measurement graphics. Setup and measurement 2021-04-21; reporting 2021-04-22; operator Doohyun Kim (DAEIL SYSTEMS, research engineer). Historical business-trip window 2017-12-27~2017-12-29 per report header.

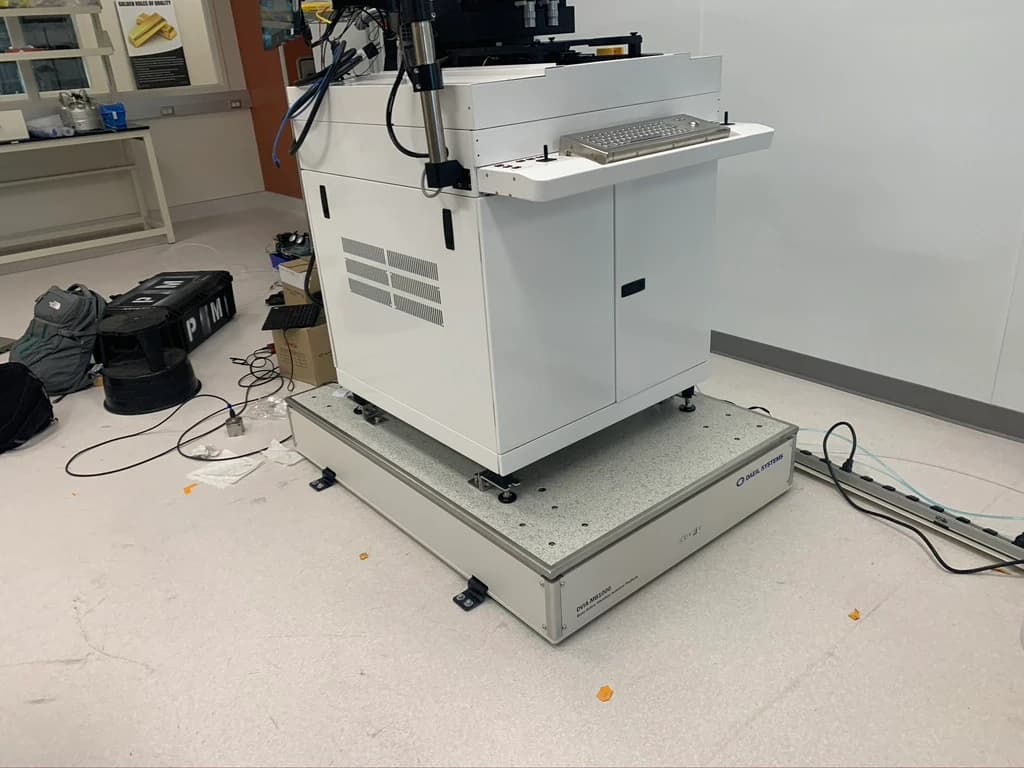

Thermo Fisher Scientific NXQ8000 Mask Aligner DVIA-MB1000 remote VEC (210302R3) Installation Report — 2021.04.20
Remote VEC worksheet for DVIA-MB1000 (serial 210302R3, internal P224) under THERMO FISCHER NXQ8000 Mask Aligner at Thermo Fisher Scientific, CA (B1). Operator Doohyun Kim; measurement 2021-04-08; setup and reporting dates as stated on the form; business trip window per header. Publishes equipment photograph, MB1000 internal program axis plots, and VEC measurement axis plots extracted from Word. The source handout has no Reference / Generic Vibration Criteria section — none was added.
