Vibration Isolation Case Studies

DVIA-U1000 compact installation worksheet (serial 220718R9) for Fujian Sanbao Steel Co., Ltd. with Thermo Scientific Apreo 2C HiVac in Fujian, China. Setup and measurement 23.04.27, reporting 22.05.02 per source form, business trip 17.12.27~17.12.29; engineer Youngha Lee. VC-Class summary (floor B/B/A vs platform D/C/C), UB1000 internal-program Z/X/Y captures, and octave-band floor vs active plots. Decorative Word header ribbon (image1) omitted.

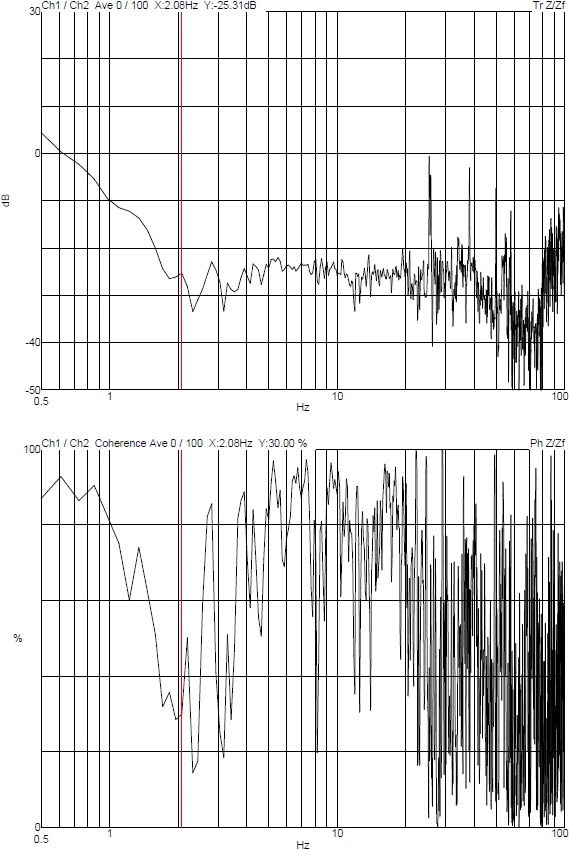

Zhejiang Qiyue Technology Co., Ltd., Self-made SEM, serial 230209R1. MB1000 internal program and Octave Band Result plots (Z / X / Y).

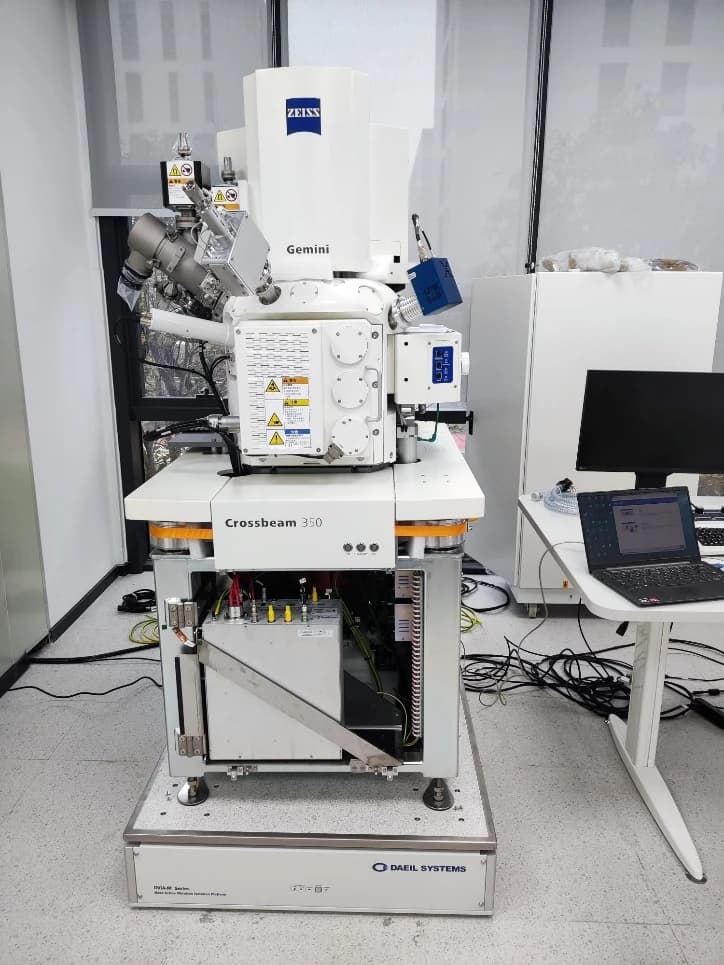

DVIA-M1000 (220728R1) field set-up for Crossbeam 350 at NINGBO. Summary table, reporting dates, MB1000 internal program Z / X / Y performance screens, and installation photo.

Hitachi SU8010 at Sun Yat-sen University on DVIA-M1000 (220126R7-1) — MB1000 internal program performance plots for Z, X, and Y.

DVIA-M1000 installation worksheet for Sun Yat-sen University: Hitachi SU8010 in Guangdong; measurement 2023-04-12 with operator Youngha Lee (DAEIL SYSTEMS). The worksheet has no vibration specification, equipment status, tuning request, measurement summary table, or Reference section. Section title reads “MB1000 internal program performance measurement result” with Z axis, X axis, and Y axis plots. Decorative header raster after the university line was omitted from the public page.

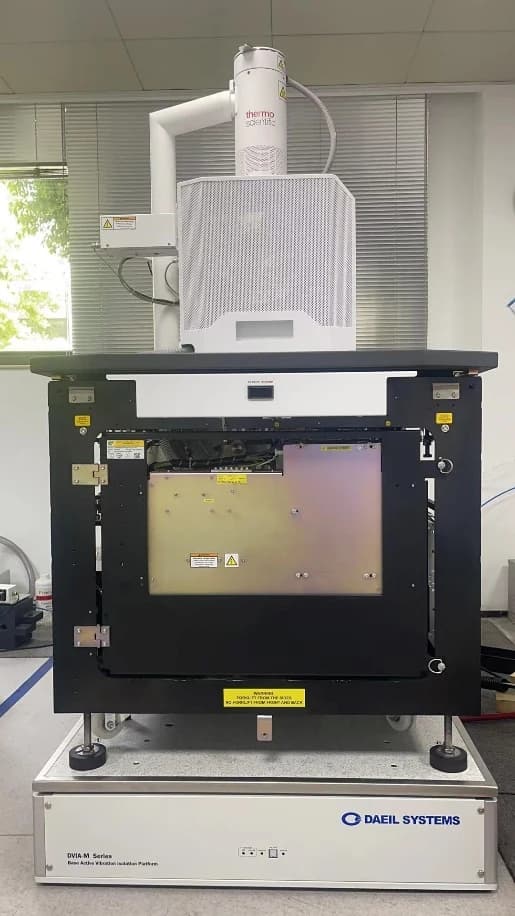

Compact worksheet — DVIA-M1000 serial 220329R4 at Jiangsu Longda Superalloy. Banner decoration omitted; published set-up photograph only. MB1000 internal-program section lists Z / X / Y headings without embedded VC or spectrum images in the file set. Reference uses the standard Generic Vibration Criteria markdown table.
