Vibration Isolation Case Studies

DVIA-M1000 installation report (serial 240207R3) for Thermo Fisher Scientific Helios 5 FIB-SEM, prepared for Guiyang Zhenhua Technology in Guiyang City, China. Overview states the platform is appropriately installed and functioning as intended. Equipment condition: The equipment is uninstalled. UI-program transmissibility (vertical, left-to-right, front-to-back); Reference uses the standard Generic Vibration Criteria markdown table (no separate reference graphic).

GRGT Shanghai — Thermo Fisher Helios G5 CX FIB-SEM on DVIA-M1000 (SN 221107R1); internal program measurement plots for Vertical, Left to Right, and Front to Back.

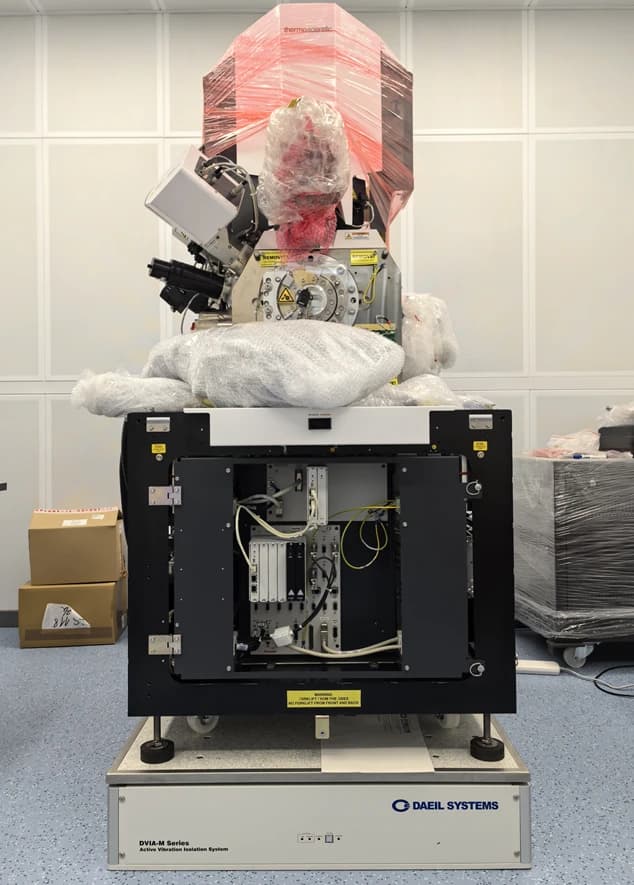

DVIA-M1000 installation report (serial 240507R6) for Shenzhen Weiguang in Shenzhen, China. Thermo Fisher Scientific Cryo FIB-SEM Aquilos. Overview states the platform is appropriately installed and functioning as intended. The published form has no separate vibration specification section or measurement summary table. Equipment condition: The equipment is installed. Tuning request UI capture; vertical, left-to-right, and front-to-back transmissibility; on-site equipment photo; Reference uses the standard Generic Vibration Criteria markdown table (no separate reference graphic).

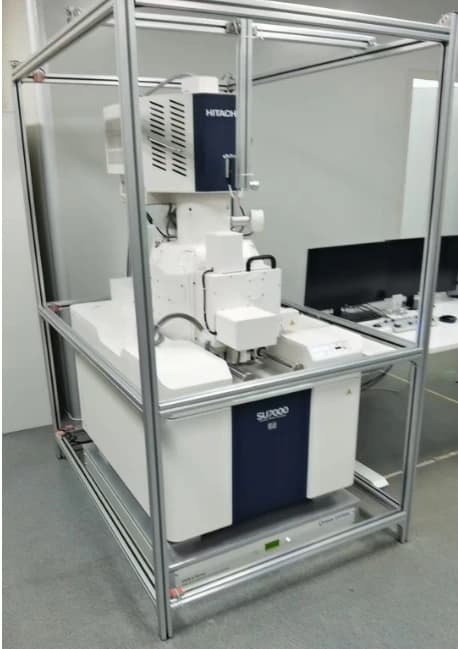

DVIA-U1000 compact installation worksheet (serial 230330R1) at Shanghai Public Security Bureau with HITACHI SU7000 in Shanghai. Setup 24.08.05, reporting 24.08.07; Overview measurement dated 2024.08.05 (Monday); operator Chaewon Lee from DAEIL SYSTEMS; business-trip line 17.12.27~17.12.29. Publication includes installation photograph plus U1000 internal-program Vertical / Left to Right / Front to Back screenshots in Word segment order.

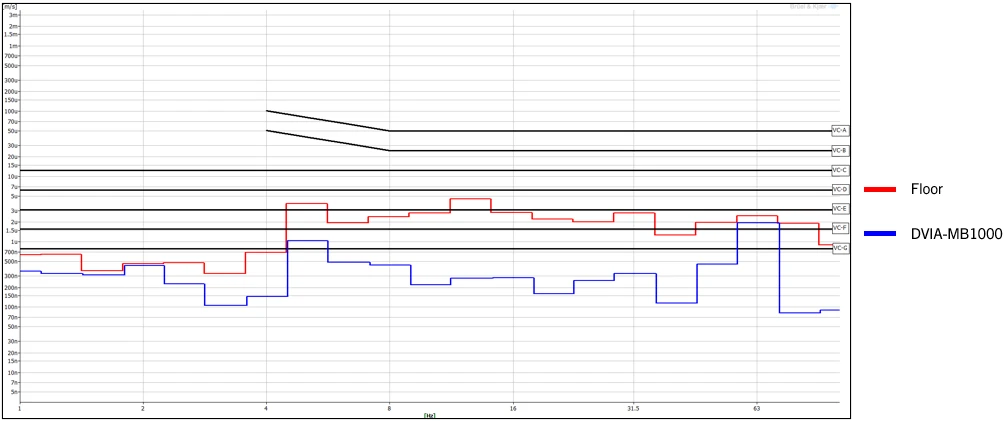

DVIA-MB1000 (serial 140408R5) tuning and vibration measurements after relocation at Lotte World Mall Tower (“Garden Five”) Songpa for BRUKER Korea Demo실 hosting ZEISS FE-SEM SUPRA 55VP. Engineer 이채원 (Daeil Systems); tuning and reporting on 2024-08-02. Nine plots publish in DOCX §2a order (vertical / left-to-right / front-to-back × VC curves, narrow-band spectrum, transmissibility). Title-block decorative bitmap (image1 before Vertical VC Curves) and the Generic Vibration Criteria raster under 참고자료 are omitted in favor of the standard VC reference markdown table.

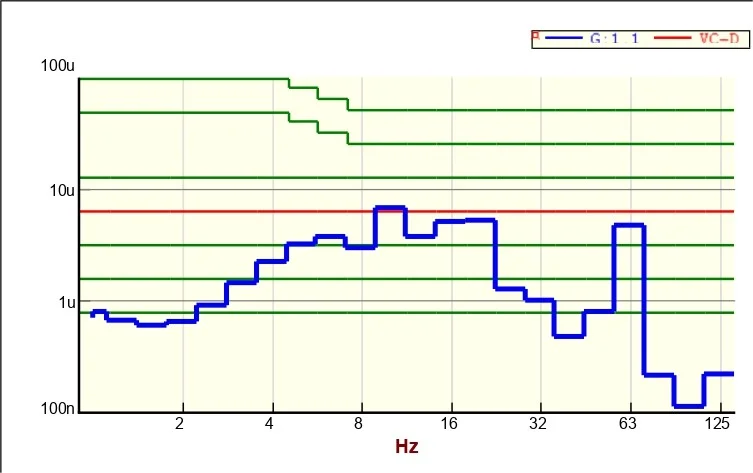

Hitachi SU8220 DVIA-U350 Installation
