Vibration Isolation Case Studies

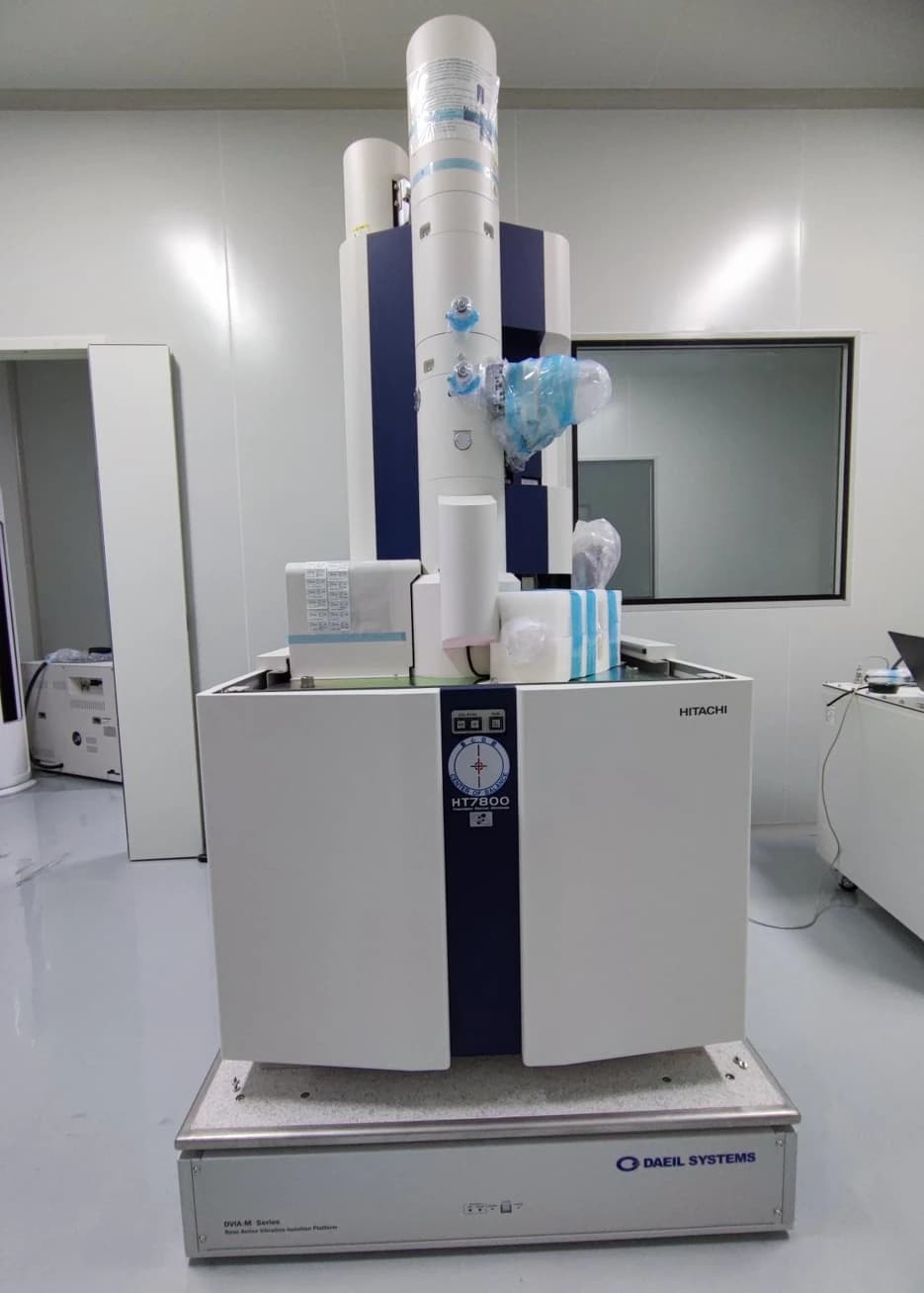

DVIA-M1000 SN 220707R5 at Suzhou — HT7800 target equipment; MB1000 internal program plots and octave-band results from the installation report.

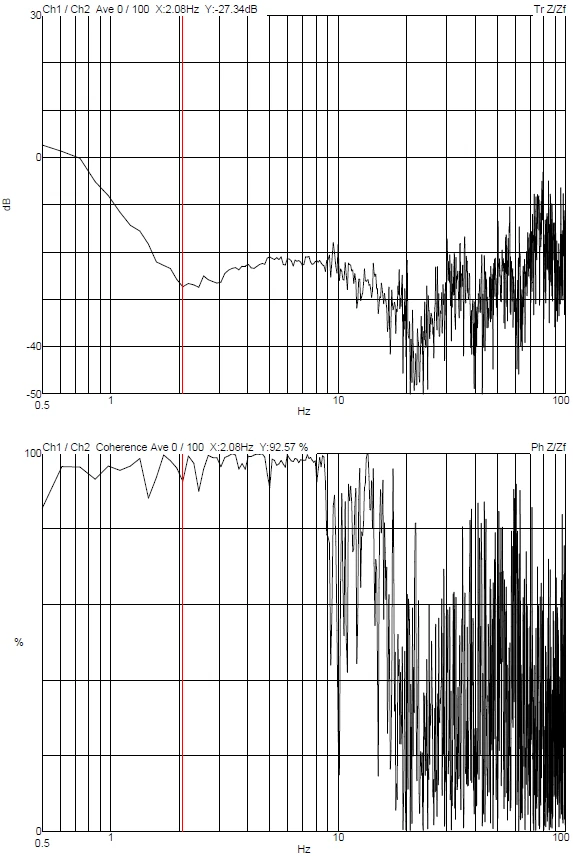

DVIA-M1000 inventory serial 211020R6-2 — Shanghai Jiao Tong University worksheet (target equipment model TBD, measurement in Shanghai, 2022.10.27). Internal-program screenshots under Z / X / Y axis headings match the DOCX §2a embed order for image3–5. Decorative image behind the institution line and the title-block graphic under the setup subtitle are omitted from publication.

DVIA-U1000 installation worksheet (serial 211026R3-3) for the Shanghai Synchrotron Radiation Facility with Prisma E as target equipment. Reporting 22.10.27 following setup 22.10.19; measurement on 2022.10.19 (Wednesday). Overview states the DVIA-U1000 platform is appropriately installed and functioning as intended. Published captures are three U1000 internal program screens for Z, X, and Y axes. Decorative title-block bitmap under the facility header was omitted from publication.

DVIA-M1000 serial 211216R7 — RUFENG CHEM handout for ZEISS Sigma300 in Shandong: overview and metadata from the published form; M1000 internal program performance UI plots for Z, X, and Y axes. Cover-only header rasters before the Overview section are not republished.

DVIA-U1000 compact installation worksheet (serial 160628R6) for ZEISS EVO18 at JINSHA SITE MUSEUM, Chengdu, China. Setup 22.10.24 with reporting 22.10.25; measurement 2022.10.24 (Monday); business trip 17.12.27~17.12.29. Published setup photo and U1000 internal-program Z/X/Y measurement screens; decorative Word header ribbon (image1) omitted.

DVIA-UB700 active isolation platform (serial 160628R6) installation report for ZEISS EVO18 at JINSHA SITE MUSEUM, Chengdu, China. Tuning 2022-10-24, report written 2022-10-25; business-trip line 17.12.27~17.12.29. Publication includes Z / X / Y-axis transmissibility plots and equipment photograph. Decorative header bitmap (image1) omitted from the public page.
