Tier-1 Semiconductor Sensofar S neox DVIA-UD350 (P24) Installation Report
Contents

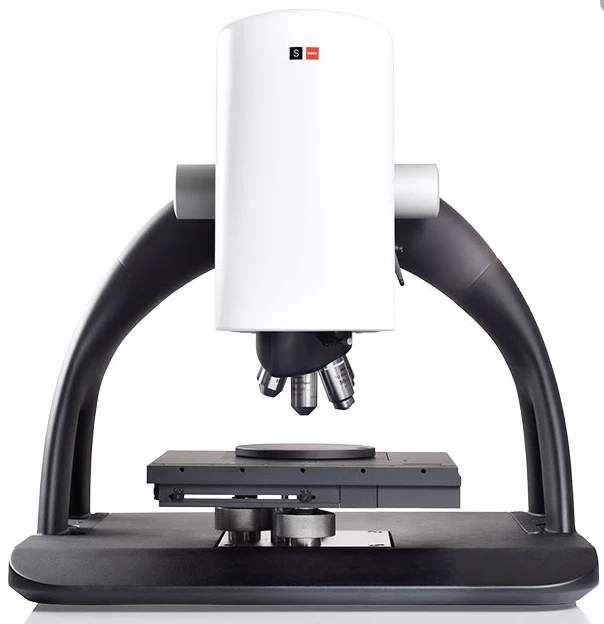

Tier-1 Semiconductor (UD350_P24 Set_Up)
Site checklist
| Target equipment | Sensofar S neox |
|---|---|
| Place of installation | MLCC 측정실 3층 |
| Remark | Good Performance |
| END USER | Tier-1 Semiconductor |
Operator and dates
| Operator: Choi, Hyoung Mun Date of setup : 20.11.20 Date of reporting : 20.11.23 | Date of business trip : 17.12.27~17.12.29 |
|---|
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment. Measurement date: 2020.11.20 (FRI), Operator: Daeil System, Manager Choi, Hyoung Mun Place of measurement : MLCC 측정실 3층 Equipment Model: Sensofar S neox Measurement conditions and results - DAQ System : B&K PULSE 14 & LAN-XI Type 3056 - Accelerometer : PCB PIEZOTRONICS 393B05 - Frequency Range : 0.7 ~ 200Hz Summary of measurement results Test Condition VC-Class Z X Y Floor A E C Above Active F G F Good omnidirectional performance.
Measurement summary (VC-Class)
| Test Condition | VC-Class |
|---|---|
| Z | |
| Floor | A |
| Above Active | F |

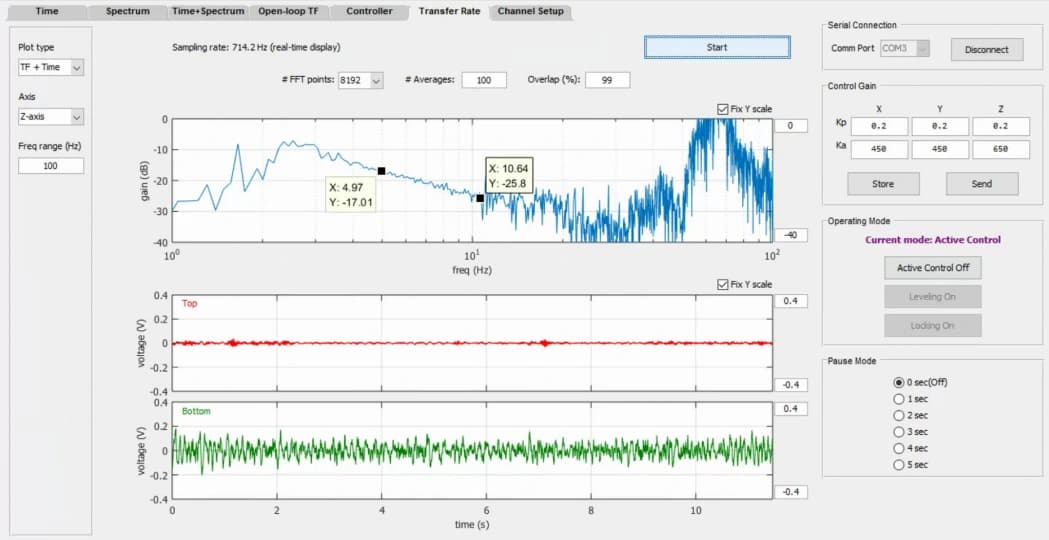

UD350 internal program performance measurement result

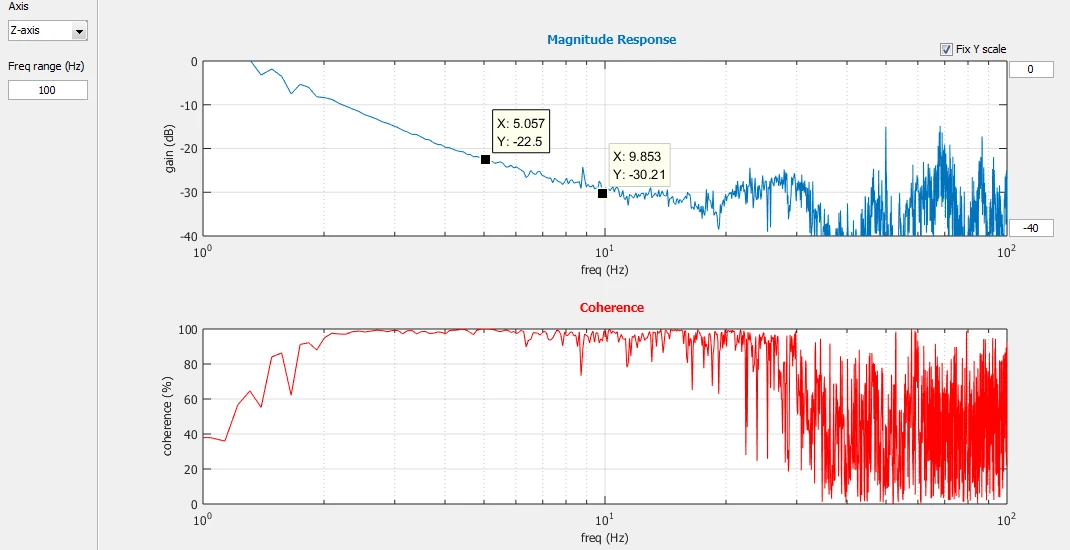

Z axis (internal program)

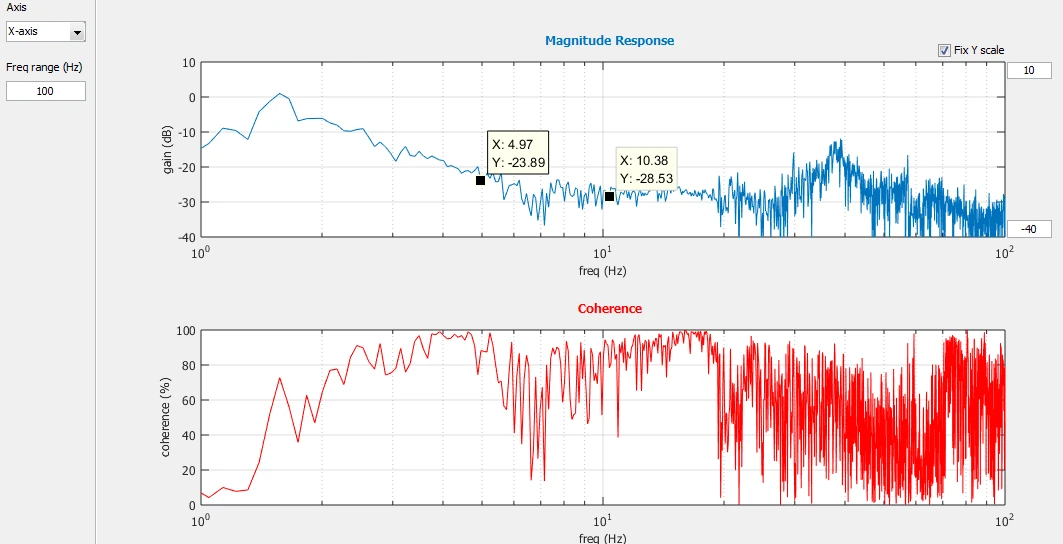

X axis (internal program)

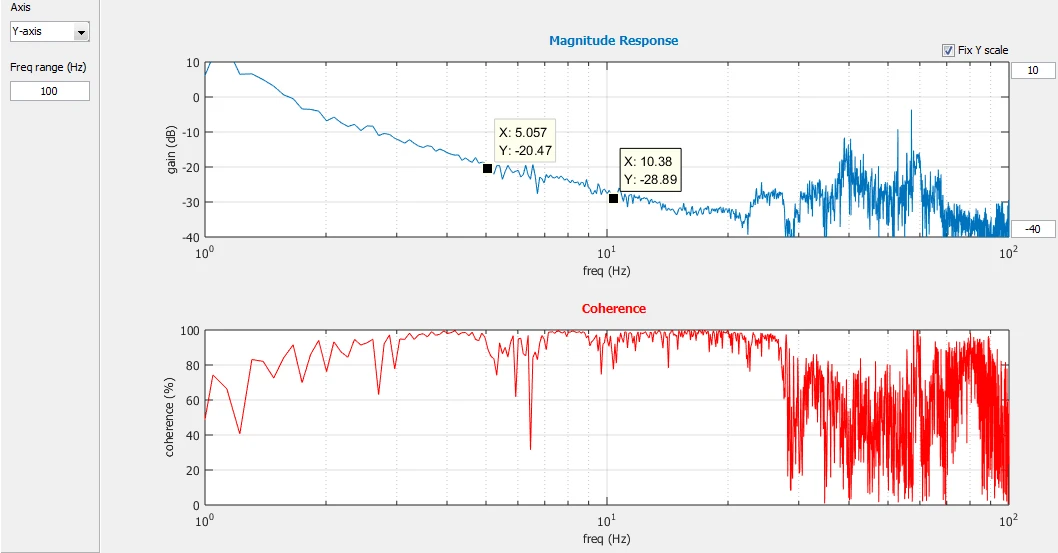

Y axis (internal program)
Octave Band Result (Floor, Above Active, Stage, Head)

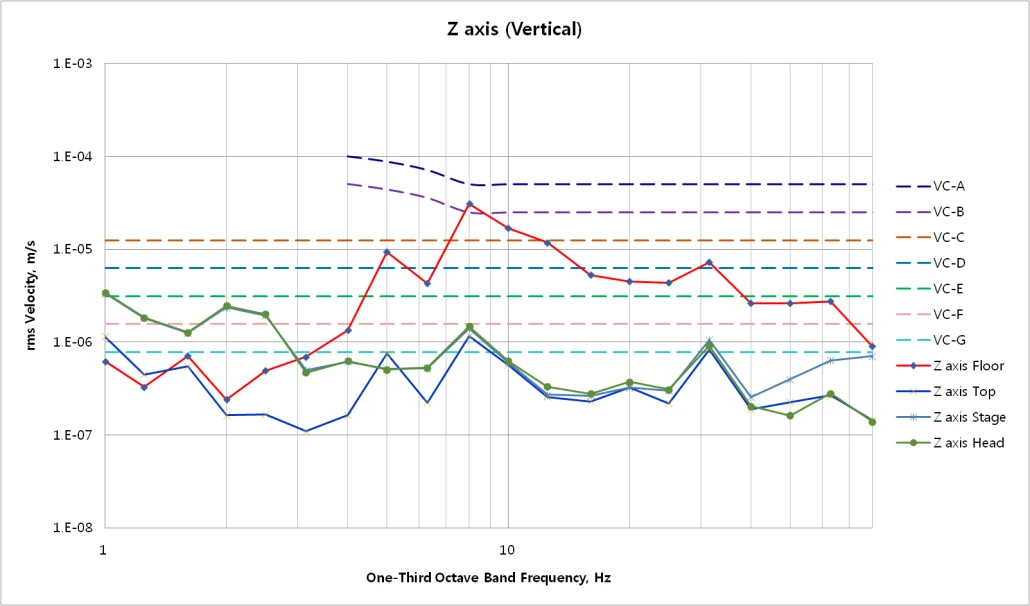

Z axis (octave band)

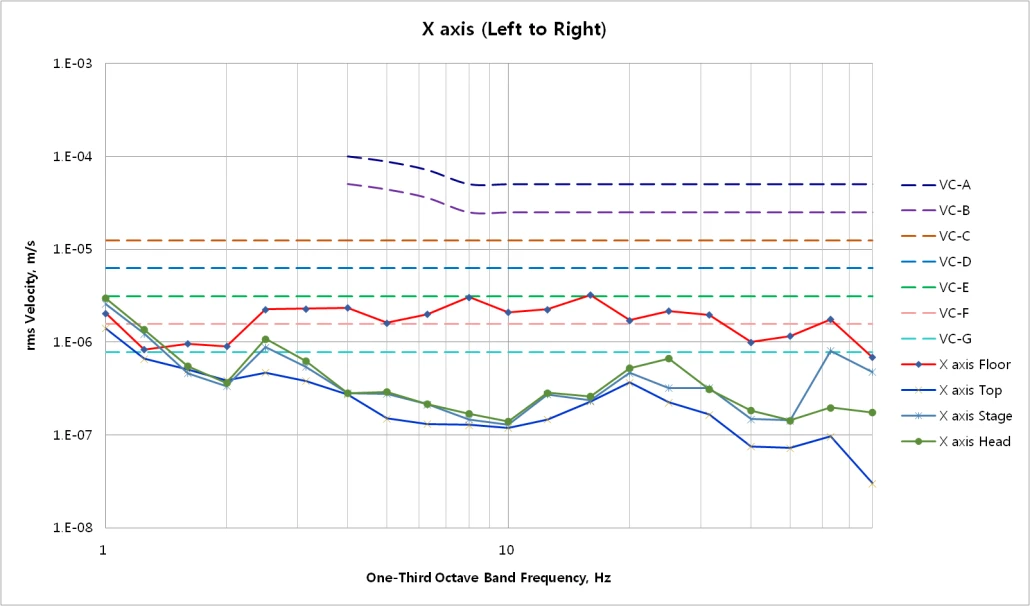

X axis (octave band)

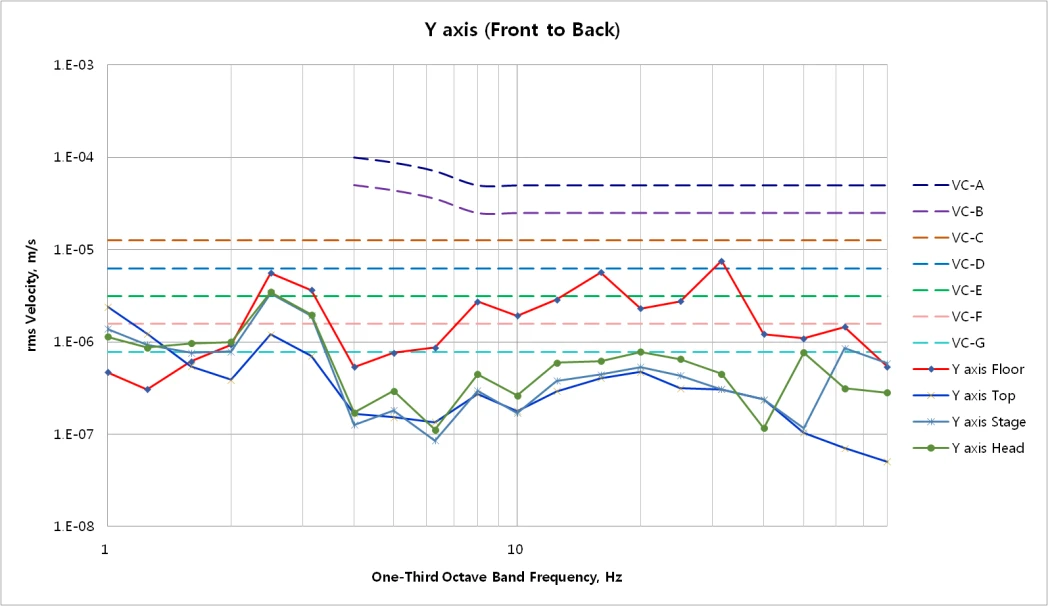

Y axis (octave band)
Octave Band Result (Floor, Z-Center, Z1, Z2, Z3, Z4)

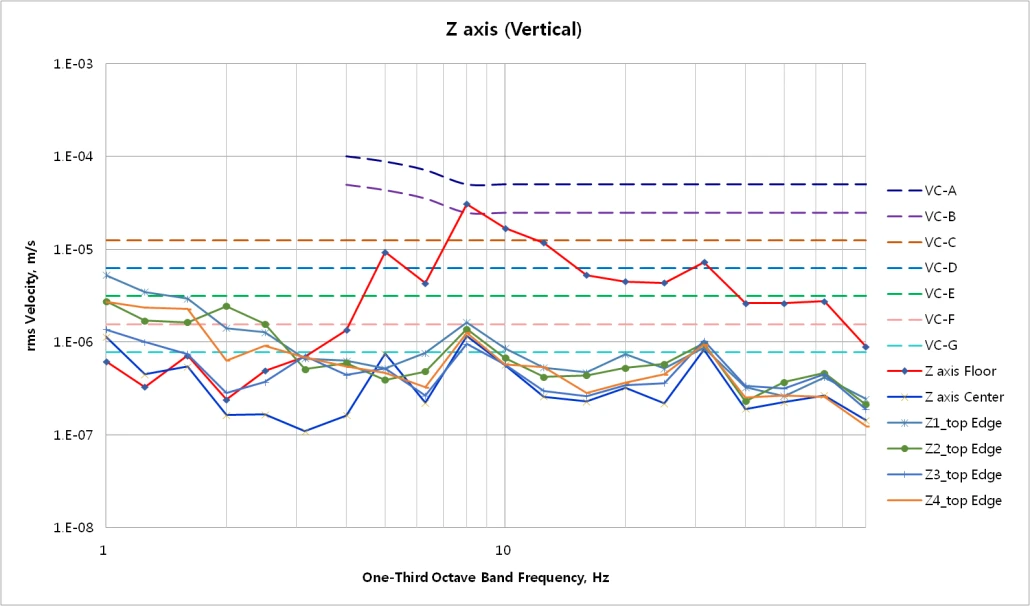

Z axis (octave band, Z-Center)
Reference
*Notes:*
- As measured in one-third octave bands over 8-80 Hz (VC-A/B) or 1-80 Hz (VC-C through VC-G).
- Detail size refers to width in microelectronics fabrication or particle size in medical research.
