Tier-1 Semiconductor 1F Analytical Laboratory SEM-Testbed DVIA-ULF700 (250708R1-2) Installation Report
Contents
Overview
Tier-1 Semiconductor 1층 분석실에 설치된 DVIA-ULF700 튜닝 및 진동측정 진행하였습니다.
장비 Turned on/IDLE 상태로 튜닝 및 진동 측정 진행하였습니다.
튜닝 및 진동 측정 당시 제진대 위에 탑재된 장비에서 진동이 발생하고 있었습니다. 이는 튜닝 및 진동측정에 영향을 줄 수 있습니다.
Data를 VC Curve로 표기 후 진동 수준에 대한 Reference 자료를 제공합니다.
Vibration isolation platform
Model: DVIA-ULF700
Serial number: 250708R1-2
Engineer
대일시스템 필드엔지니어 이채원
Installation date
2026년 3월 19일
Report written date
2026년 3월 20일
Measurement date
2026년 3월 19일
Installation site
Tier-1 Semiconductor 1F analytical laboratory
End user
Tier-1 Semiconductor
Customer equipment
Manufacturer: Tier-1 Semiconductor
Equipment: SEM-Testbed
Model: -
Equipment specification
N/A
Equipment status
장비 설치 및 Turned on/IDLE
Measuring equipment
10.1) Data Physics DAQ
Hardware: QUATTRO, Serial Number: 22436
Software: SignalCalc ACE
10.2) Accelerometer
PCB Accelerometer
Model: 393B05
Vibration measurement setup
F Span: 200 Hz
Lines: 3200
Engineering Units: m/s
Window: Hanning
Averaging: FFT Spectrum Averaging
Averaging mode: Exponential, 40
Conclusion
VC-G vibration—the lowest criterion level—was measured in all directions across the full measurement band.
Measurement summary
| Measurement site | Measurement point | Equipment status | Axis | Floor vibration | DVIA-ULF700 |
|---|---|---|---|---|---|
| Tier-1 Semiconductor 1F analytical laboratory | 1. Floor vibration 2. DVIA-ULF700 | Turned on/IDLE | Vertical | VC-G @ 1 Hz | VC-G @ 1 Hz |
| Left to Right | VC-G @ 1 Hz | VC-G @ 1 Hz | |||
| Front to Back | VC-G @ 1 Hz | VC-G @ 1 Hz |
Data and image

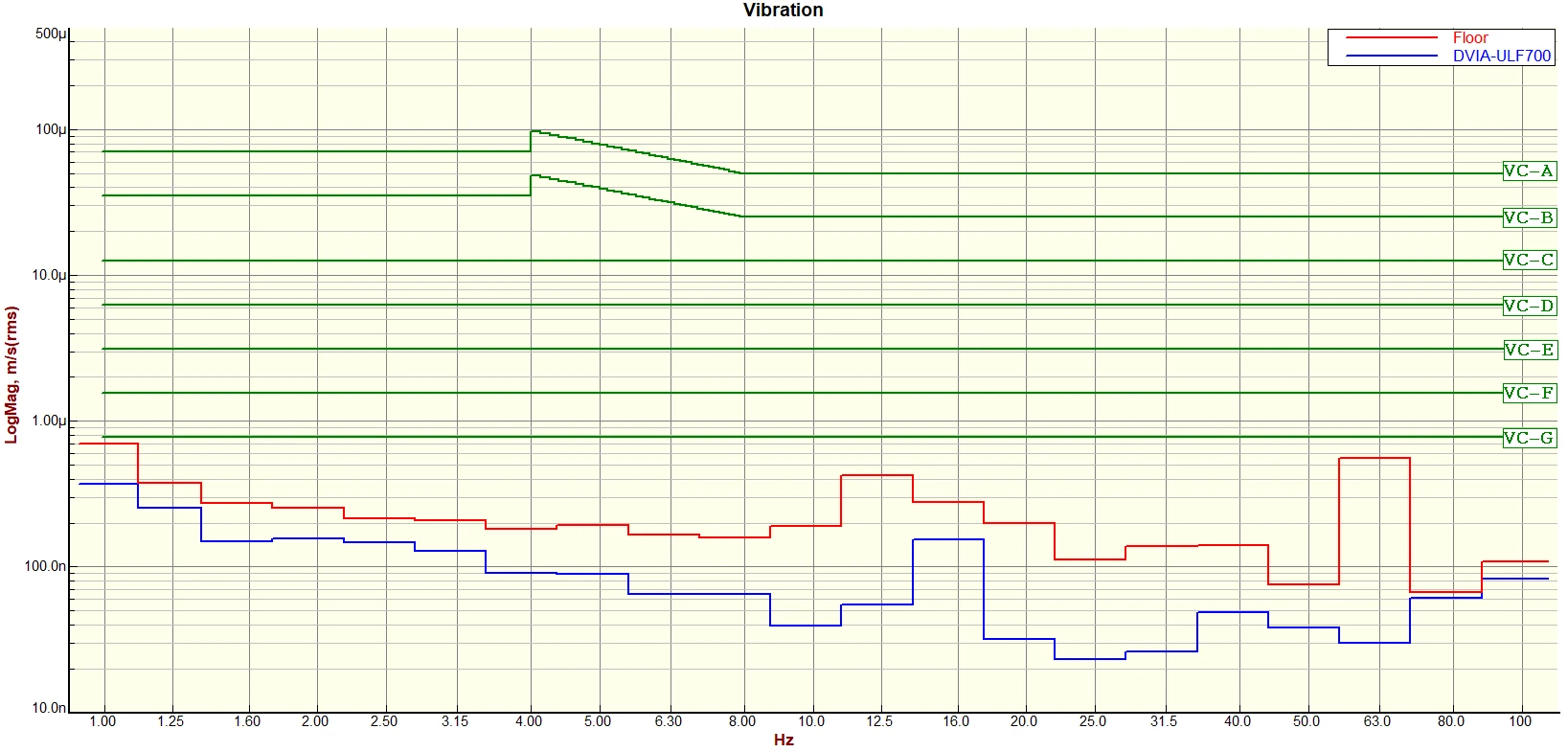

Vertical VC Curves

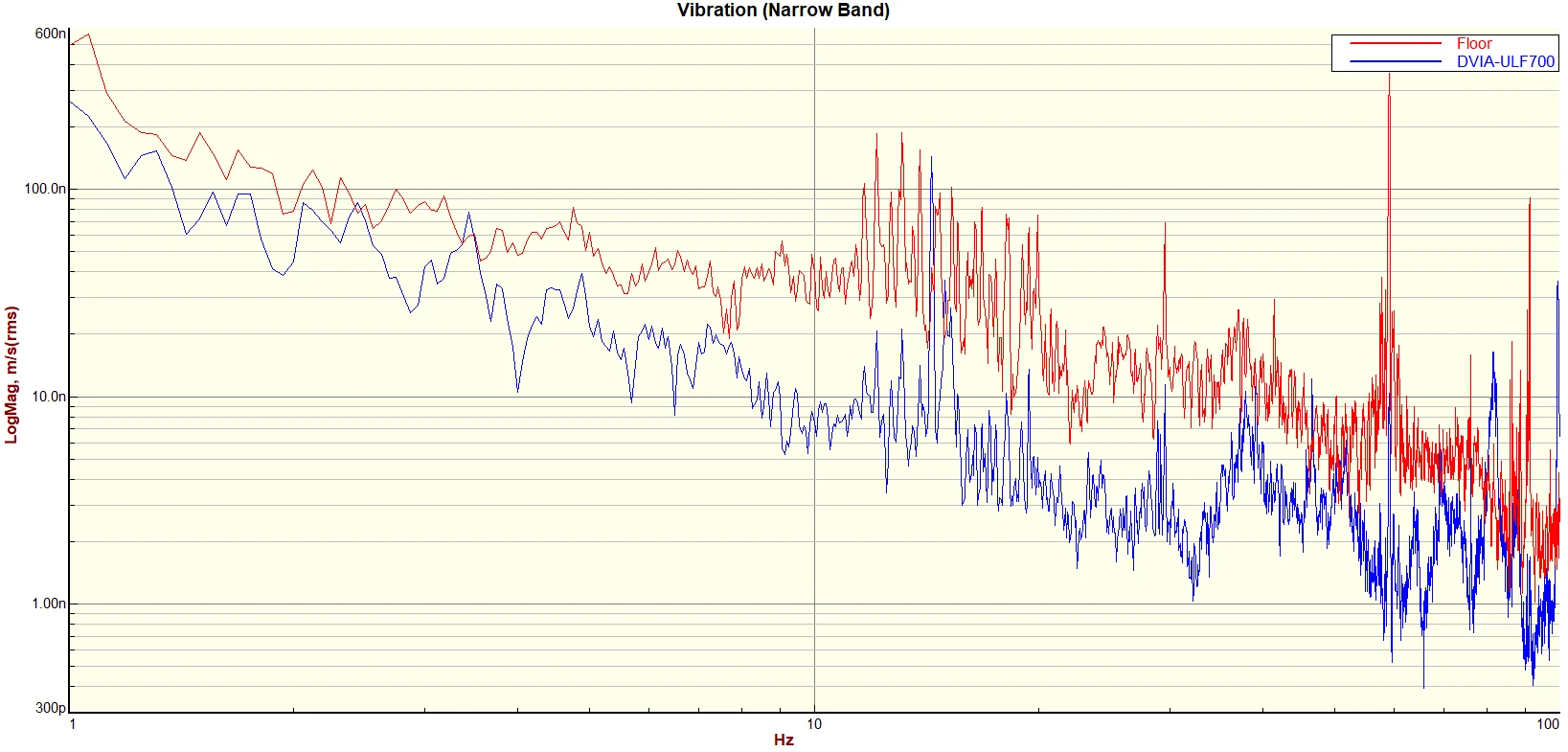

Vertical Autospectrum

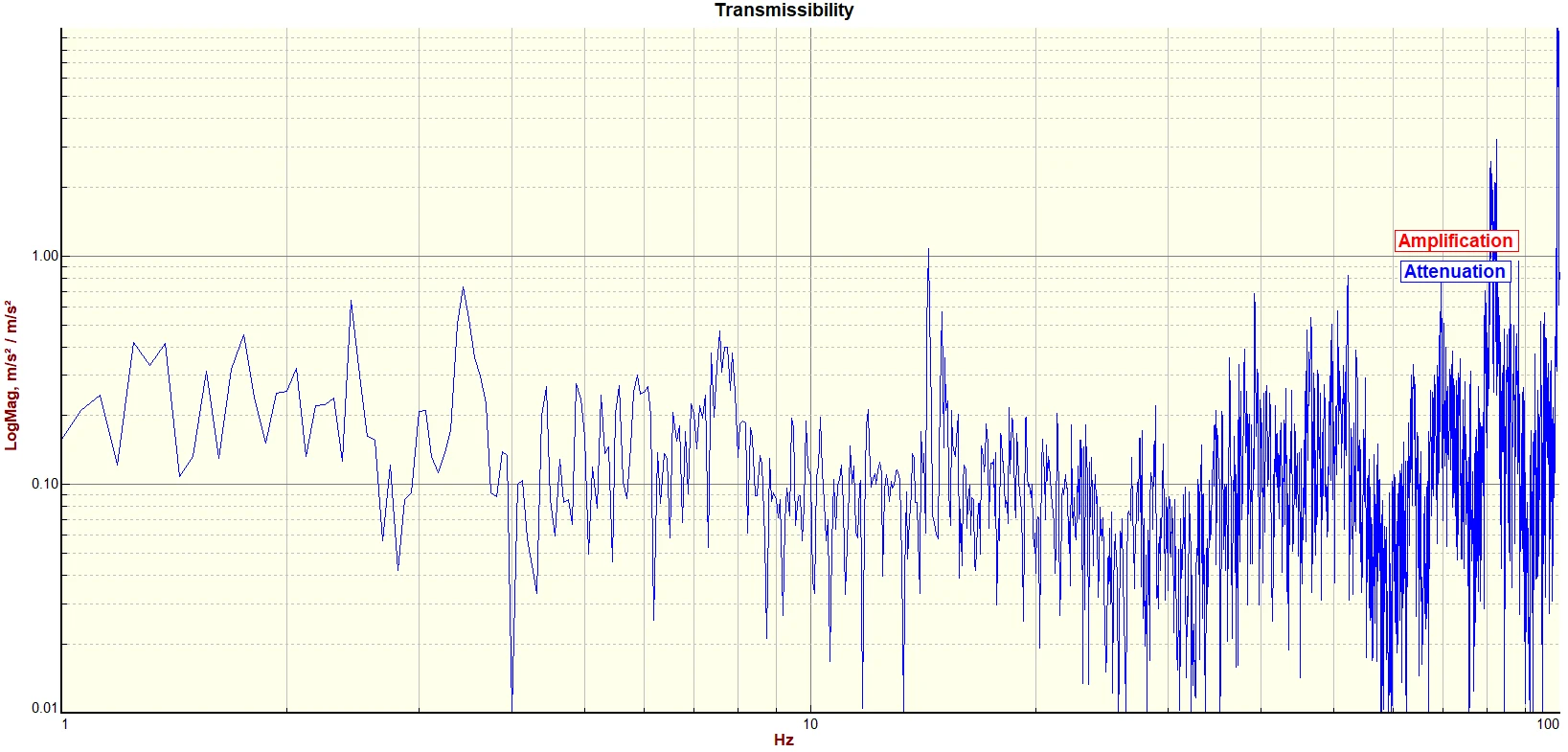

Vertical Transmissibility

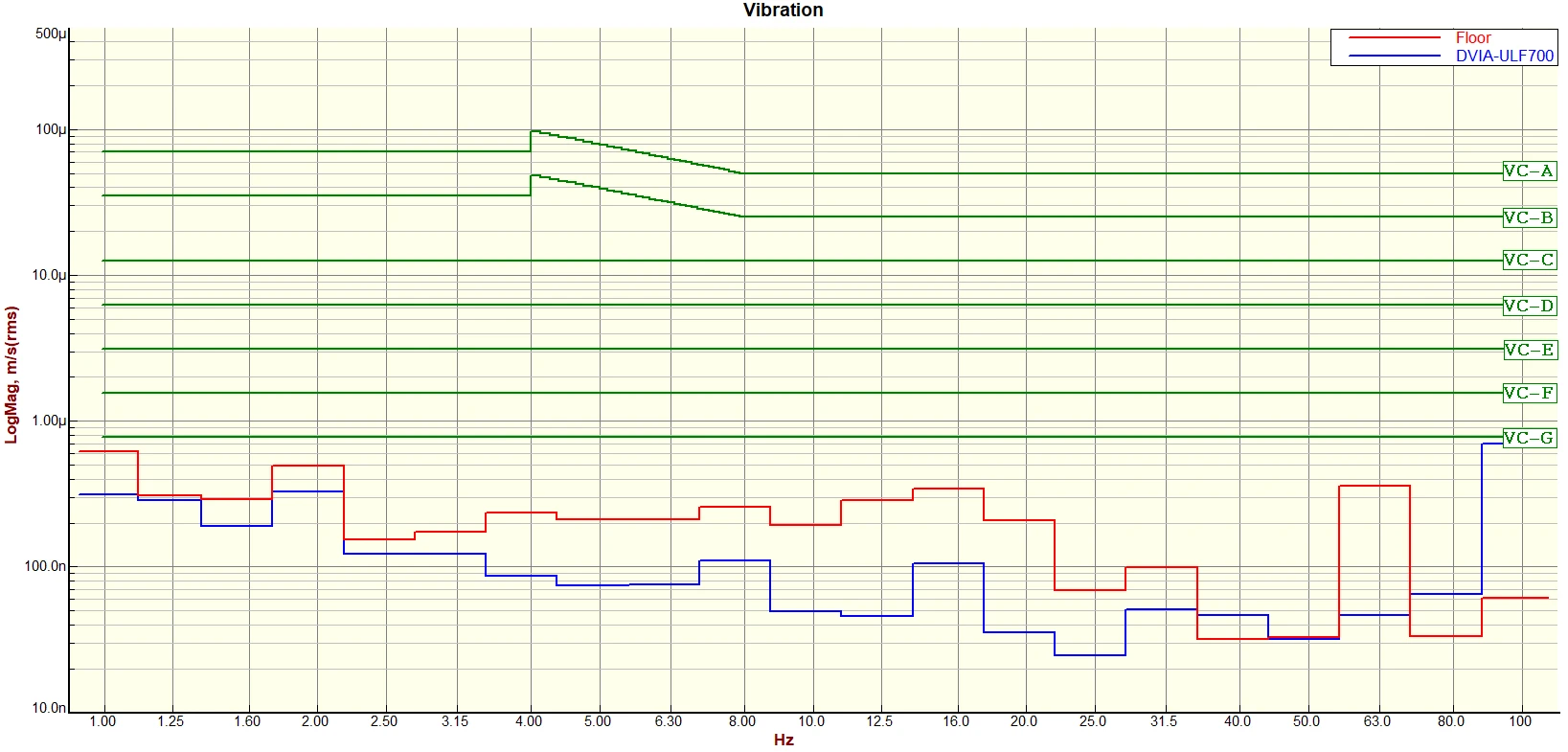

Left to Right VC Curves

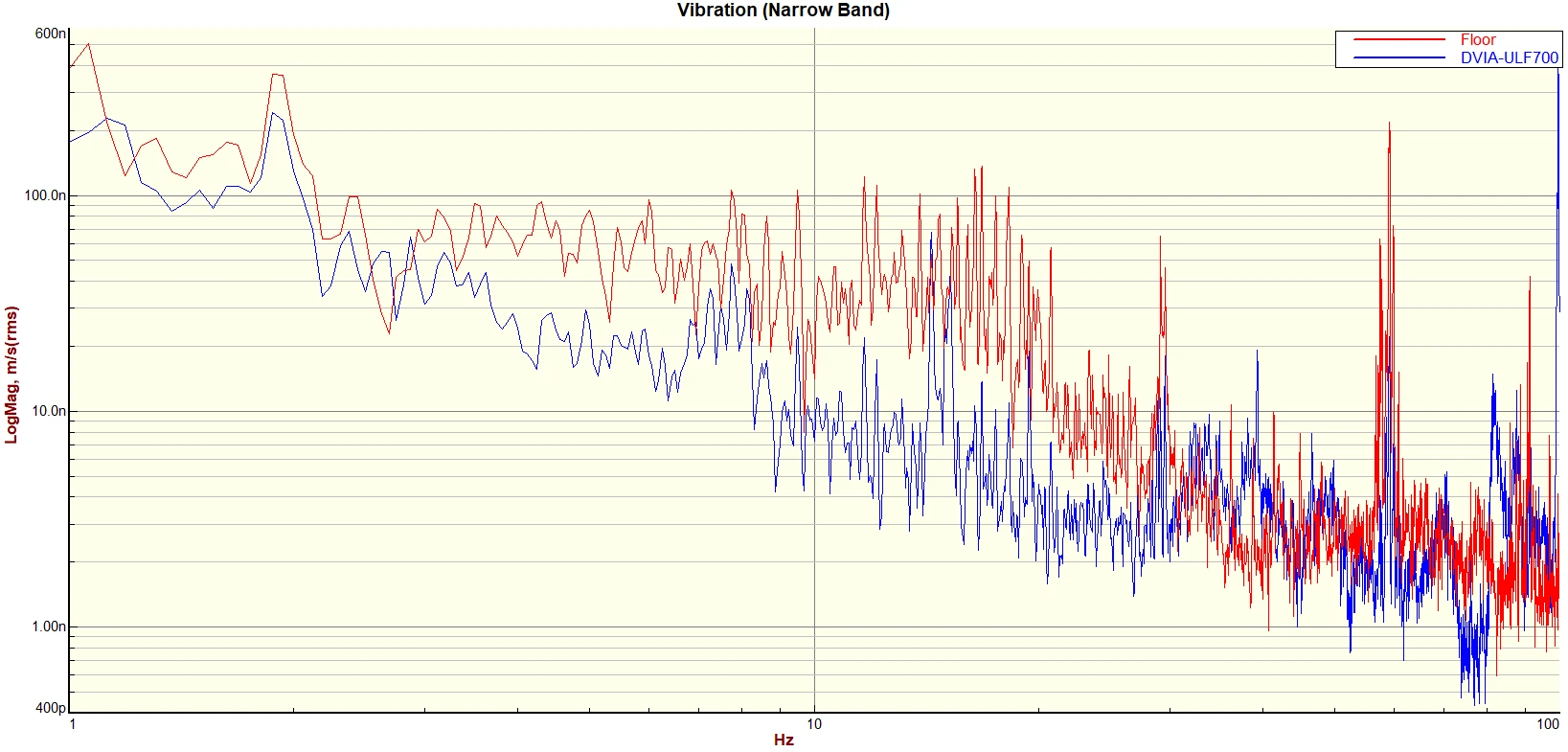

Left to Right Autospectrum

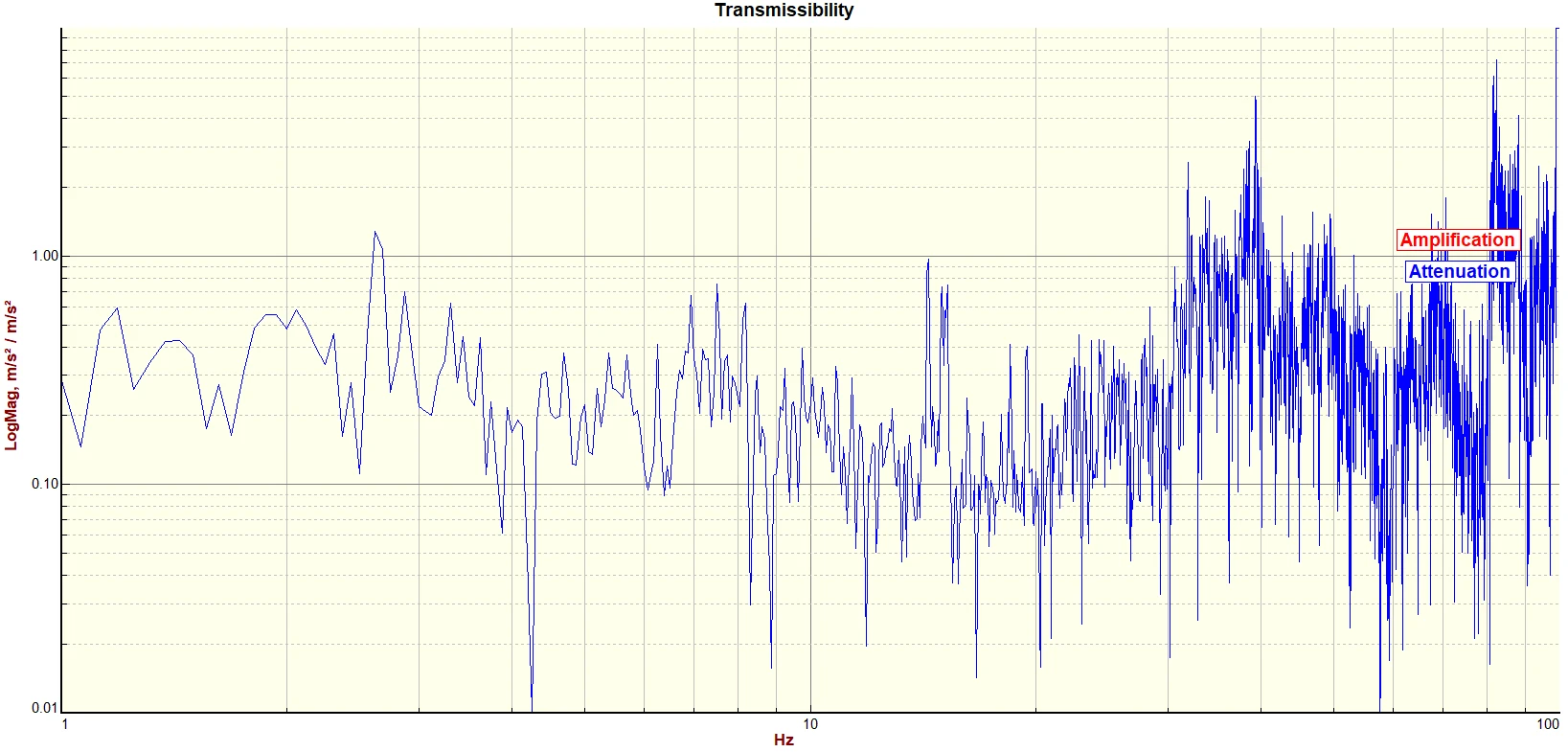

Left to Right Transmissibility

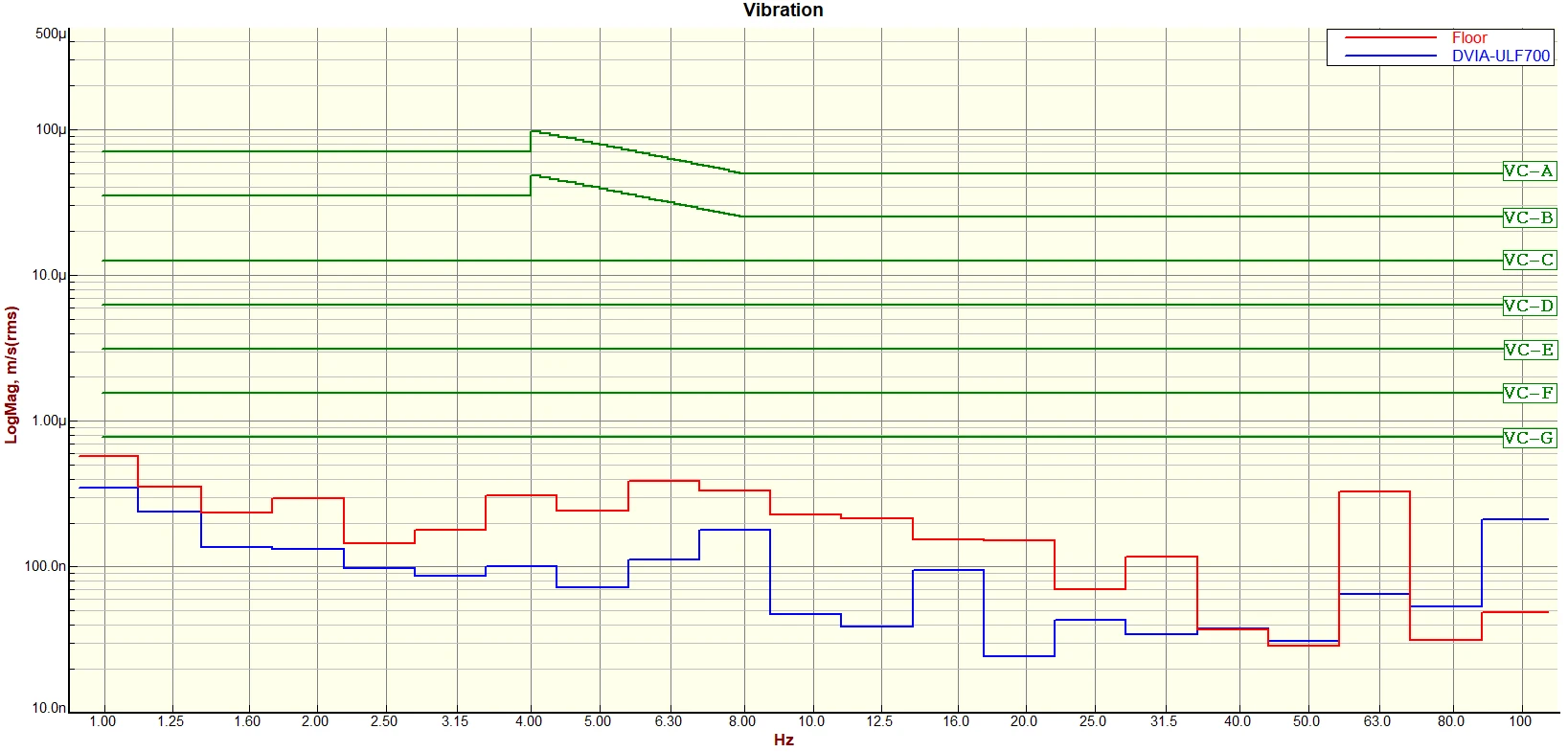

Front to Back VC Curves

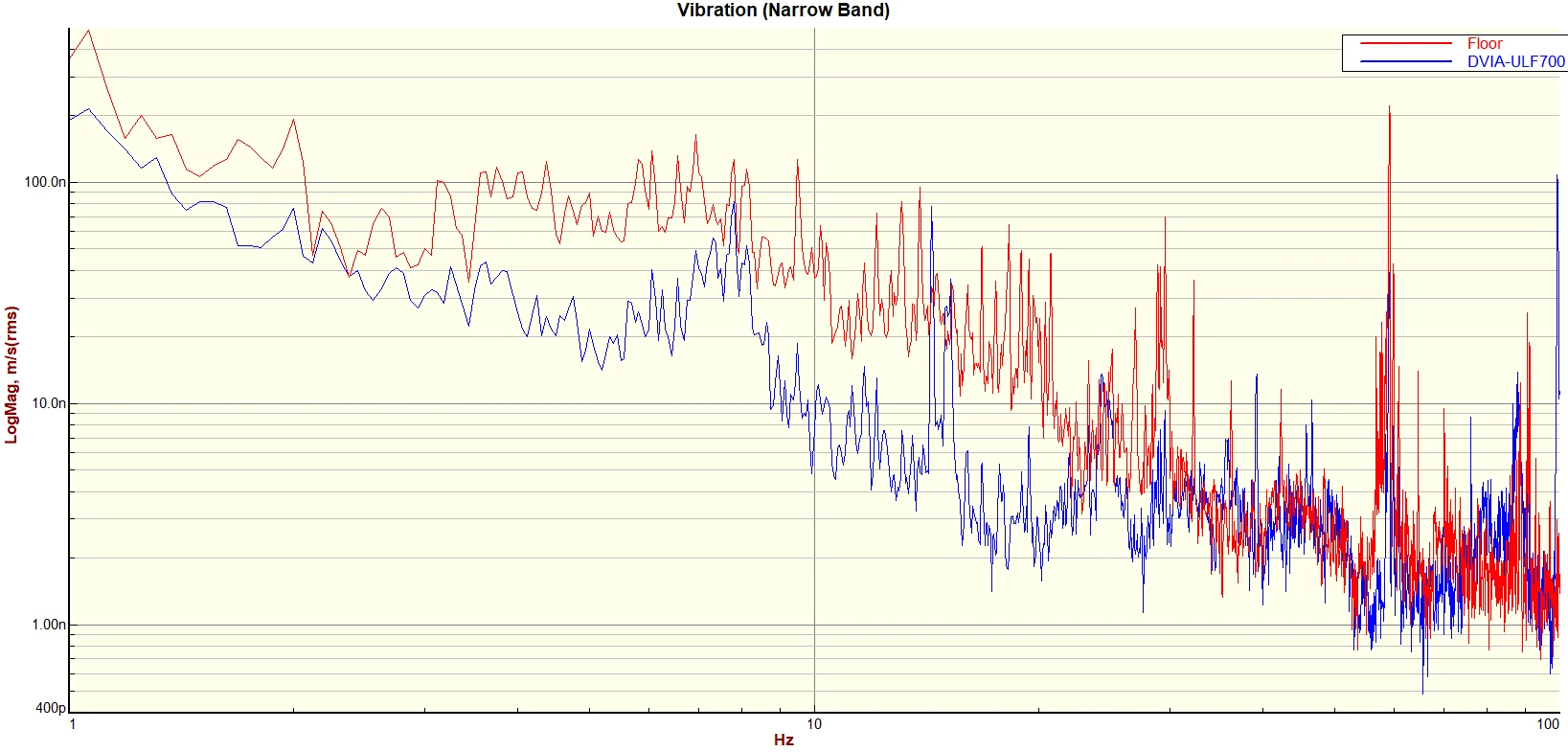

Front to Back Autospecturm

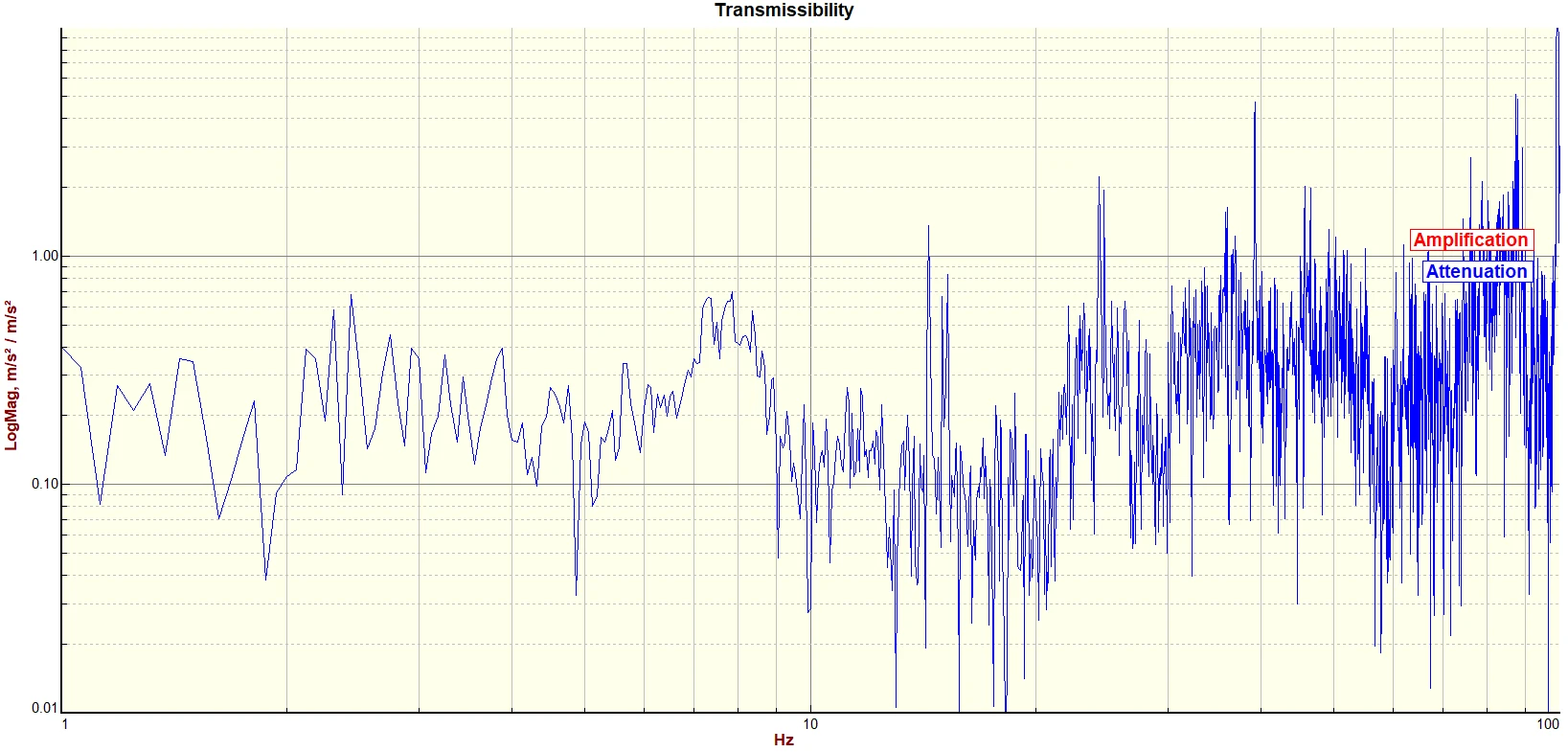

Front to Back Transmissibility
Generic vibration criteria
| Criterion Curve | Description | Amplitude µm/s (µin/s) | Detail Size µm |
|---|---|---|---|
| Workshop (ISO) | Distinctly perceptible vibration. Appropriate to workshops and non-sensitive areas. | 800 (32,000) | N/A |
| Office (ISO) | Perceptible vibration. Appropriate to offices and non-sensitive areas. | 400 (16,000) | N/A |
| Residential Area (ISO) | Barely perceptible vibration. Appropriate to sleep areas in most instances. | 200 (8,000) | 75 |
| Operating Theatre (ISO) | Vibration not perceptible. Suitable for surgical suites, microscopes to 100x. | 100 (4,000) | 25 |
| VC-A | Adequate for optical microscopes to 400x, microbalances, optical balances. | 50 (2,000) | 8 |
| VC-B | Appropriate for inspection and lithography equipment to 3μm line widths. | 25 (1,000) | 3 |
| VC-C | Appropriate for optical microscopes to 1000x, lithography equipment to 1μm. | 12.5 (500) | 1 - 3 |
| VC-D | Suitable for demanding equipment including electron microscopes (SEMs/TEMs). | 6.25 (250) | 0.1 - 0.3 |
| VC-E | For the most demanding systems including E-Beam lithography at nanometer scales. | 3.12 (125) | < 0.1 |
| VC-F | For extremely quiet research spaces. Not recommended as design criterion. | 1.56 (62.5) | N/A |
| VC-G | For extremely quiet research spaces. Not recommended as design criterion. | 0.78 (31.25) | N/A |
Notes:
1. VC-A/B is measured in 1/3 octave bands from 8-80 Hz, VC-C through VC-G from 1-80 Hz.
2. Detail size refers to line widths in microelectronics manufacturing or particle sizes in medical research.
Reference
Share this Case Study
Case Study Information
Related Case Studies
Tier-1 Semiconductor 2F Clean Booth DVIA-ULF700 (250708R1-1) Installation Report
Tier-1 Semiconductor 2F Clean Booth DVIA-ULF700 (250708R1-1) Installation Report
