Installation Report
DVIA-ULF Series
07-27-2022
COPPRO Chengdu ZEISS EVO10 DVIA-UB1000 (220310R1) Installation Report
DVIA-U Series
Installation Report
COPPRO
Chengdu
ZEISS
EVO10
DVIA-UB1000
DVIA-U1000
220310R1
Contents
COPPRO（ 成都振芯科技股份有限公司）
COPPRO（ 成都振芯科技股份有限公司）
(U1000_ 220310R1 Set up)
Site checklist
| Target equipment | ZEISS EVO10 |
|---|---|
| Place of installation | CHENGDU |
| Remark | Good Performance |
| END USER | COPPRO（ 成都振芯科技股份有限公司） |
Operator and dates
| Operator: Lee, Youngha Date of setup : 22.07.26 Date of reporting : 22.07.27 | Date of business trip : 17.12.27~17.12.29 |
|---|
Overview
Overview

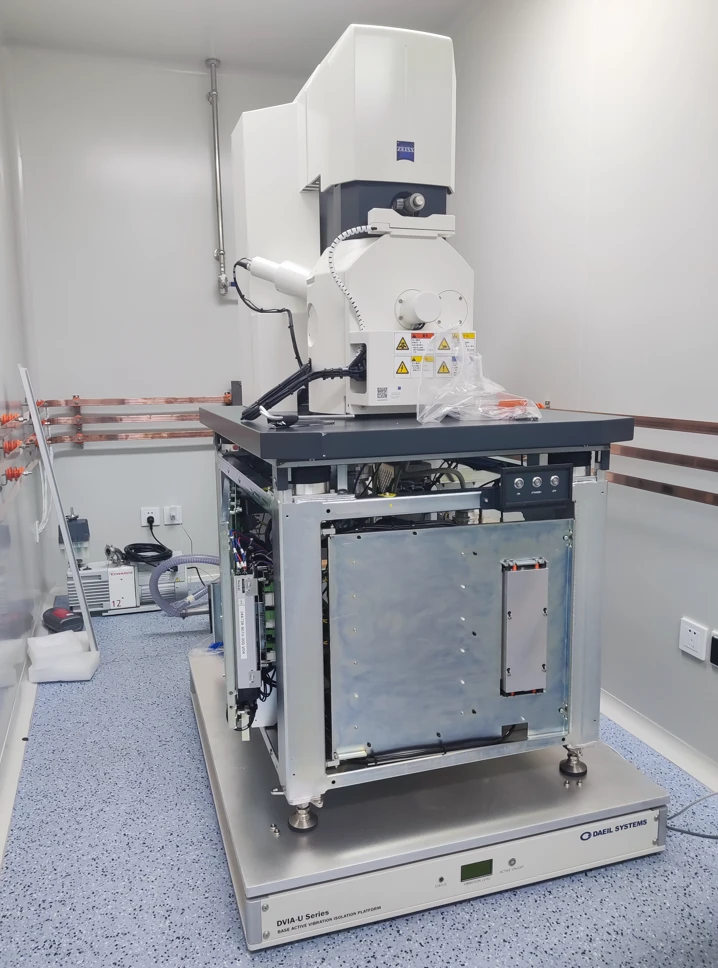

The DVIA-UB1000 active vibration isolation platform is appropriately installed and functioning as intended.
Measurement date: 2022.07.26 (Tuesday),
Operator: DAEIL SYSTEMS, Youngha Lee
Place of measurement: CHENGDU, China
Equipment Model: ZEISS EVO10
Measurement conditions and results
Summary of measurement results
| Test Condition | VC-Class |
|---|---|
| Z | |
| Floor | C |
| Above Active | E |
Good omnidirectional performance.

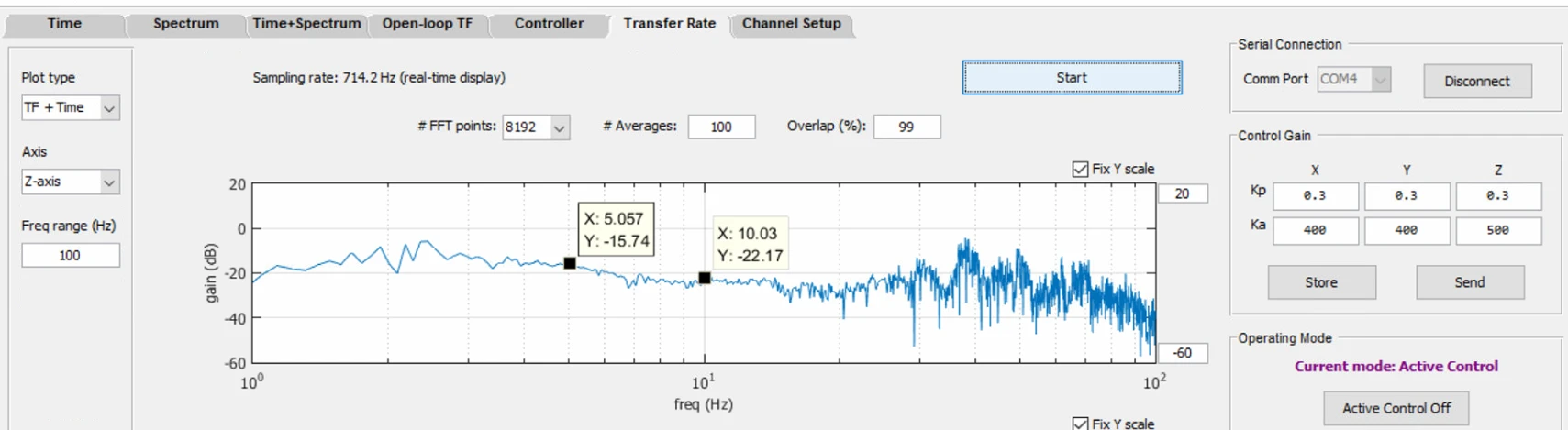

UB1000 internal program performance measurement result - Z axis

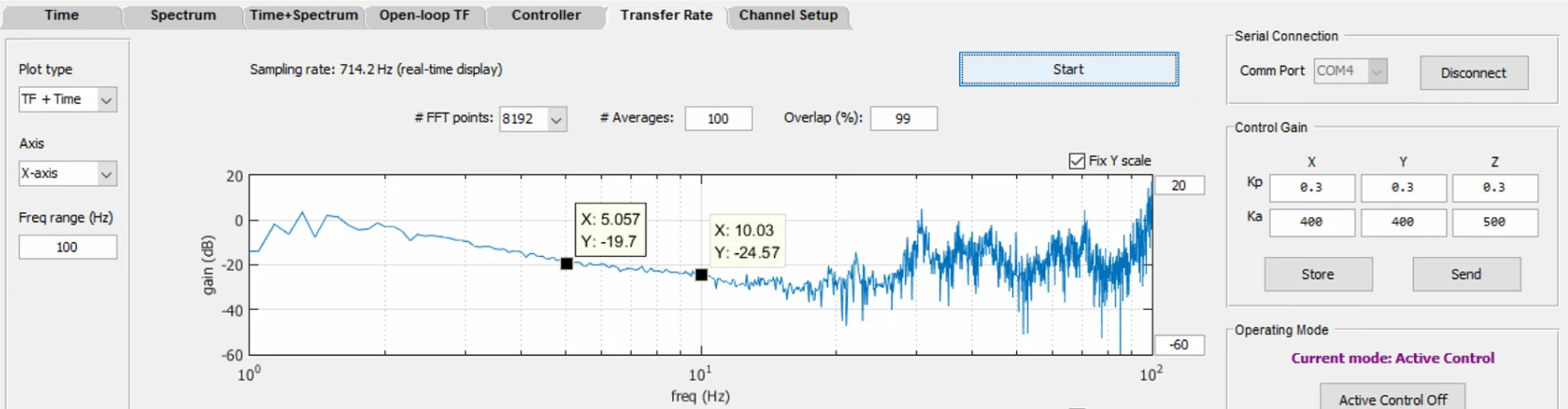

UB1000 internal program performance measurement result - X axis

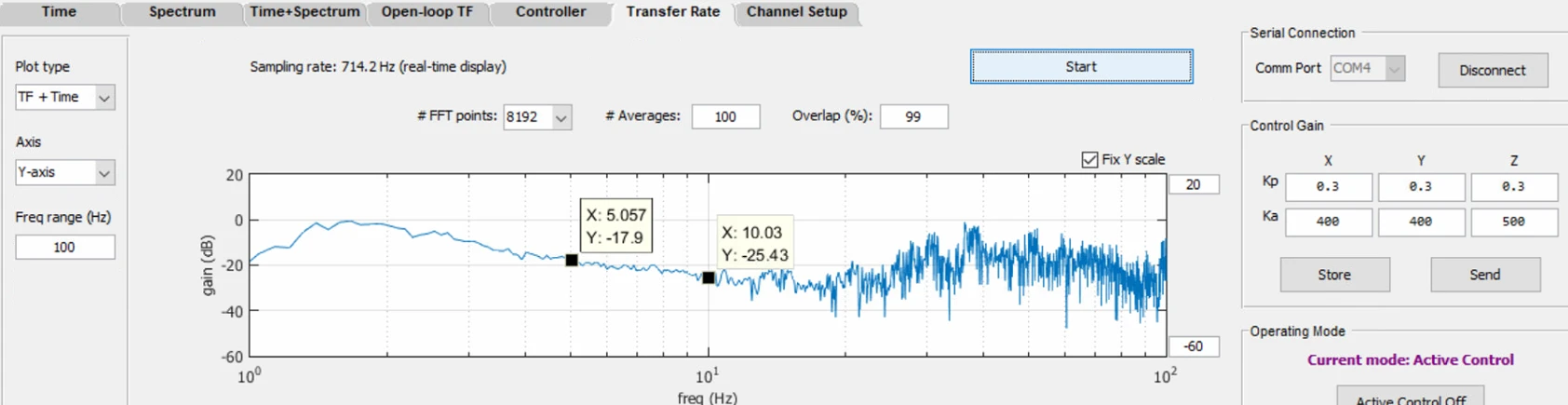

UB1000 internal program performance measurement result - Y axis

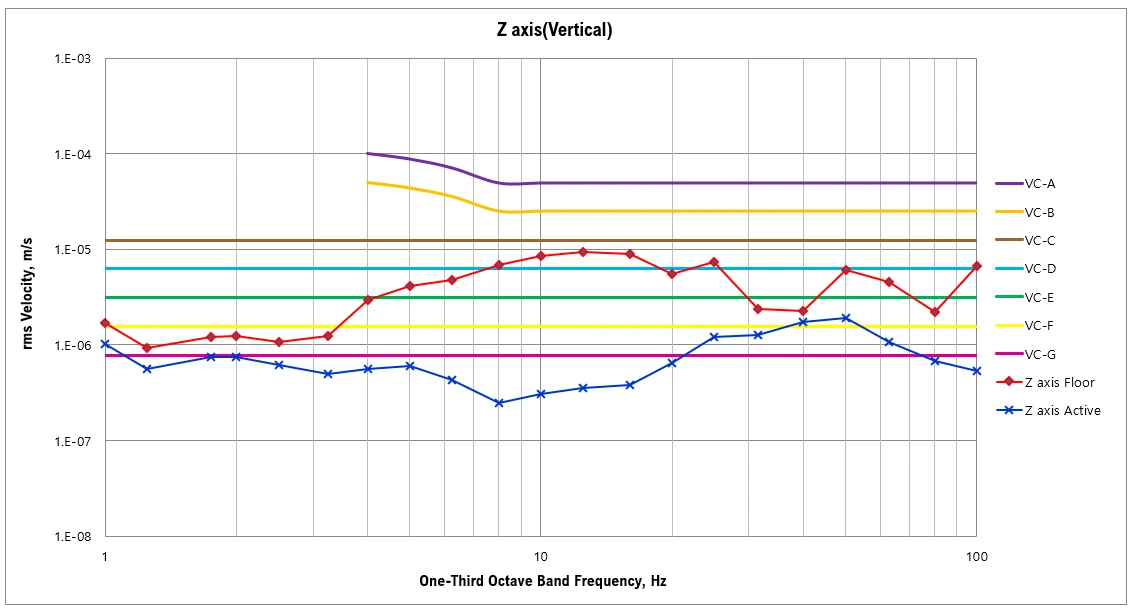

Octave Band Result - Z axis

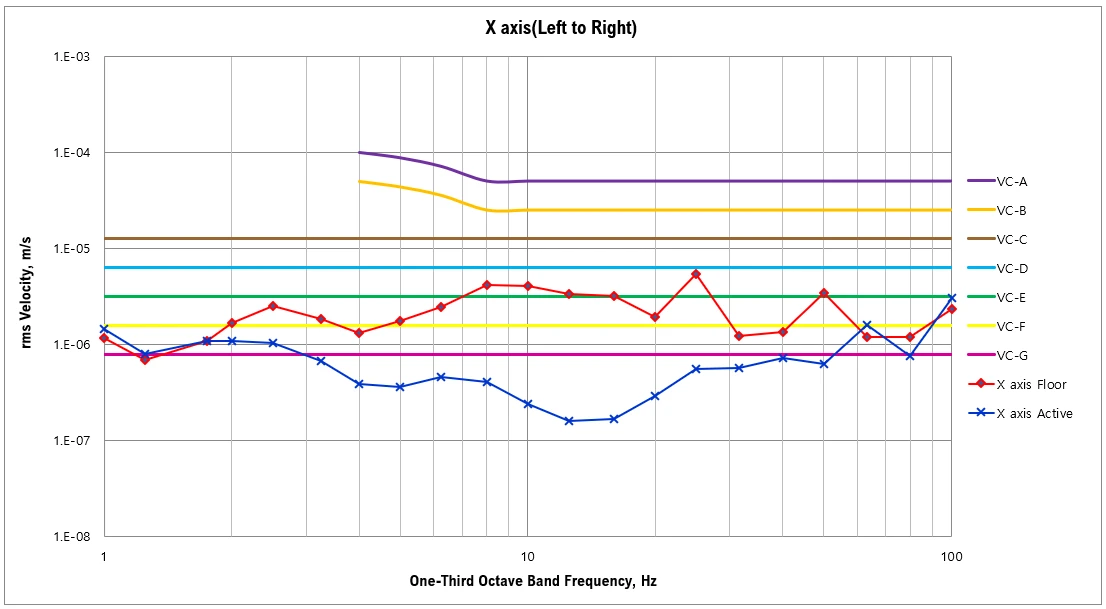

Octave Band Result - X axis

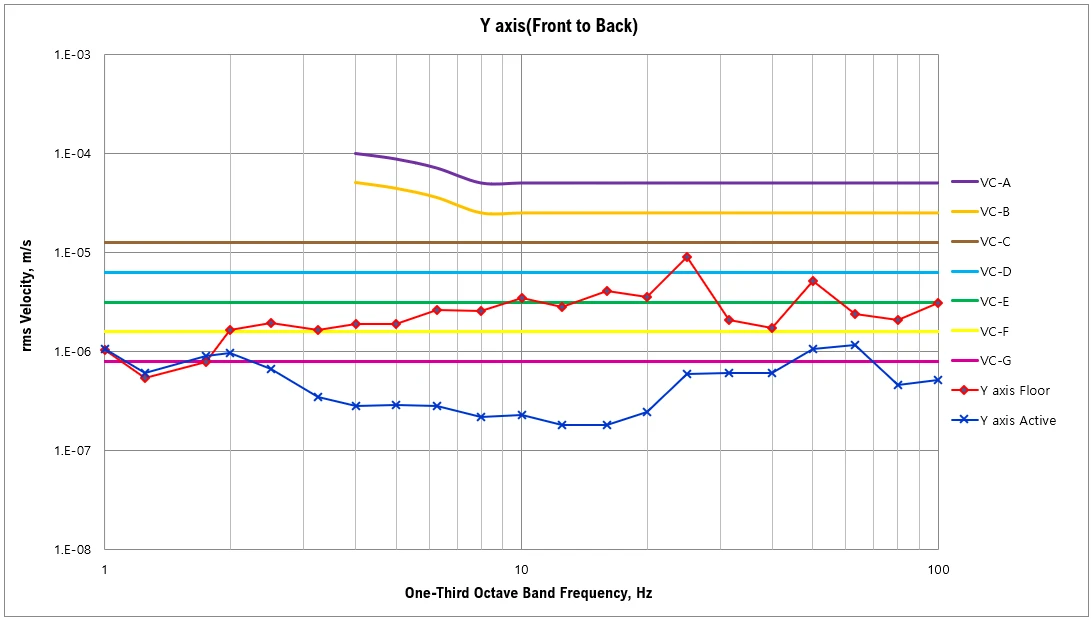

Octave Band Result - Y axis

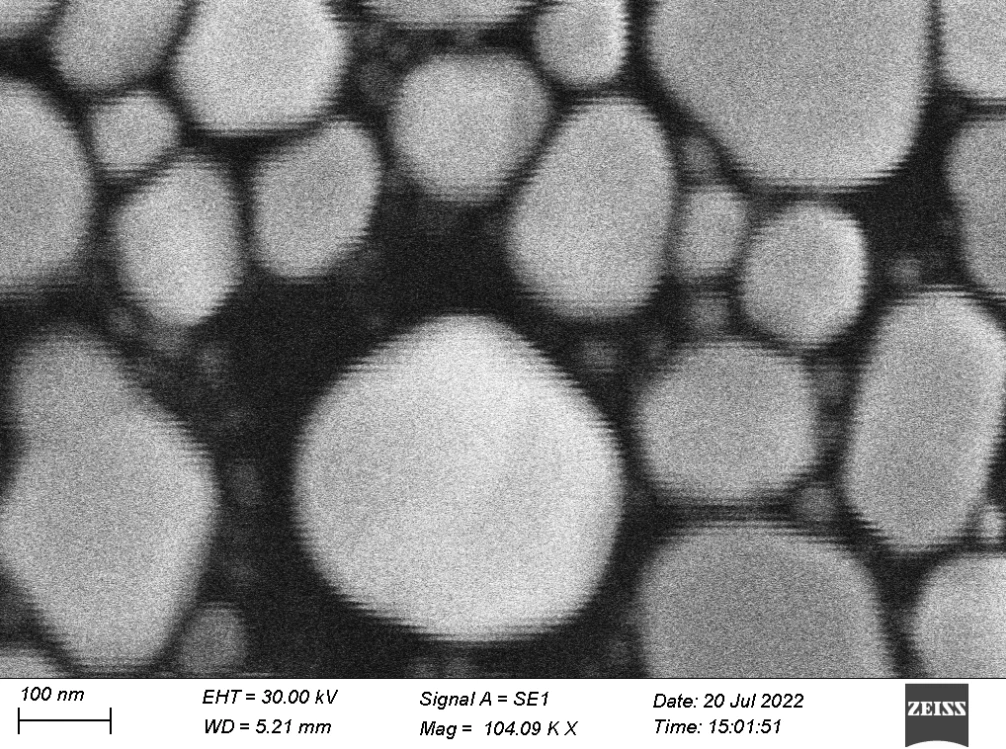

Result-Imeage - Active Off

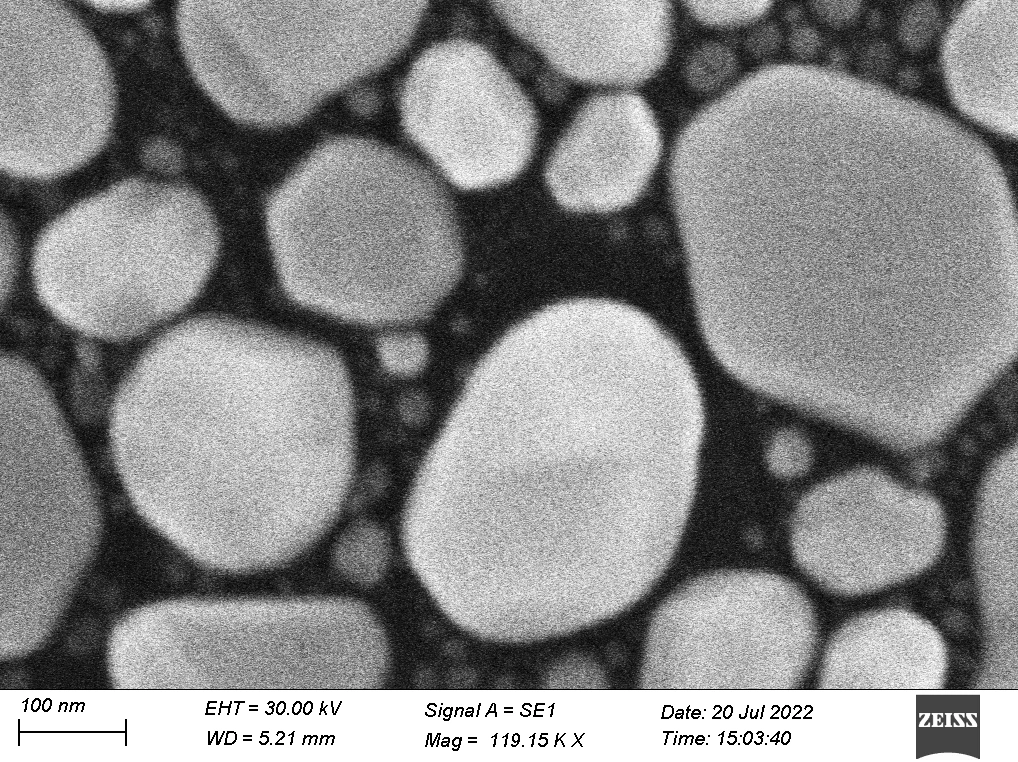

Result-Imeage - Active On
