Installation Report
DVIA-ULF Series
04-21-2022

Korea Institute of Science and Technology (KIST) Microscope DVIA-UD350 (220127R1-1) Installation Report

DVIA-ULF Series
Installation Report
KIST
DVIA-UD350
Microscope
220127R1-1

Contents

Prepared for

KIST

Prepared by

Engineer: Youngha Lee

Tuning date: 22.04.21

Report written date: 22.04.21

Date of business trip : 17.12.27~17.12.29

Overview

The DVIA-UD350 active vibration isolation platform is appropriately installed and functioning as intended.

System Information

Model: DVIA-UD350

Serial Number: 220127R1-1

Engineer

Youngha Lee, Seounghoon Cheon from DAEIL SYSTEMS

Tuning Date

April 21, 2022

Location

KIST BuildingL7 Room7223, Seongbuk-gu Seoul

Equipment

Microscope

Summary of Vibration Results

Z-axis (Vertical) / 1-10 HzZ-axis (Vertical) / 10-80 HzX-axis (Left to Right) / 1-10 HzX-axis (Left to Right) / 10-80 HzY-axis (Front to Back) / 1-10 HzY-axis (Front to Back) / 10-80 Hz
FloorGDGEGE
ActiveGGGGGG

Data and Image

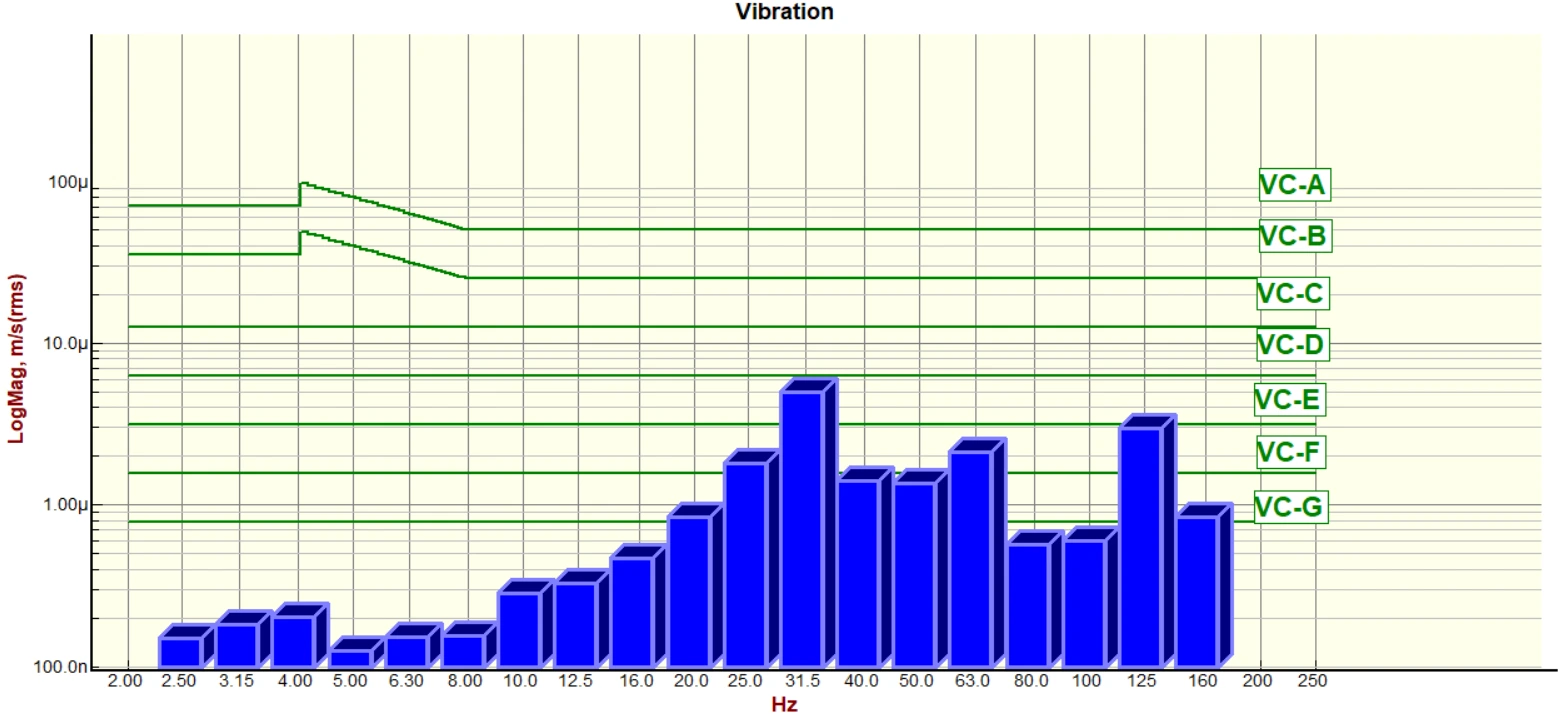

Z-axis (Vertical) VC curves

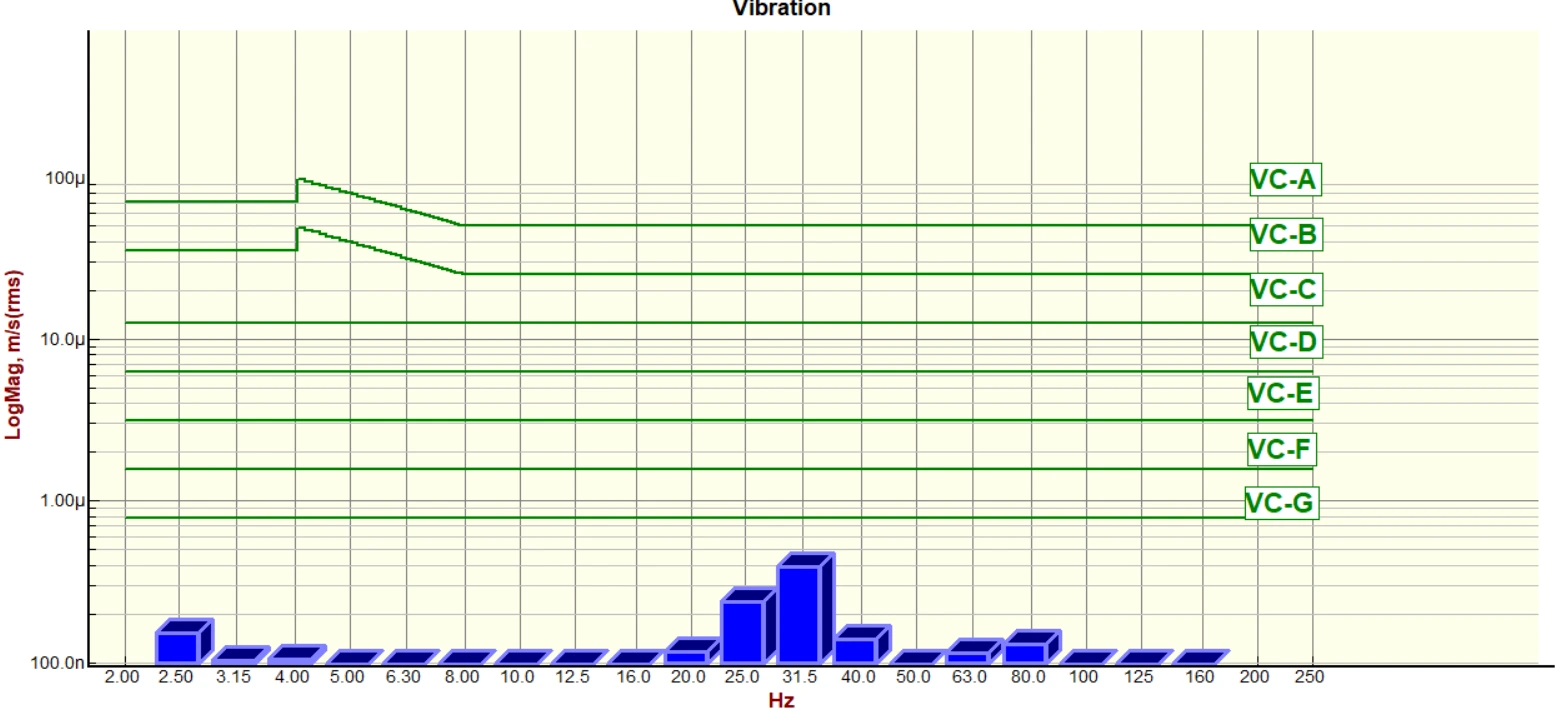

Z-axis (Vertical) VC curves (Active)

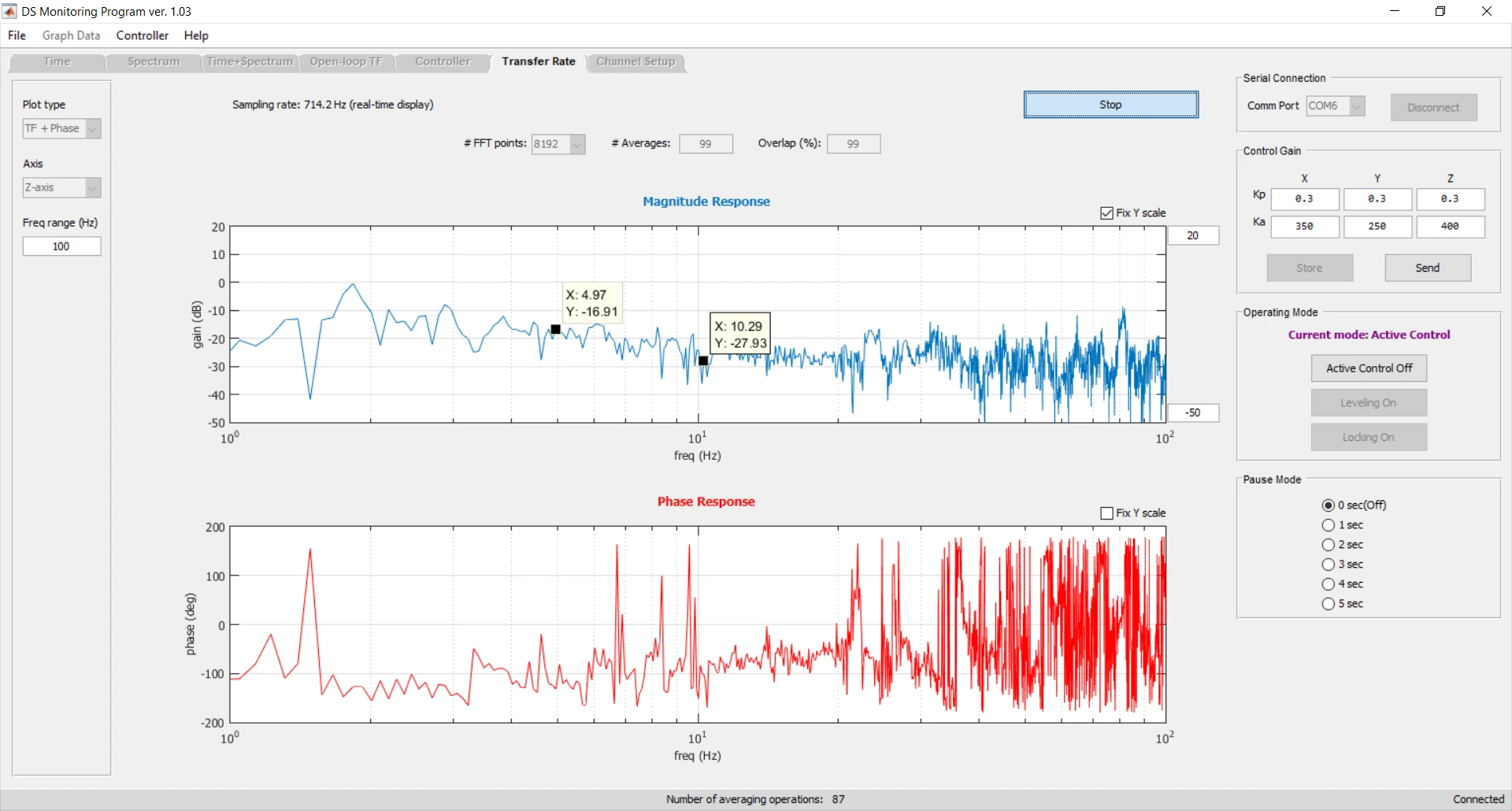

Z-axis (Vertical) Transmissibility

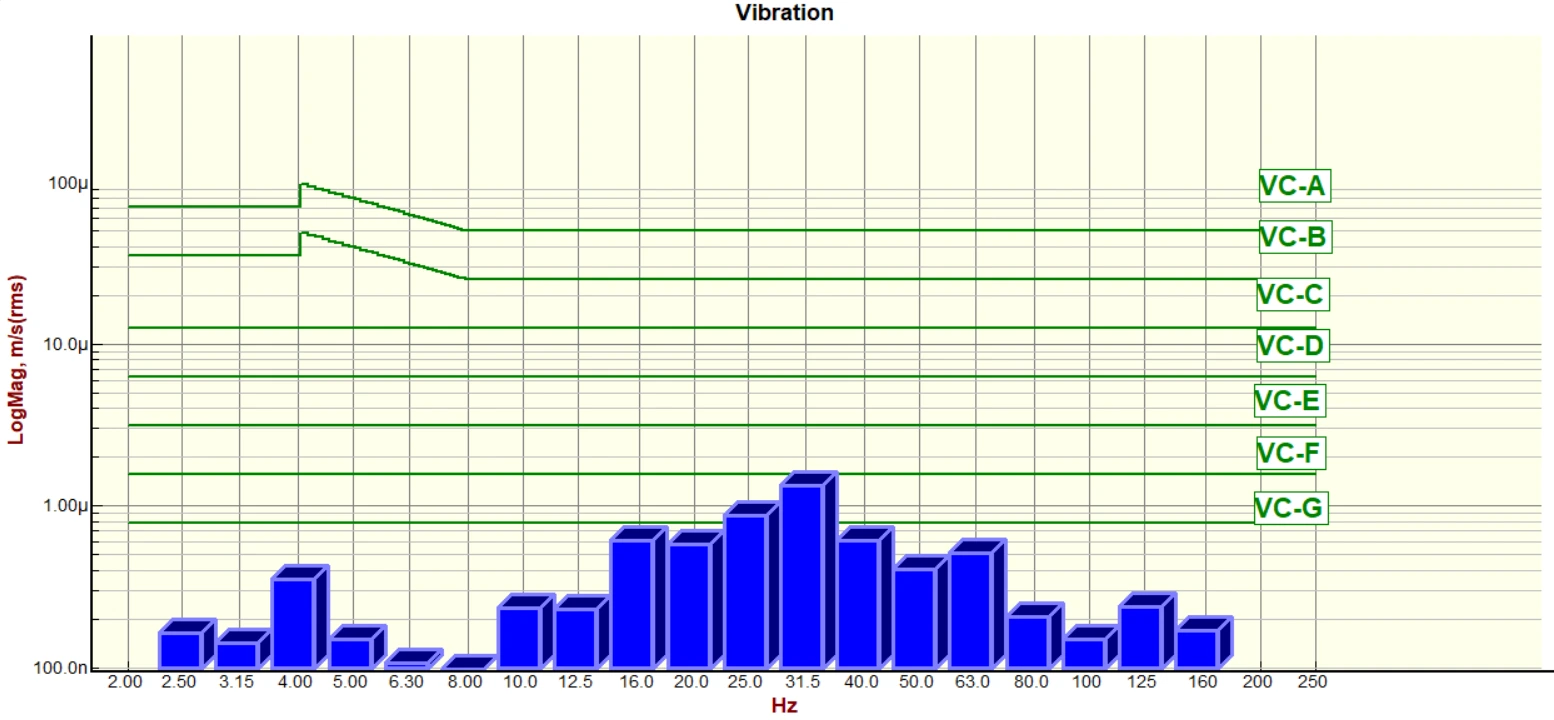

X-axis (Left to Right) VC curves

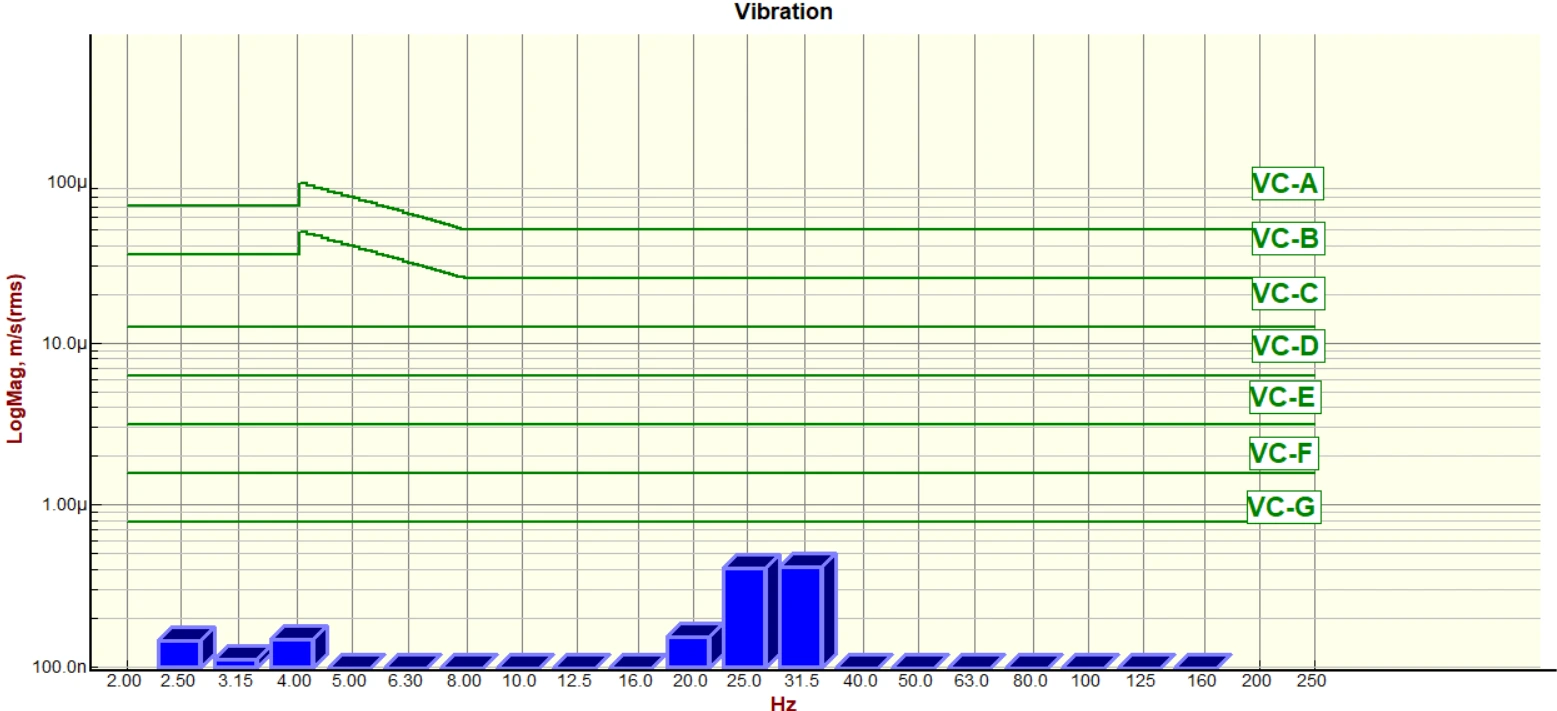

X-axis (Left to Right) VC curves (Active)

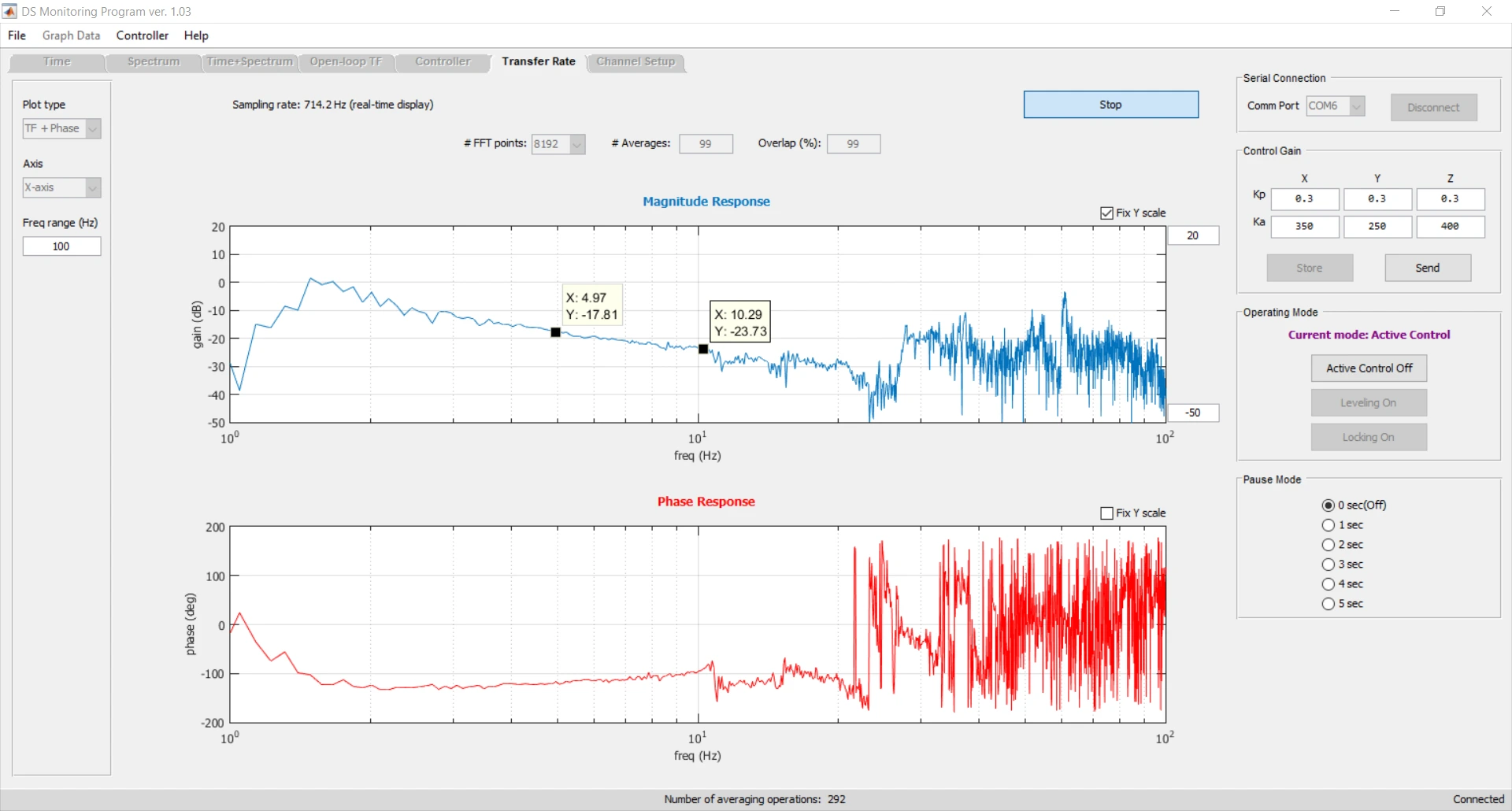

X-axis (Left to Right) Transmissibility

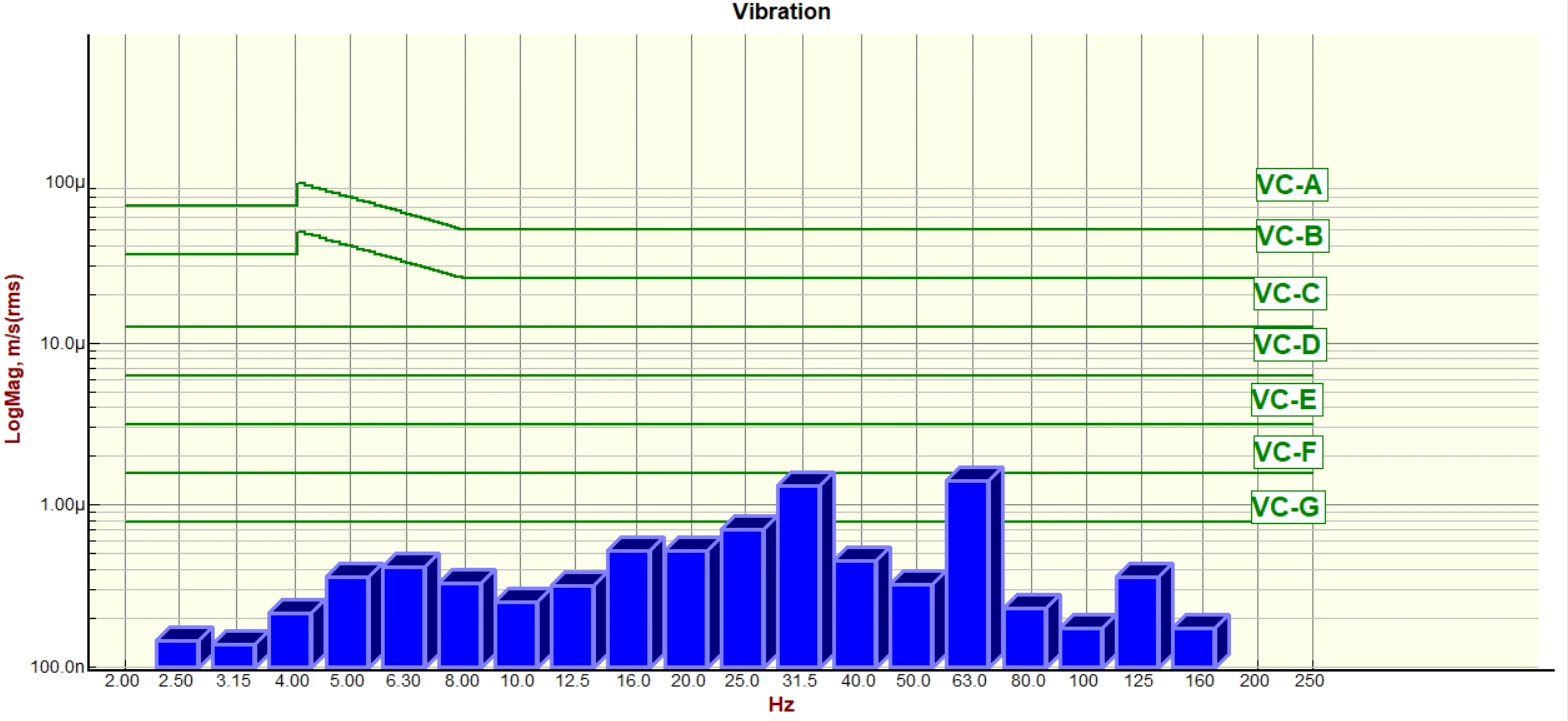

Y-axis (Front to Back) VC curves

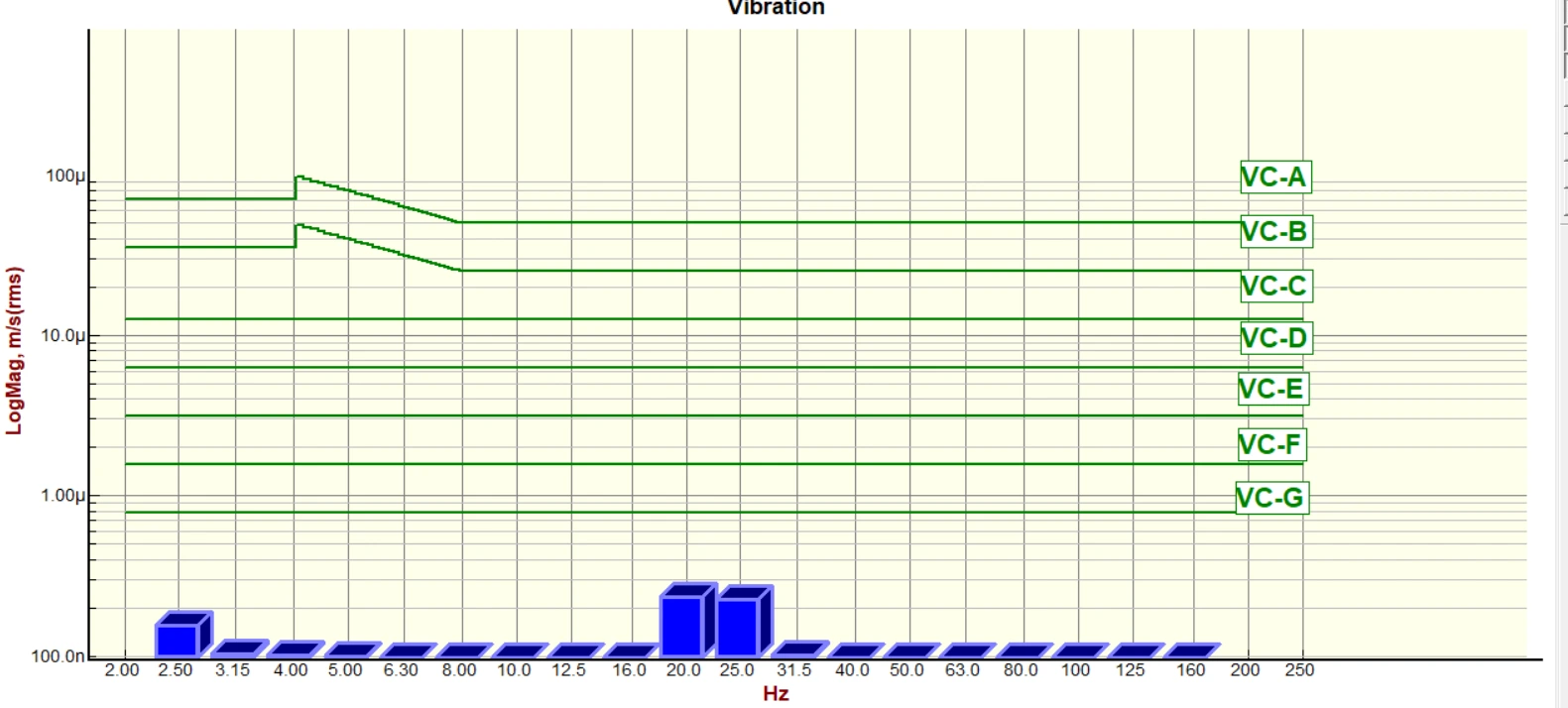

Y-axis (Front to Back) VC curves (Active)

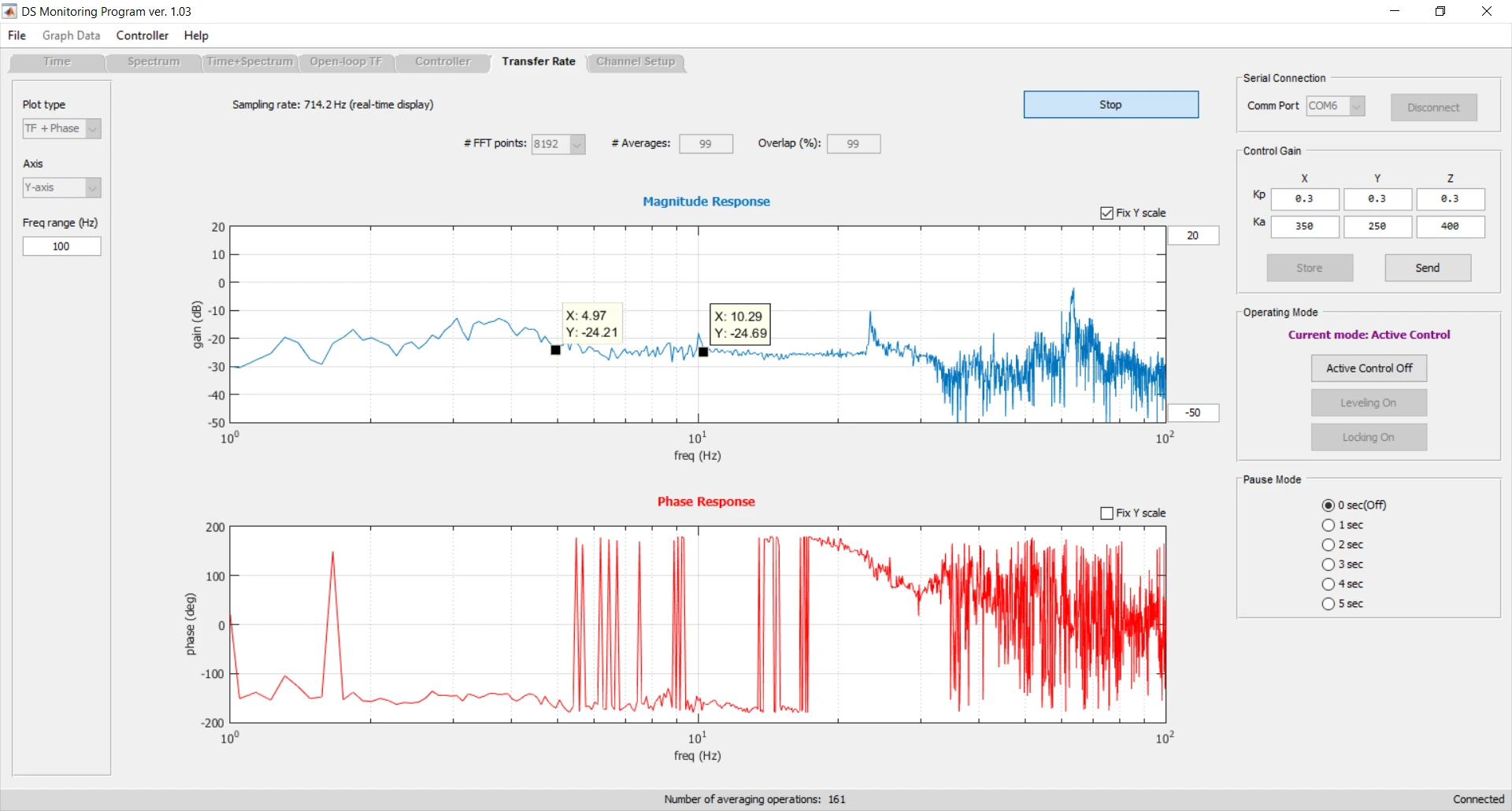

Y-axis (Front to Back) Transmissibility

Reference

Criterion CurveDescriptionAmplitude
μm/s (µin/s)		Detail Size
μm
Workshop (ISO)Distinctly perceptible vibration. Appropriate to workshops and non-sensitive areas.800 (32,000)N/A
Office (ISO)Perceptible vibration. Appropriate to offices and non-sensitive areas.400 (16,000)N/A
Residential Area (ISO)Barely perceptible vibration. Appropriate to sleep areas in most instances.200 (8,000)75
Operating Theatre (ISO)Vibration not perceptible. Suitable for surgical suites, microscopes to 100x.100 (4,000)25
VC-AAdequate for optical microscopes to 400x, microbalances, optical balances.50 (2,000)8
VC-BAppropriate for inspection and lithography equipment to 3μm line widths.25 (1,000)3
VC-CAppropriate for optical microscopes to 1000x, lithography equipment to 1μm.12.5 (500)1 - 3
VC-DSuitable for demanding equipment including electron microscopes (SEMs/TEMs).6.25 (250)0.1 - 0.3
VC-EFor the most demanding systems including E-Beam lithography at nanometer scales.3.12 (125)< 0.1
VC-FFor extremely quiet research spaces. Not recommended as design criterion.1.56 (62.5)N/A
VC-GFor extremely quiet research spaces. Not recommended as design criterion.0.78 (31.25)N/A

Notes:

1. VC-A/B is measured in 1/3 octave bands from 8-80 Hz, VC-C through VC-G from 1-80 Hz.

2. Detail size refers to line widths in microelectronics manufacturing or particle sizes in medical research.
