Korea Institute of Science and Technology (KIST) Microscope DVIA-UD350 (220127R1-2) Installation Report
Contents
End User
KIST
Prepared by
N/A
Engineer
Engineer: Youngha Lee
Youngha Lee, Seounghoon Cheon from DAEIL SYSTEMS
Report written date
22.04.21
Date of business trip
17.12.27~17.12.29
Overview
The DVIA-UD350 active vibration isolation platform is appropriately installed and functioning as intended.
System Information
Model: DVIA-UD350
Serial Number: 220127R1-2
Tuning Date
Tuning date: 22.04.21
April 21, 2022
Location
KIST BuildingL7 Room7223, Seongbuk-gu Seoul
Equipment
Microscope
Summary of Vibration Results
| Z-axis (Vertical) / 1-10 Hz | Z-axis (Vertical) / 10-80 Hz | X-axis (Left to Right) / 1-10 Hz | X-axis (Left to Right) / 10-80 Hz | Y-axis (Front to Back) / 1-10 Hz | Y-axis (Front to Back) / 10-80 Hz | |
|---|---|---|---|---|---|---|
| Floor | D | C | G | E | G | E |
| Active | G | G | G | G | G | G |
Data and Image

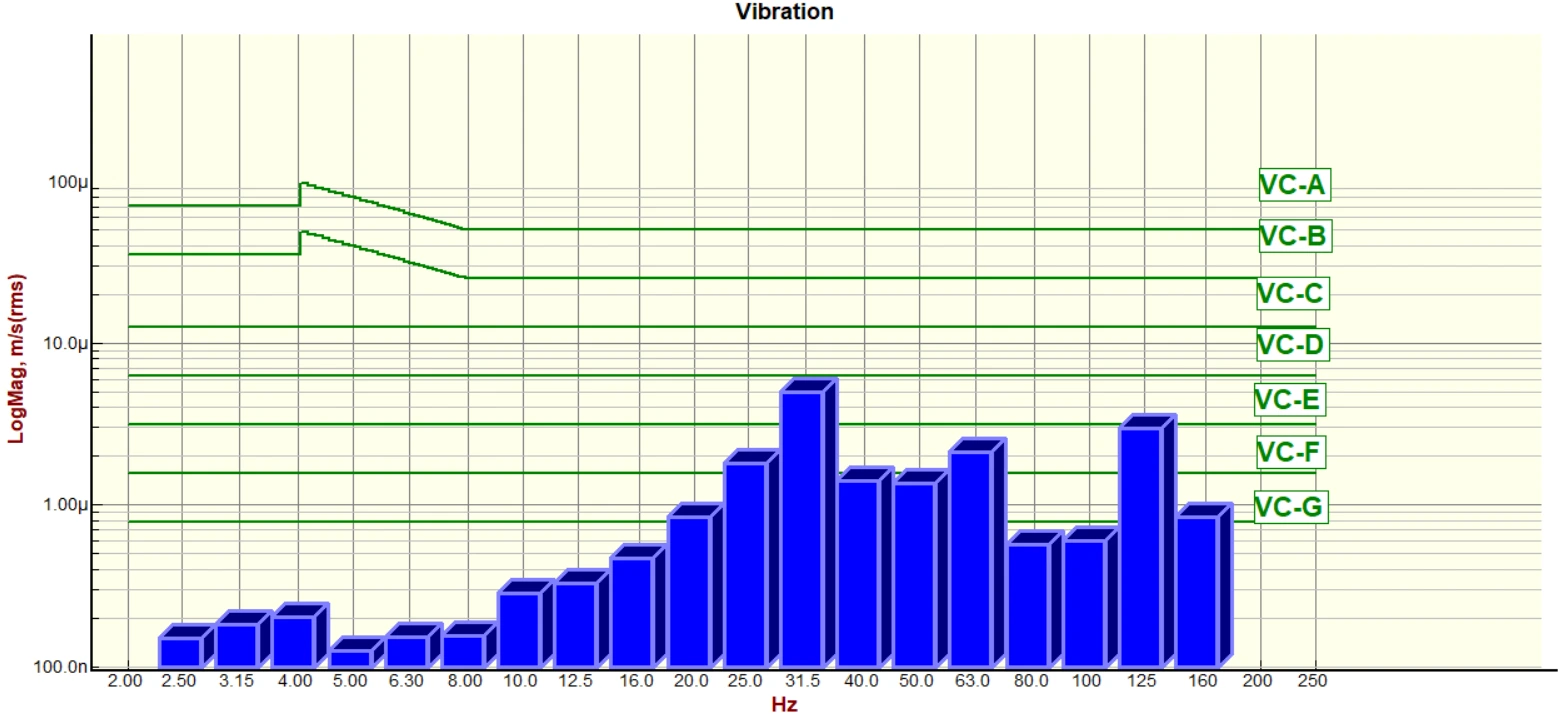

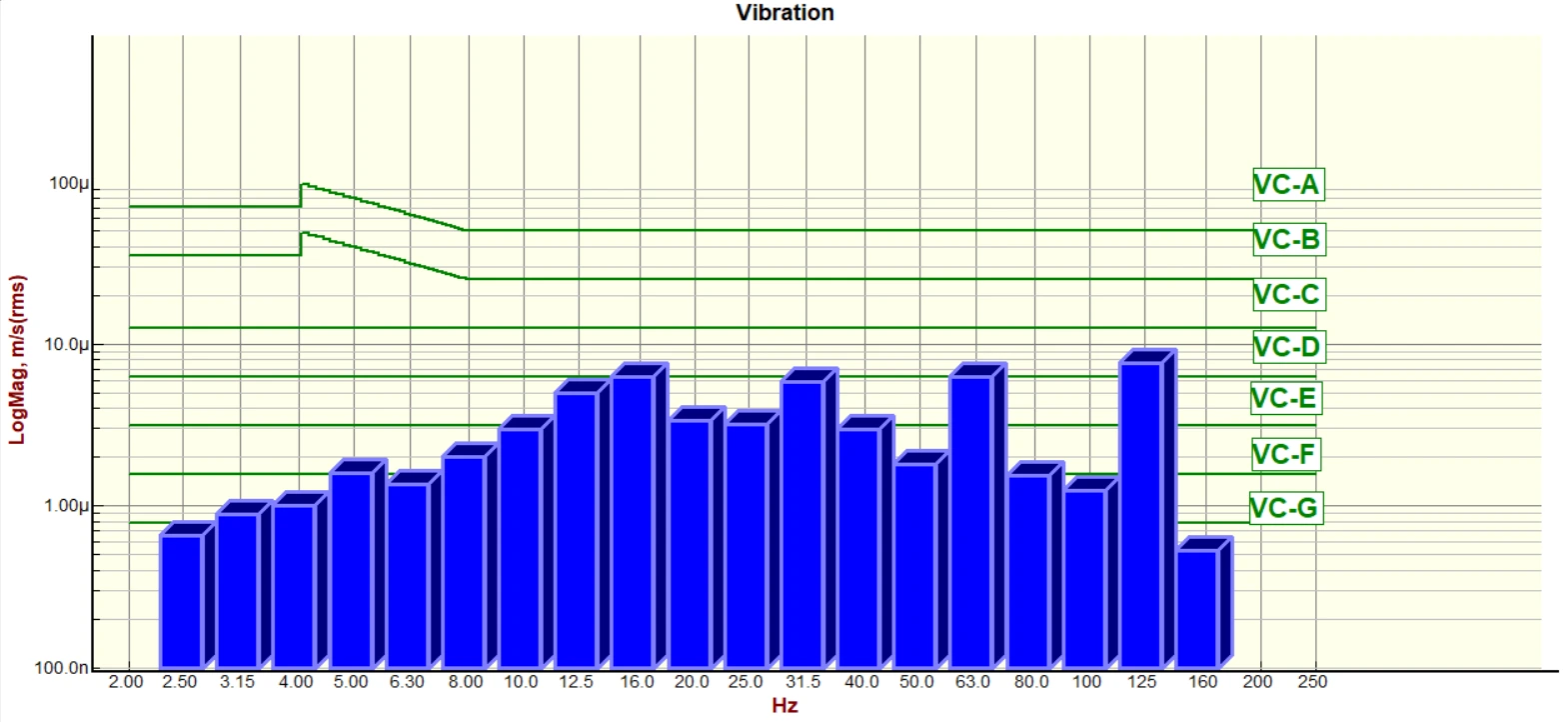

Z-axis (Vertical) VC curves

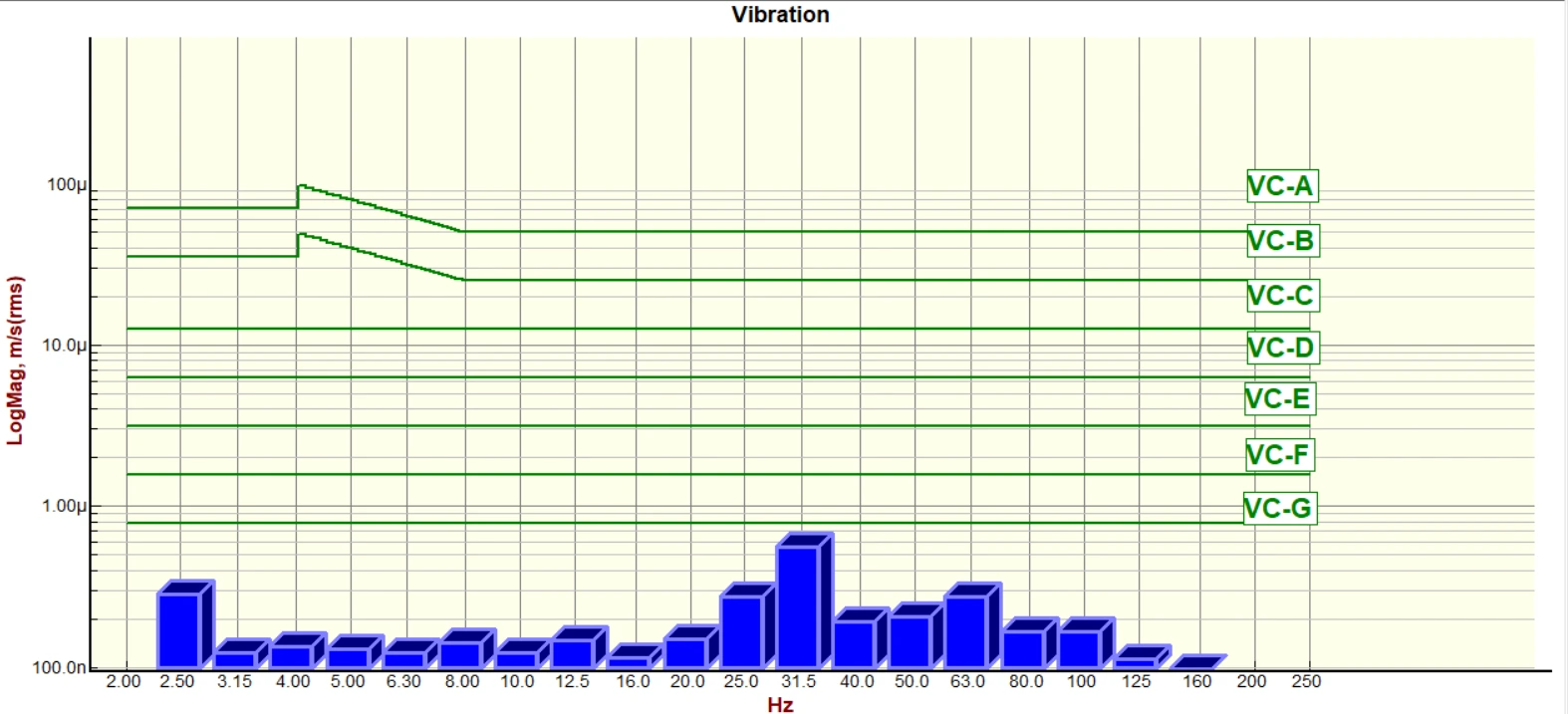

Z-axis (Vertical) VC curves (Active)

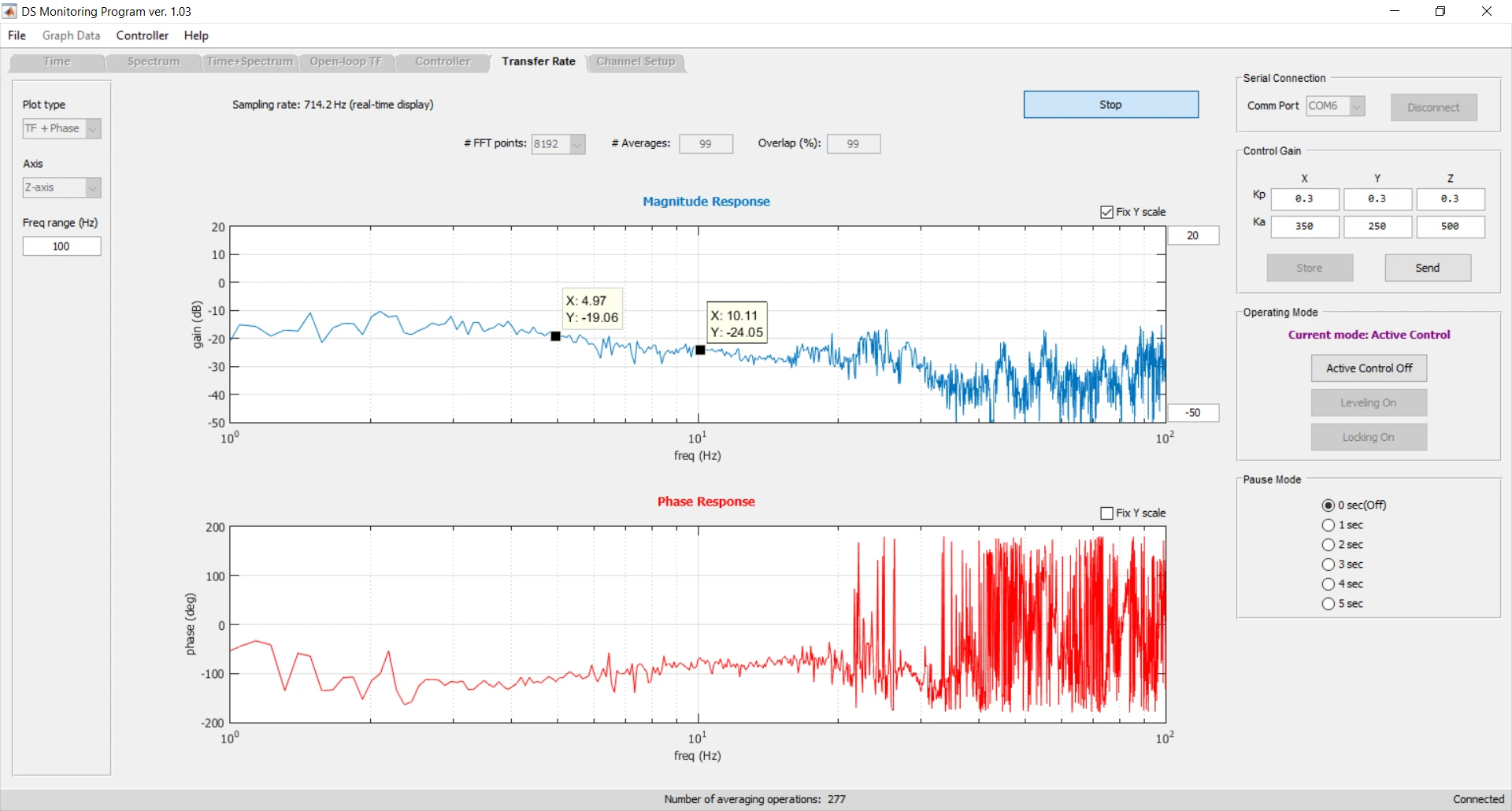

Z-axis (Vertical) Transmissibility

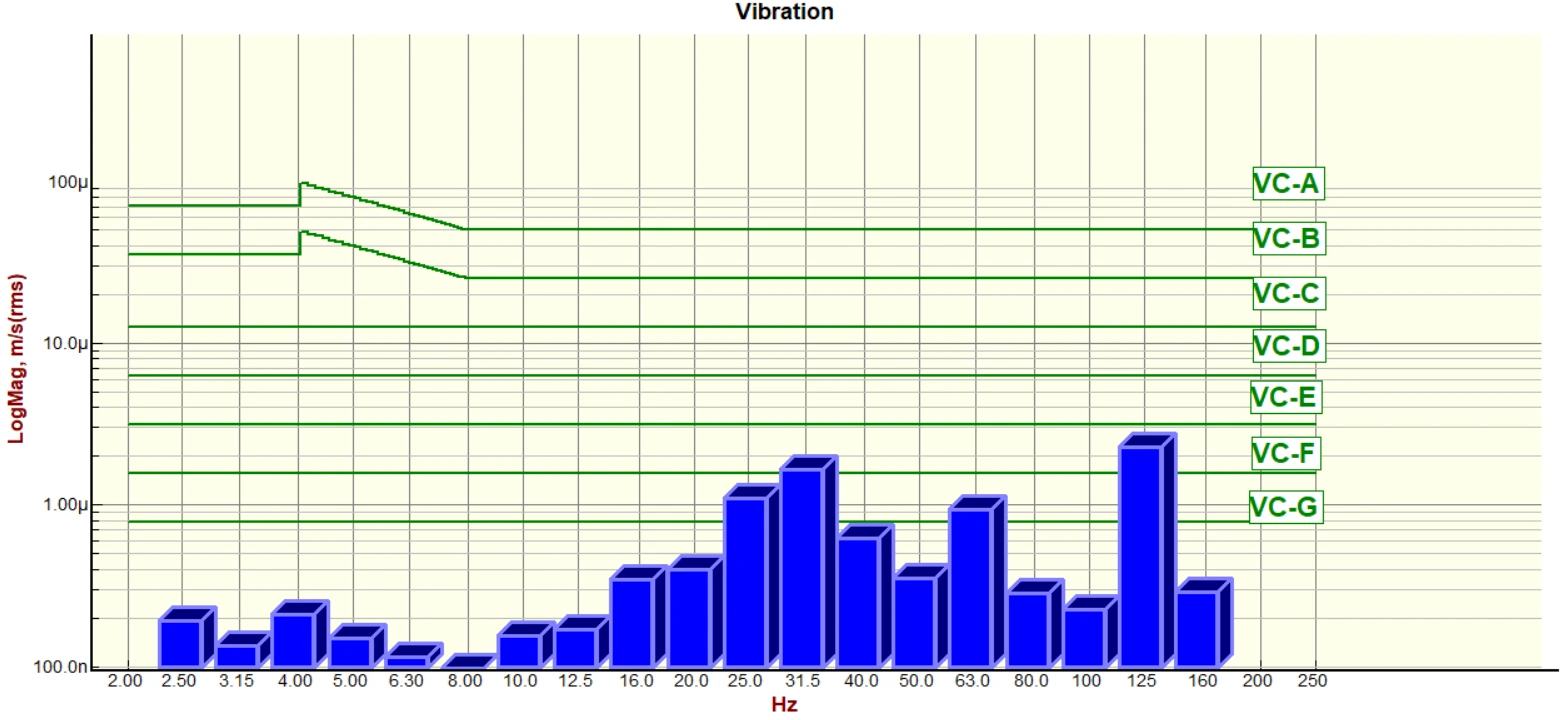

X-axis (Left to Right) VC curves

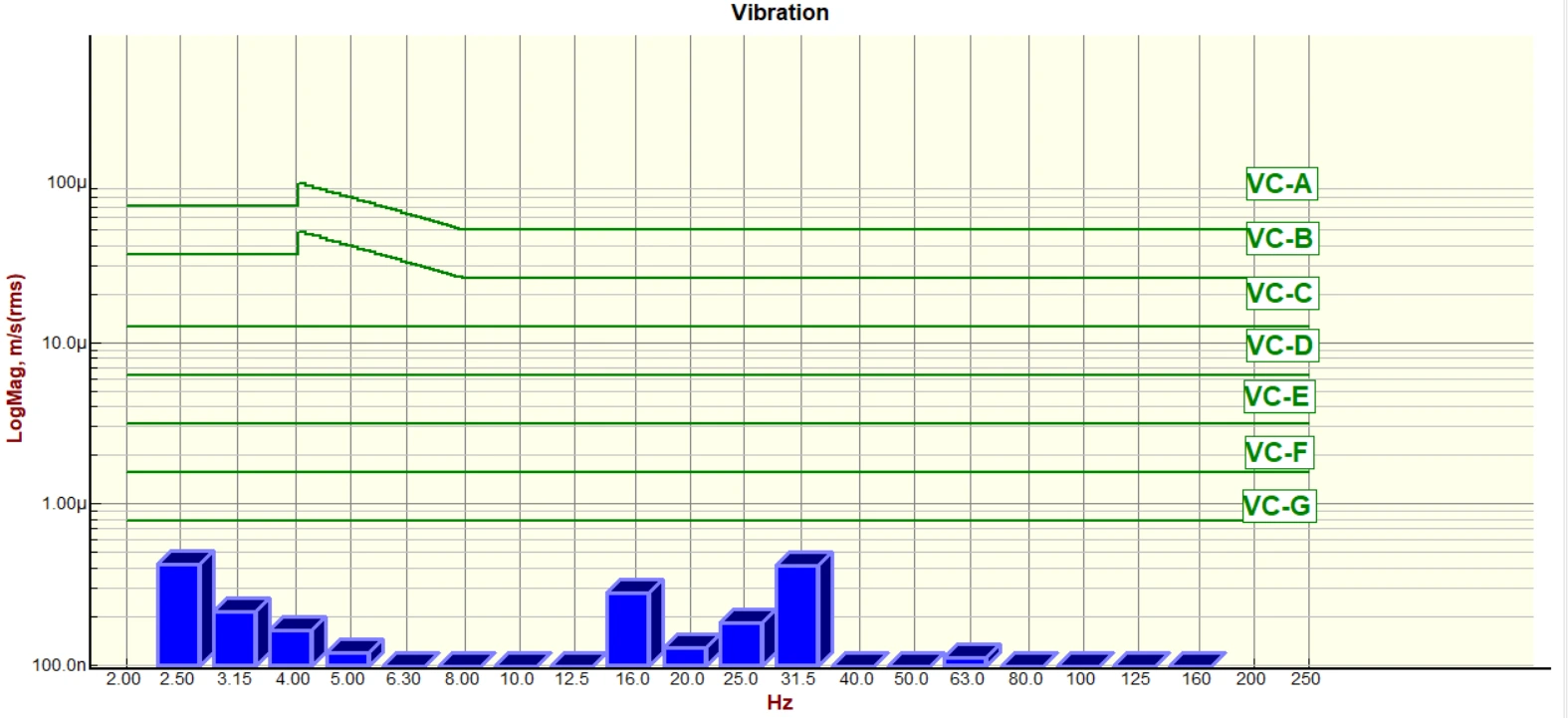

X-axis (Left to Right) VC curves (Active)

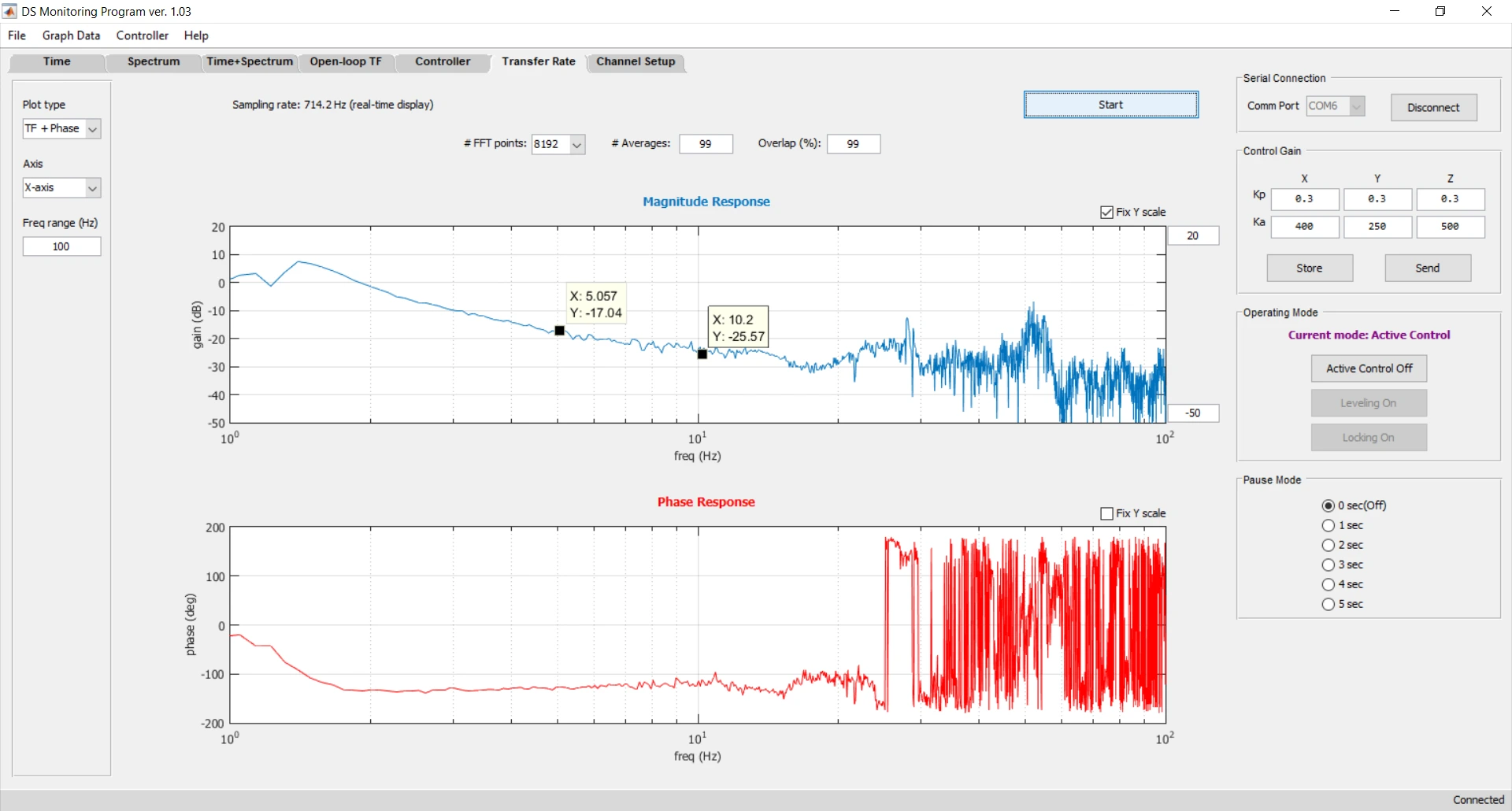

X-axis (Left to Right) Transmissibility

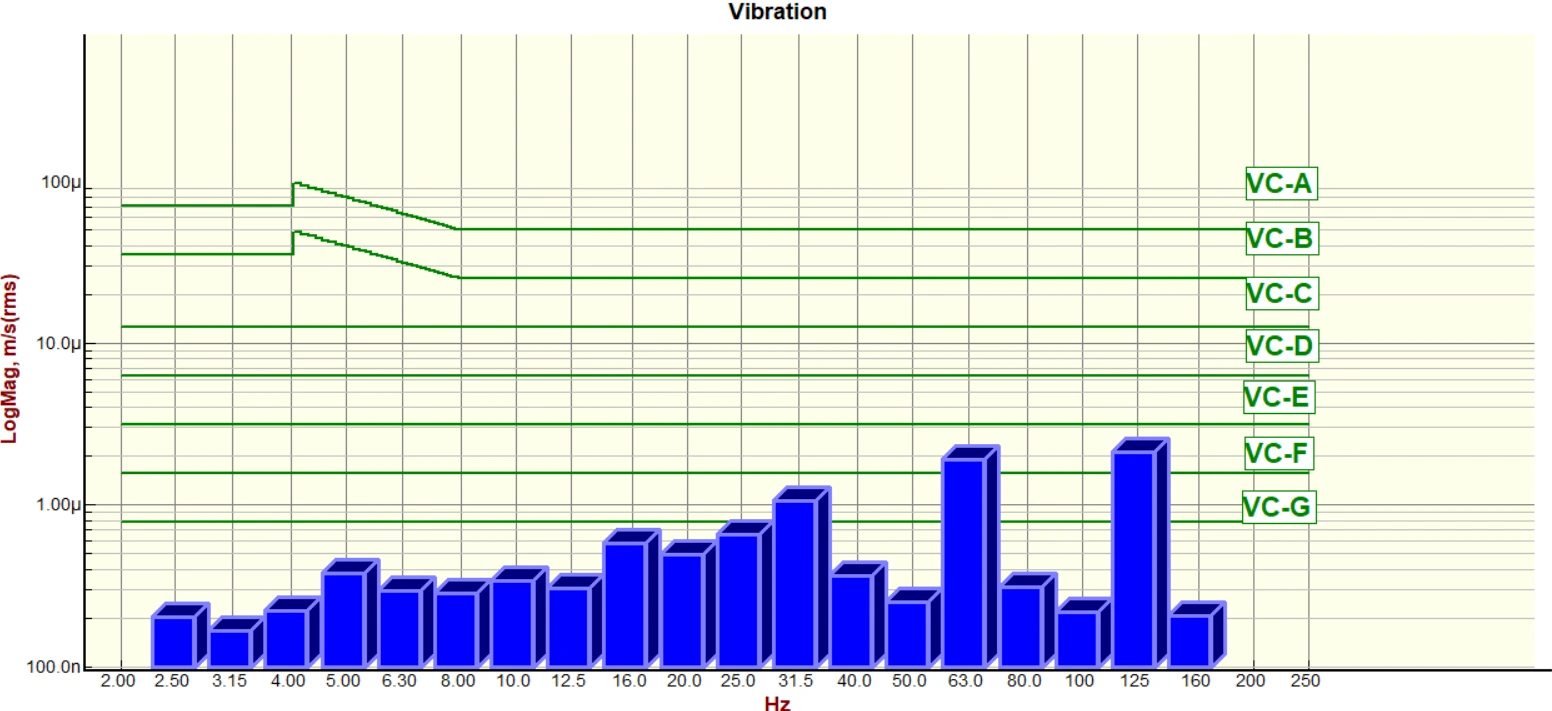

Y-axis (Front to Back) VC curves

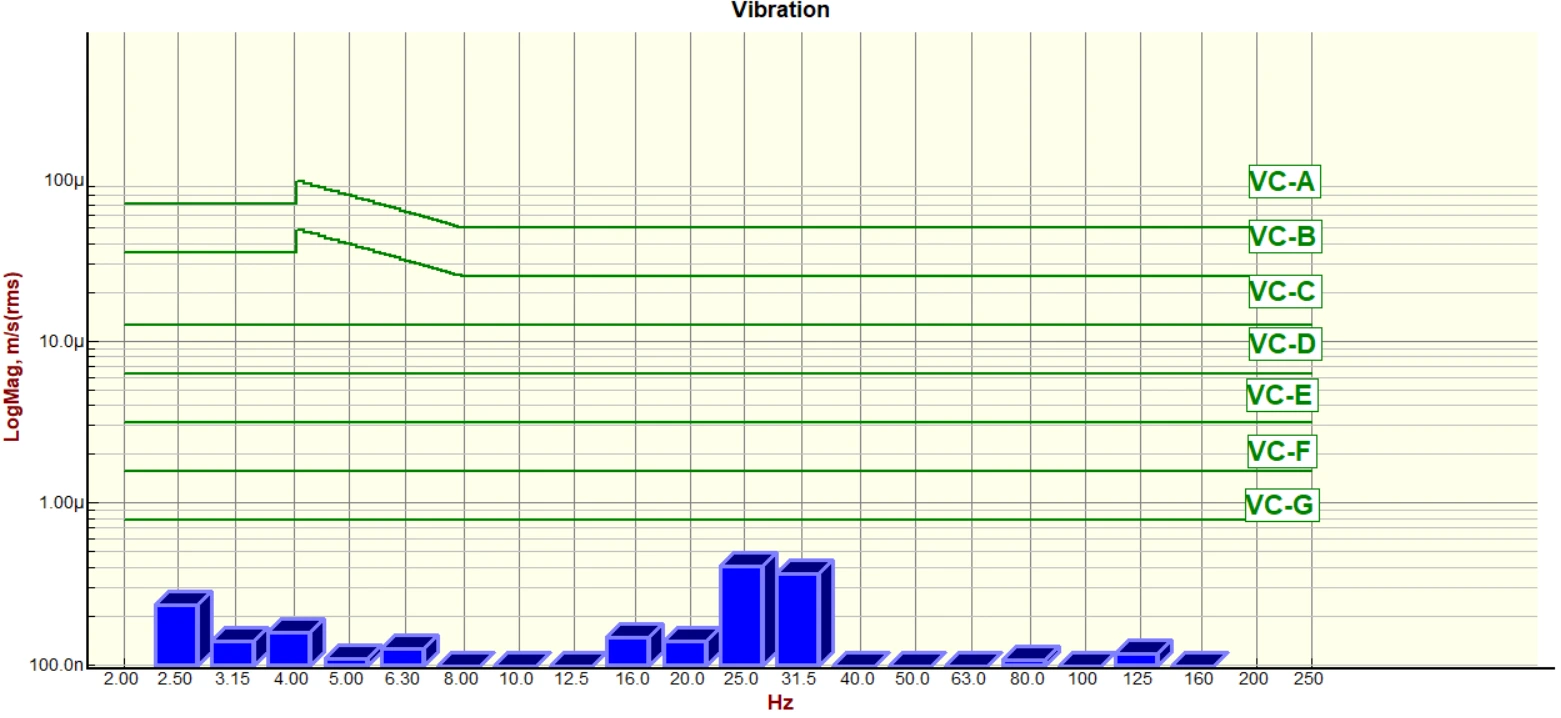

Y-axis (Front to Back) VC curves (Active)

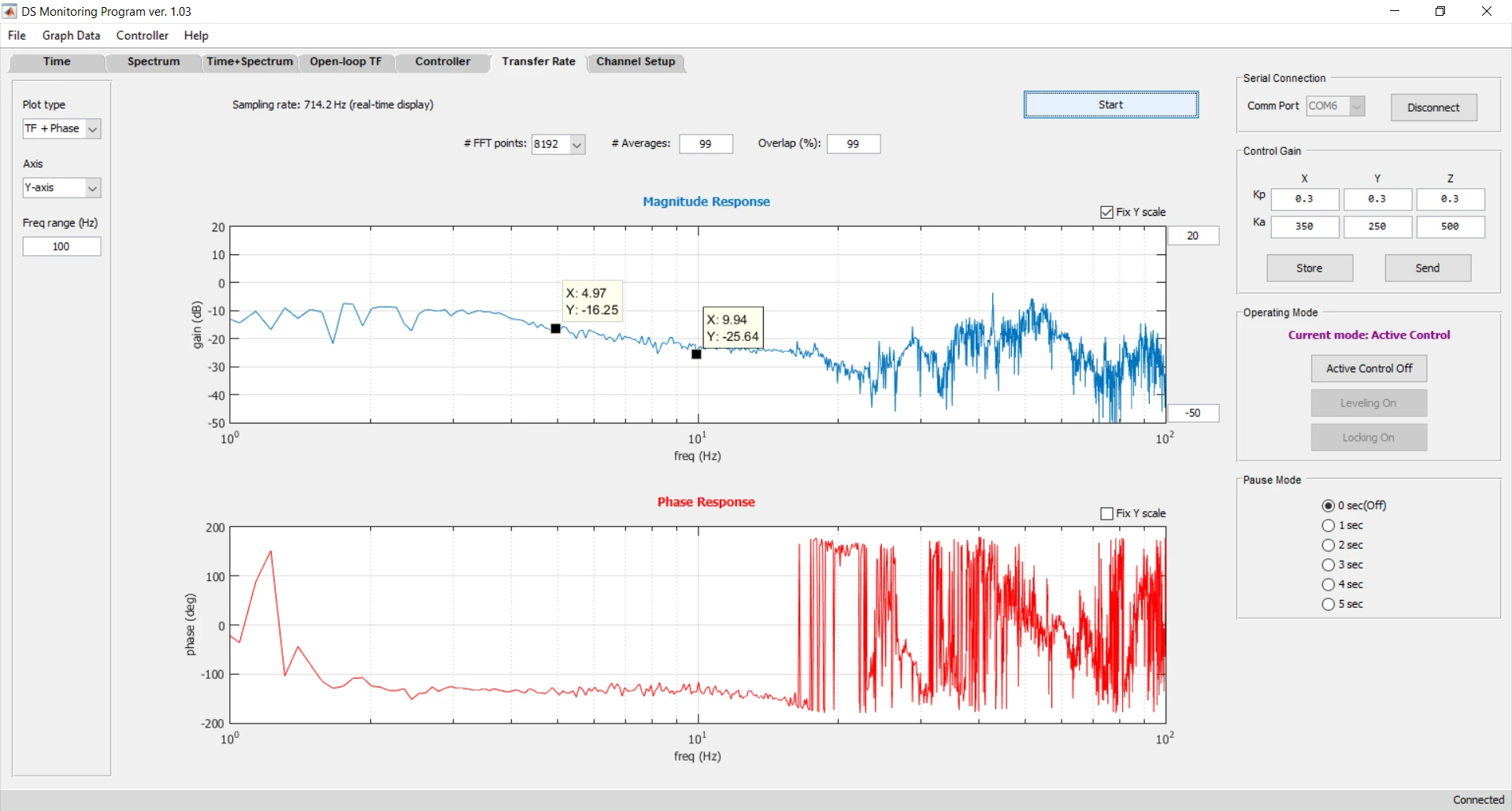

Y-axis (Front to Back) Transmissibility
Reference
Generic Vibration Criteria
Notes:
1. VC-A/B is measured in 1/3 octave bands from 8-80 Hz, VC-C through VC-G from 1-80 Hz.
2. Detail size refers to line widths in microelectronics manufacturing or particle sizes in medical research.
