Opton ZEISS EVO 15 UB700 Installation Report (181107R4)
DVIA-P Series
Installation Report
Opton
ZEISS
EVO 15
UB700
181107R4
VC-Class
Floor vs Active
Octave band
Contents
Target equipment
ZEISS EVO 15
Place of installation
1st Floor, Opton
Remark
Good performance
END USER
Opton
Operator: Choi, Sung Won
Date of setup : 18.12.21
Date of reporting : 18.12.26
Date of business trip : 17.12.27~17.12.29
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 2018.12.18 (Tuesday)
Operator: Daeil System, Manager Sung Won Choi
Place of measurement : 1st Floor, Opton
Equipment Model: ZEISS EVO 15
Measurement conditions and results
Summary of measurement results
| Test Condition: VC-Class | Z | X | Y |
|---|---|---|---|
| Floor | D | D | D |
| Above Active | G | G | G |
Good omnidirectional performance.
UB700 internal program performance measurement result

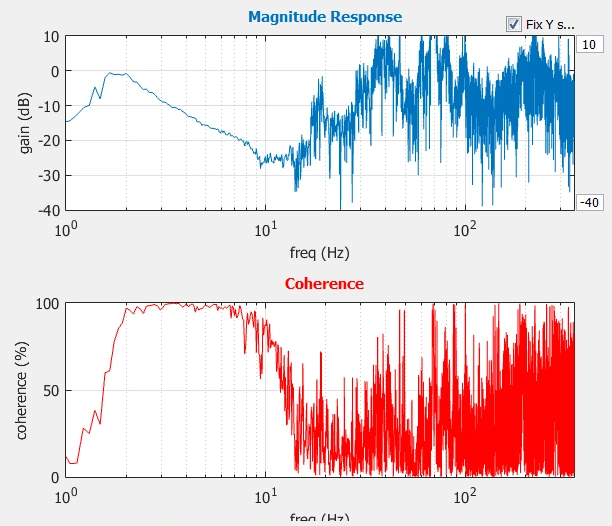

Z axis

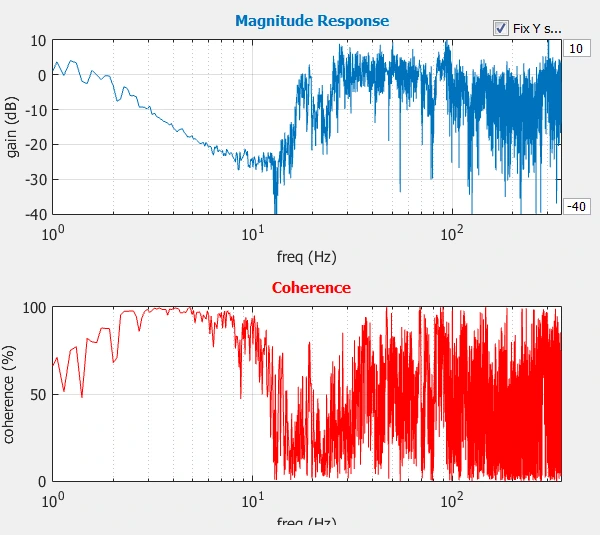

X axis

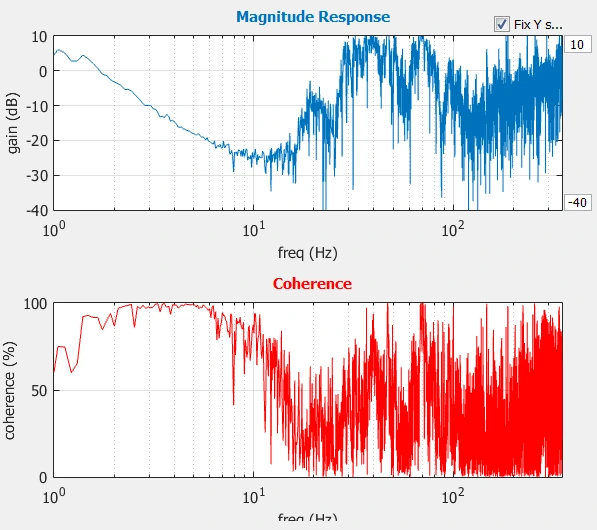

Y axis
Octave Band Result (BASE: Floor, TOP: Above Active)

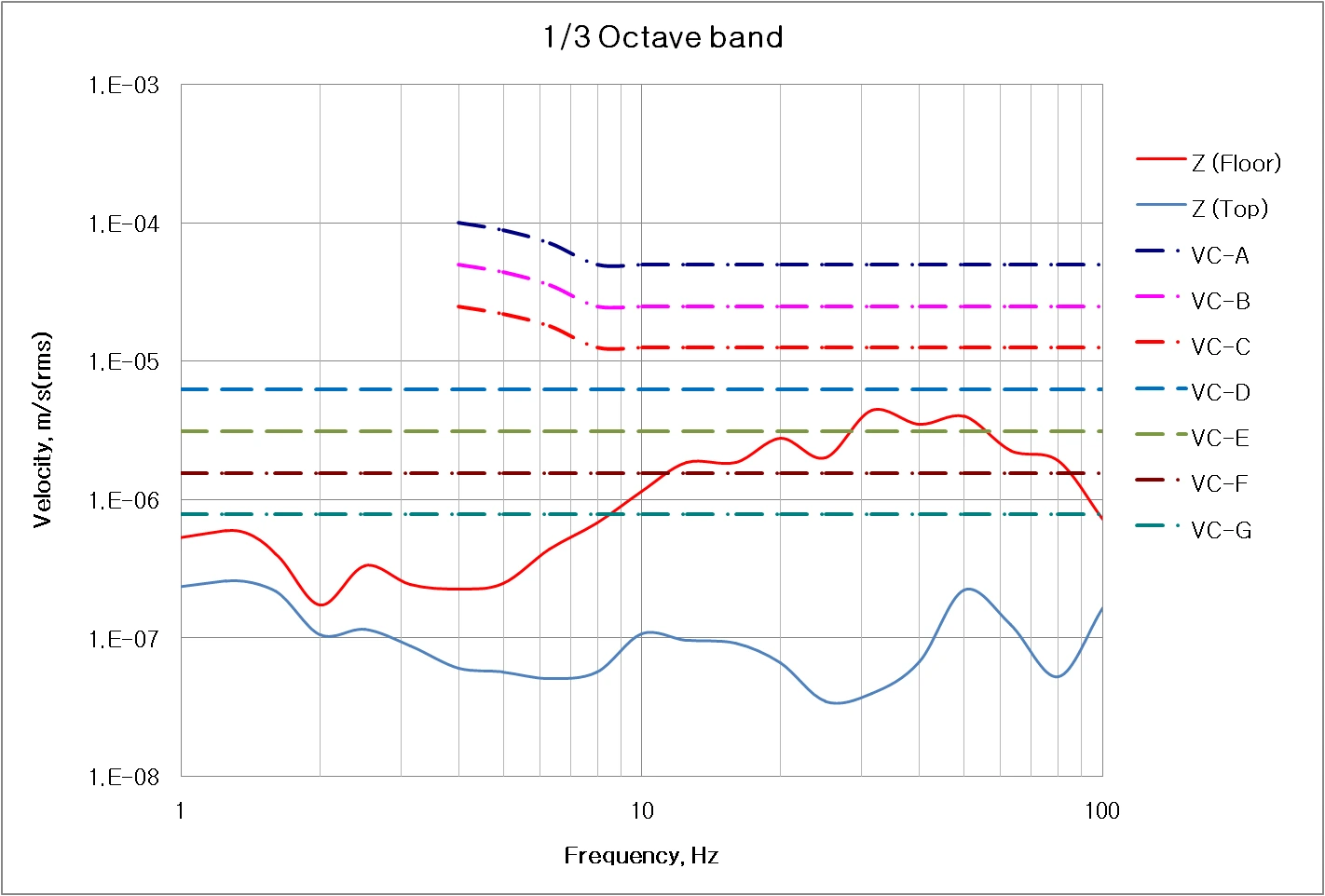

Z axis

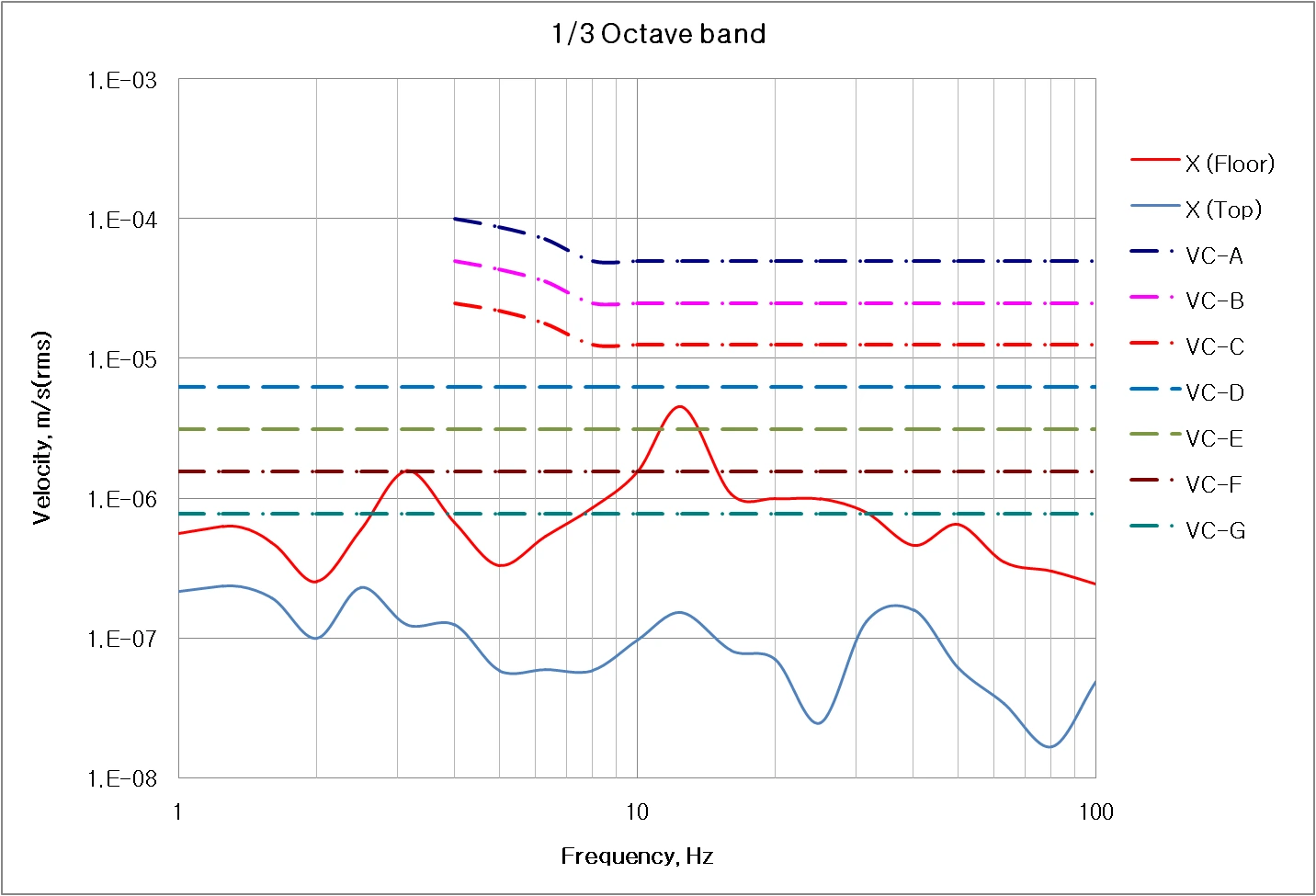

X axis

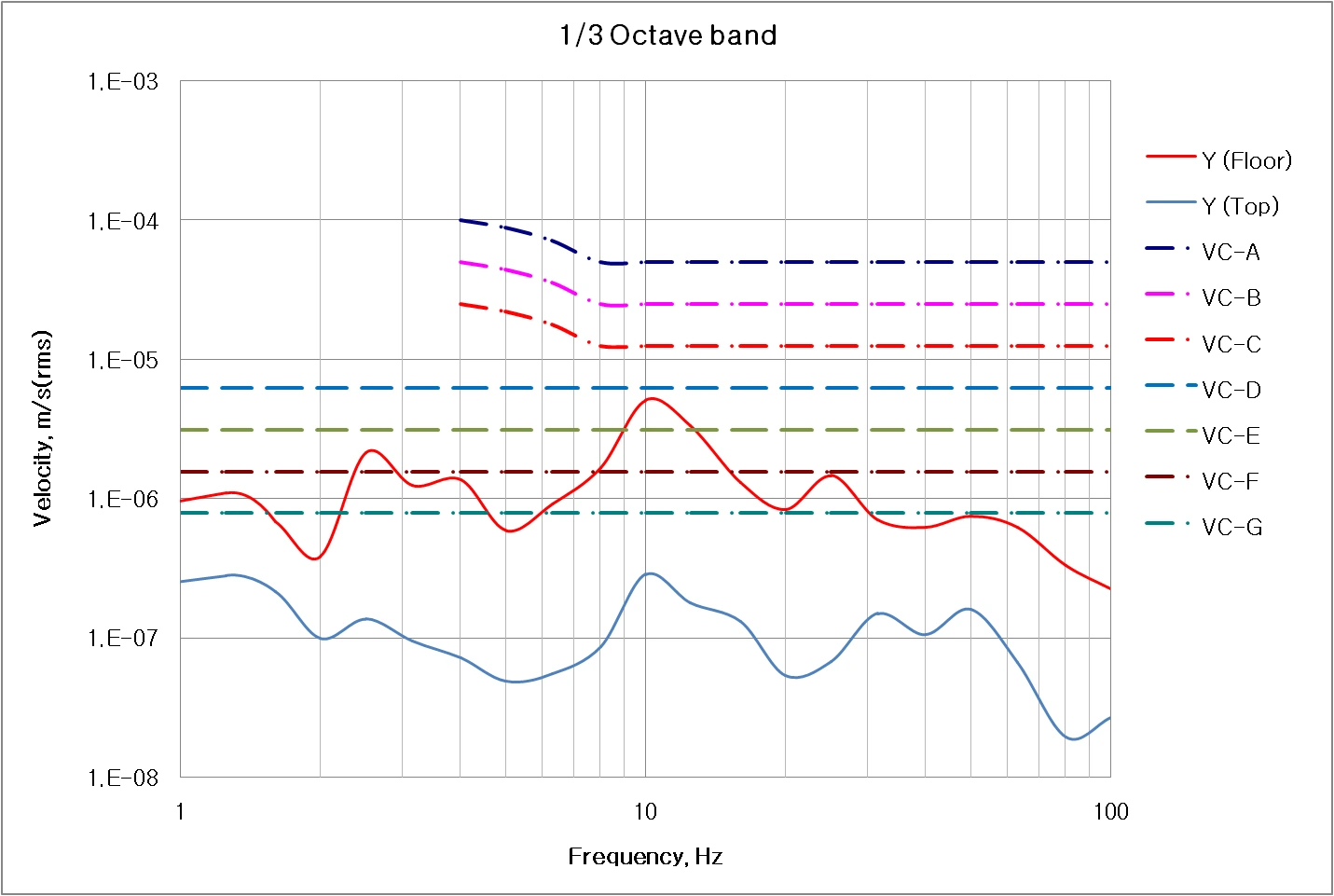

Y axis
