Installation Report
DVIA-P Series
05-26-2026
Xiamen University of Technology Zeiss Sigma 500 UB700 Installation Report (181019R7)
DVIA-P Series
Installation Report
Xiamen University of Technology
Zeiss
Sigma 500
UB700
181019R7
VC-Class
Floor vs Active
Octave band
Contents
Target equipment
Zeiss Sigma 500
Place of installation
SEM Lab, 1F, Xiamen University of Technology
Remark
Good performance
END USER
Xiamen University of Technology
Operator: Choi, Sung Won
Date of setup : 19.01.03
Date of reporting : 19.01.07
Date of business trip : 17.12.27~17.12.29
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 2019.01.03 (Tuesday),
Operator: Daeil System, Manager Sung Won Choi
Place of measurement : SEM Lab, 1st Floor, Xiamen University of Technology
Equipment Model: Zeiss Sigma 500
Measurement conditions and results
Summary of measurement results
| Test Condition: VC-Class | Z | X | Y |
|---|---|---|---|
| Floor | C | D | D |
| Above Active | C | F | E |
Good omnidirectional performance.
In all direction, vibration level is high at 100Hz. Acoustic or direct force can be the cause.
MB1000 internal program performance measurement result

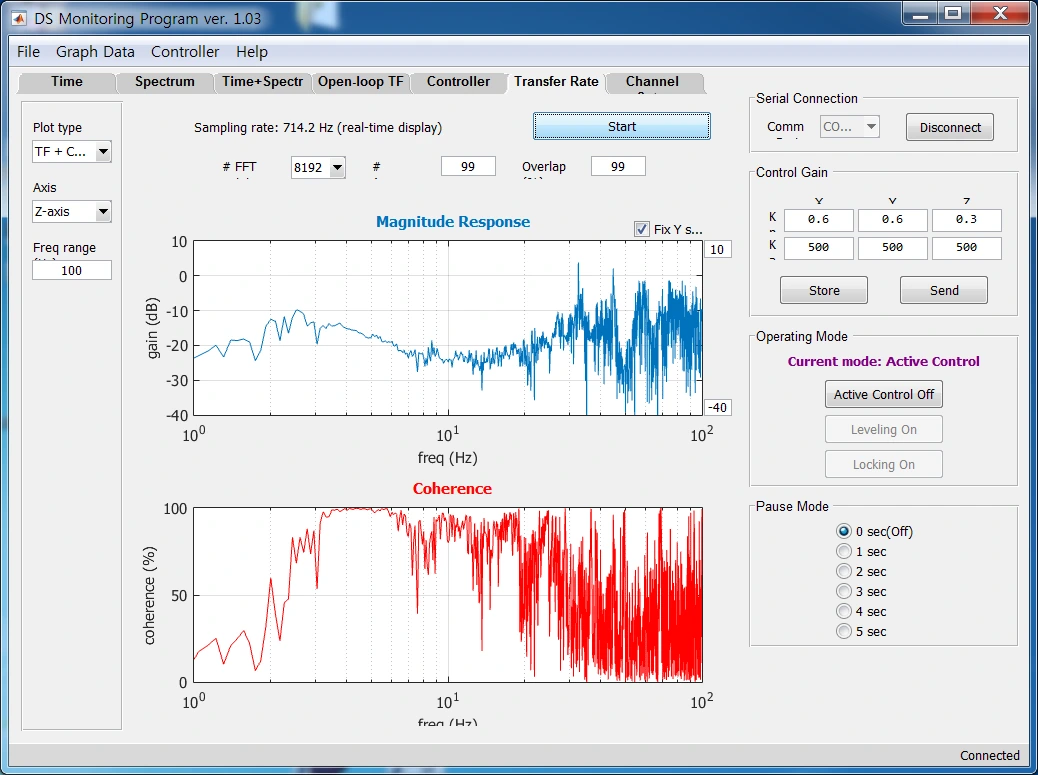

Z axis

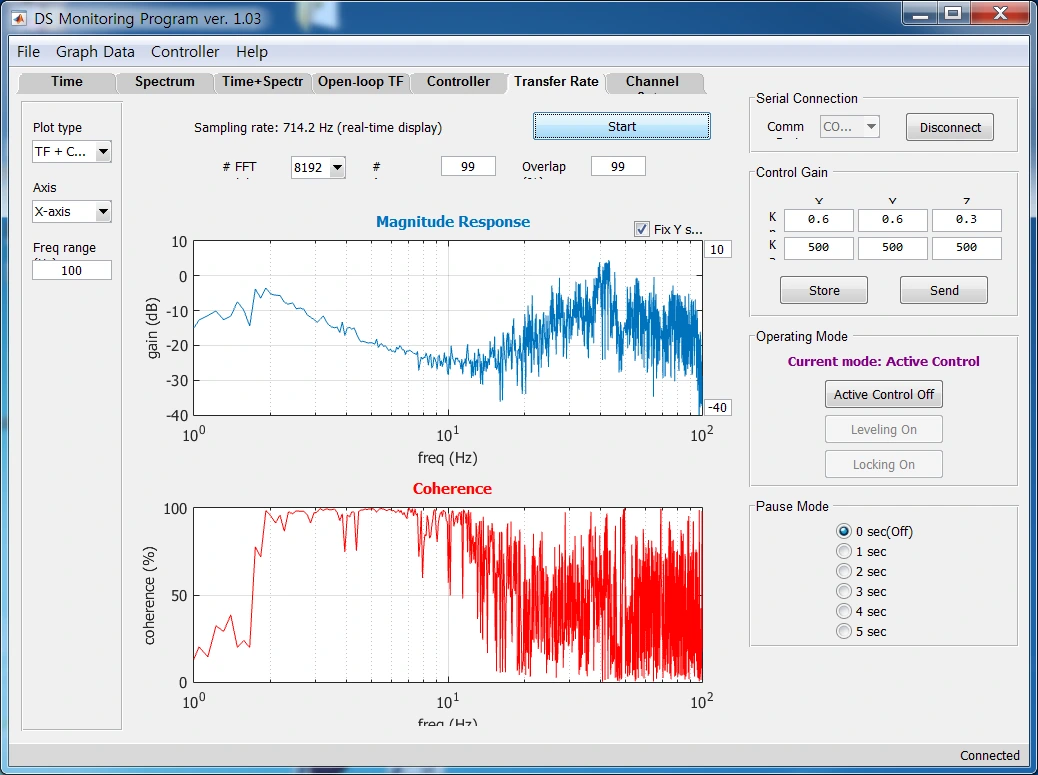

X axis

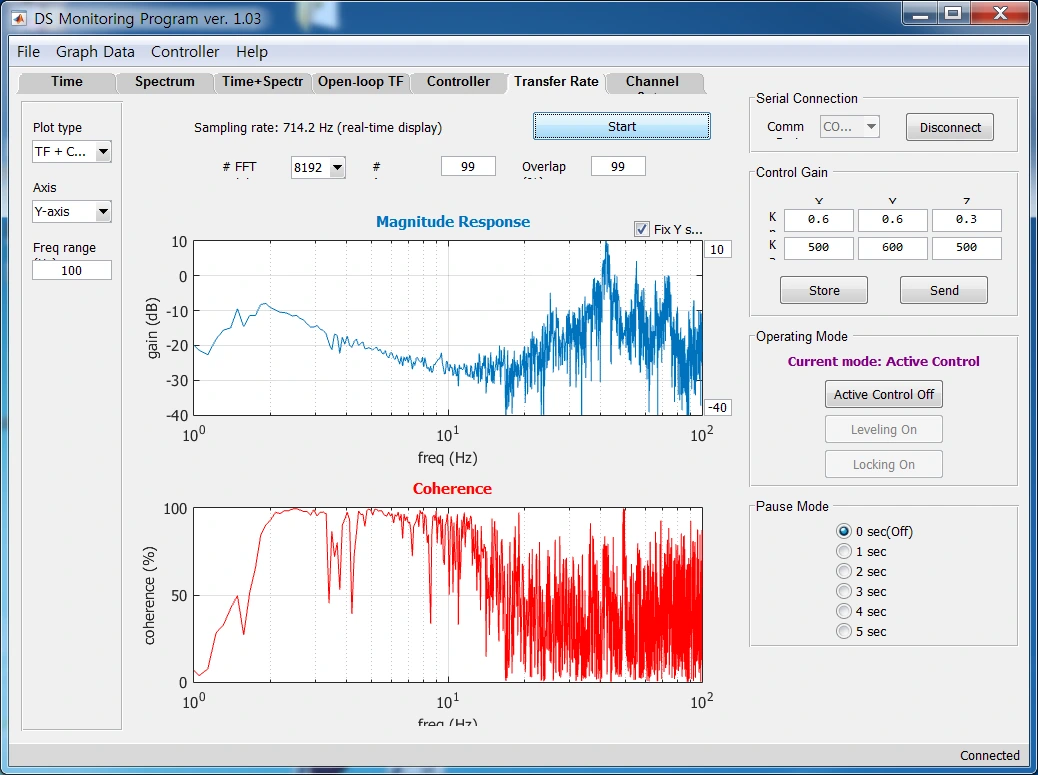

Y axis
Octave Band Result (BASE: Floor, TOP: Above Active)

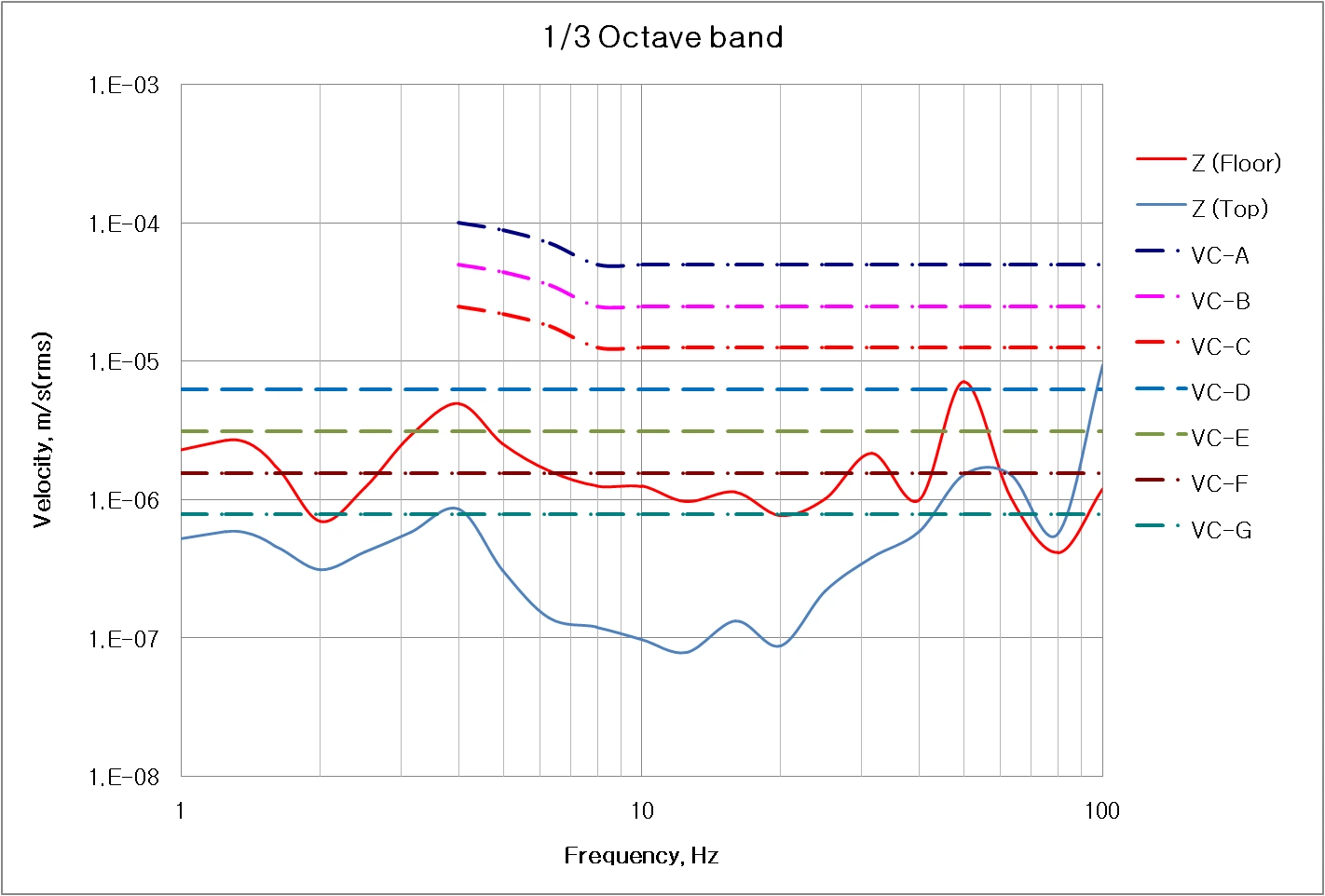

Z axis

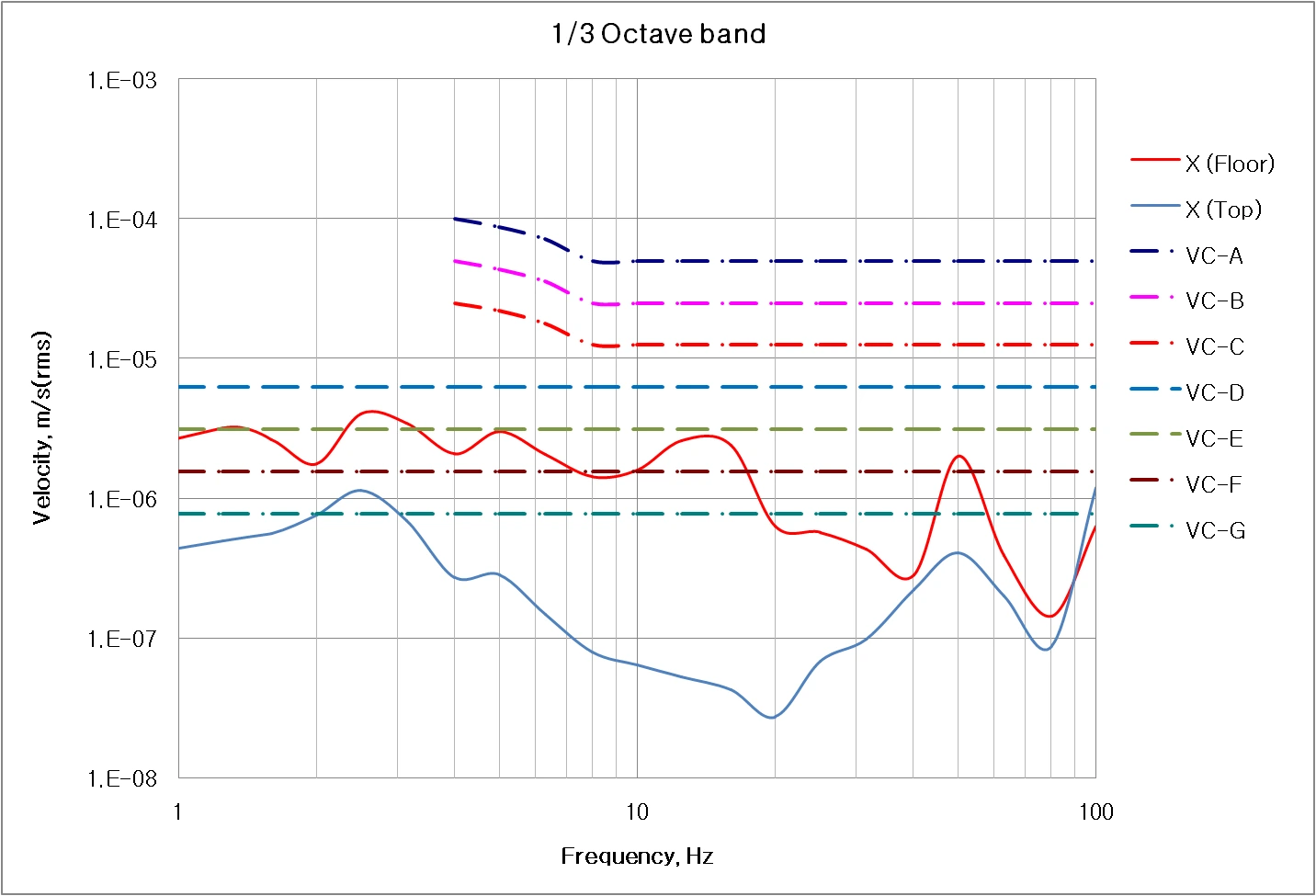

X axis
Y axis
