Vibration Isolation Case Studies

DVIA-M-THT3 onboard program measurement screenshots (serial 240807R5) for Thermo Fisher Scientific Talos TEM at END USER Xiamen Street Lighting Institute — Xiamen site. Operator Chaewon Lee; setup and reporting 24.11.18; measurement 2024.11.18 (Monday). Published captures follow the embedded program headings Vertical, Left to Right, and Front to Back; decorative title-block raster before the summary tables is omitted.

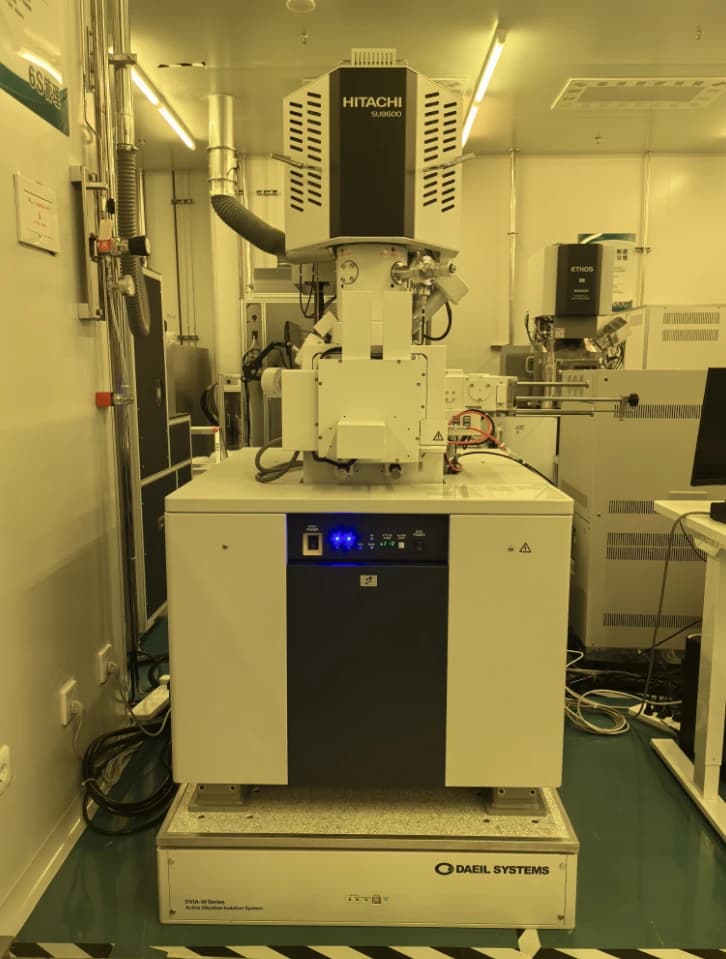

DVIA-M1000 installation report (serial 240828R1-5) — HITACHI FE-SEM SU8600. Field package. UI-program transmissibility plots and equipment photo; Reference as markdown VC table.

DVIA-MB3000 (serial 141104R5) inspection and tuning after relocation to Korea Electronics and Machinery Convergence Technology Institute, Room 104, with measurement on 31 Oct 2024 and report dated 15 Nov 2024. Equipment not yet installed; VC-curve, autospectrum, and transmissibility plots for vertical, left-to-right, and front-to-back axes; measurement summary per the site worksheet; equipment vibration specification TBD (미정). Engineers Chae-won Lee (field) and Dong-hwan Kim (domestic sales), DAEIL SYSTEMS. Reference uses the standard Generic Vibration Criteria markdown table (no separate reference figure).

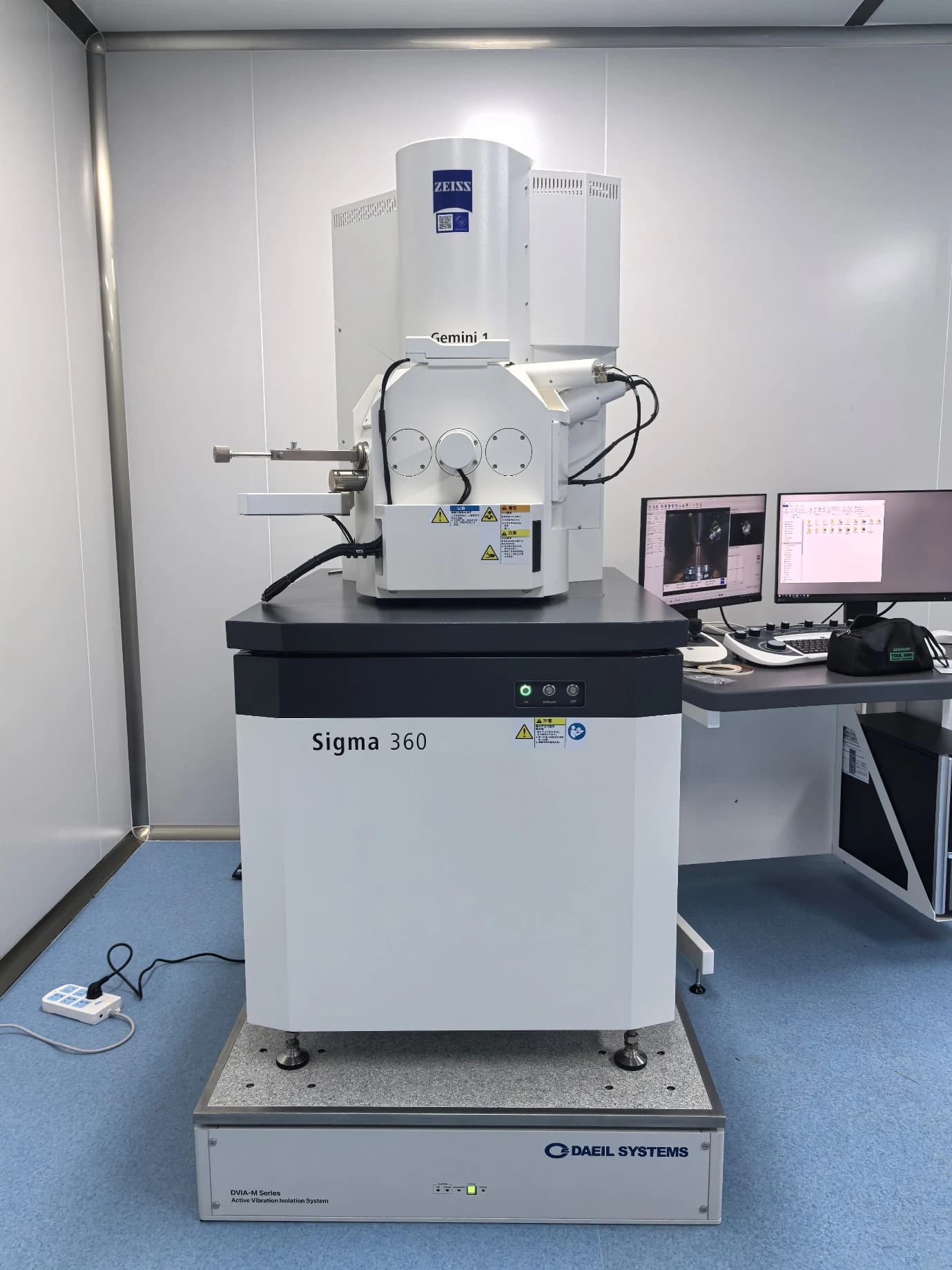

DVIA-M1000 installation report (serial 240509R7-3) for ZEISS FE-SEM Sigma360. Overview matches the published form. Equipment condition: The equipment is installed/Turned off. Published figures include UI-program plots as listed; Reference uses the standard Generic Vibration Criteria markdown table.

DVIA-STONE-300 handout (serial 240513R3) titled (STONE-300_ 240513R3 Set up) with setup 24.11.13 and reporting 24.11.14. Thermo Fisher Spectra 300 target equipment is recorded at Southern University of Science and Technology, Shenzhen. The Overview paragraph, operator lines, and equipment labels follow the report text; the worksheet shows STONE-300 internal program screenshots under Vertical, Left to Right, and Front to Back. The source has no standalone vibration specification section, measurement summary table, or Reference section.

DVIA-M1000 handout from M-OST_240724R3_2024.11.12.docx (serial 240724R3) for Suzhou Institute of Nanotechnology with target equipment Omicron STM in Suzhou. Overview and in-form metadata match the worksheet; M1000 internal program screenshots are labeled Vertical, Left to Right, and Front to Back. The JPEG embedded under the `(M-OST_24724R3 - Set Up)` title line (rId8 / image1.jpeg) was treated as header decoration and omitted from the public page. No vibration specification, equipment status, tuning request, measurement summary table, or Reference section appears in the source.
