Vibration Isolation Case Studies

DVIA-M1000 setup worksheet (serial 230501R3-1) for TESCAN SOLARIS GMH at Shenzhen. The source uses a compact header graphic (omitted from the public page), form tables, then M1000 internal-program performance plots for Z, X, and Y axes; Reference uses the standard Generic Vibration Criteria markdown table.

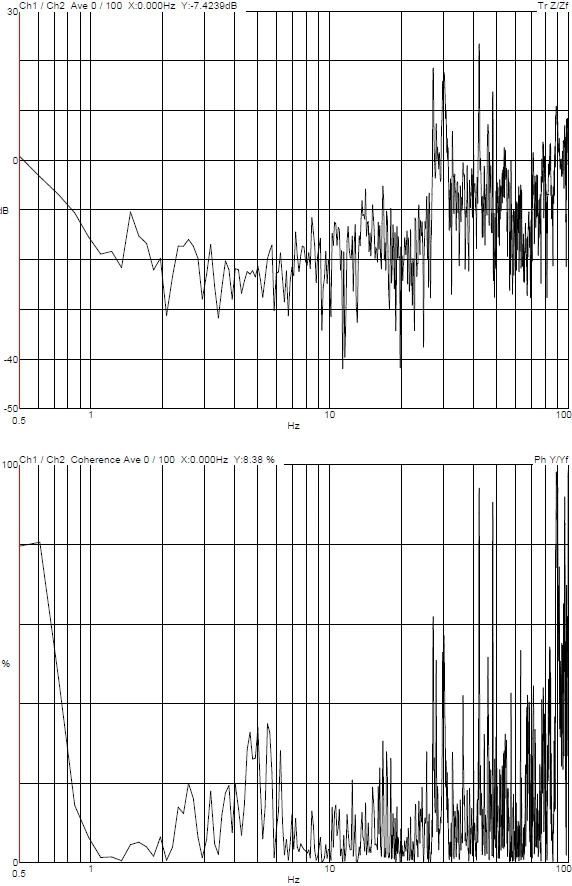

Compact MB1000 handout worksheet (serial 230501R3-2). The form leaves target equipment unstated while place of installation and remark read as typed; end user carries a lone dash placeholder. Overview keeps the DVIA-MB1000 wording with measurement site and equipment-model labels open after the colon. Decorative header raster is omitted (no standalone cover blob in DOCX media). Published figures are the internal-program Vertical, Left to Right, and Front to Back screenshots; Reference uses the standard Generic Vibration Criteria markdown table only.

DVIA-MB1000 worksheet (serial 230501R3-3): compact MB1000 internal-program Transmissibility screenshots for Vertical, Left to Right, and Front to Back. Several form fields were unset in the source (target equipment, site, end user); public copy uses N/A. The issued Word file has no Reference / Generic Vibration Criteria appendix — that section is omitted here. Decorative header graphics from the template, if any, were not published.

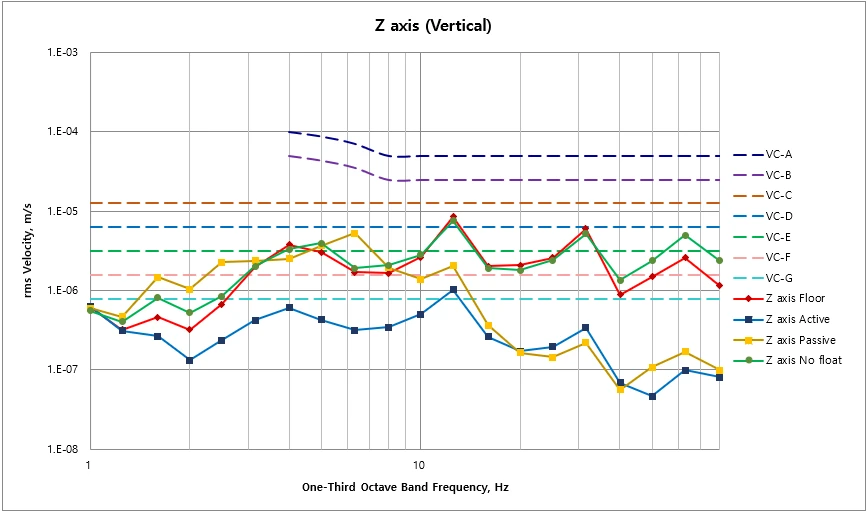

DVIA-MB1000 installation report (serial 230518R2) for JEOL JSM-7001F at POSCO Global R&D center (Songdo). Summary of vibration results (VC-class table), Z/X/Y VC curves and transmissibility plots; Reference uses the standard Generic Vibration Criteria markdown table (reference graphic omitted). Decorative header image from the Word file is not published.

DVIA-M1000 handout archived as M1000_230525R8_23.09.07. Installation summary targets Shenzhen with remark Good Performance and END USER N/A. Overview states the DVIA-M1000 platform is appropriately installed and functioning as intended. Published figures are the three M1000 internal-program UI screenshots (Z, X, and Y axes) only; title-block déc raster is omitted. The source worksheet has no vibration specification, measurement summary table, or Reference section.

DVIA-MO1000 Set Up Report (serial 230608R2) for STM at Lee Tsung-Dao Research Institute, Shanghai. MO1000 internal program performance plots for vertical, left-to-right, and front-to-back directions; compact report without measurement summary table or reference VC figure.
