Vibration Isolation Case Studies

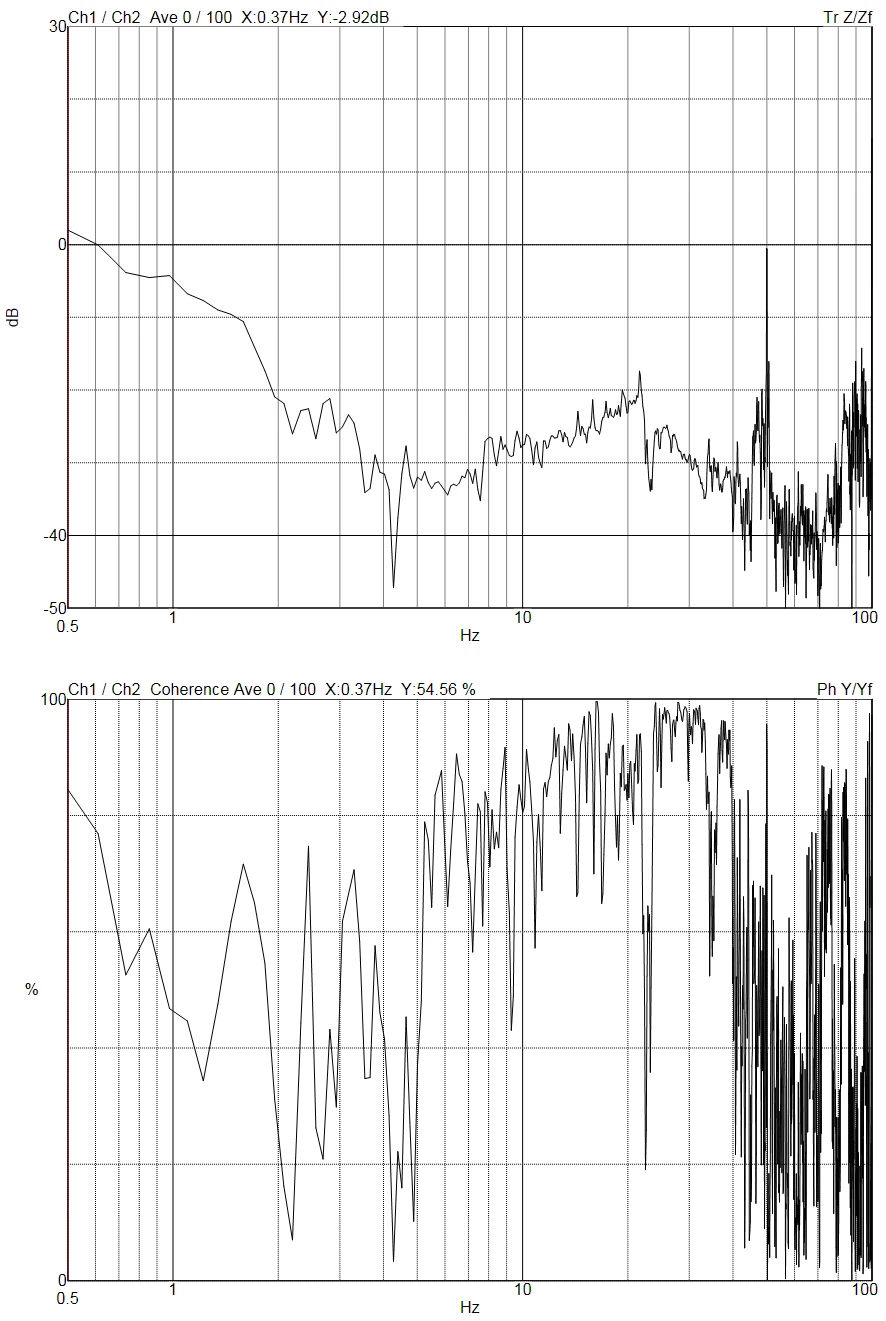

DVIA-MB1000 serial 190117R3 internal-program plots: transmissibility (Z / X / Y), 1/3-octave-band spectra, displacement spectral density (Z / X / Y), and Z-axis displacement spectral density comparison (floor–chamber top, floor–isolator top, isolator top–chamber top).

DVIA-MB1000 platform serial 190109R5 at MFLEX Suzhou MFC3 (ZEISS Sigma500). Setup 2019-06-25, reporting 2019-06-27 per the Word worksheet; VC-class summary table, MB1000 internal-program Z/X/Y plots, and octave-band Z/X/Y plots (floor vs above active) are published from DOCX §2a mapping. The black title-strip raster (image1) is omitted as decorative; the MFLEX Suzhou exterior photograph follows the setup heading.

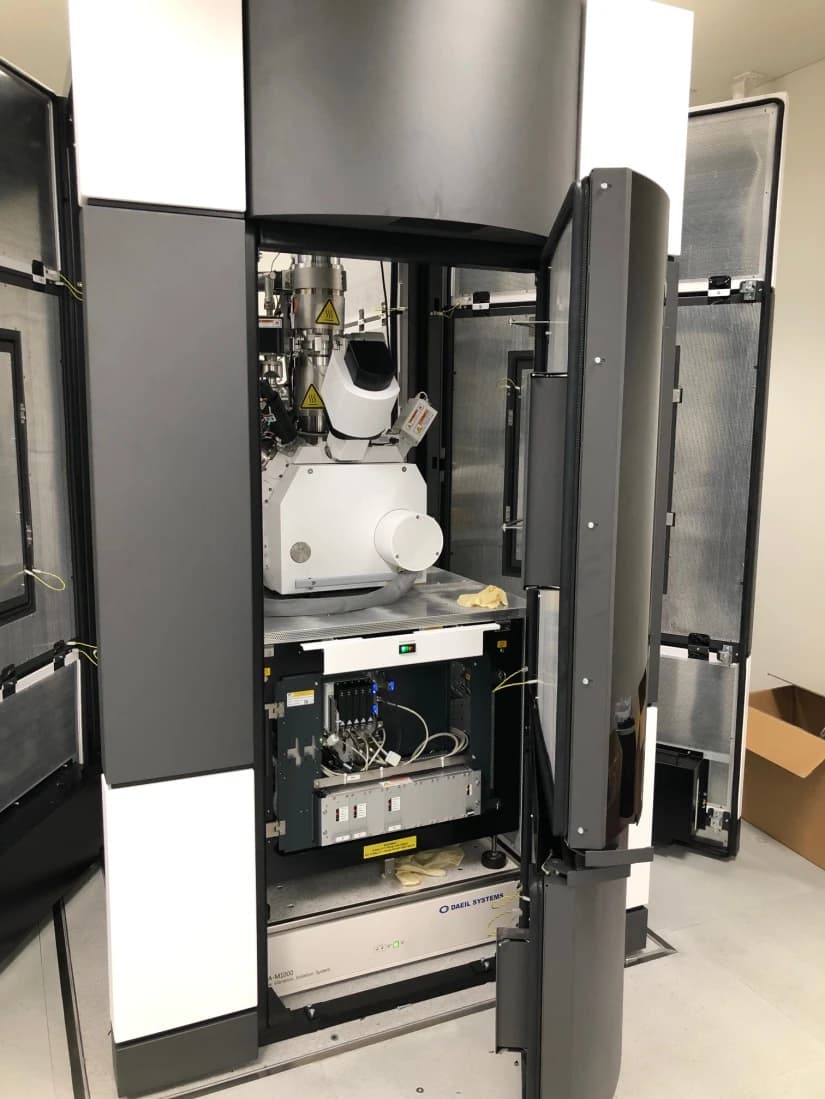

Helios G4 UC on DVIA-MB1000 serial 190531R3 at Nissan Chemical F1 — measurement 2019-06-24, report 2019-06-27. Published imagery: equipment photograph, MB1000 internal program Z / X / Y plots, and octave band (Floor vs Above Active) plots for each axis.

China trip report for MB1000 project P124 at Nissan Chemical F1 with Thermo Fisher Scientific Helios G4 UC. Trip date 2019-06-24; report dated 2019-06-27. Published imagery: site/equipment photograph, MB1000 internal program Z / X / Y results, and vibration environment measurement Z / X / Y plots.

Korean-format China business-trip worksheet MB1000 P109 for DVIA-MB1000 with target equipment ZEISS Sigma500 at MFLEX Suzhou MFC3 F4 (end user MFLEX). Business trip 19.06.25; operator line names Choi, Sungwon; report dated 19.06.27. The public page publishes the installation photograph embedded after the title block (DOCX Word image2, §2a; 1136×498), MB1000 internal-program screenshots Z / X / Y (image3–5), and vibration-environment plots Z / X / Y (image6–8). The narrow decorative title-strip bitmap Word image1 (471×214) is omitted.

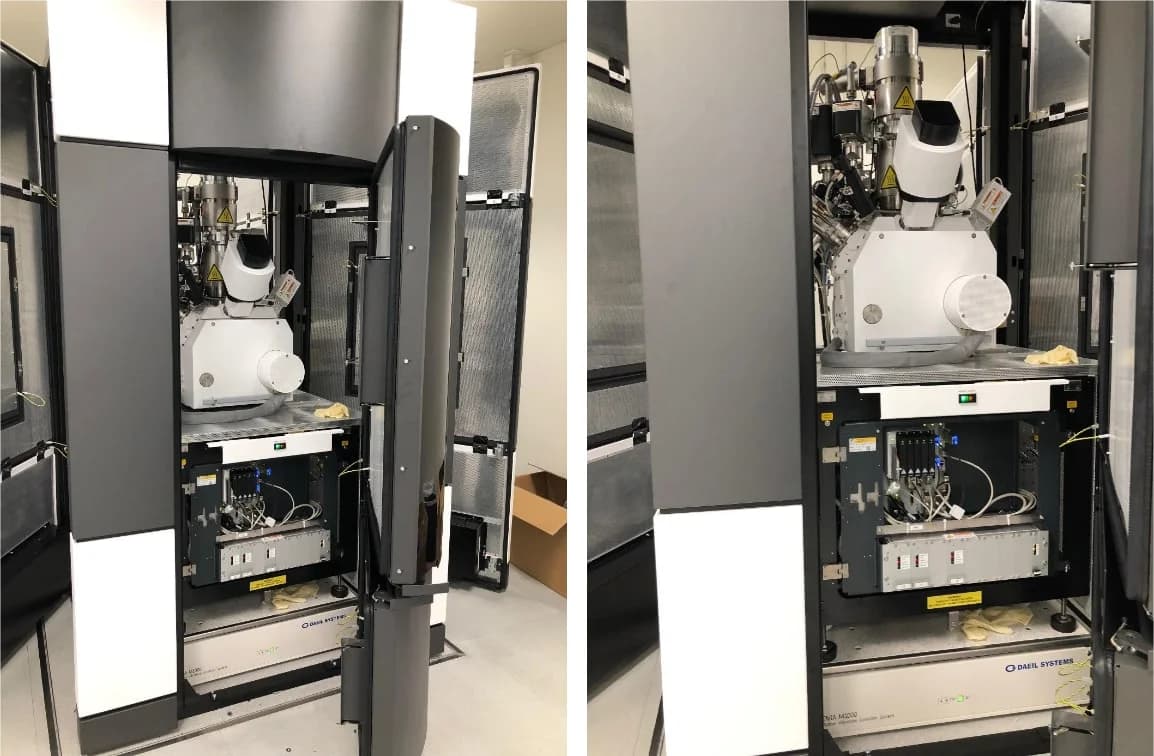

Thermofisher Scientific Helios G4 UC DualBeam HR-S/TEM
