Vibration Isolation Case Studies

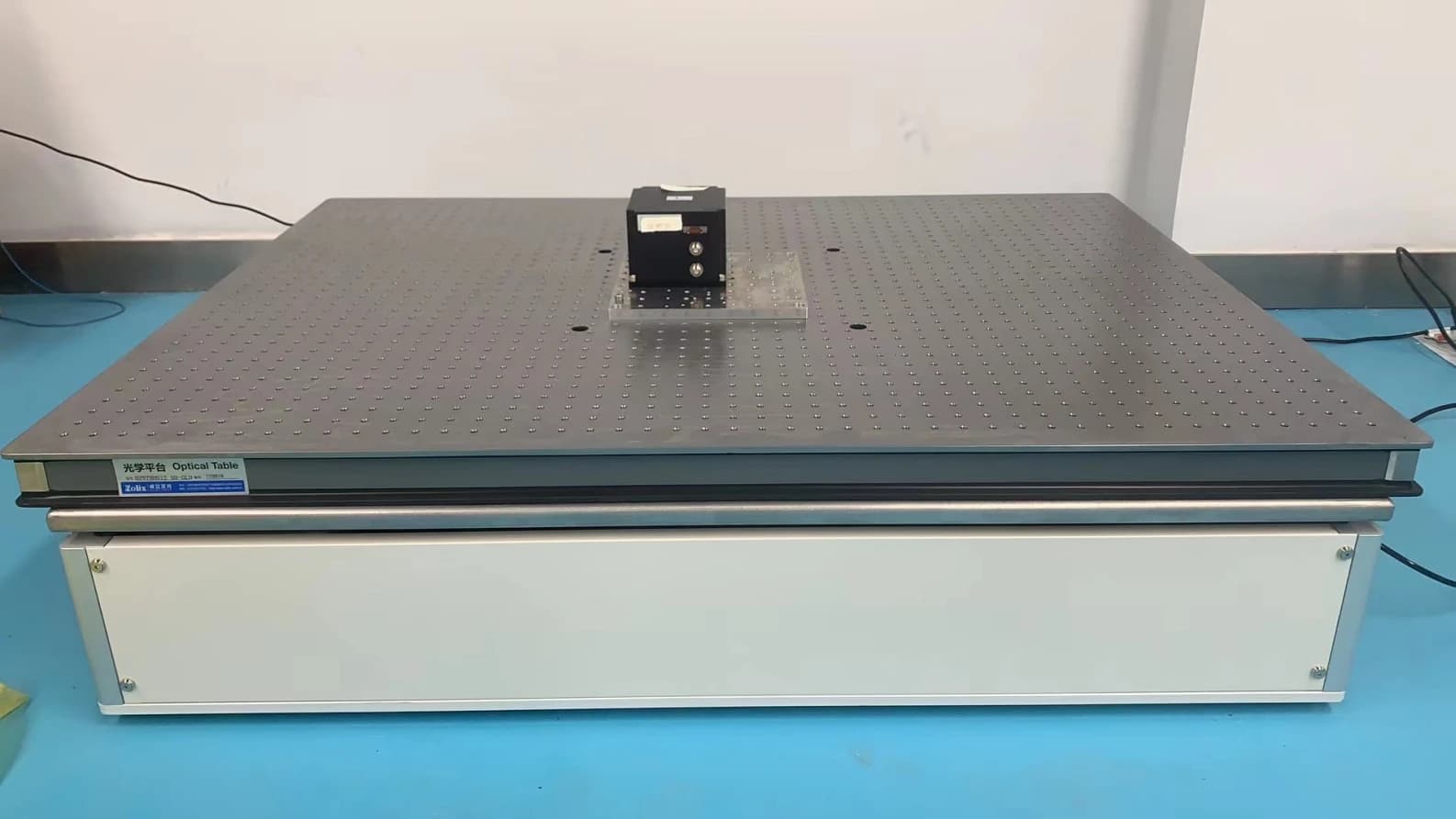

DVIA-M1000 MB1000 worksheet (serial 210610R1, project line P254). After active mounting, floor transmissibility was summarised at 2, 5, and 10 Hz; internal-program Z / X / Y plots are published from the embedded captures. Target equipment, installation site, and end-user cells are blank on the form and are shown as N/A. Title-block photograph included under the worksheet heading.

MB1000-format worksheet headed MB1000 P255 210322R1 for Thermofisher Scios2 at CETC 13 institute (END USER Shijiazhuang). Setup 2021-11-05, reporting 2021-11-08; operator Choi HyoungMun (Daeil Systems). Publishes the worksheet capture under the header row, text transmissibility summary at 2 / 5 / 10 Hz, and MB1000 internal-program Z / X / Y screenshots.

DVIA-M1000 MB1000 worksheet (serial 210610R1, project line P254). After active mounting, floor transmissibility was summarised at 2, 5, and 10 Hz; internal-program Z / X / Y plots are published from the embedded captures. Target equipment, installation site, and end-user cells are blank on the form and are shown as N/A. Title-block photograph included under the worksheet heading.

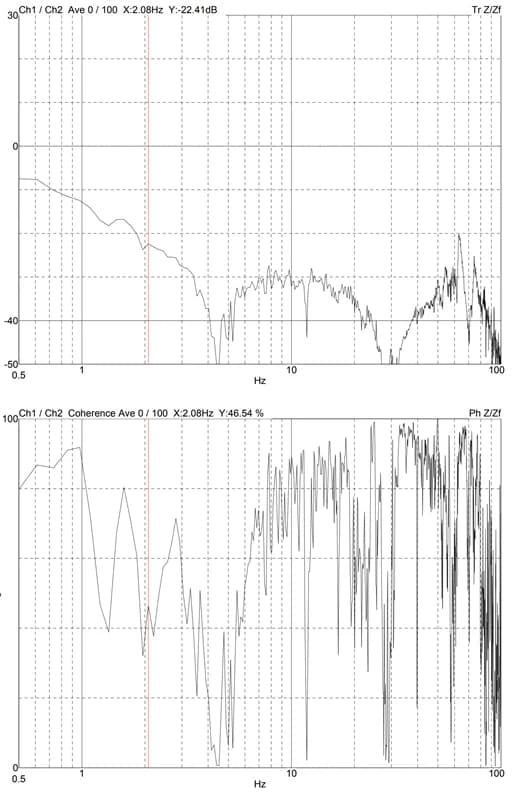

DVIA-MB1000 serial 210705R1 internal-program worksheet for BOE with target equipment ZEISS CROSSBEAN350. Setup 2021-11-04, reporting 2021-11-05; operator Choi HyoungMun (DAEIL SYSTEMS research engineer). Includes transmissibility summary table at 2 / 5 / 10 Hz and Z / X / Y internal-program plots under the axis captions from the source.

DVIA-MB1000 internal-program worksheet (program line MB1000 P244) with platform serial 210705R1 and target equipment ZEISS CROSSBEAN350 for end user BOE. Operator Choi HyoungMun (Daeil System); setup 2021-11-04, reporting 2021-11-05, business trip line 17.12.27~17.12.29. Transmissibility summary and MB1000 internal-program Z, X, and Y screenshots follow the DOCX §2a head↔embed mapping (no decorative title-only raster in this handout).

DVIA-MB1000 worksheet (program line MB1000 P250, platform serial 210812R2) for ZEISS CROSSBEAN350 at SILAN. Setup, measurement, and reporting dates read 2021-10-28 in the workbook; DOCX ingest file labeled 2021-10-29. The centred graphic under **MB1000 P250 210812R2** (image1) is a title-block ornament and not republished; transmissibility table values and MB1000 internal-program Z / X / Y screenshots follow DOCX §2a (image2–4) under matching axis headings.
