Vibration Isolation Case Studies

DVIA-M1000 abbreviated worksheet for serial 231228R1 (source M1000_231228R1_24.01.30.docx). Target equipment Thermo Fisher Helios PFIB for Hainan University (海南大学) in Hainan; setup dated 2024.01.30 and reporting dated 2024.02.01 per the form; operator Lee, Youngha; measurement dated 2024.01.30 (Tuesday); equipment model Thermo Fisher Quattro S on the worksheet. Overview uses the standard DVIA-M1000 sentence only; no vibration specification, equipment status, tuning request, measurement summary table, or Reference section appears in the source. Internal-program plots are labeled Z axis, X axis, and Y axis. The JPEG under the header line `(M1000_ 231228R1 Set up)` was treated as decorative and omitted from the public page.

MB1000 handout DVIA-MB1000 serial 230905R3; target equipment Omicron STM with setup 24.01.23 and reporting 24.07.05. Measurements summarized as M1000 internal program screenshots for Z, X, and Y axes. Word-embedded decorative header raster (media preceding body headings) omitted from publication; Reference publishes the Generic Vibration Criteria markdown table only.

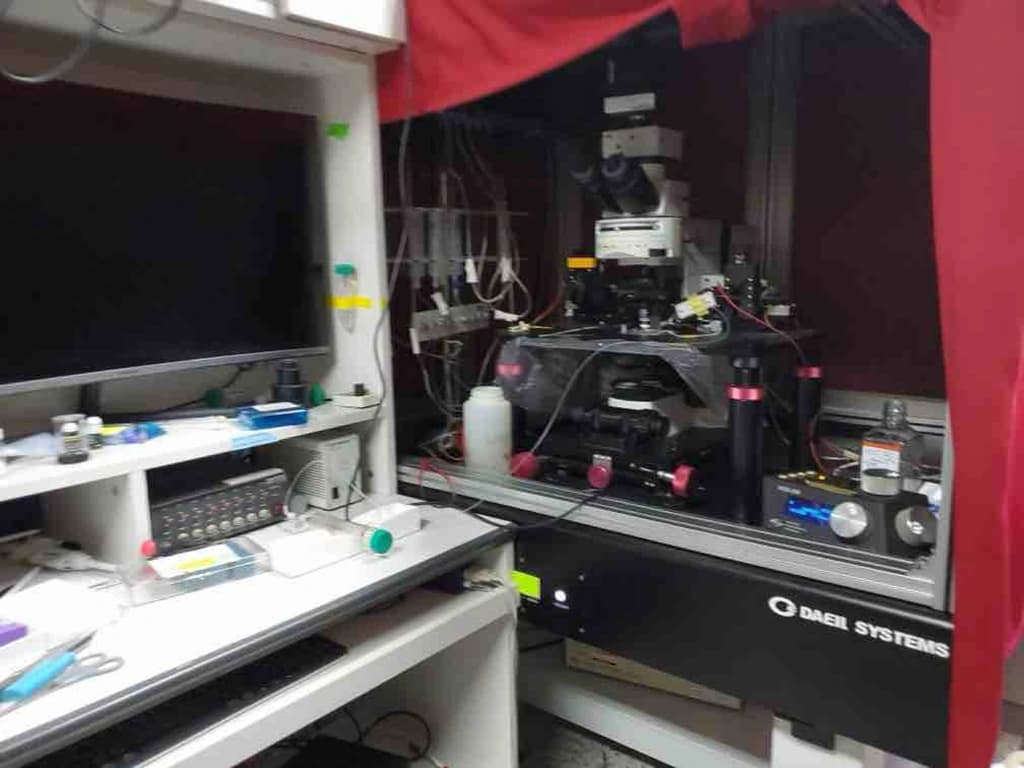

DVIA-UD350 (S/N 220127R1-2) inspection report at KIST (Seoul L7223): PULSE 22 VC curves, UI-program transmissibility, summary plot, and installation photo after a service visit for screen shake during ambient walking.

DVIA-M1000 internal handout (serial 231204R3) titled MB1000_ 231204R3 Set-up with setup 24.01.22 and reporting 24.07.05. Target equipment, installation place, and END USER read as dashes on the form and are published as N/A. The Overview retains the source English sentence; measurement was on 2024.01.22 (Monday) by Byeonghun Cho from DAEIL SYSTEMS with place and equipment model N/A. The worksheet includes only M1000 internal program screenshots under Vertical, Left to Right, and Front to Back. There is no vibration specification block, measurement summary table, or Reference section in the source document.

DVIA-U1000 compact worksheet (serial 230328R5) for ZEISS FE-SEM Sigma360 at China Merchants Testing Vehicle Technology Research Institute Co., Ltd. in Chongqing. Setup 24.01.08, reporting 24.01.16; measurement 2024.01.08 (Monday); operator Park, Jongwon; business trip 17.12.27~17.12.29. Publication includes U1000 internal-program Z/X/Y screenshots only—the issued Word file has no separate equipment setup raster.

DVIA-M1000 installation report (serial 230908R2-2) — ZEISS FE-SEM Sigma 300 for CNITECH, Ningbo. Internal-program performance screenshots by axis (Z, X, Y).
