Installation Report
DVIA-ULF Series
06-25-2020
KIST ZIESS-EXAMINER.A1 UD350 P7 Installation Report (June 2020)
DVIA-U Series
Installation Report
KIST
DVIA-UD350
Zeiss
ZIESS-EXAMINER.A1
2020
P7
Seoul
Contents
KIST (UD350 P7)
Site checklist
| Target equipment | ZIESS-EXAMINER.A1 |
|---|---|
| Place of installation | L7동 2층 |
| Remark | Good Performance |
| END USER | 한국과학기술연구원 |
Operator and dates
| Field | Value |
|---|---|
| Operator | Choi, Hyoung Mun |
| Date of setup | 20.06.24 |
| Date of reporting | 20.06.25 |
| Date of business trip | 17.12.27~17.12.29 |
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 2020.06.24 (WED),
Operator: Daeil System, Manager Choi, Hyoung Mun
Place of measurement : L7동 2층
Equipment Model: ZIESS-EXAMINER.A1
Measurement conditions and results
DAQ System : B&K PULSE 14 & LAN-XI Type 3056
Accelerometer : PCB PIEZOTRONICS 393B05
Frequency Range : 0.7 ~ 200Hz
Summary of measurement results

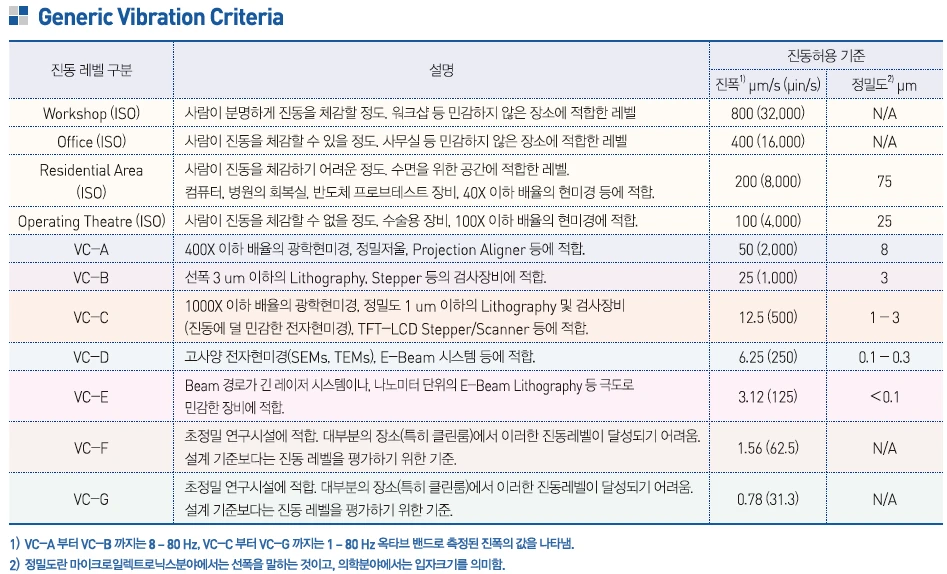

| Test Condition | VC-Class | Z | X | Y | |
|---|---|---|---|---|---|
| Floor | B | F | E | ||
| Above Active | F | G | G |
Good omnidirectional performance.
UD350 internal program performance measurement result

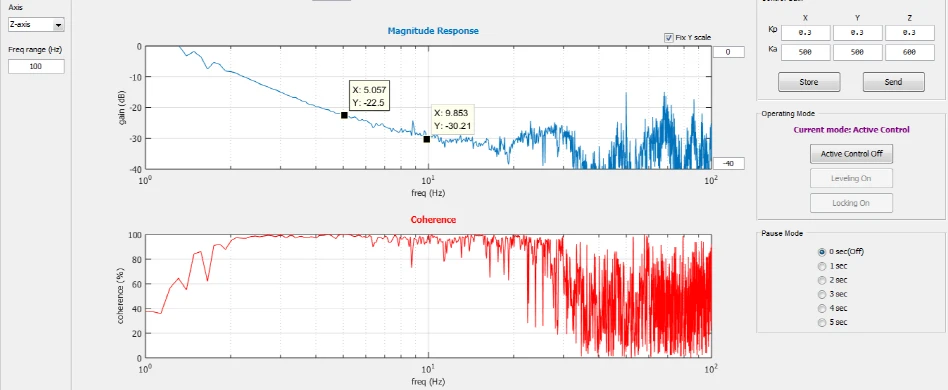

Z axis (internal program)

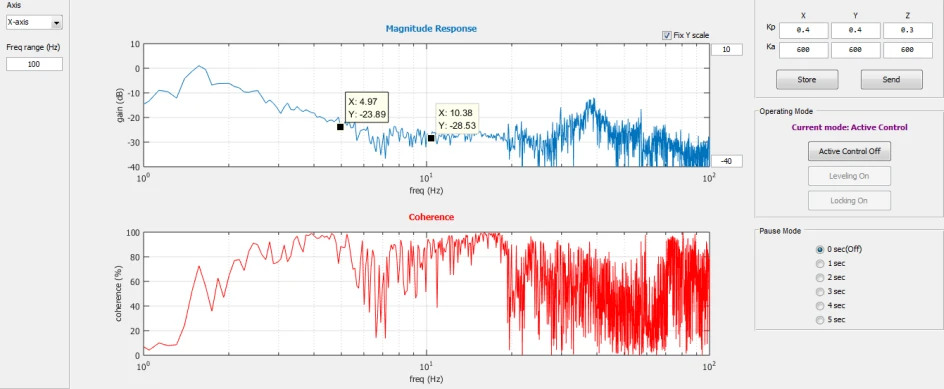

X axis (internal program)

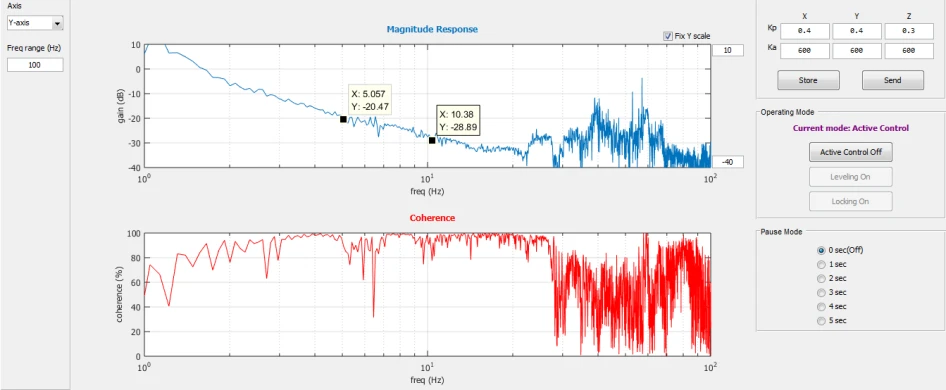

Y axis (internal program)
Octave Band Result (BASE: Floor, TOP: Above Active)

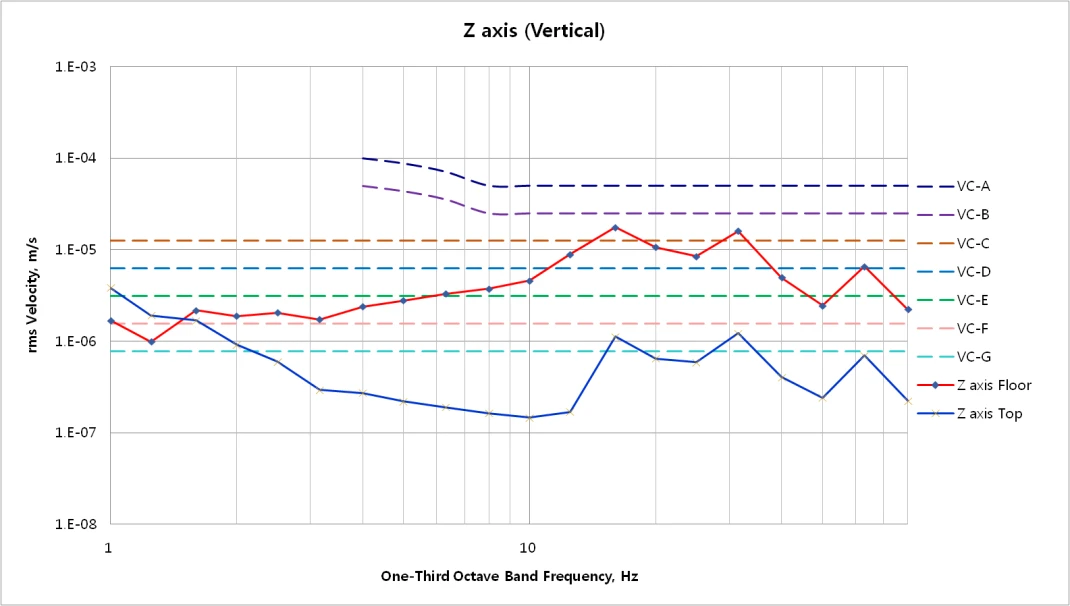

Z axis (octave band)

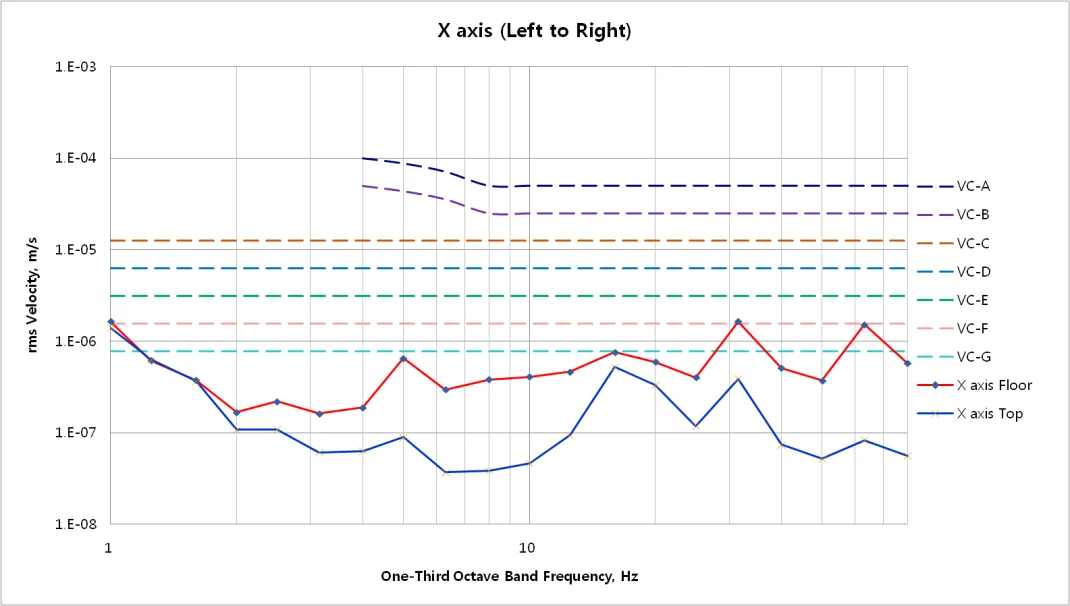

X axis (octave band)

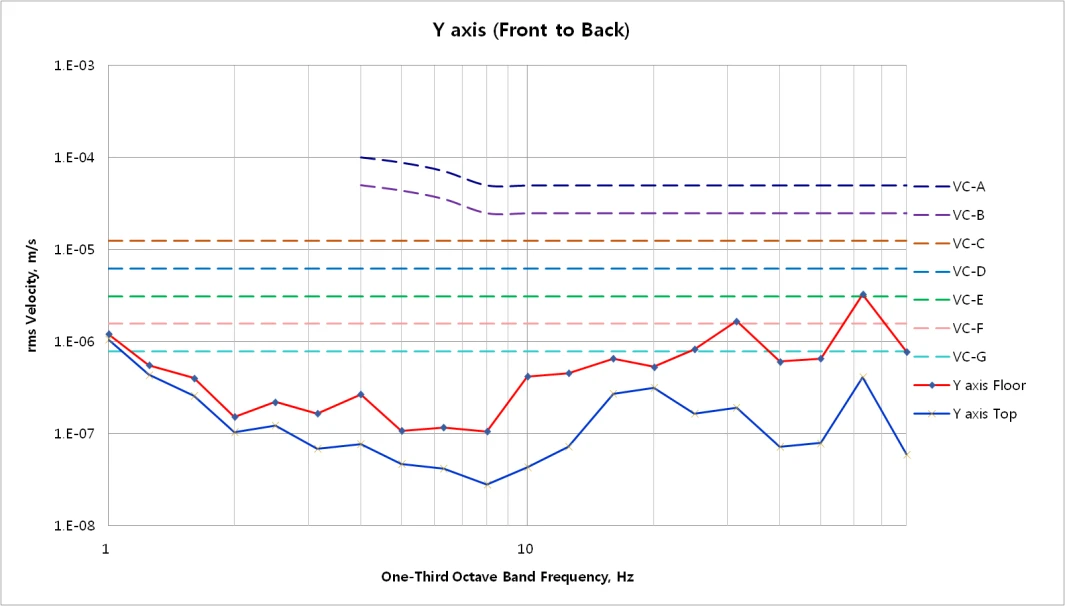

Y axis (octave band)
