Installation Report

DVIA-ULF Series

05-21-2026

Greater Bay Area Quantum Center ZEISS Sigma 360 DVIA-ULF700 Installation Report

DVIA-ULF Series

Installation Report

Greater Bay Area Quantum Center

ZEISS

Sigma 360

FE-SEM

DVIA-ULF700

Overview

The DVIA-ULF700 active vibration isolation platform is appropriately installed and functioning as intended.

Vibration Isolation System Information

Model: DVIA-ULF700

Serial Number: 251110R7

Engineer

Juhyeok Kim from DAEIL SYSTEMS

Tuning Date

May 21, 2026

End User

Greater Bay Area Quantum Center

Number of Tuning Trial

1st

Location

Shenzhen, China.

Equipment

Manufacturer: ZEISS

Equipment: FE-SEM

Model: Sigma 360

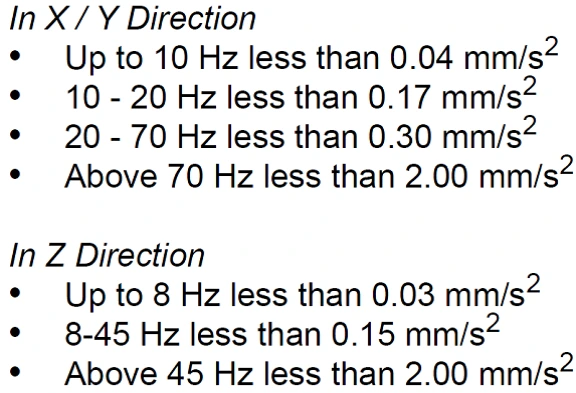

Vibration Specification

Equipment Condition

The equipment isturned on/IDLE

Tuning Request

1st

Measurement Summary

Measurement Point	Status	Axis	VibrationSpecification	Floor	DVIA-ULF700	Floor	DVIA-ULF700
1.Floor 2.DVIA-ULF700	Equipment is Turned on/IDLE	Vertical	VC-G	{red}VC-C @31.5Hz{/red}	{blue}VC-G @31.5Hz{/blue}	✗ FAIL	✓ PASS
		Left to Right	VC-E	{red}VC-E @12.5Hz{/red}	{blue}VC-G @12.5Hz{/blue}	✓ PASS	✓ PASS
		Front to Back	VC-D	{red}VC-D @12.5Hz{/red}	{blue}VC-G @12.5Hz{/blue}	✓ PASS	✓ PASS

Measurement Data Obtained via UI Program

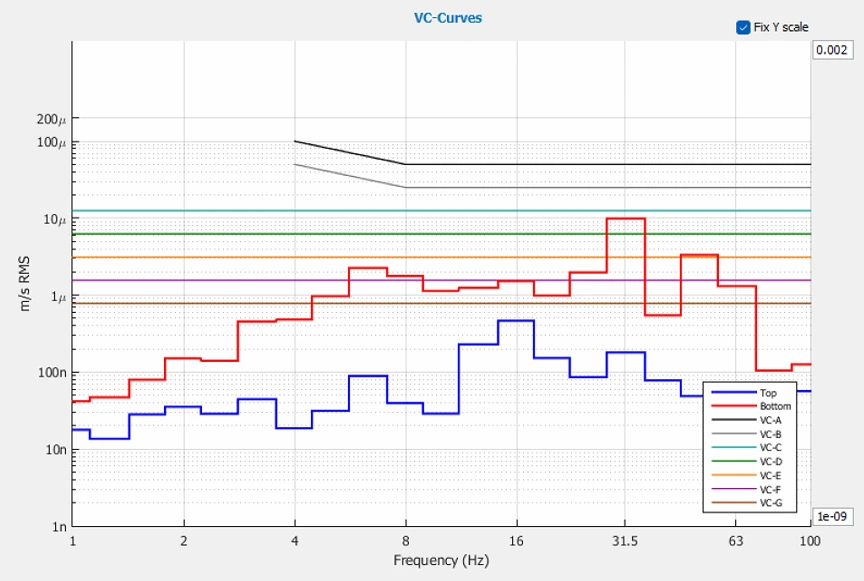

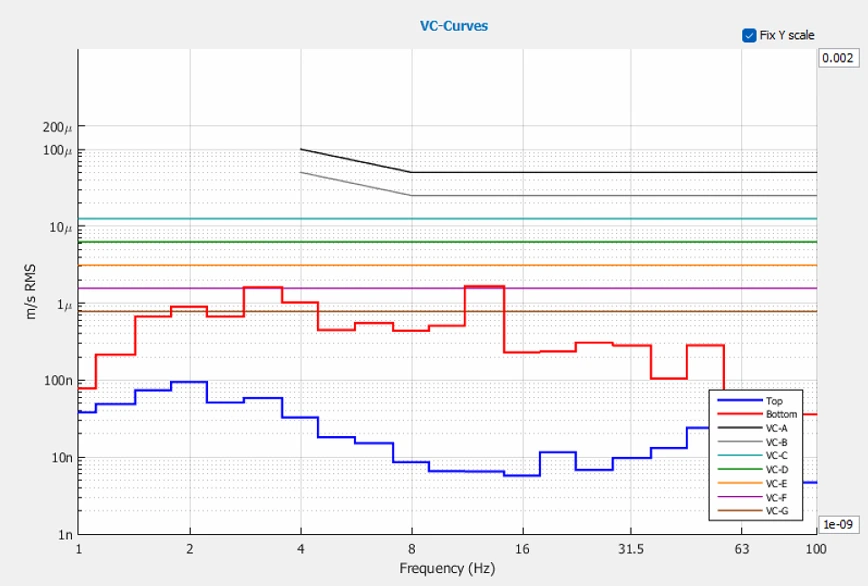

Vertical VC Curves

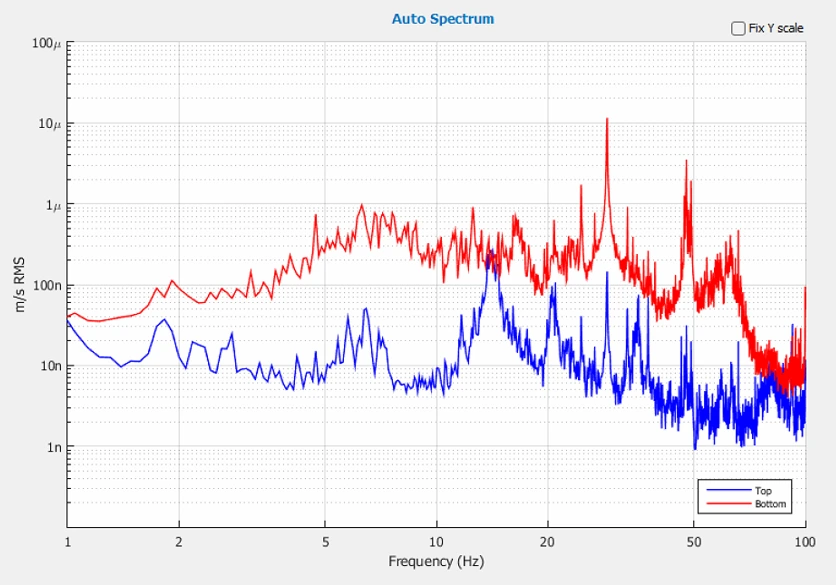

Vertical Autospectrum

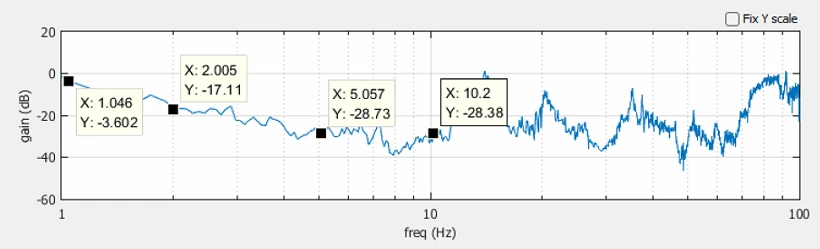

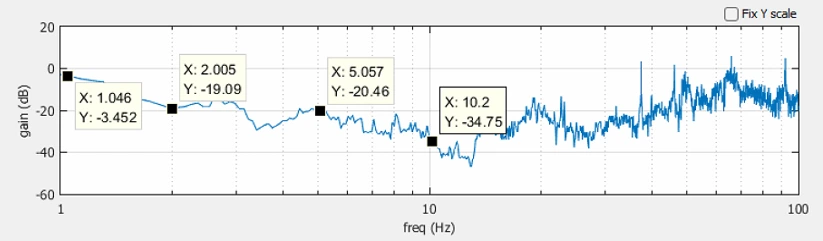

Vertical Transmissibility

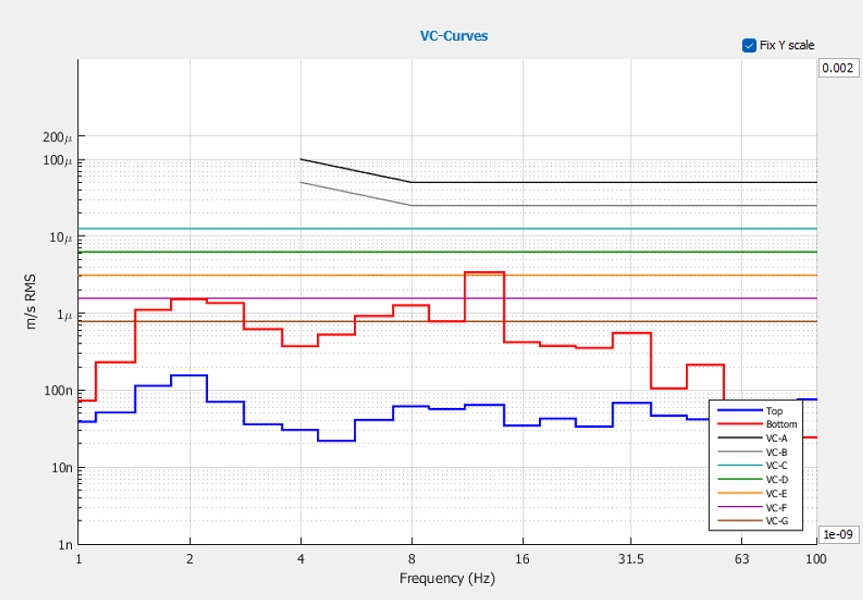

Left to Right VC curves

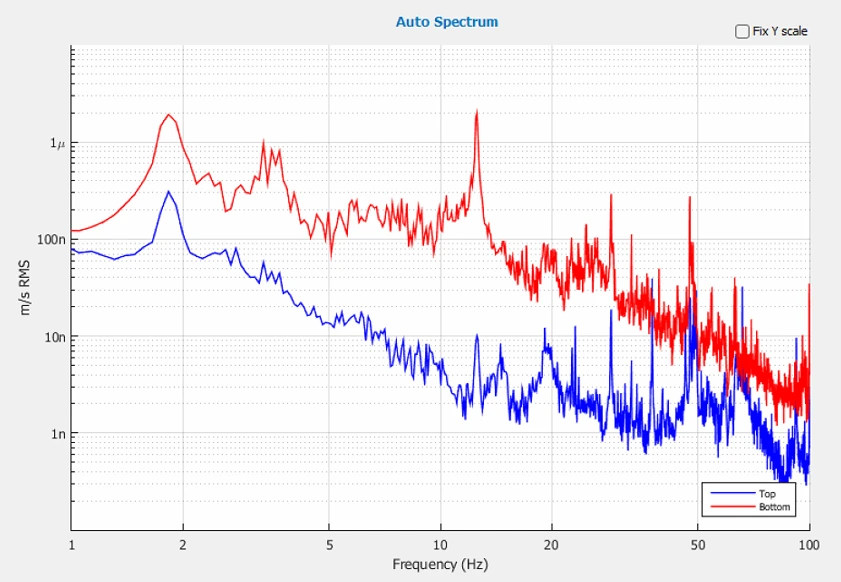

Left to Right Autospectrum

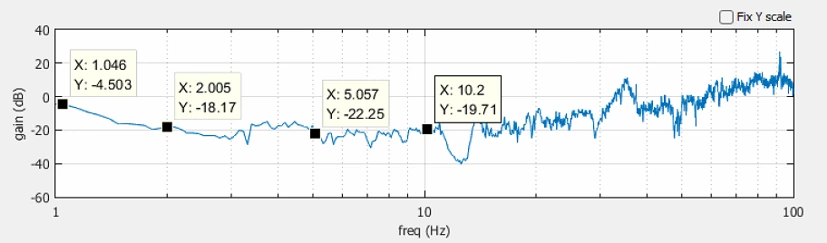

Left to Right Transmissibility

Front to Back VC Curves

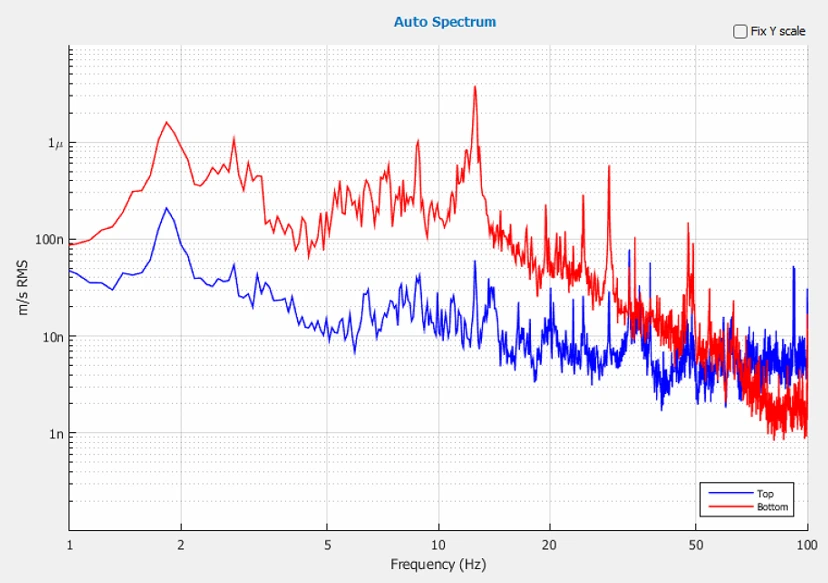

Front to Back Autospectrum

Front to Back Transmissibility

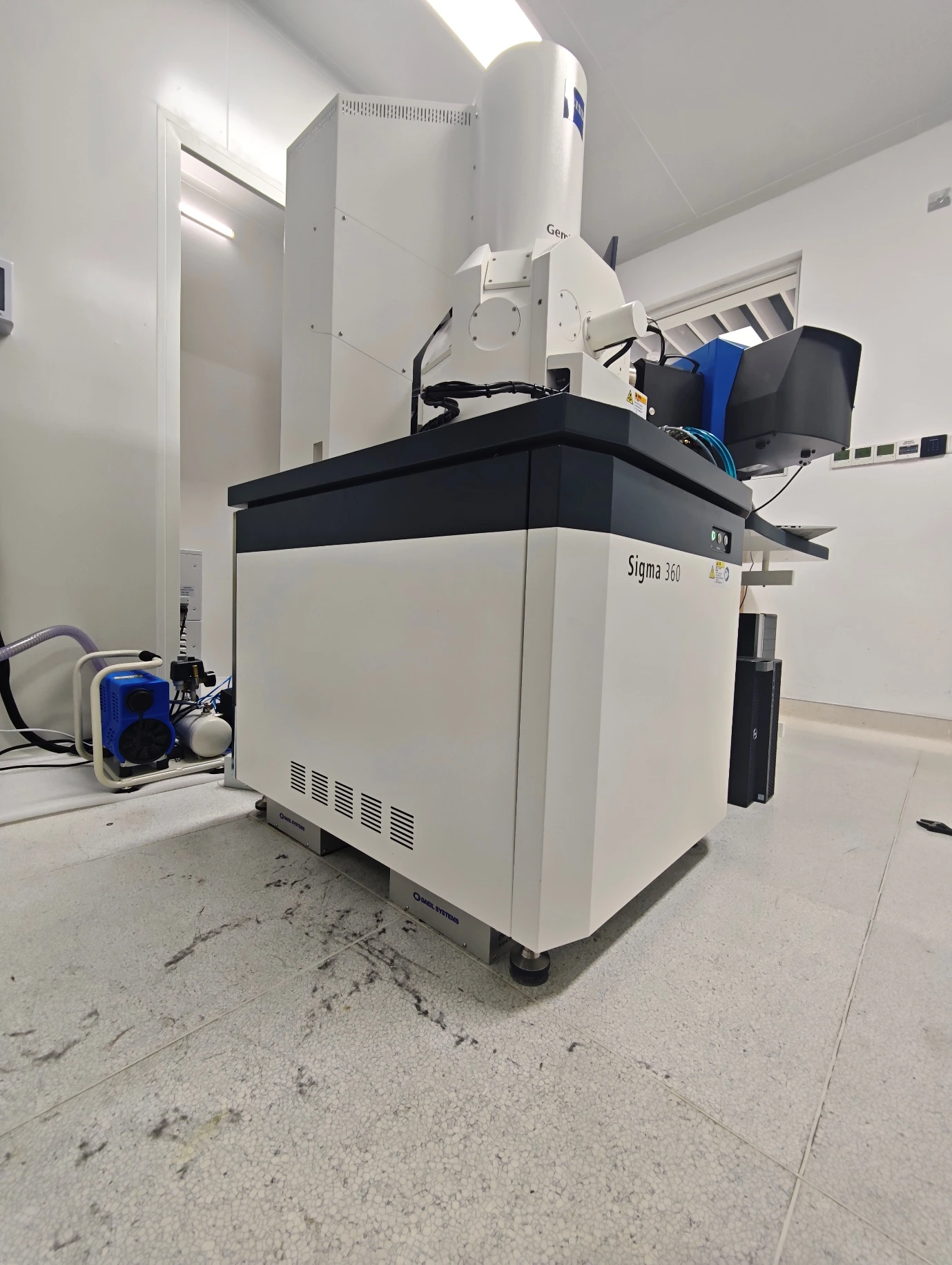

Equipment picture

Reference

Generic Vibration Criteria

Criterion Curve	Description	Amplitude μm/s (µin/s)	Detail Size μm
Workshop (ISO)	Distinctly perceptible vibration. Appropriate to workshops and non-sensitive areas.	800 (32,000)	N/A
Office (ISO)	Perceptible vibration. Appropriate to offices and non-sensitive areas.	400 (16,000)	N/A
Residential Area (ISO)	Barely perceptible vibration. Appropriate to sleep areas in most instances.	200 (8,000)	75
Operating Theatre (ISO)	Vibration not perceptible. Suitable for surgical suites, microscopes to 100x.	100 (4,000)	25
VC-A	Adequate for optical microscopes to 400x, microbalances, optical balances.	50 (2,000)	8
VC-B	Appropriate for inspection and lithography equipment to 3μm line widths.	25 (1,000)	3
VC-C	Appropriate for optical microscopes to 1000x, lithography equipment to 1μm.	12.5 (500)	1 - 3
VC-D	Suitable for demanding equipment including electron microscopes (SEMs/TEMs).	6.25 (250)	0.1 - 0.3
VC-E	For the most demanding systems including E-Beam lithography at nanometer scales.	3.12 (125)	< 0.1
VC-F	For extremely quiet research spaces. Not recommended as design criterion.	1.56 (62.5)	N/A
VC-G	For extremely quiet research spaces. Not recommended as design criterion.	0.78 (31.25)	N/A
