YIMO ZEISS Sigma 360 FE-SEM DVIA-ULF700 Installation Report (retuning after degraded performance)

DVIA-ULF Series

Installation Report

YIMO

ZEISS

Sigma 360

FE-SEM

DVIA-ULF700

Overview

Due to the degraded performance of DVIA-ULF700, retuning was performed.

After retuning, DVIA-ULF700 is performing as intended.

Vibration Isolation System Information

Model: DVIA-ULF700

Serial Number: 250923R3

Engineer

Chaewon Lee from DAEIL SYSTEMS

Tuning Date

March 18, 2026

End User

N/A

Number of Tuning Trial

2nd(1st: 25.12.18))

Location

N/A

Equipment

Manufacturer: ZEISS

Equipment: FE-SEM

Model: Sigma 360

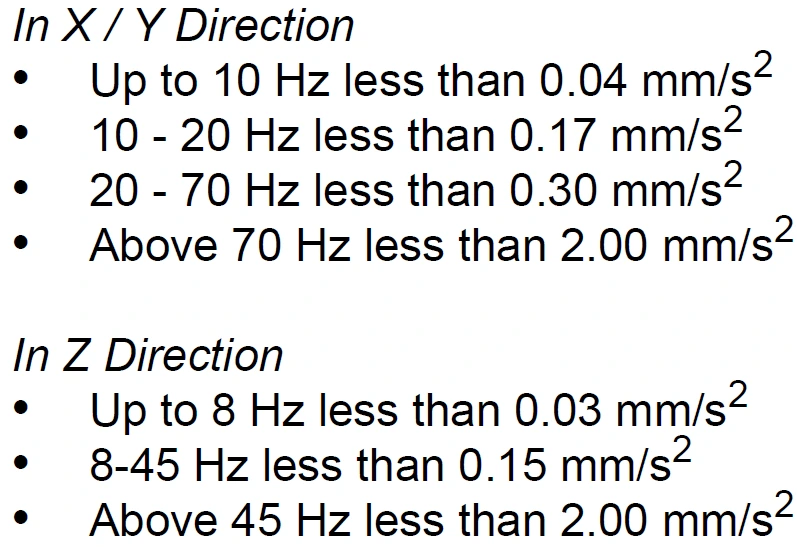

Vibration Specification

Equipment Condition

The equipment is turned on/IDLE

Tuning Request

N/A

Measurement Summary

Measurement Point	Status	Axis	VibrationSpecification	Floor	DVIA-ULF700	Floor	DVIA-ULF700
1.Floor 2.DVIA-ULF700	Equipment is Turned on/IDLE	Vertical	Refer to item 9	VC-E @ 4 Hz	VC-G @ 4 Hz	✗ FAIL	✓ PASS
		Left to Right		VC-E @ 2.5 Hz	VC-G @ 2.5 Hz	✓ PASS	✓ PASS
		Front to Back		VC-E @ 1.6 Hz	VC-G @ 1.6 Hz	✓ PASS	✓ PASS

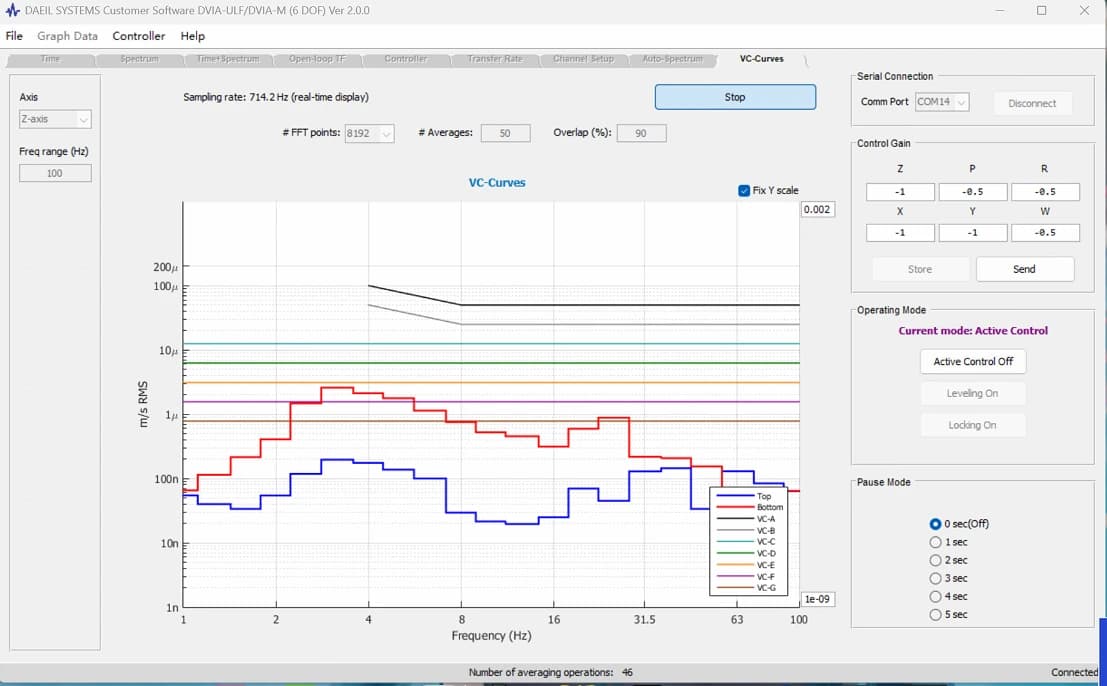

Measurement Data Obtained via UI Program

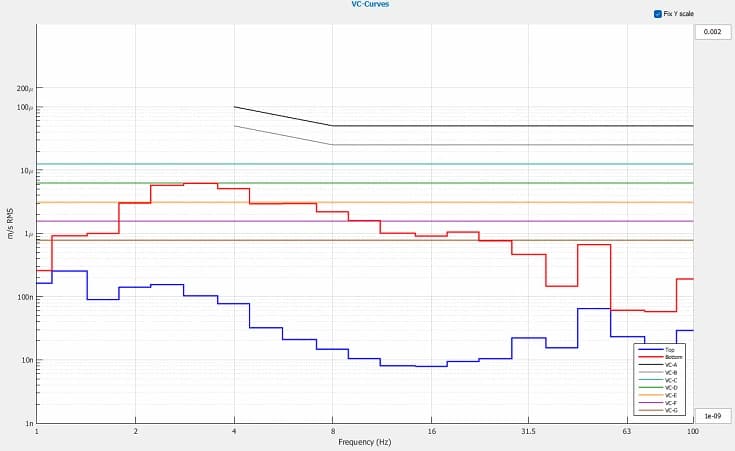

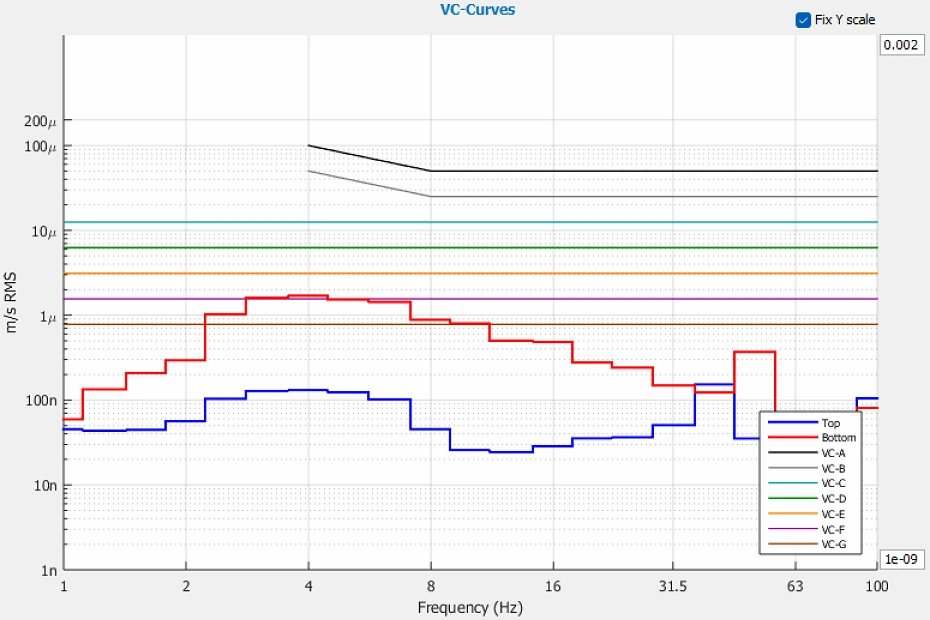

Vertical VC Curves

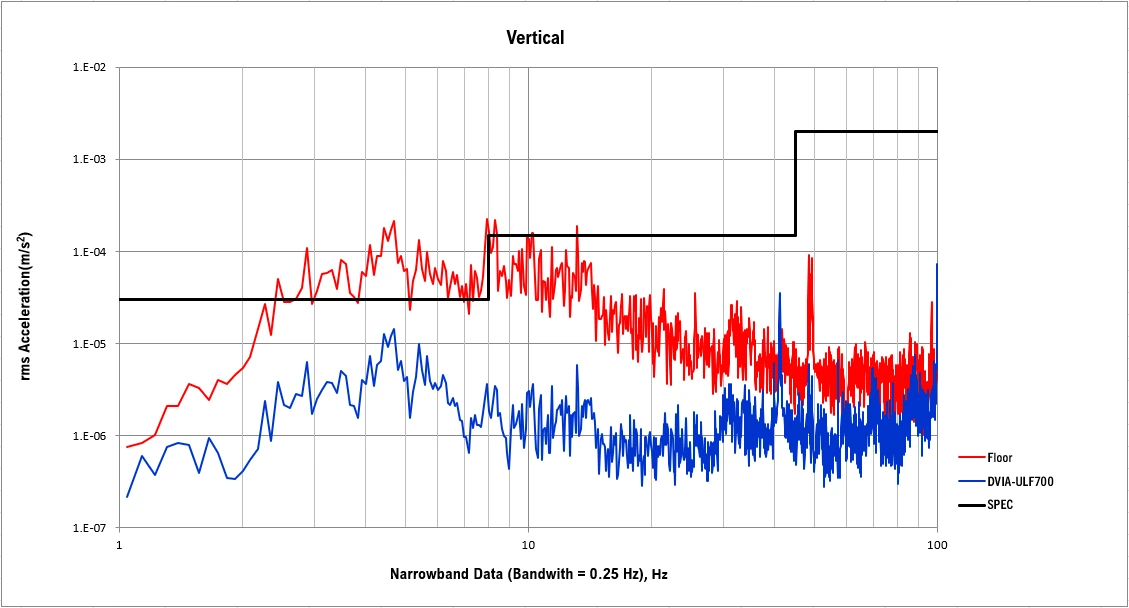

Vertical Autospectrum

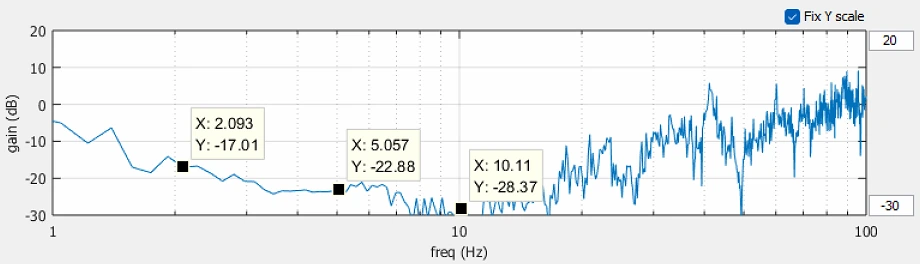

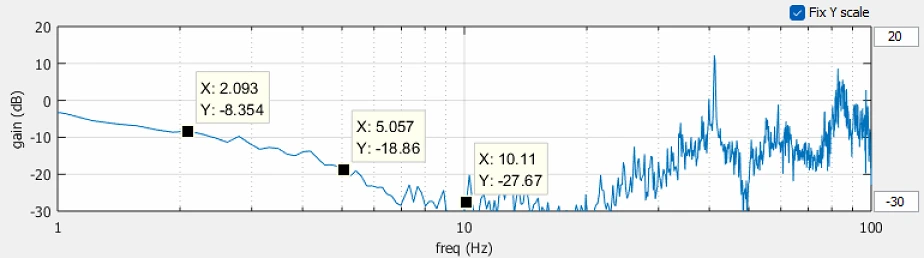

Vertical Transmissibility

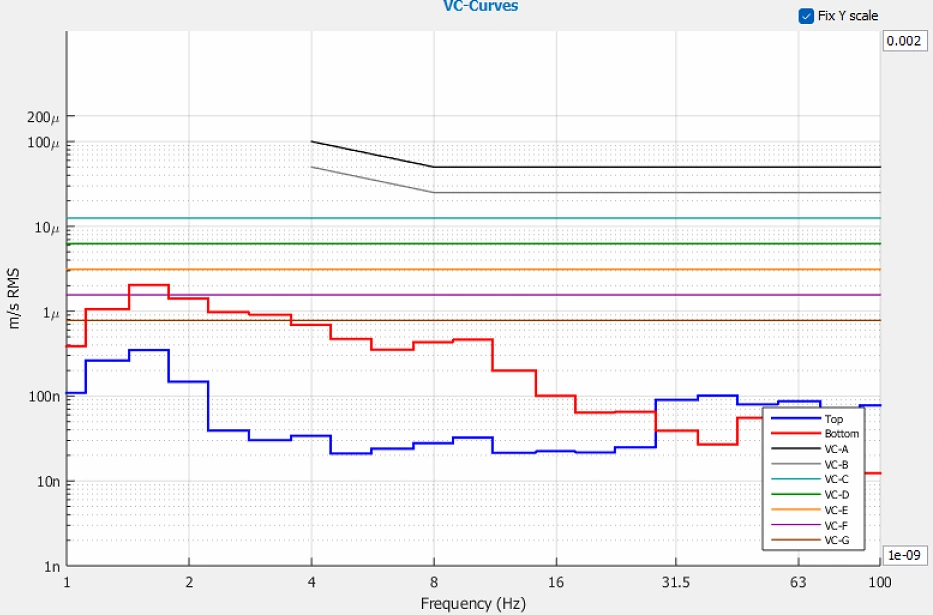

Left to Right VC curves

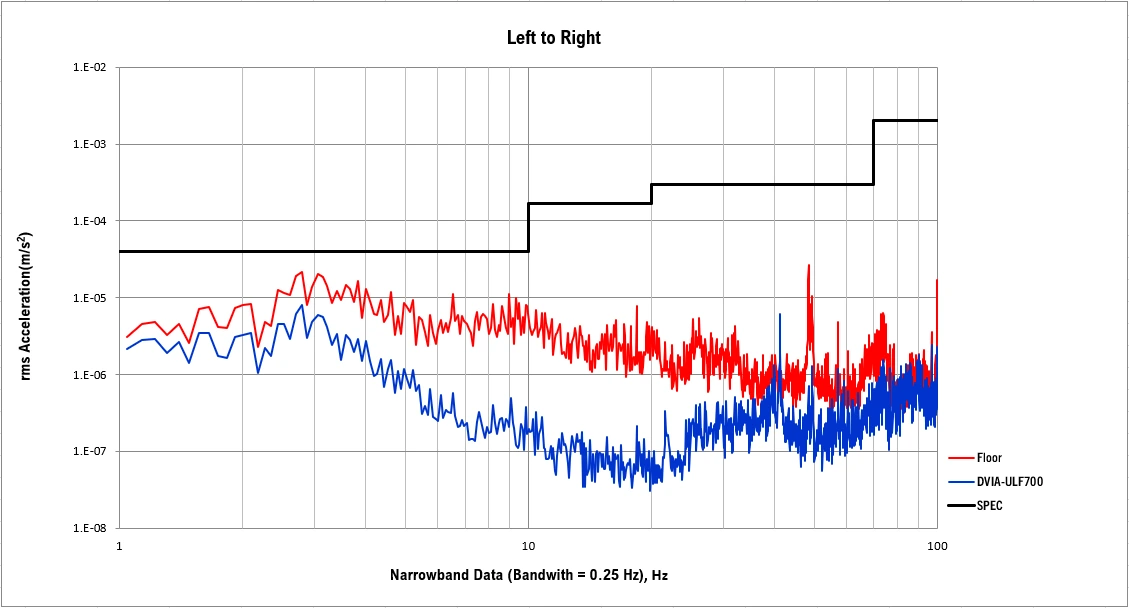

Left to Right Autospectrum

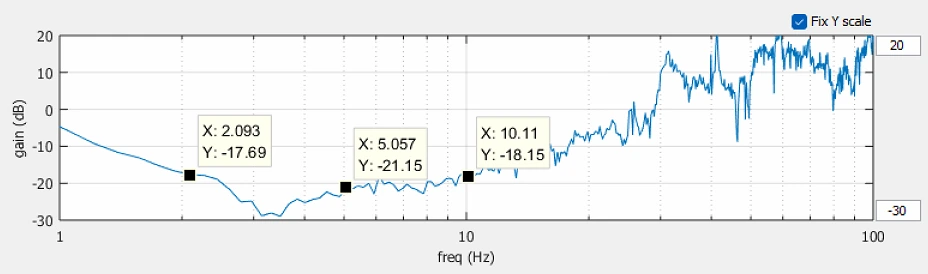

Left to Right Transmissibility

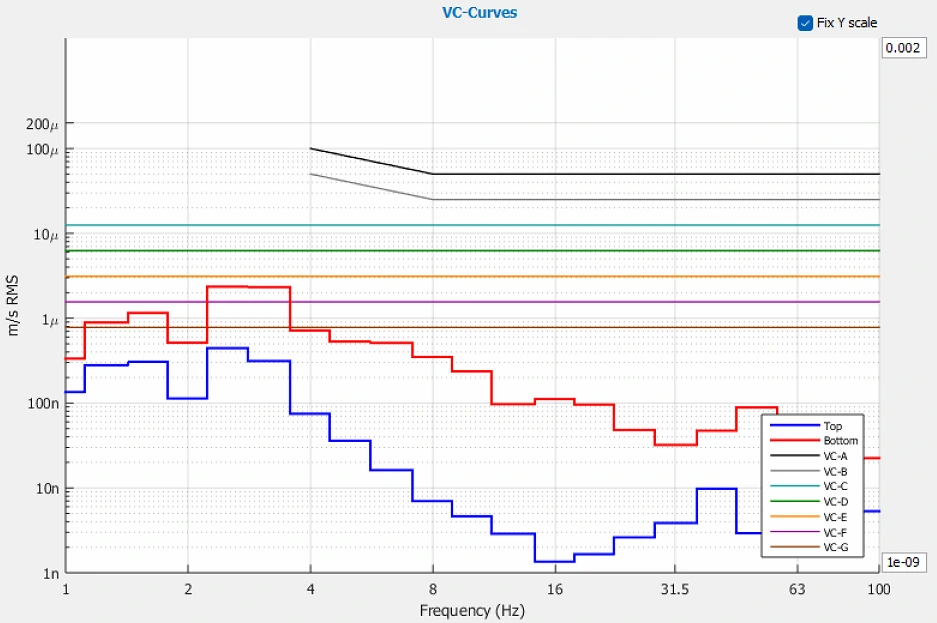

Front to Back VC Curves

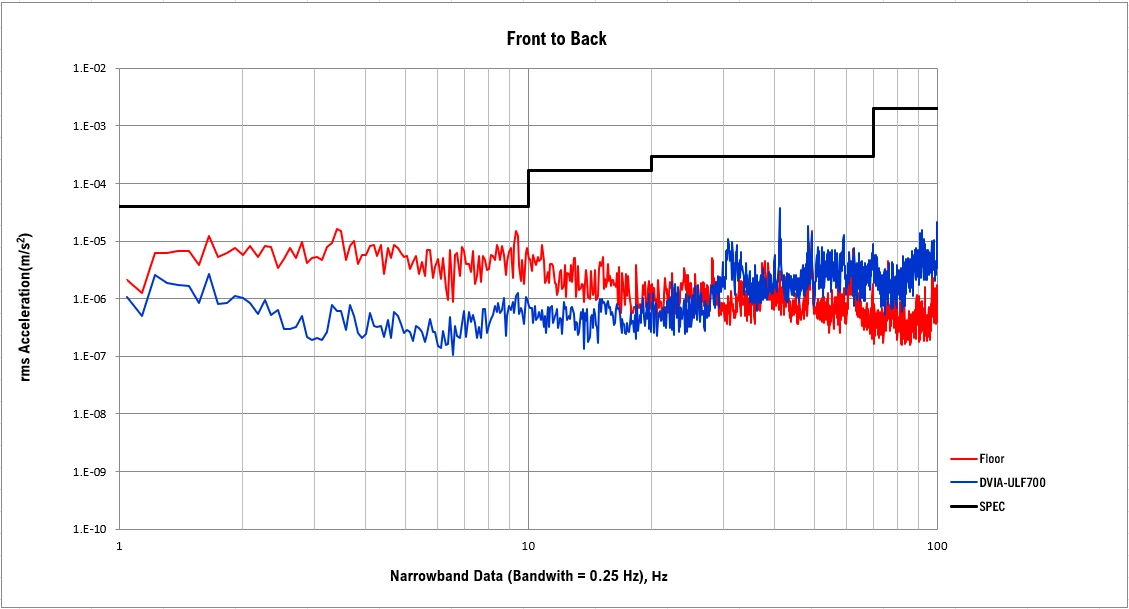

Front to Back Autospectrum

Front to Back Transmissibility

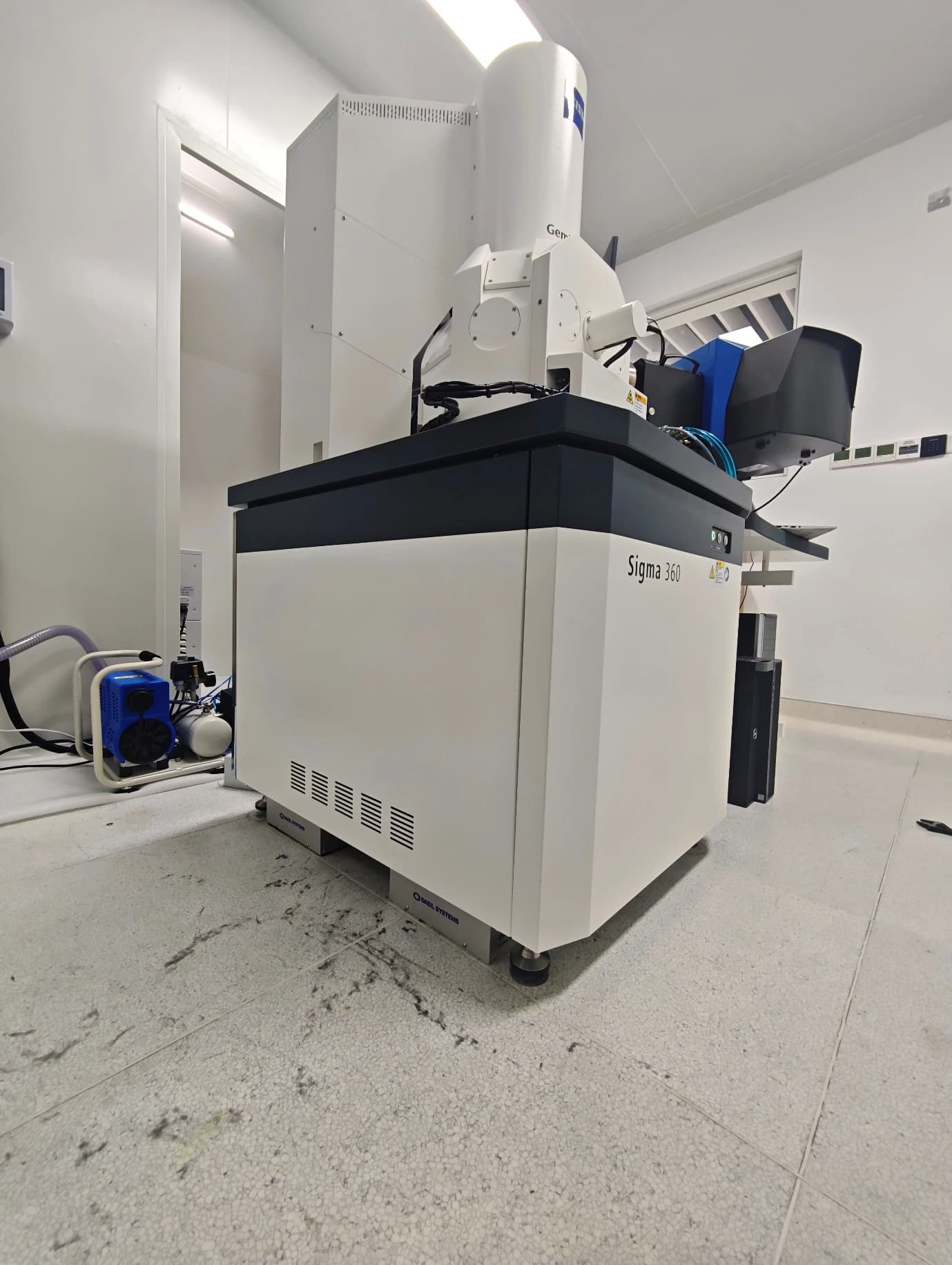

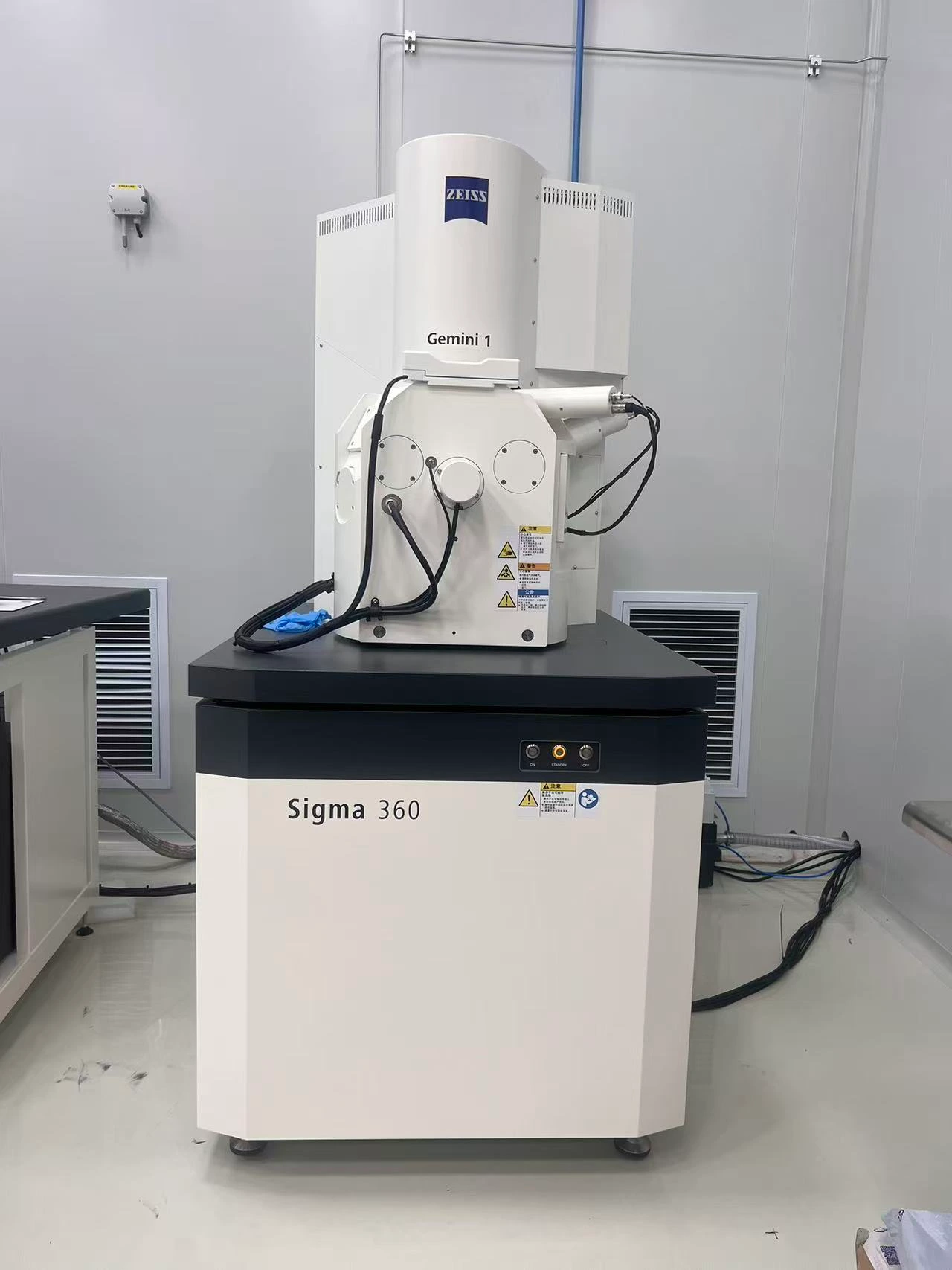

Equipment picture

Reference

Generic Vibration Criteria

Criterion Curve	Description	Amplitude μm/s (µin/s)	Detail Size μm
Workshop (ISO)	Distinctly perceptible vibration. Appropriate to workshops and non-sensitive areas.	800 (32,000)	N/A
Office (ISO)	Perceptible vibration. Appropriate to offices and non-sensitive areas.	400 (16,000)	N/A
Residential Area (ISO)	Barely perceptible vibration. Appropriate to sleep areas in most instances.	200 (8,000)	75
Operating Theatre (ISO)	Vibration not perceptible. Suitable for surgical suites, microscopes to 100x.	100 (4,000)	25
VC-A	Adequate for optical microscopes to 400x, microbalances, optical balances.	50 (2,000)	8
VC-B	Appropriate for inspection and lithography equipment to 3μm line widths.	25 (1,000)	3
VC-C	Appropriate for optical microscopes to 1000x, lithography equipment to 1μm.	12.5 (500)	1 - 3
VC-D	Suitable for demanding equipment including electron microscopes (SEMs/TEMs).	6.25 (250)	0.1 - 0.3
VC-E	For the most demanding systems including E-Beam lithography at nanometer scales.	3.12 (125)	< 0.1
VC-F	For extremely quiet research spaces. Not recommended as design criterion.	1.56 (62.5)	N/A
VC-G	For extremely quiet research spaces. Not recommended as design criterion.	0.78 (31.25)	N/A

*Notes:*

- As measured in one-third octave bands over 8-80 Hz (VC-A/B) or 1-80 Hz (VC-C through VC-G).

- Detail size refers to width in microelectronics fabrication or particle size in medical research.
