Installation Report
DVIA-ULF Series
08-26-2021
YIMO Hitachi S-4800 UB1000 P24 Remote Tuning Installation Report (210302R1, 2021-08-26)
DVIA-U Series
Installation Report
YIMO
Hitachi
S-4800
SEM
UB1000
210302R1
Remote tuning
DVIA-UB1000
P24
Contents
Site checklist
| Target equipment | HITACHI-S 4800 |
|---|---|
| Place of installation | N/A |
| Remark | Good Performance |
| END USER | N/A |
Operator and dates
| Operator: CHOI, HYOUNGMUN Date of setup : 21.08.25 Date of reporting : 21.08.26 | Date of business trip : 17.12.27~17.12.29 |
|---|
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 21.08.225(WEN)
Operator: Daeil System, Research engineer CHOI, HYOUNGMUN
Place of measurement : N/A
Equipment Model: HITACHI-S 4800
Summary of measurement results
| Test Condition | Transmissibility |
|---|---|
| 10 Hz | |
| Z | -25 dB |
| X | -28 dB |
| Y | -25 dB |
Good omnidirectional performance.

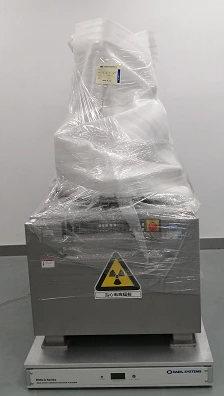

(UB1000_ 210701R6 P22 Set up)
UB1000 internal program performance measurement result

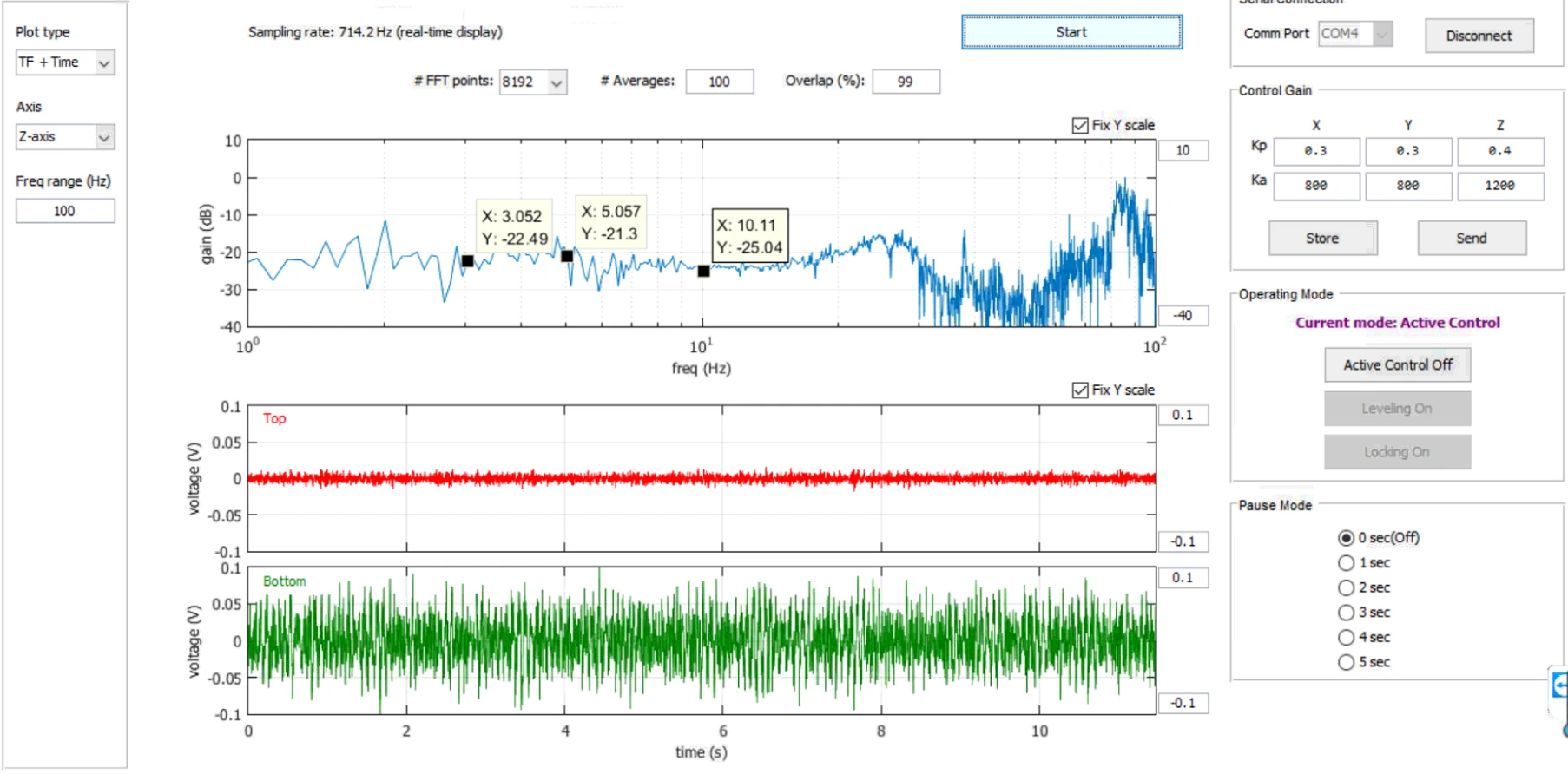

Z axis

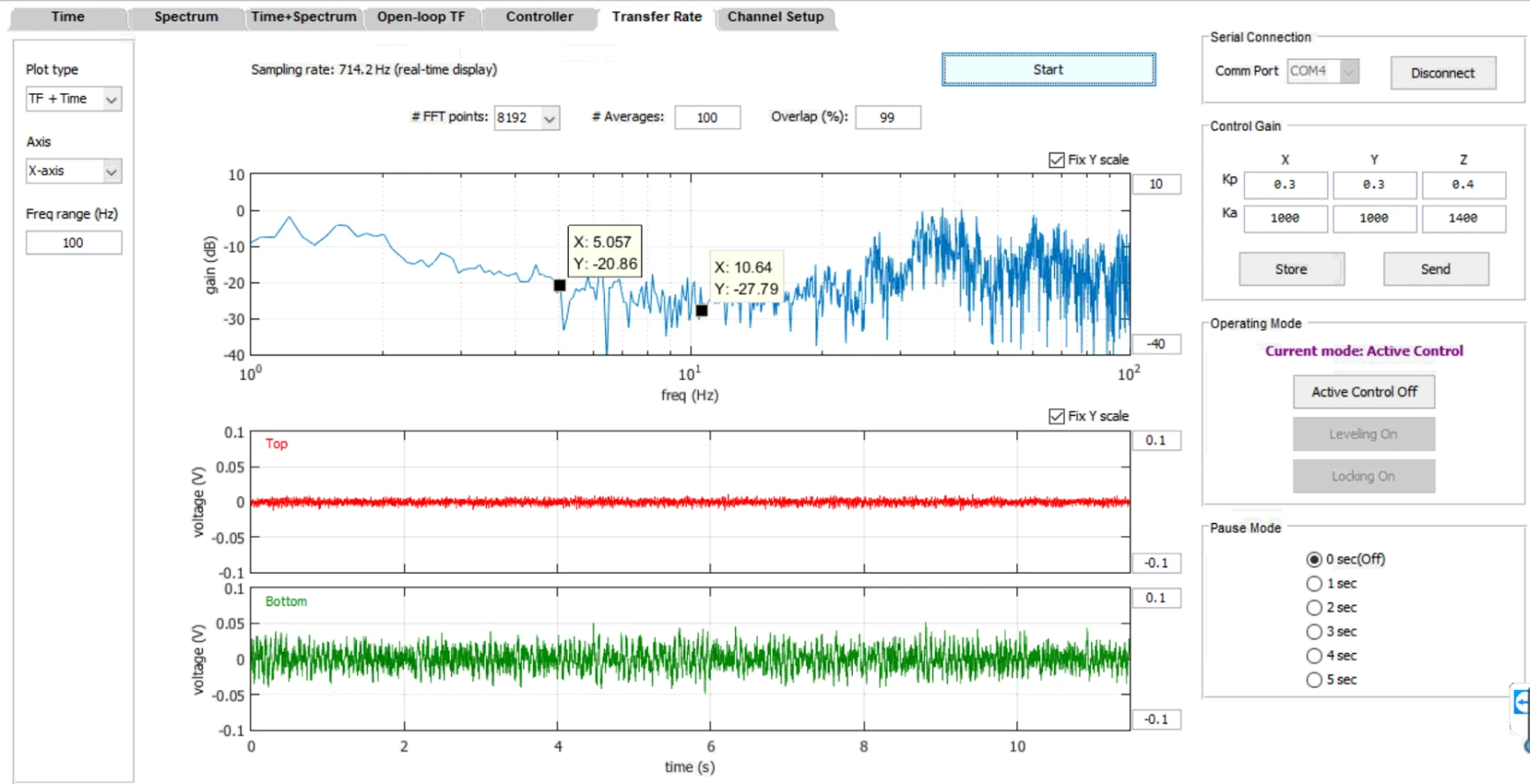

X axis

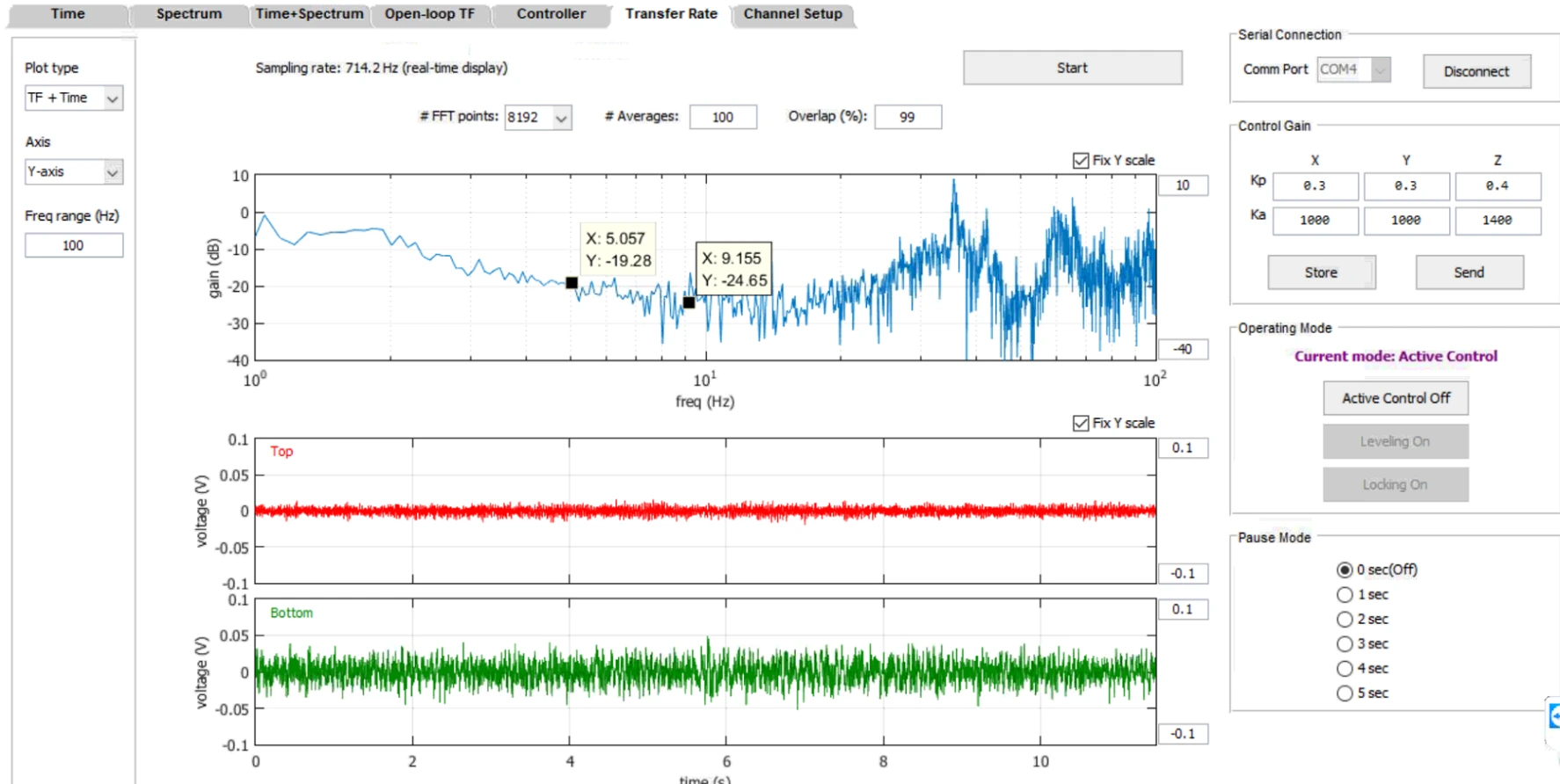

Y axis
