Installation Report
DVIA-ULF Series
08-24-2020
YIMO ZEISS EVO10 UB1000 P16 Remote Tuning Installation Report (190923R7, 2020-08-24)
DVIA-U Series
Installation Report
YIMO
ZEISS
EVO10
Shenzhen
UB1000
190923R7
Remote tuning
DVIA-UB1000
P16
Contents
(UB1000_190923R7(P16) Set up)
Site checklist
| Target equipment | ZEISS EVO10 |
|---|---|
| Place of installation | 高意通讯（深圳）有限公司 6th floor In Shenzhen |
| Remark | Good Performance |
| END USER | 高意通讯（深圳）有限公司 |
Operator and dates
| Operator: Kim, Doohyun Date of setup : 20.08.24 Date of reporting : 20.08.24 | Date of business trip : 17.12.27~17.12.29 |
|---|
Overview

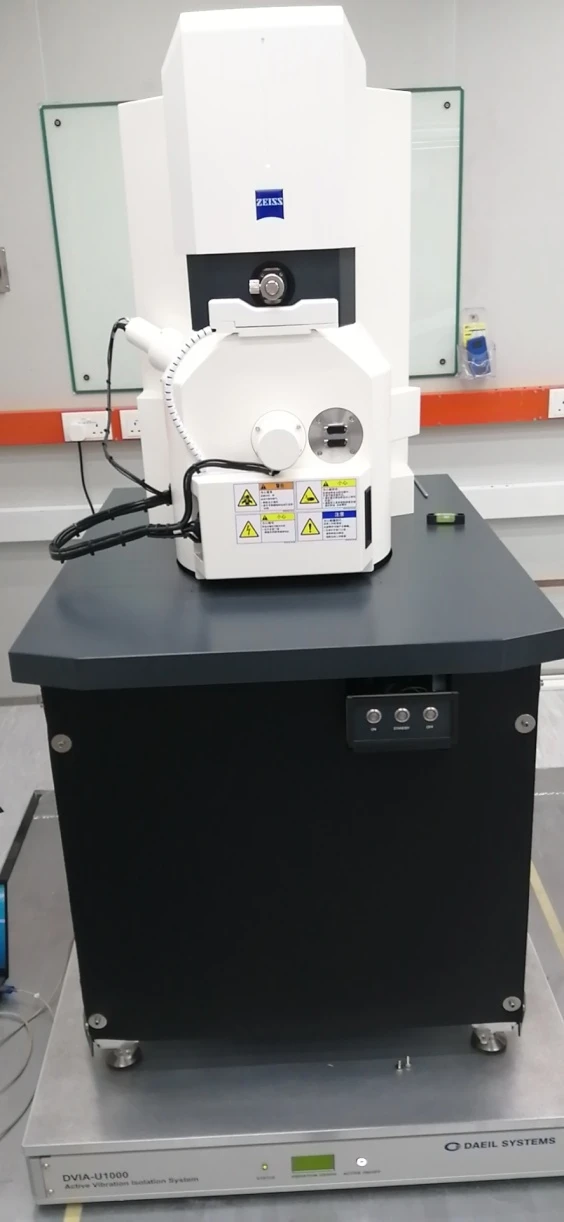

After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 20.08.24 (MON),
Operator: Daeil System, Manager Doohyun, Kim
Place of measurement : 高意通讯（深圳）有限公司 6th floor In Shenzhen
Equipment Model: ZEISS EVO10
Measurement conditions and results
Summary of measurement results
| Test Condition | 2 Hz | 5 Hz | 10 Hz |
|---|---|---|---|
| Z | -6 dB | -13 dB | -18 dB |
| X | -2 dB | -15 dB | -20 dB |
| Y | -0 dB | -15 dB | -20 dB |
Good omnidirectional performance.
UB1000 internal program performance measurement result

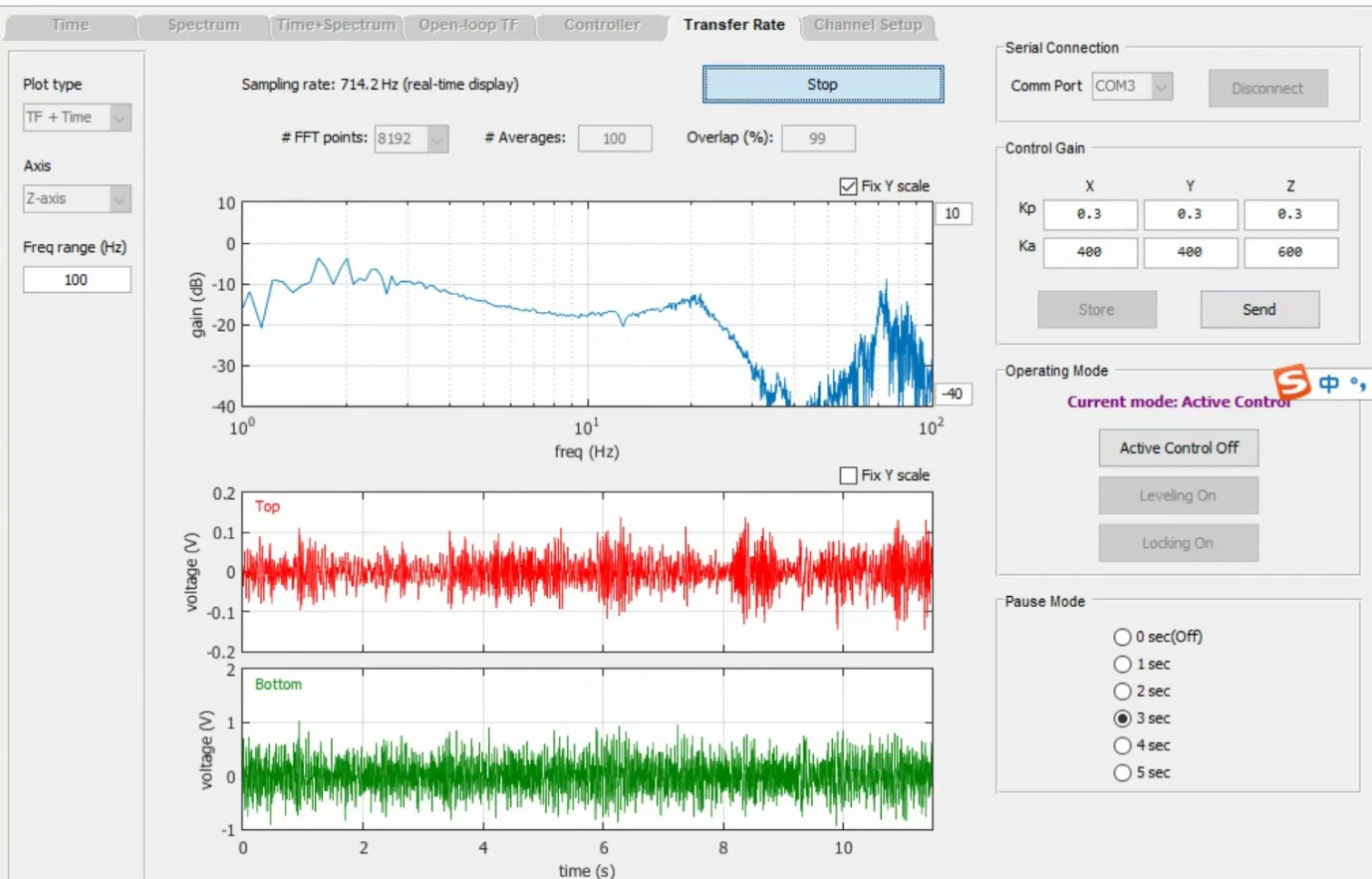

Z axis

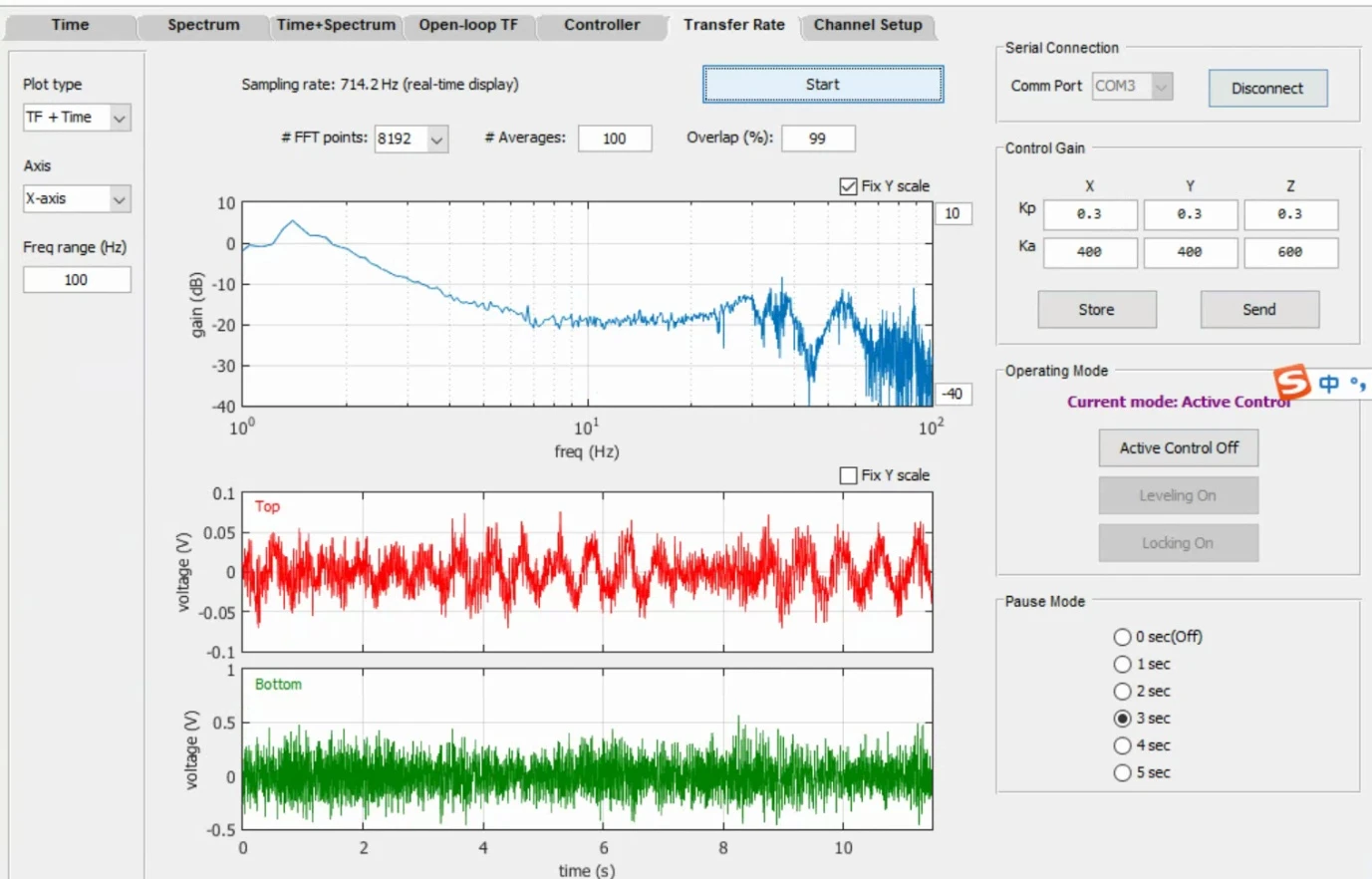

X axis

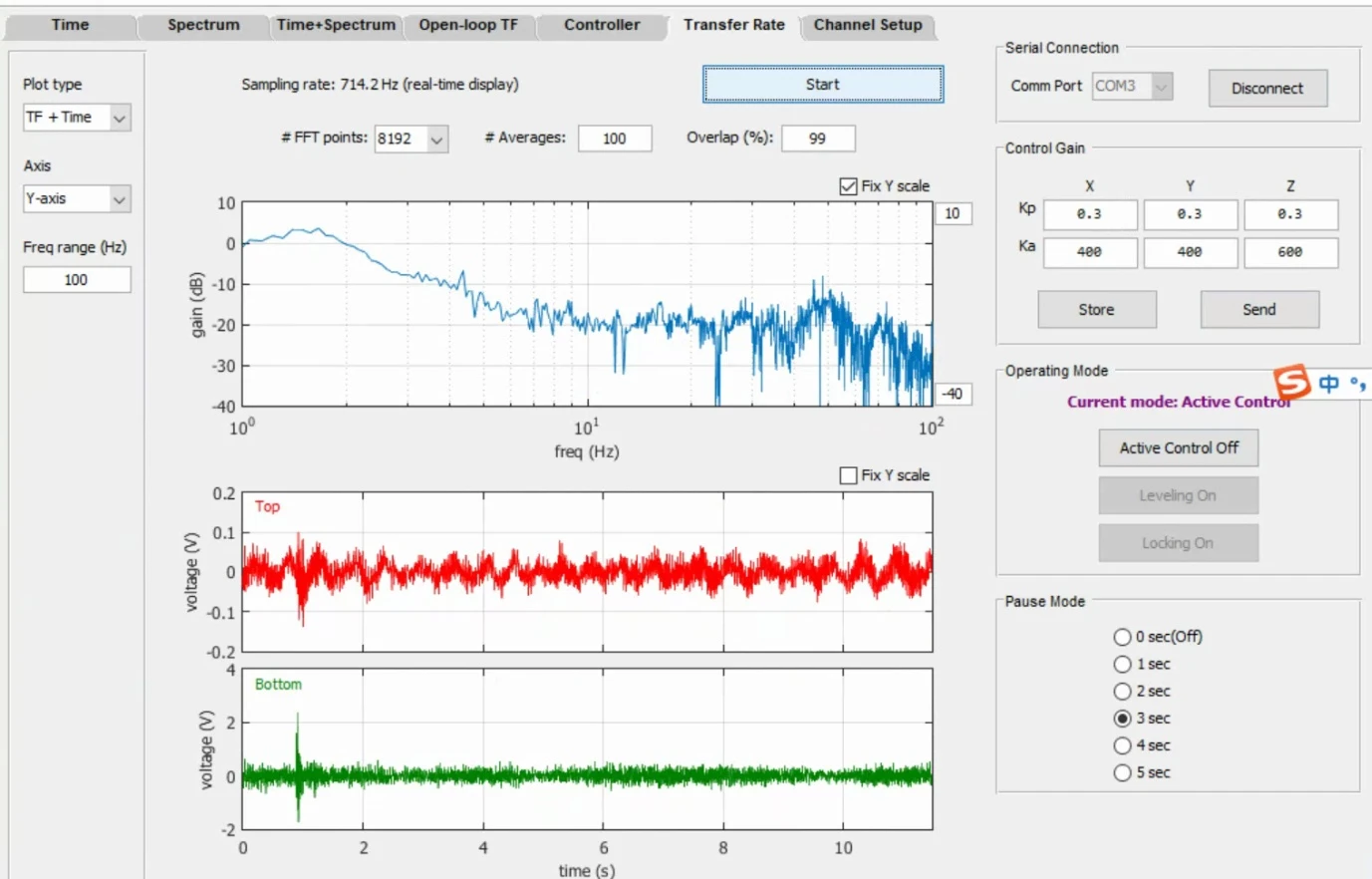

Y axis
