Shanghai Institute of Technical Physics DVIA-UB700 (180927R1) Installation Report
DVIA-ULF Series
Installation Report
Shanghai Institute of Technical Physics
SITP
DVIA-UB700
180927R1
Shanghai
China
Contents
Target equipment
-
Place of installation
1F, Shanghai Institute of Technical Physics(SITP)
Remark
Good performance
END USER
Shanghai Institute of Technical Physics(SITP)
Operator
Operator: Choi, Sung Won Date of setup : 18.12.19 Date of reporting : 18.12.26
Date of business trip : 17.12.27~17.12.29
Overview
Overview After Active mounting, measure the vibration environment to check that there is no problem in using the equipment. Measurement date: 2018.12.19 (Wednesday), Operator: Daeil System, Manager Sung Won Choi Place of measurement : 1st Floor, SITP Equipment Model: - Measurement conditions and results Summary of measurement results Good omnidirectional performance.
| Test Condition | VC-Class | |
|---|---|---|
| Z | X | |
| Floor | D | E |
| Above Active | G | G |
MB1000 internal program performance measurement result

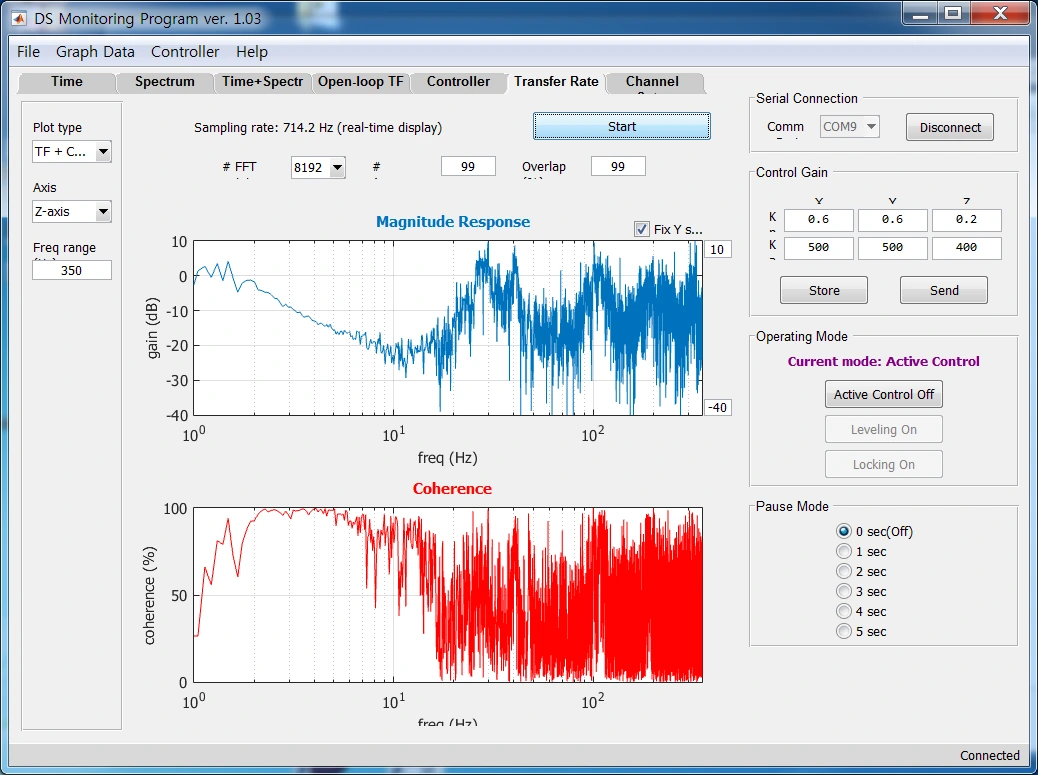

Z-axis (MB1000 internal program)

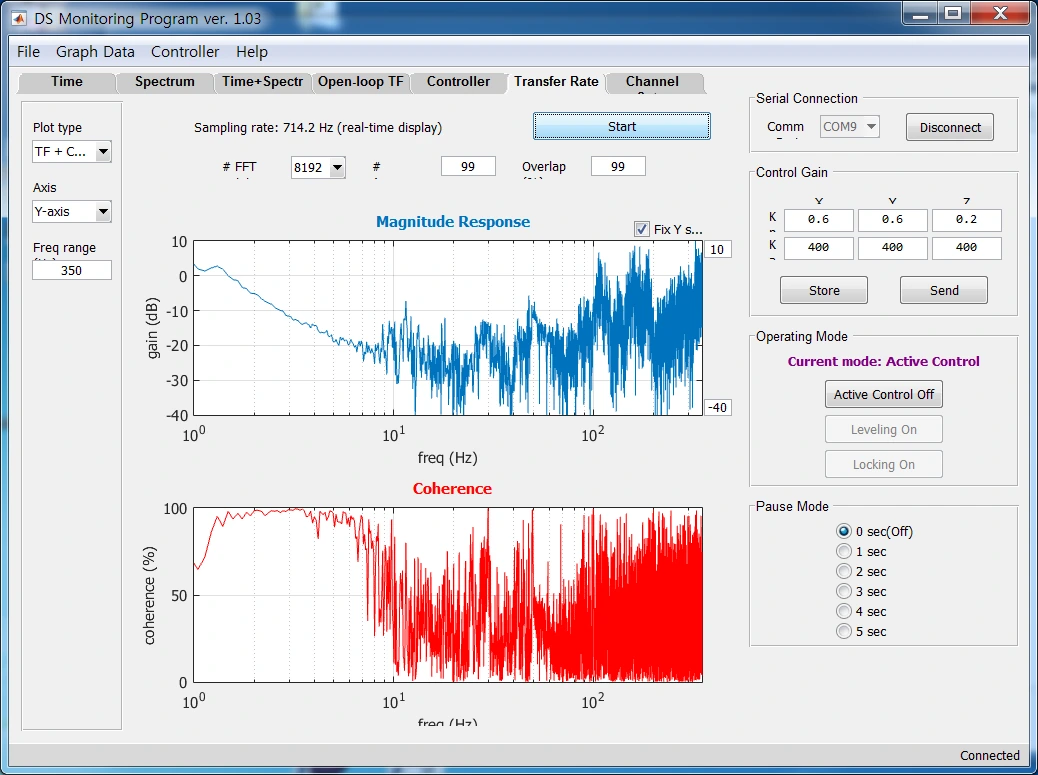

X-axis (MB1000 internal program)

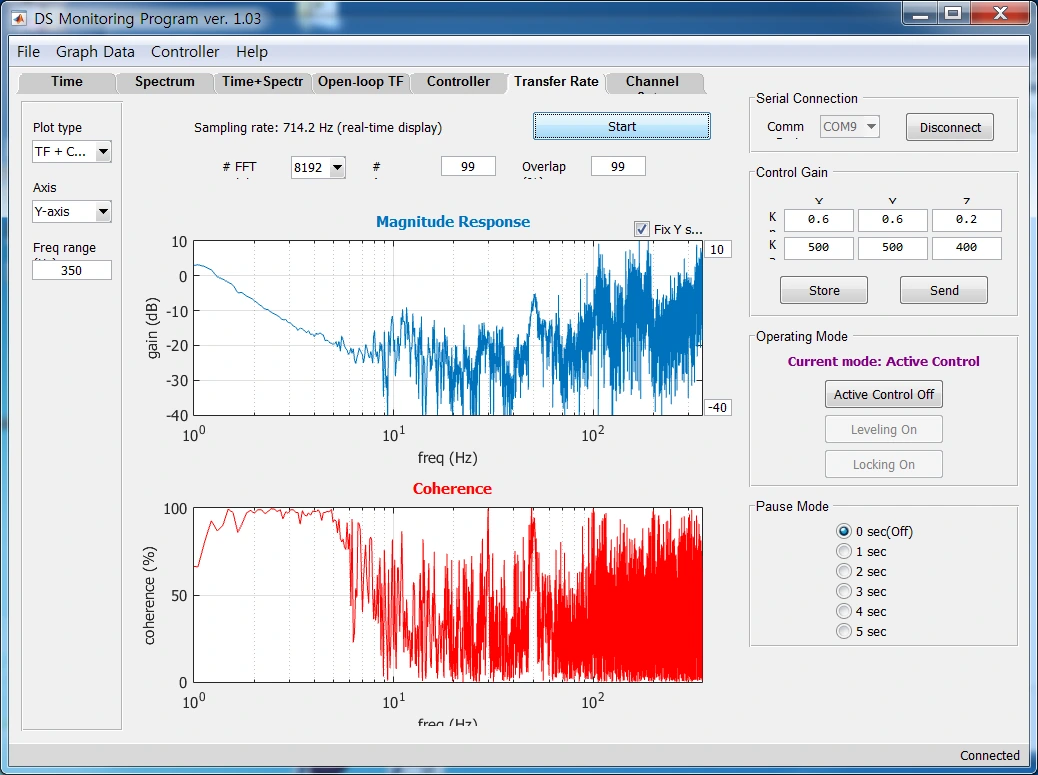

Y-axis (MB1000 internal program)
Octave Band Result (BASE: Floor, TOP: Above Active)

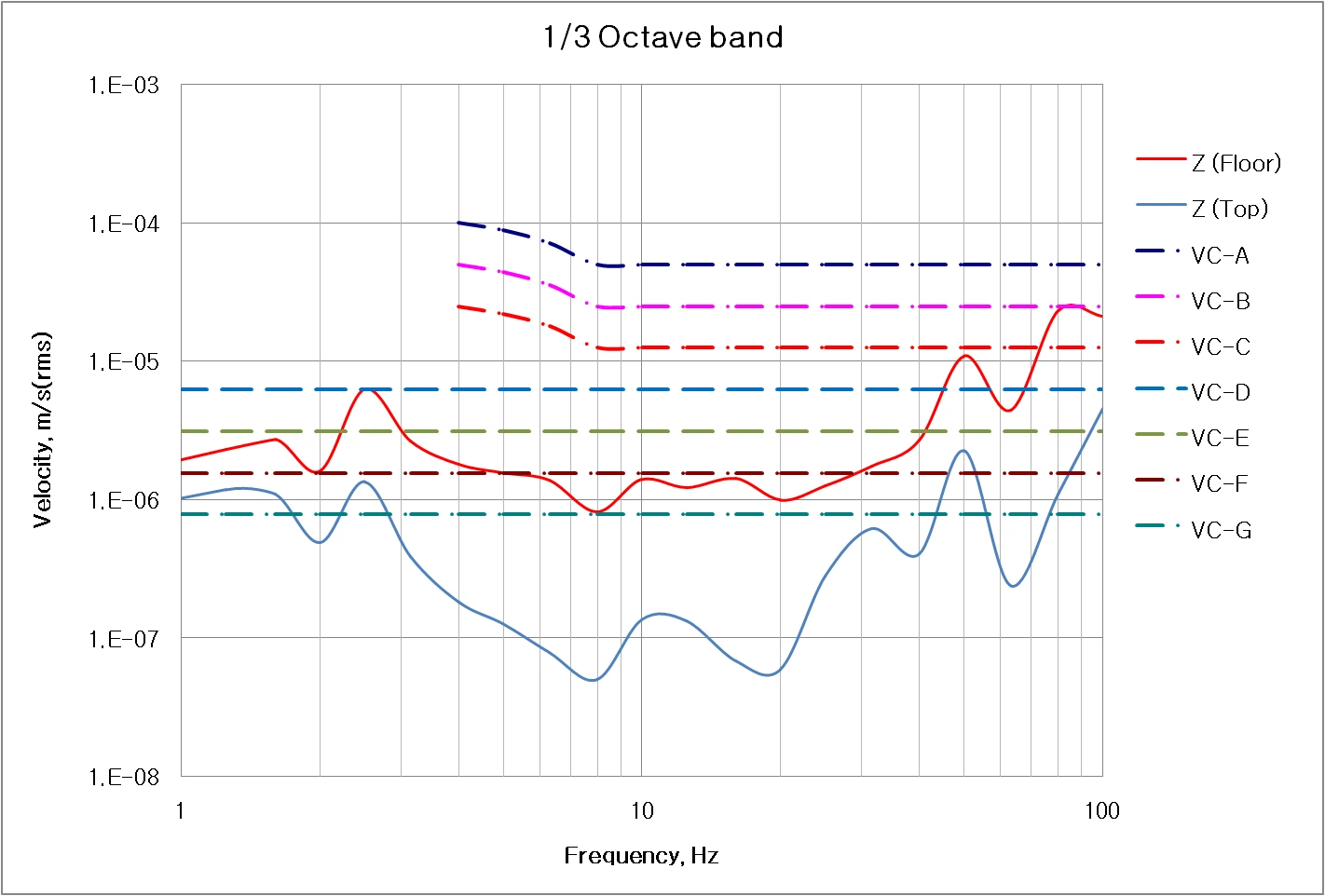

Z-axis (Octave band, Floor vs Above Active)

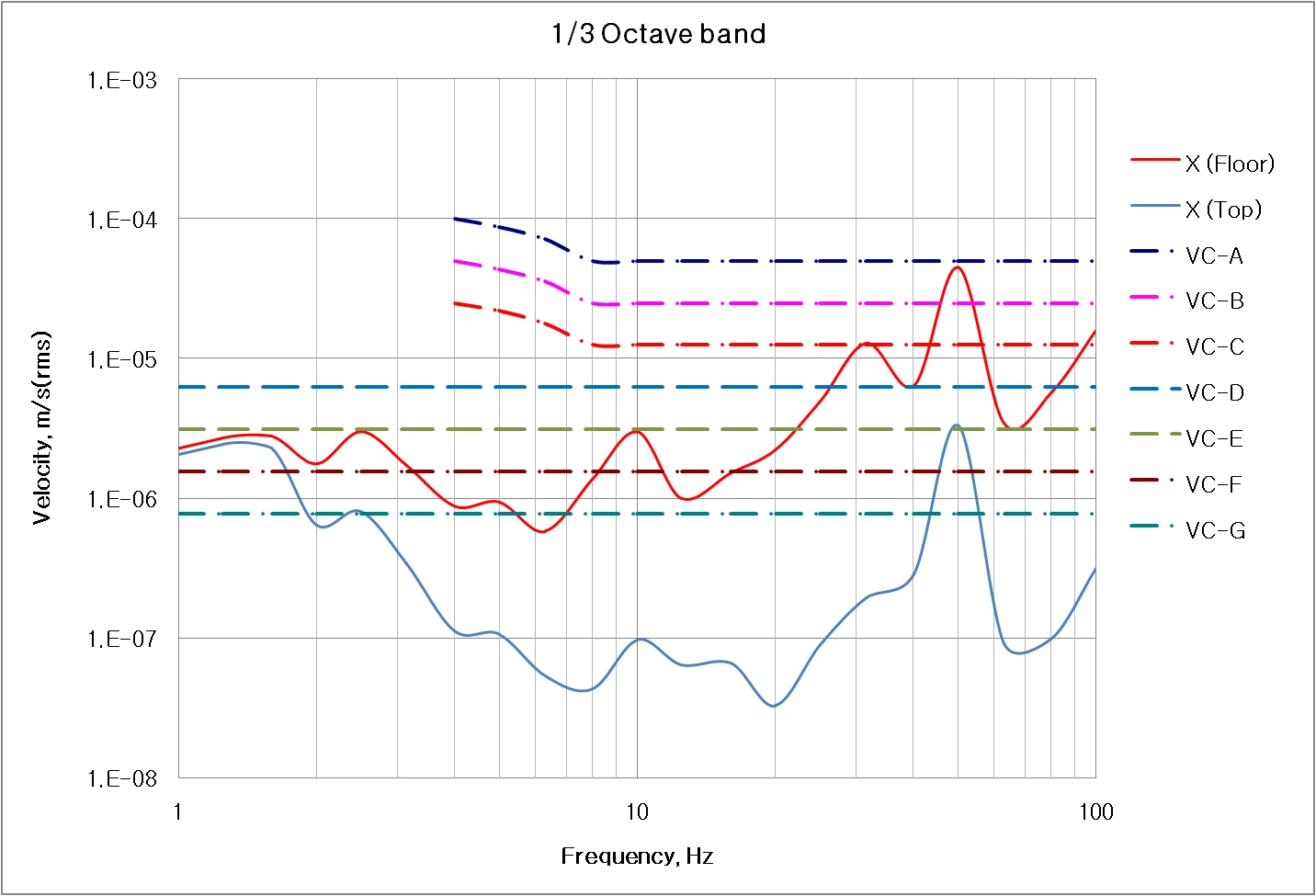

X-axis (Octave band, Floor vs Above Active)

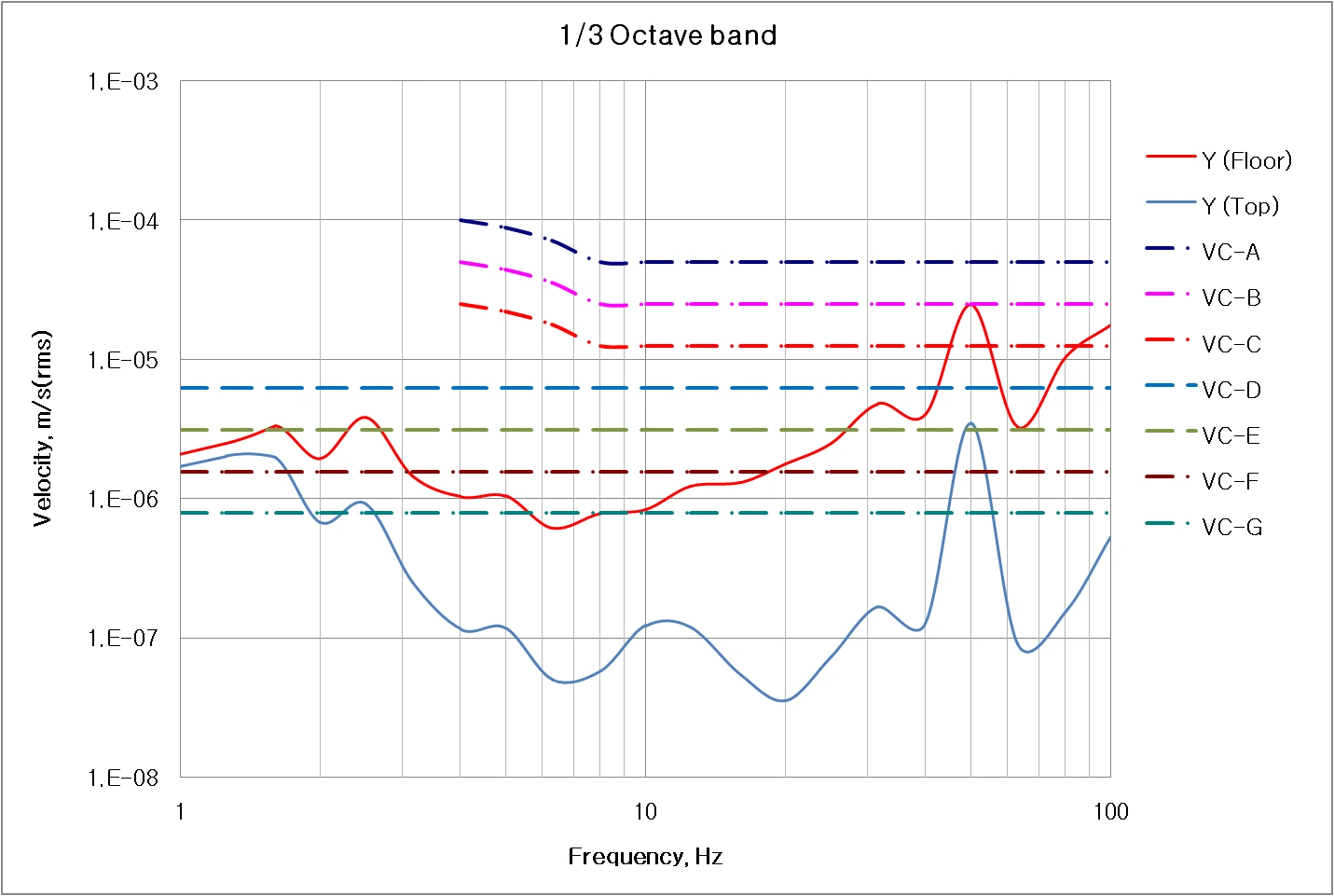

Y-axis (Octave band, Floor vs Above Active)
