Vibration Isolation Case Studies

BIEL Crystal (Huizhou, Guangdong, China) Thermo Fisher Scientific Helios 5 FIB-SEM DVIA-ML1000 installation report — the active isolation platform meets the vibration specification on all axes (floor fails on vertical while the DVIA-ML1000 platform passes on vertical, left-to-right, and front-to-back); vertical/left-to-right/front-to-back VC curves published.

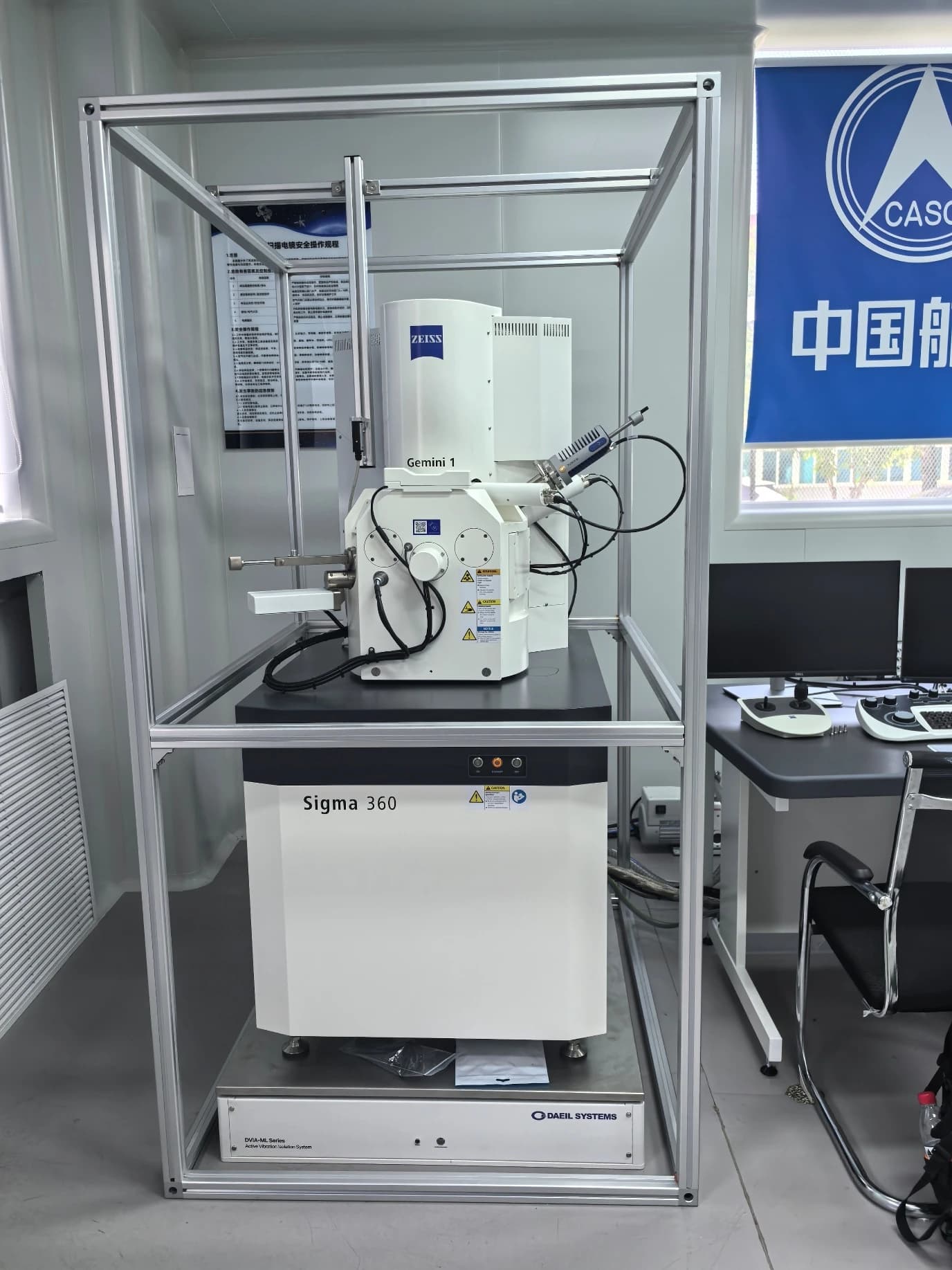

China XD Electric Co., Ltd. (Wuxi, China) ZEISS Sigma 360 FE-SEM DVIA-ML1000 installation report — the active isolation platform meets the vibration specification on all axes (floor fails on vertical, left-to-right, and front-to-back while the DVIA-ML1000 platform passes); vertical/left-to-right/front-to-back autospectrum, VC curves, and transmissibility published.

Thermo Fisher Scientific Helios 5CX FIB-SEM DVIA-M1000 installation report — following installation at the Suzhou Institute of Nano-tech and Nano-bionics (SINANO) in Suzhou, China, the DVIA-M1000 active vibration isolation platform meets the VC-F vibration specification on all axes (the floor fails on vertical, left-to-right, and front-to-back, while the DVIA-M1000 platform passes all three). Per-axis VC curves, the tuning request form, and the installation photo are published.

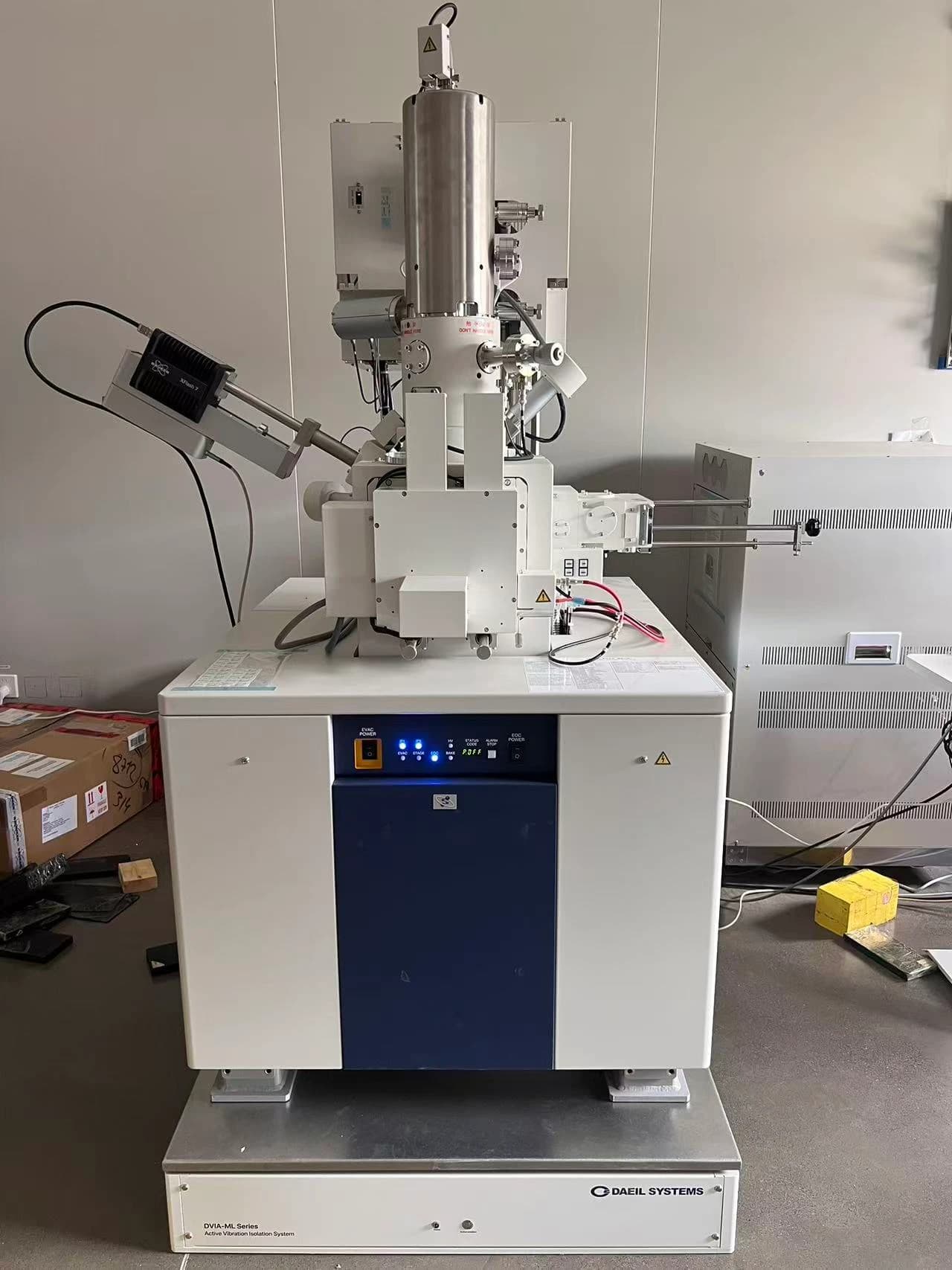

Zhongju Core Quzhou Technology Co., Ltd. (Quzhou City, China) Hitachi High-Tech SU-8600 SEM DVIA-M1000 installation report — the active isolation platform passes on all axes (floor and DVIA-M1000 both pass vertical, left-to-right, and front-to-back); vertical/left-to-right/front-to-back autospectrum and equipment photo published.

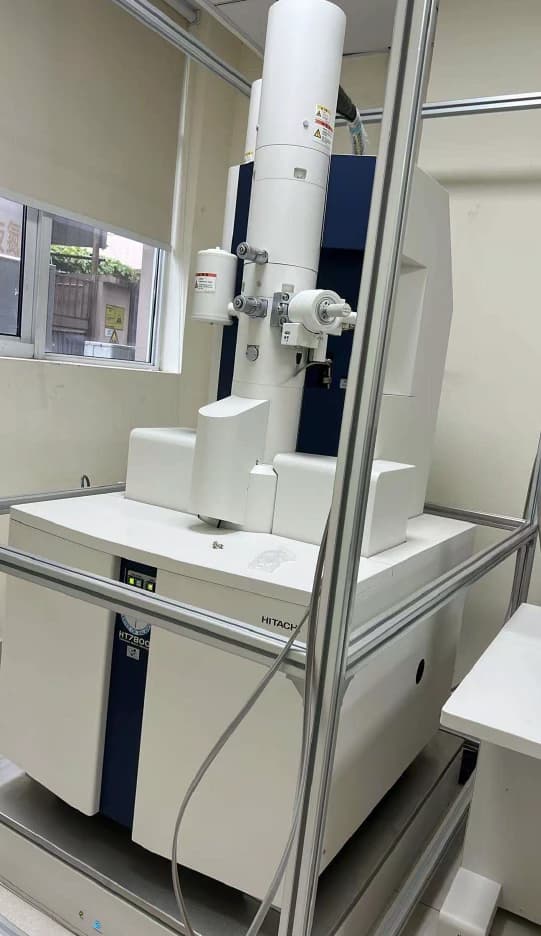

(end user Ruijin Hospital, Shanghai, China) Hitachi High-Tech HT7800 Transmission Electron Microscope (TEM) DVIA-ML1000 installation report — the active isolation platform meets the vibration specification on all axes (vertical, left-to-right, and front-to-back all PASS on both the floor and the DVIA-ML1000). Per-axis Autospectrum plots, the client tuning request form, and the installation photo are published.

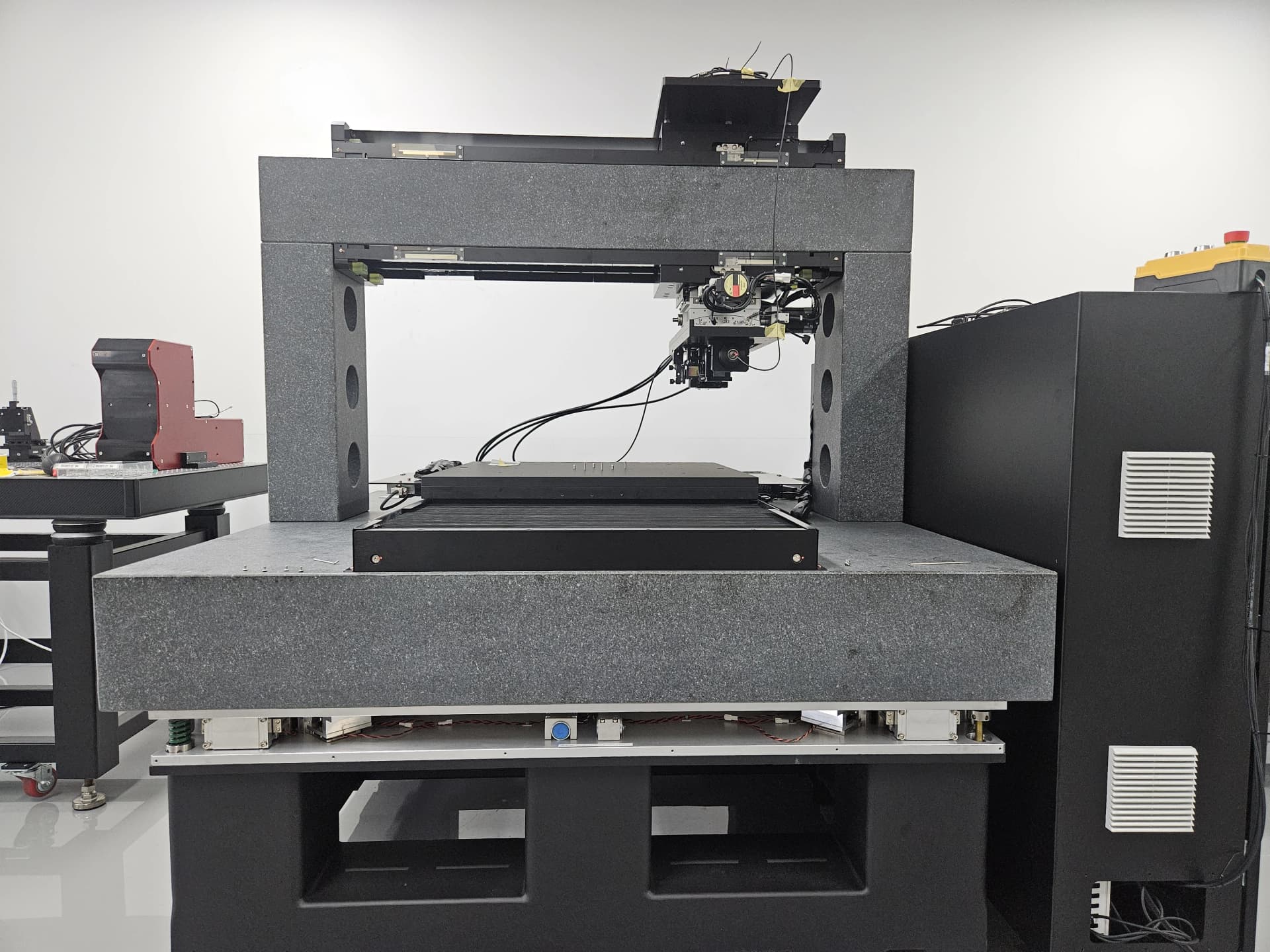

J&L Tech (development lab, Ansan branch) residual stress measurement system DVIA-ULF1500 installation report. After installation, tuning and vibration measurement were performed with the equipment installed and Turned On. On the floor all three axes measured at the VC-C level, while on the DVIA-ULF1500 platform the vertical (Z) axis reached VC-G and the left-to-right (X) and front-to-back (Y) axes reached VC-E. Per-axis Autospectrum and VC Curves plus the installation photo are published.
