Vibration Isolation Case Studies

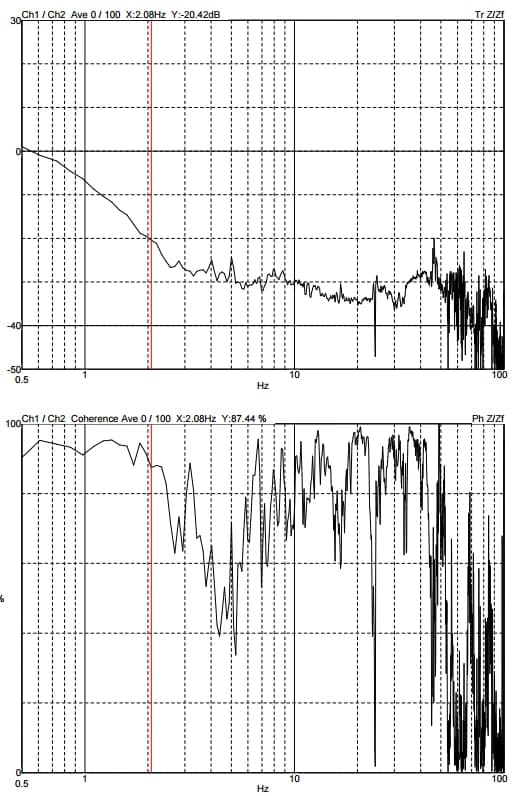

DVIA-MB1000 internal-program worksheet (MB1000 program line P153) with target equipment ZEISS - EVO10, installation site F2, and operator Choi, Hyoung Mun (Daeil System). Setup 2020-04-03, reporting 2020-04-06; measurement date 2020.04.03 (FRI). The Summary of measurement results table lists Test Condition / VC-Class with Floor and Above Active rows; the Z/X/Y cells were blank in the source DOCX and are left empty here. MB1000 internal-program screenshots under Z axis, X axis, and Y axis follow §2a embed mapping (image2–4). The decorative bitmap on the centred “(MB1000_ P153)” title line (image1) is not republished. END USER was blank in the workbook and is published as N/A. No Vibration specification or Reference headings appear in the source; none were added.

TESCAN LYRA3 FIB-SEM DVIA-MB1000 Installation

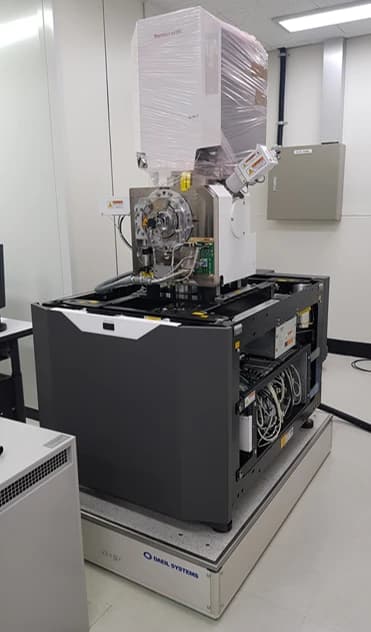

DVIA-MB1000 field report (serial 190816R4, internal program MB1000_P157) at Seoul National University School of Dentistry with Thermo Fisher Apreo S: installation-site photo, VC-class summary table (Floor vs Above Active), MB1000 internal program captures for Z/X/Y, and octave-band plots (Floor vs Above Active). The source form does not include separate B&K PULSE VC curves, vibration-criterion curve screens, or a Reference section.

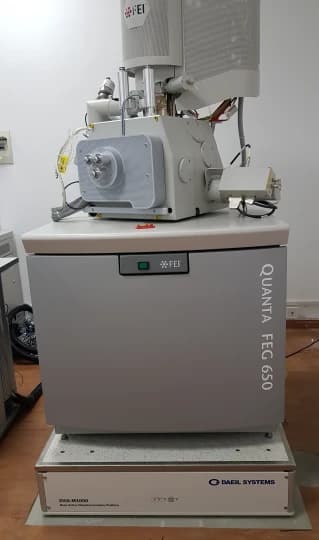

DVIA-MB1000 (serial 190702R5, project P141) at EAST UNIV F2 with FEI-QUANTA FEG650 — setup 2020-01-10, measurement 2020-01-10, report 2020-01-15. Published imagery: cover equipment context photo, MB1000 internal program Z / X / Y screens, and octave band Z / X / Y plots (BASE: Floor, TOP: Above Active).

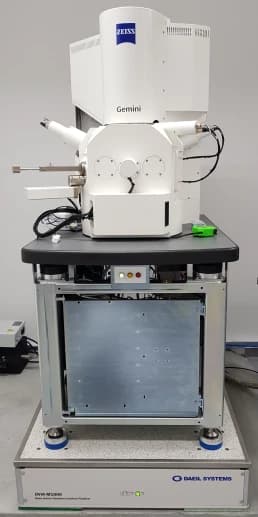

DVIA-M1000 field worksheet (internal program MB1000_P149, serial 190816R4) at OMYA with ZEISS Gemini: installation photograph, VC-class summary (Floor vs Above Active), MB1000 internal-program Z/X/Y captures, Octave Band (BASE: Floor, TOP: Above Active), and Auto Spectrum plots. The source form has no separate Vibration specification section, Reference VC diagram upload, or B&K PULSE VC curve set.

DVIA-MB1000 field report (serial 190816R1, internal program MB1000_P135) at SYE with Hitachi SU3500: installation-site photo, VC-class summary table (Floor vs Above Active; criterion cells not filled on the source form), MB1000 internal program captures for Z/X/Y, and octave-band plots (Floor vs Above Active). The source form does not include separate B&K PULSE VC curves, vibration-criterion curve screens, or a Reference section.
