Shanghai Opotong Thermo Scientific Axia SEM DVIA-ULFB700 Installation Report
Contents
Overview
The DVIA-ULFB700 active vibration isolation platform is appropriately installed and functioning as intended.
Vibration Isolation System Information
Model: DVIA-ULFB700
Serial Number: 260202R1-5
Engineer
Juhyeok Kim DAEIL SYSTEMS
Tuning Date
May 14, 2026
End User
Shanghai Opotong Instruments Co., Ltd.
Number of Tuning Trial
1st
Location
Shanghai, China.
Equipment
Manufacturer: Thermo Fisher Scientific
Equipment: SEM
Model: Axia
Vibration Specification
N/A

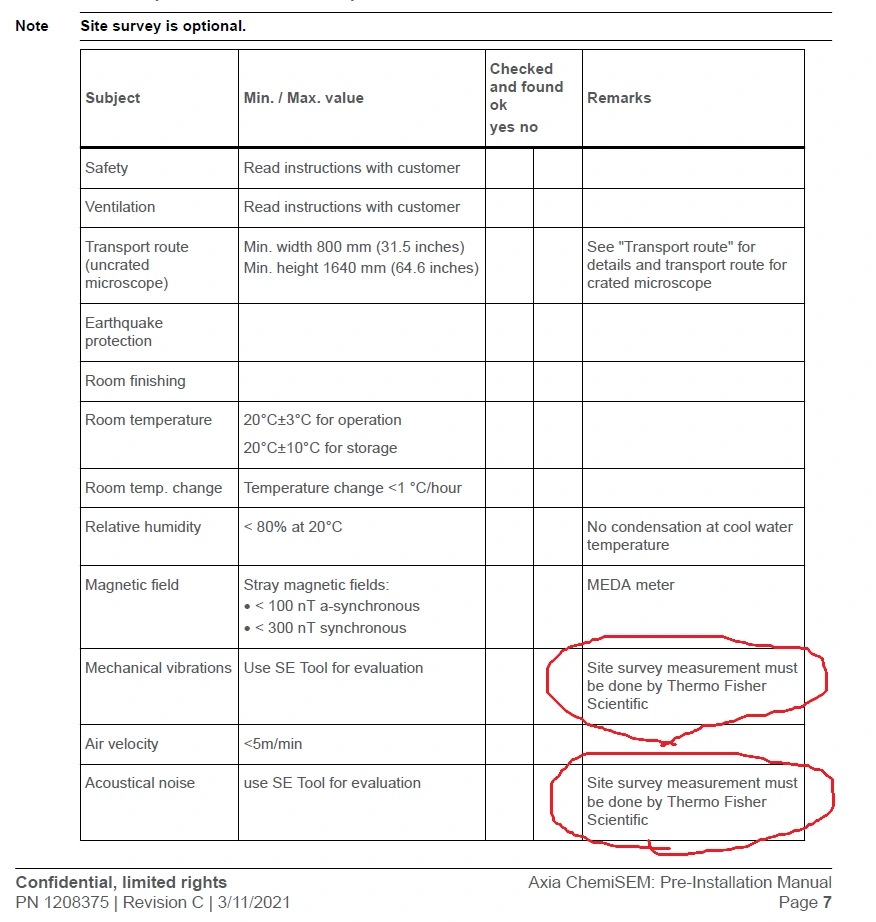

(I heard that Thermo Fisher Scientific sets the VC vibration specification standard every time we do it. I don't have YIMO, and I heard that the VC vibration standard specification changes every time in the equipment specification, so I couldn't write down the exact vibration specification.)
Equipment Condition
The equipment is turned on/IDLE
Tuning Request
1st
Measurement Summary
| Measurement Point | Status | Axis | Vibration Specification | Floor | DVIA-ULFB700 |
|---|---|---|---|---|---|
| 1.Floor 2.DVIA-ULFB700 | Equipment is Turned on/IDLE | Vertical | N/A | VC-B@ 3.15 Hz | VC-F@ 3.15 Hz |
| Left to Right | VC-E@ 3.15 Hz | VC-G@ 3.15 Hz | |||
| Front to Back | VC-D@ 2.5 Hz | VC-G@ 2.5 Hz |
Measurement Data Obtained via UI Program

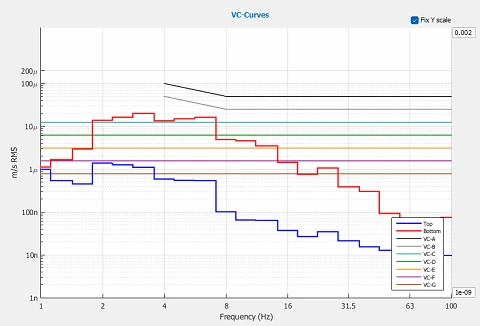

Vertical VC Curves

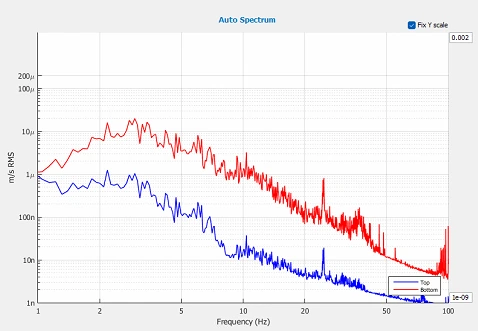

Vertical Autospectrum

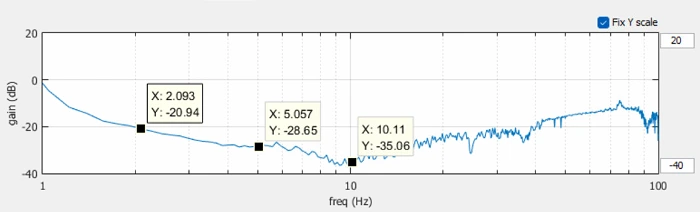

Vertical Transmissibility

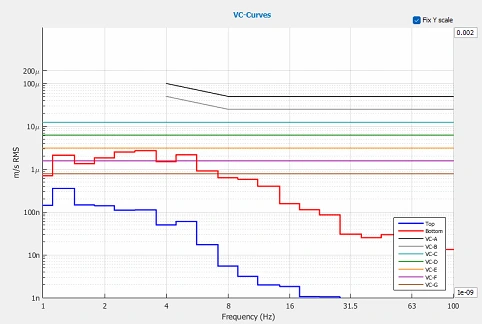

Left to Right VC curves

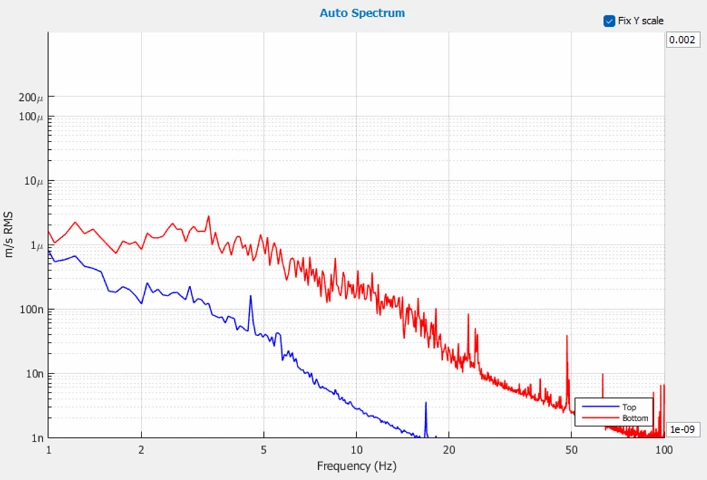

Left to Right Autospectrum

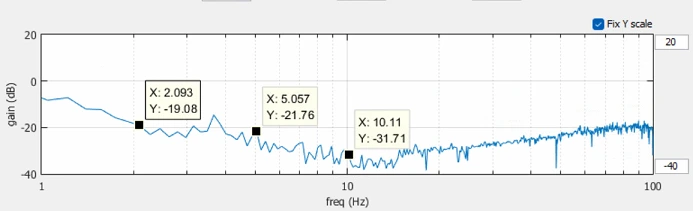

Left to Right Transmissibility

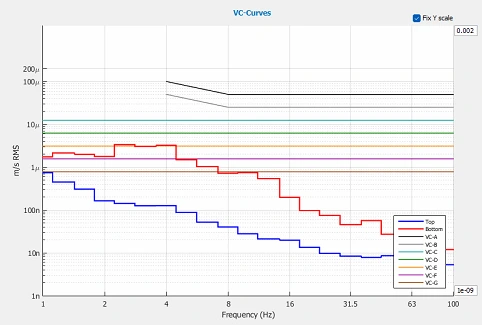

Front to Back VC Curves

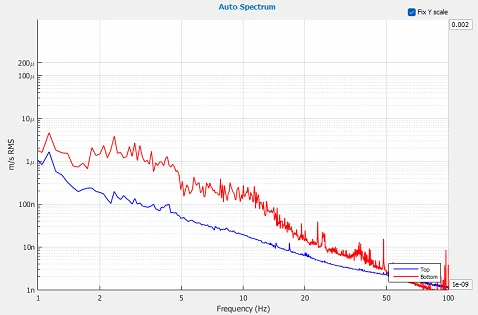

Front to Back Autospectrum

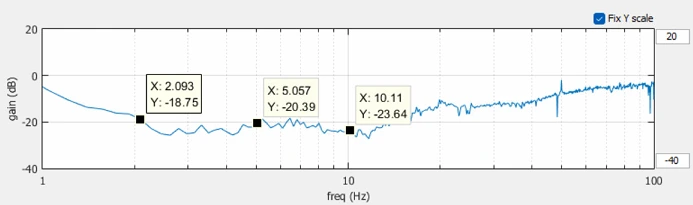

Front to Back Transmissibility

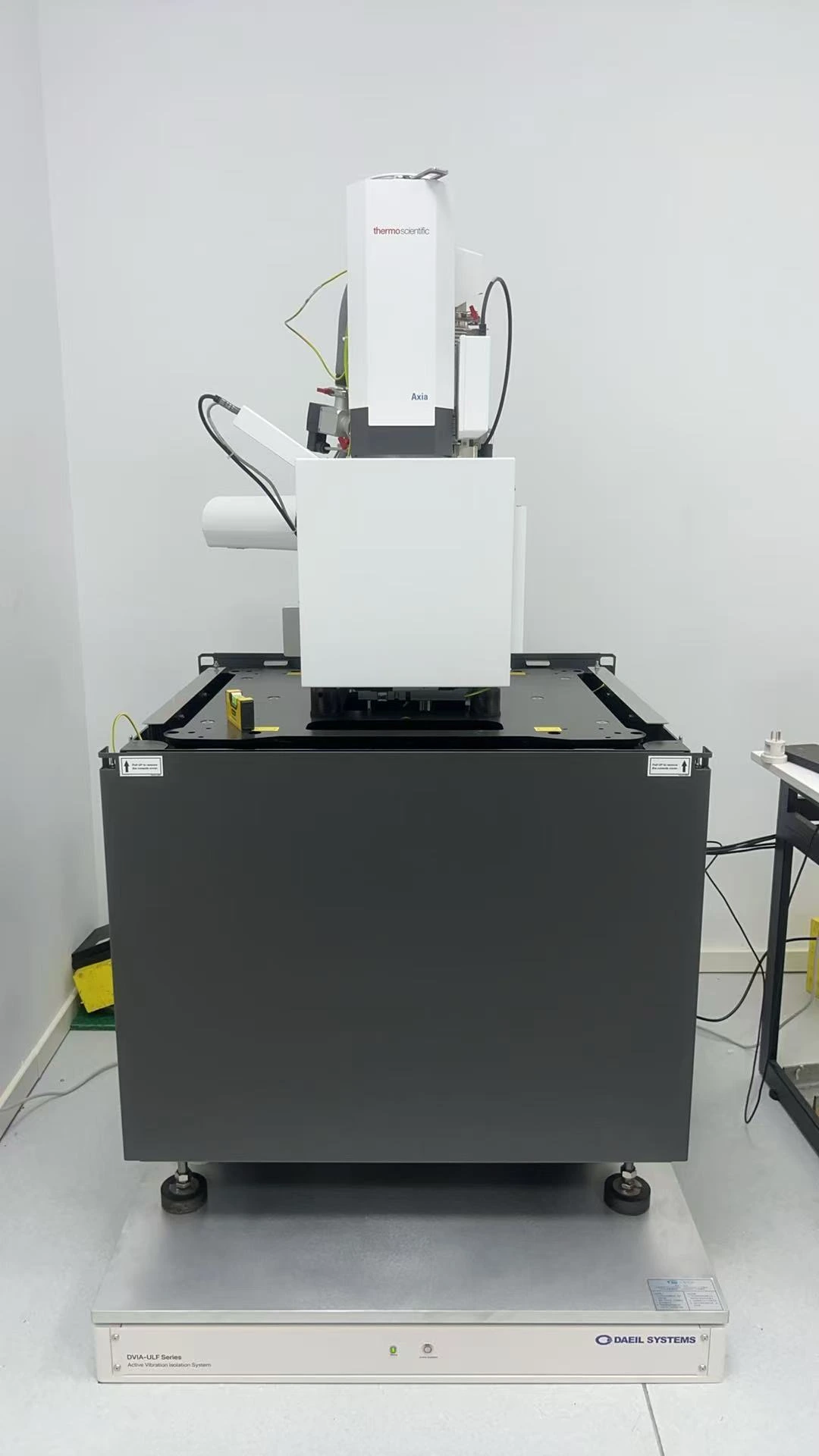

Equipment picture
