Shanghai ZEISS Sigma360 DVIA-U1000 (250114R3) Installation Report
DVIA-U Series
Installation Report
Shanghai
ZEISS
Sigma360
FE-SEM
DVIA-U1000
250114R3
Contents
(U1000_ 250114R3 Set up)
Site checklist
| Target equipment | Sigma360 |
|---|---|
| Place of installation | Shanghai |
| Remark | Insufficient performance made due to resonance peak around 20 – 50 Hz |
| END USER | N/A |
Operator and dates
| Operator: Chaewon Lee Date of setup: 25.04.15 Date of reporting: 25.04.18 | Date of business trip : 17.12.27~17.12.29 |
|---|
Overview
Insufficient performance made due to resonance peak around 20 – 50 Hz.
Vibration Isolation System Information
Model: DVIA-U1000
Serial Number: 250114R3
Measurement date: 2025.04.15 (Tuesday)
Operator: Chaewon Lee from DAEIL SYSTEMS
Place of measurement: Shanghai
End User: N/A
Equipment Model
Manufacturer: ZEISS
Equipment: FE-SEM
Model: Sigma360
U1000 internal program performance measurement result

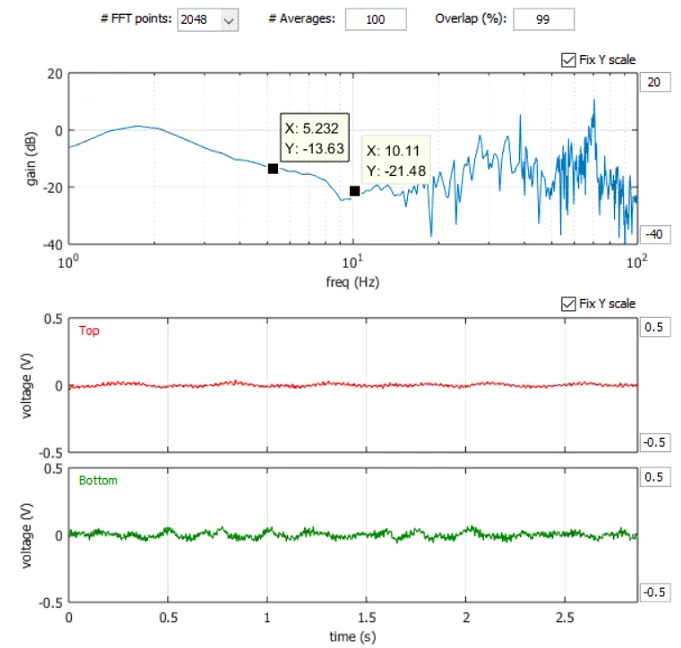

Vertical

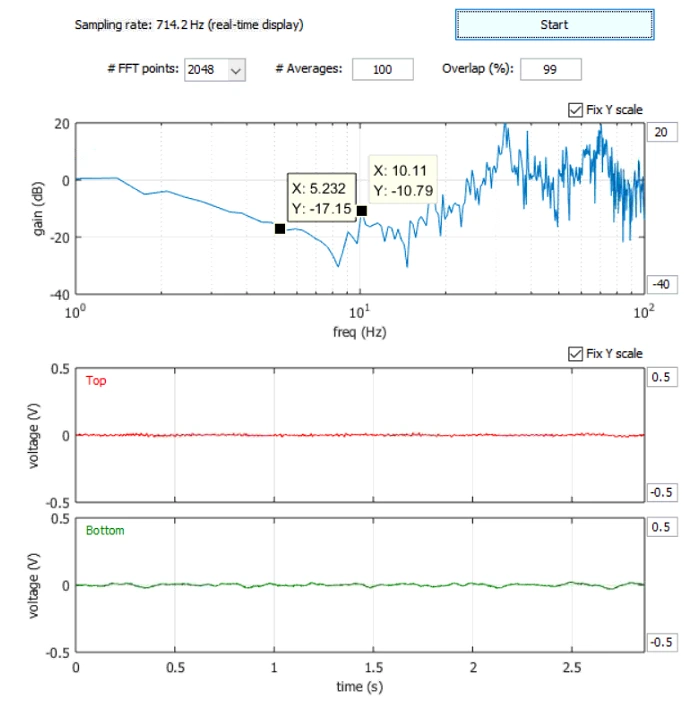

Left to Right

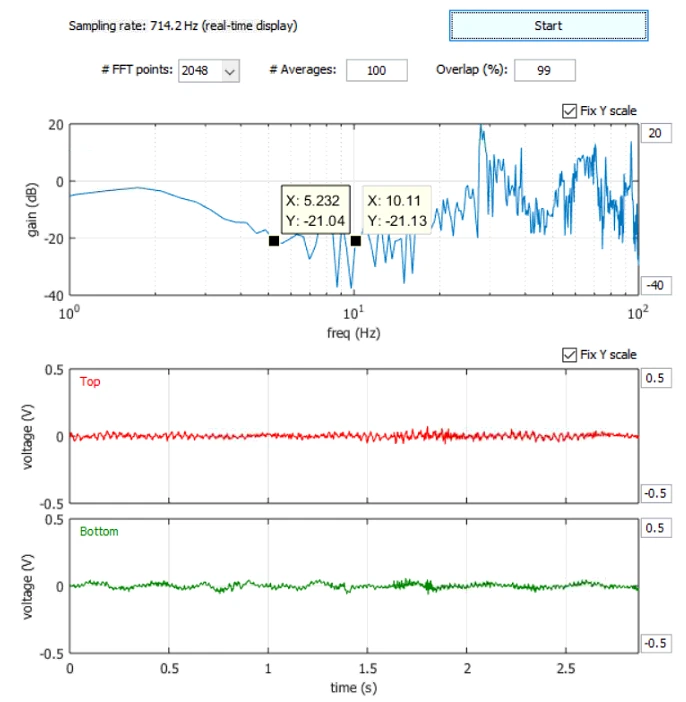

Front to Back
