Installation Report

DVIA-ULF Series

05-18-2026

Shenzhen BYD Lithium Battery ZEISS Sigma 360 DVIA-U1000 (250107R2) Installation Report

DVIA-U Series

Installation Report

BYD

Shenzhen

ZEISS

Sigma 360

FE-SEM

DVIA-U1000

250107R2

Overview

Due to the degraded performance of DVIA-U1000, retuning was performed.

After retuning, DVIA-U1000 is performing as intended.

Vibration Isolation System Information

Model: DVIA-U1000

Serial Number: 250107R2

Engineer

Chaewon Lee DAEIL SYSTEMS

Report written date: May 21, 2026

Tuning Date

May 18, 2026

End User

Shenzhen BYD Lithium Battery

Number of Tuning Trial

Location

Shenzhen

Equipment

Manufacturer: ZEISS

Equipment: FE-SEM

Model: Sigma 360

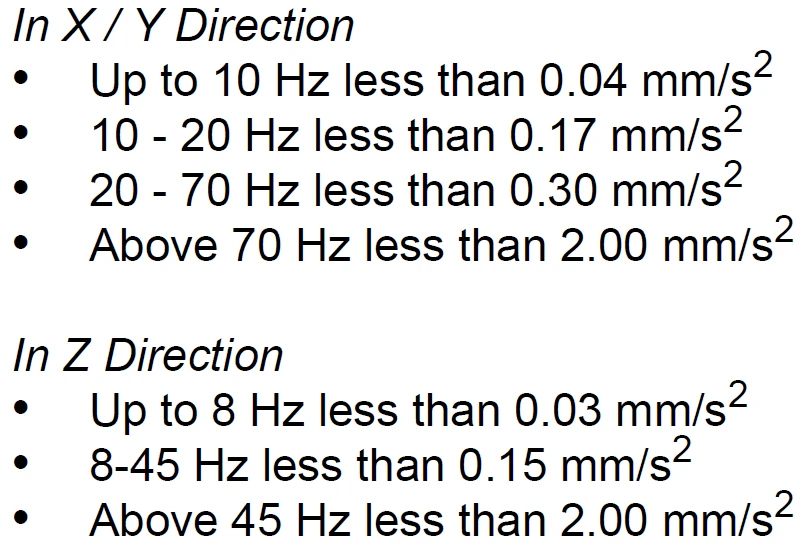

Vibration Specification

Equipment Condition

The equipment is turned on/IDLE

Tuning Request

N/A

Measurement Summary

Measurement Point	Status	Axis	VibrationSpecification	Floor	DVIA-U1000	Floor	DVIA-U1000
1.Floor 2.DVIA-U1000	Equipment is Turned on/IDLE	Vertical	Refer to item 9	{red}VC-D @ 25 Hz{/red}	{blue}VC-G @ 25 Hz{/blue}	✗ FAIL	✓ PASS
		Left to Right		{red}VC-F @ 12.5 Hz{/red}	{blue}VC-G @ 12.5 Hz{/blue}	✓ PASS	✓ PASS
		Front to Back		{red}VC-F @ 6.25 Hz{/red}	{blue}VC-G @ 6.25 Hz{/blue}	✓ PASS	✓ PASS

Measurement Data Obtained via UI Program

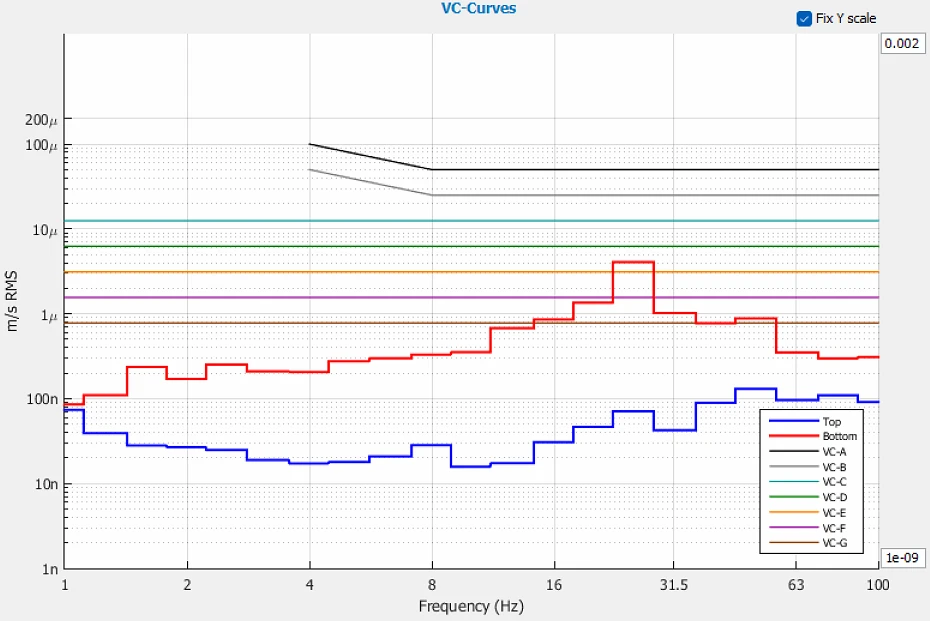

Vertical VC Curves

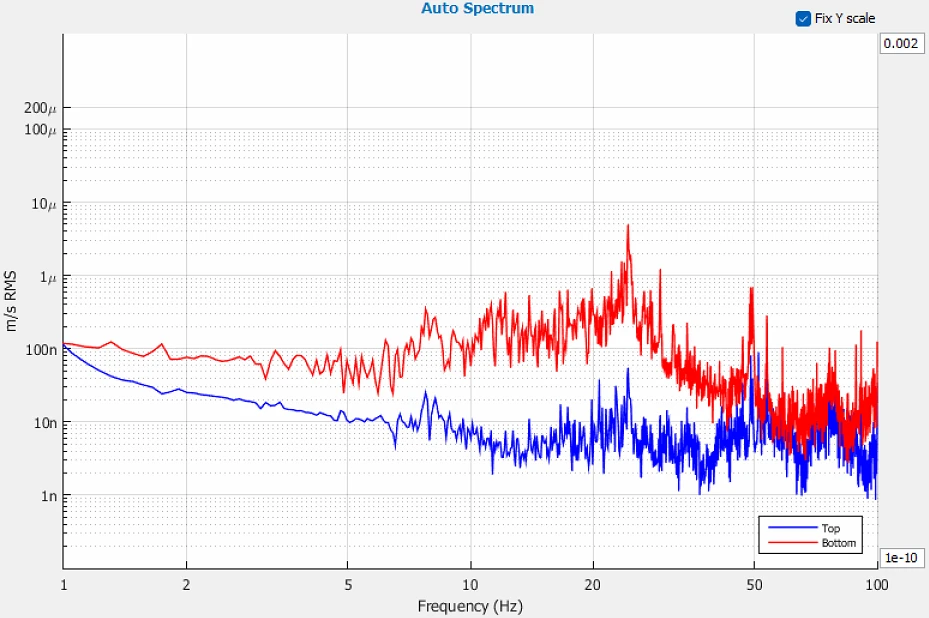

Vertical Autospectrum

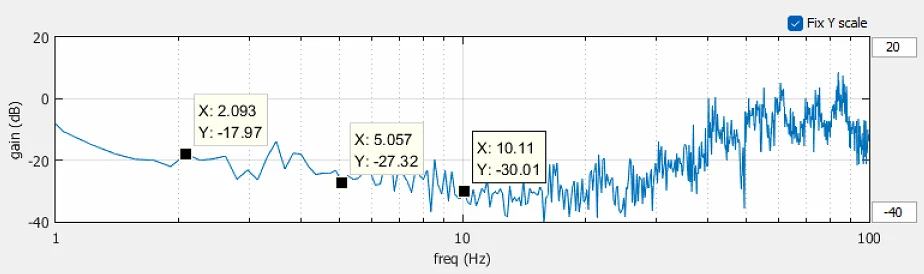

Vertical Transmissibility

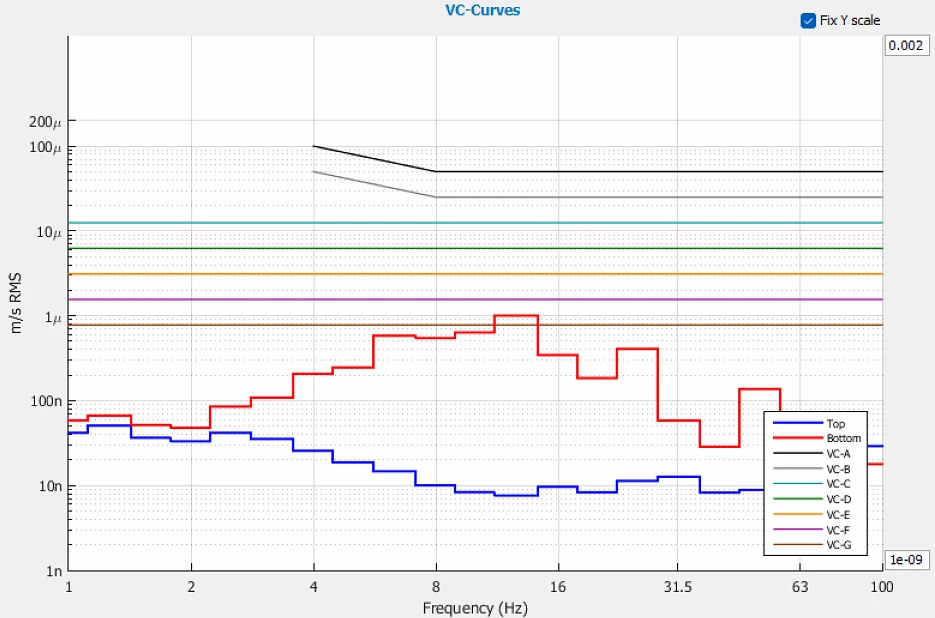

Left to Right VC curves

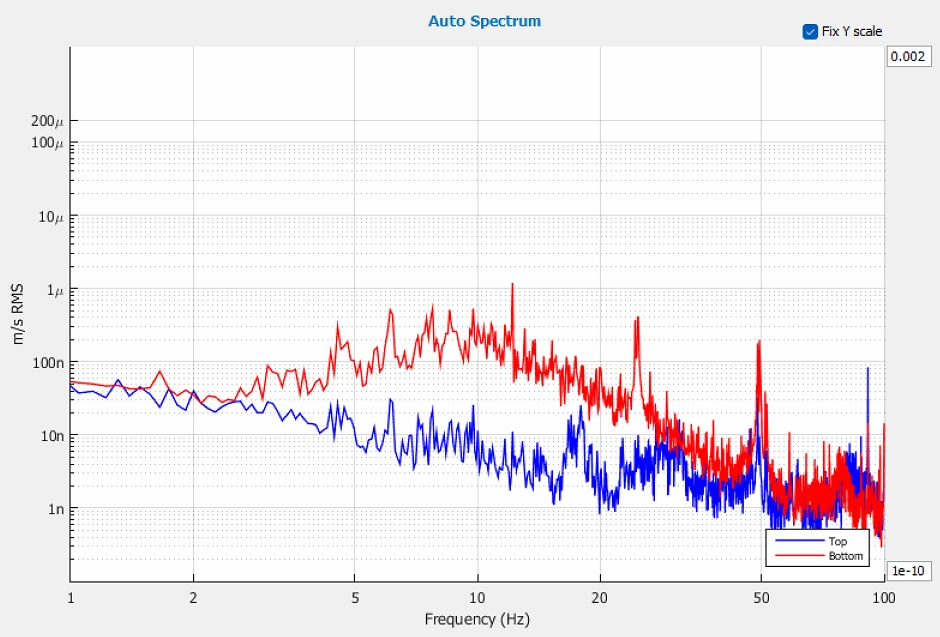

Left to Right Autospectrum

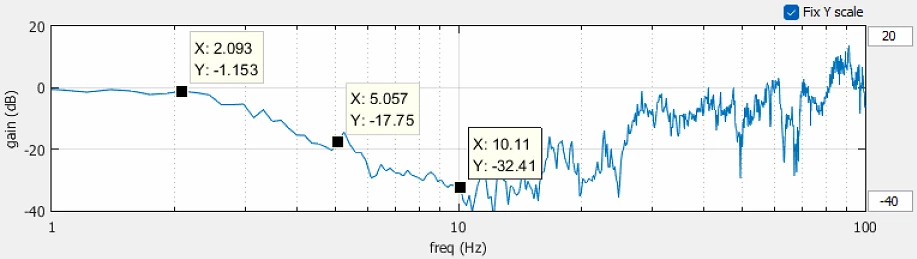

Left to Right Transmissibility

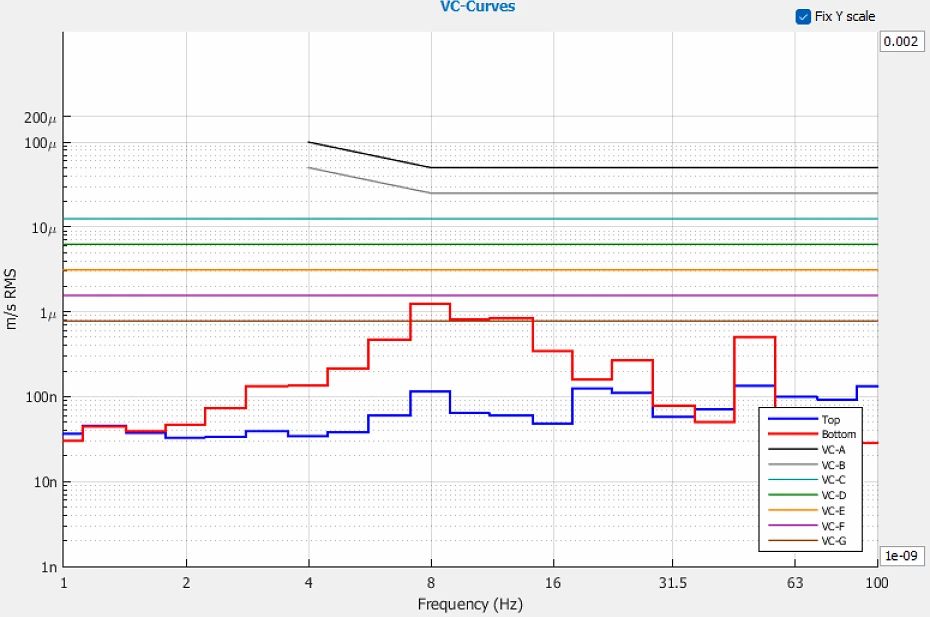

Front to Back VC Curves

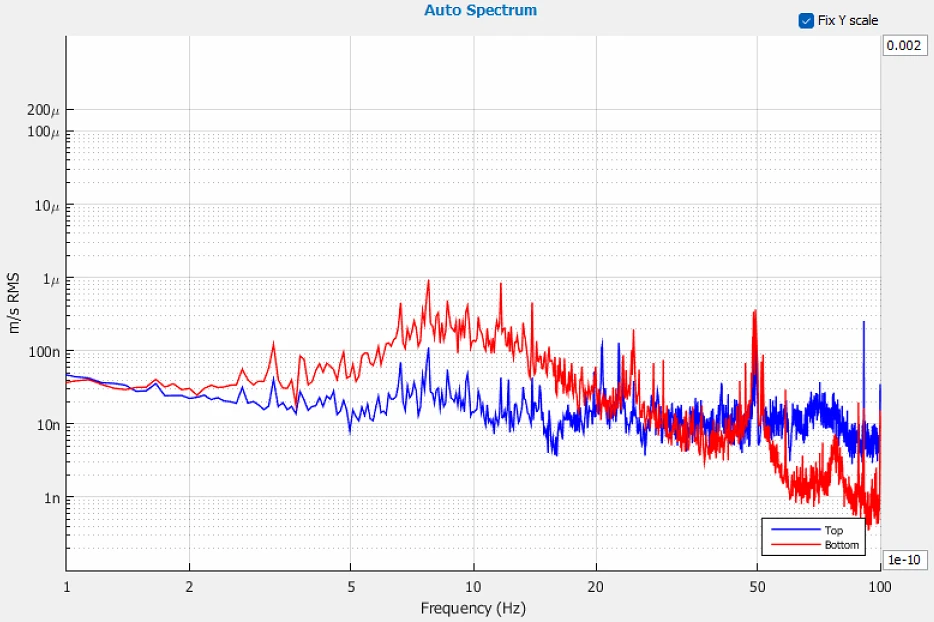

Front to Back Autospectrum

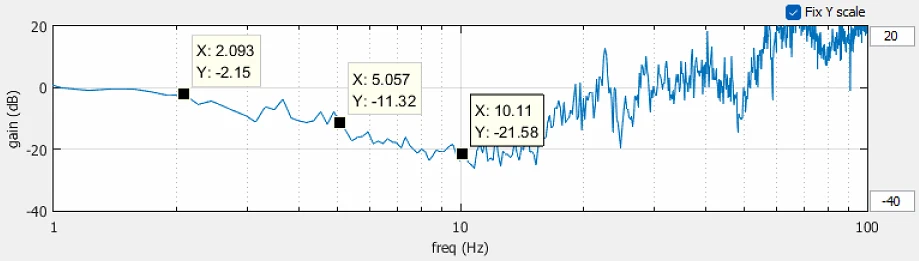

Front to Back Transmissibility

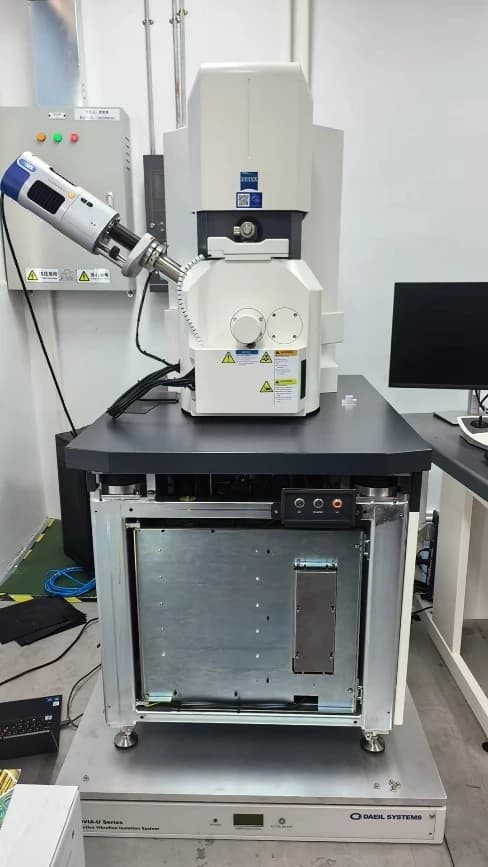

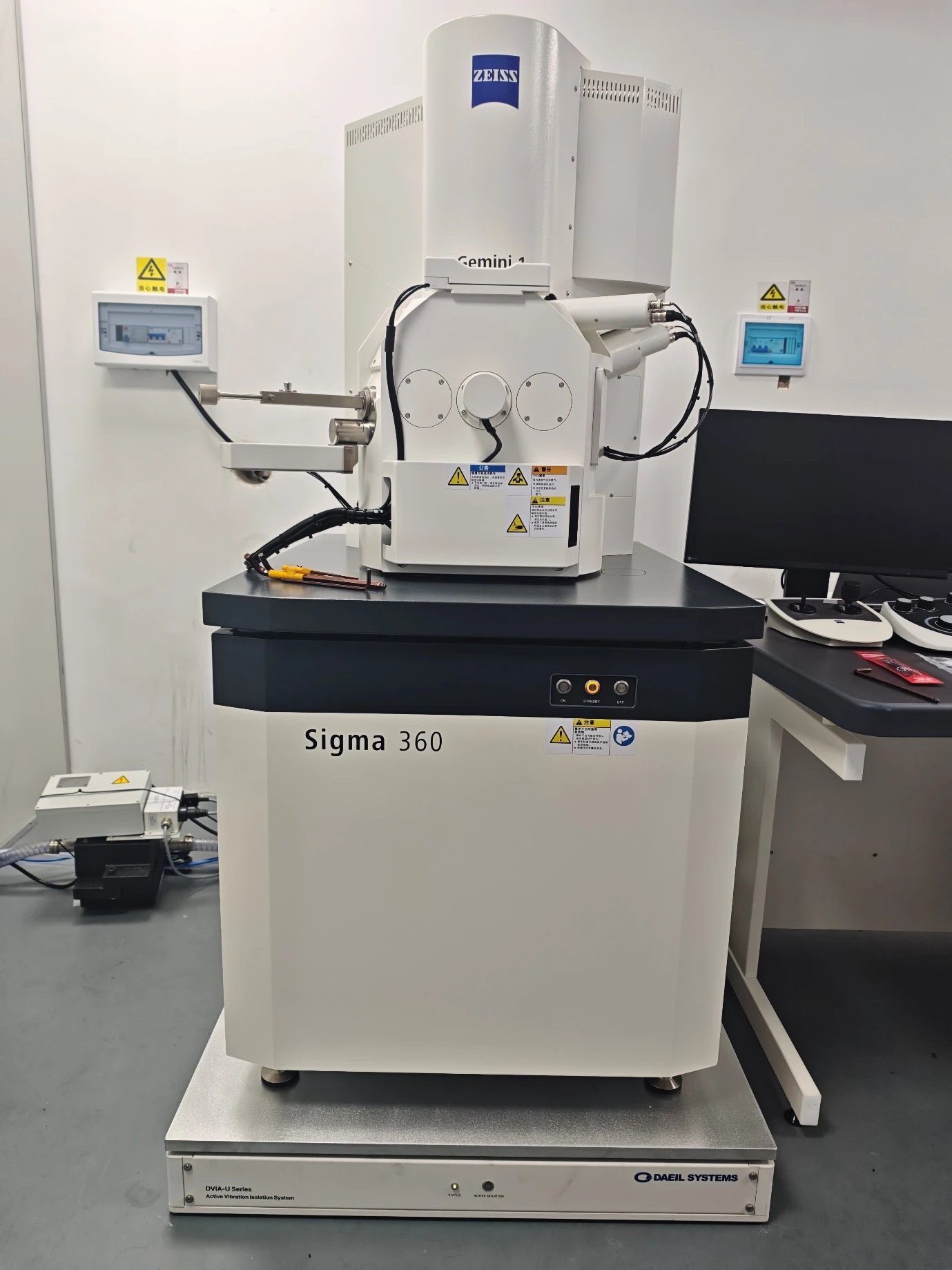

Equipment picture

Reference

Criterion Curve	Description	Amplitude μm/s (µin/s)	Detail Size μm
Workshop (ISO)	Distinctly perceptible vibration. Appropriate to workshops and non-sensitive areas.	800 (32,000)	N/A
Office (ISO)	Perceptible vibration. Appropriate to offices and non-sensitive areas.	400 (16,000)	N/A
Residential Area (ISO)	Barely perceptible vibration. Appropriate to sleep areas in most instances.	200 (8,000)	75
Operating Theatre (ISO)	Vibration not perceptible. Suitable for surgical suites, microscopes to 100x.	100 (4,000)	25
VC-A	Adequate for optical microscopes to 400x, microbalances, optical balances.	50 (2,000)	8
VC-B	Appropriate for inspection and lithography equipment to 3μm line widths.	25 (1,000)	3
VC-C	Appropriate for optical microscopes to 1000x, lithography equipment to 1μm.	12.5 (500)	1 - 3
VC-D	Suitable for demanding equipment including electron microscopes (SEMs/TEMs).	6.25 (250)	0.1 - 0.3
VC-E	For the most demanding systems including E-Beam lithography at nanometer scales.	3.12 (125)	< 0.1
VC-F	For extremely quiet research spaces. Not recommended as design criterion.	1.56 (62.5)	N/A
VC-G	For extremely quiet research spaces. Not recommended as design criterion.	0.78 (31.25)	N/A
