Installation Report
DVIA-ULF Series
10-08-2020
Lattice Semiconductor Phils ZEISS EVO 18 DVIA-U1000 (200203R4 · P15) Remote tuning — Philippines — 2020.10.08
DVIA-U Series
Installation Report
Lattice Semiconductor
Philippines
Zeiss
EVO 18
DVIA-U1000
200203R4
YIMO
remote tuning
Contents
Lattice Semiconductor Phils
Lattice Semiconductor Phils
(UB1000_200203R4(P15) Set up)
Site checklist
| Target equipment | Zeiss EVO 18 |
|---|---|

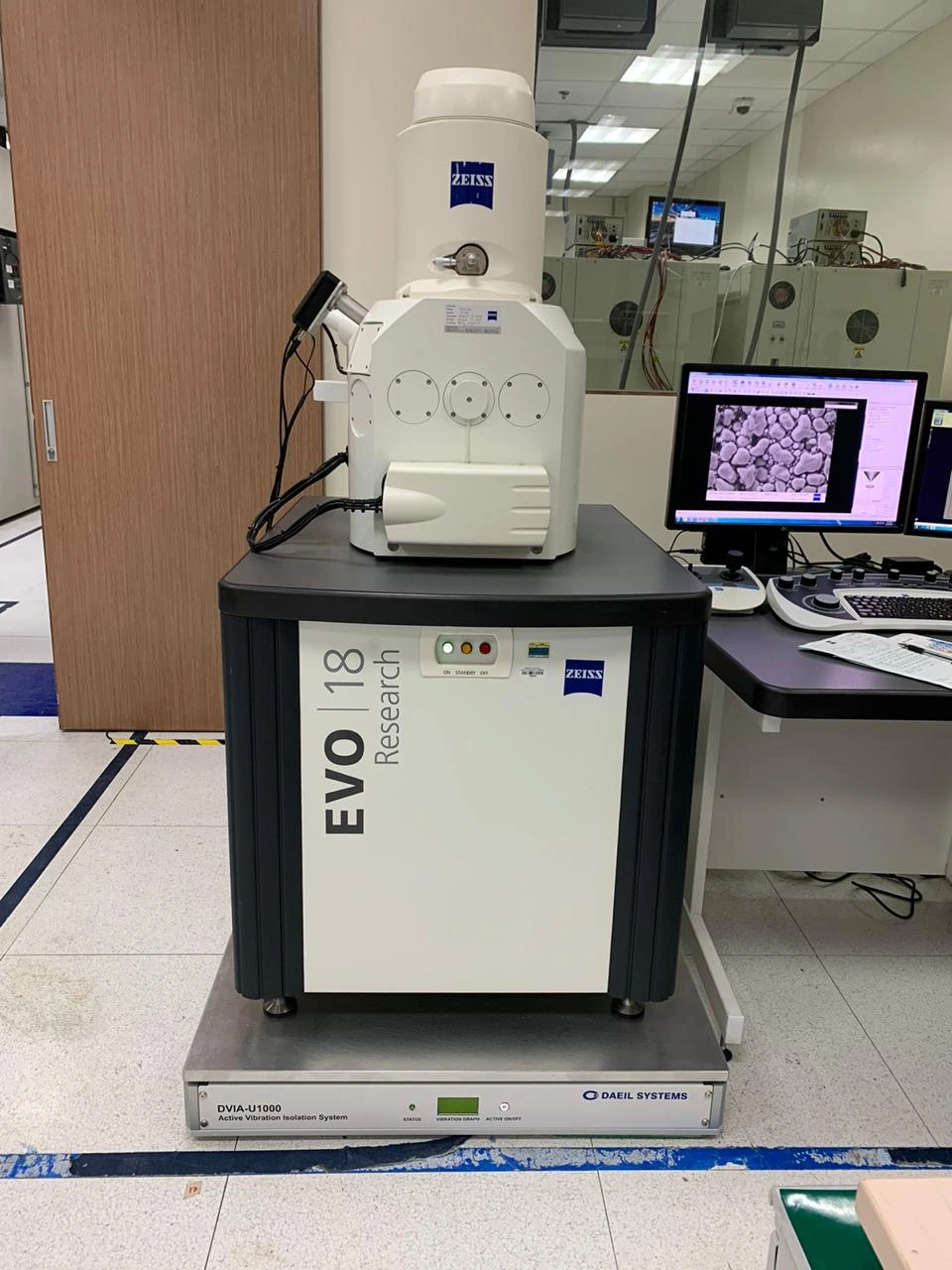

| Place of installation | Aeon Center, Filinvest, Alabang, Muntinlupa, Philippines |
| Remark | Good Performance |
| END USER | Lattice Semiconductor Phils |
Operator and dates
| Operator: Munho Noh Date of setup : 20.10.08Date of reporting : 20.10.08 | Date of business trip : 17.12.27~17.12.29 |
|---|
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 20.10.08 (THU)
Operator: Daeil System, Research engineer Munho Noh
Place of measurement : Aeon Center
Equipment Model: Zeiss EVO 18
Measurement conditions and results
Summary of measurement results
| 2 Hz | 5 Hz | 10 Hz | |
|---|---|---|---|
| Z | -40.0 dB | -25.75 dB | -32.32 dB |
| X | -5.38 dB | -20.86 dB | -26.61 dB |
| Y | -6.94 dB | -23.34 dB | -26.98 dB |
Good omnidirectional performance.
UB1000 internal program performance measurement result

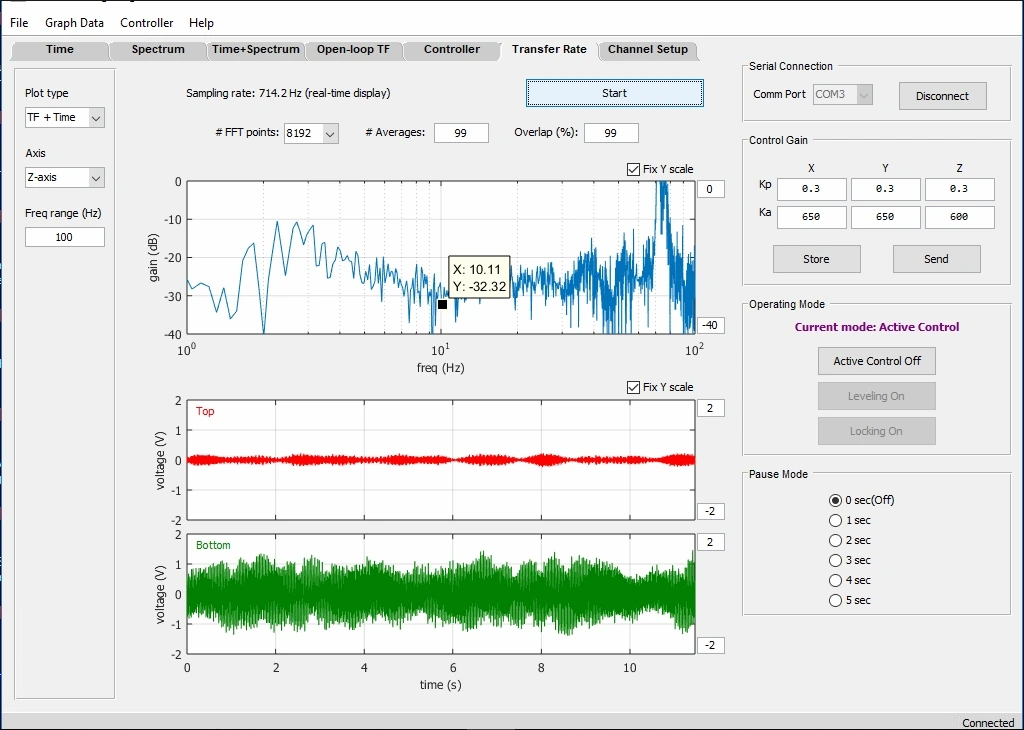

Z axis

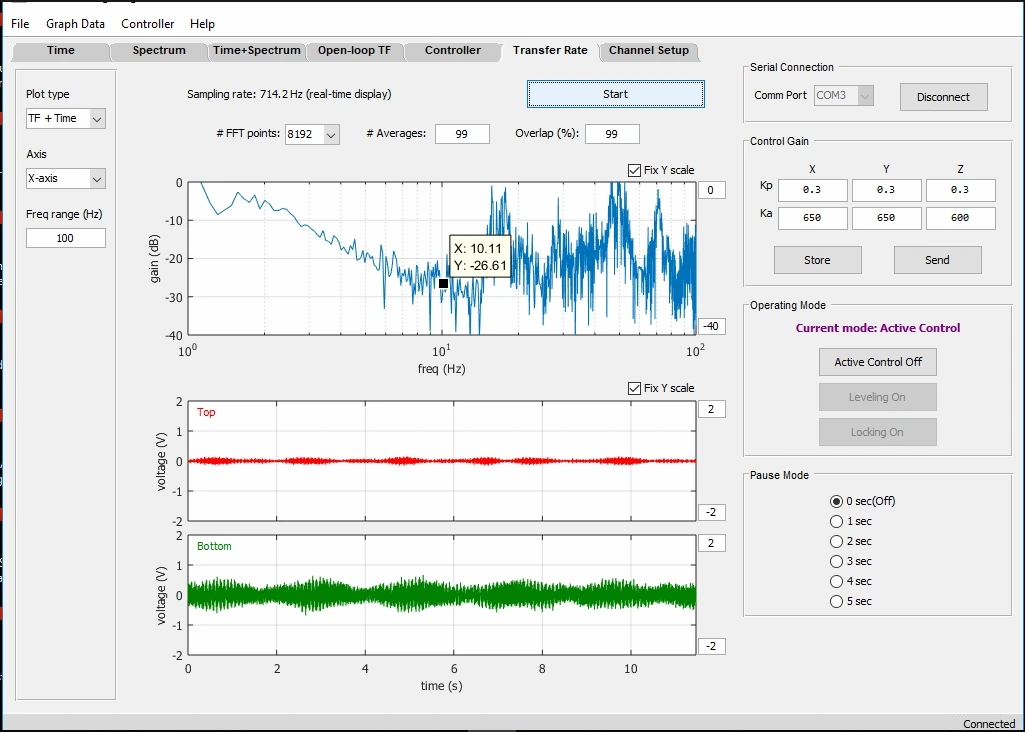

X axis

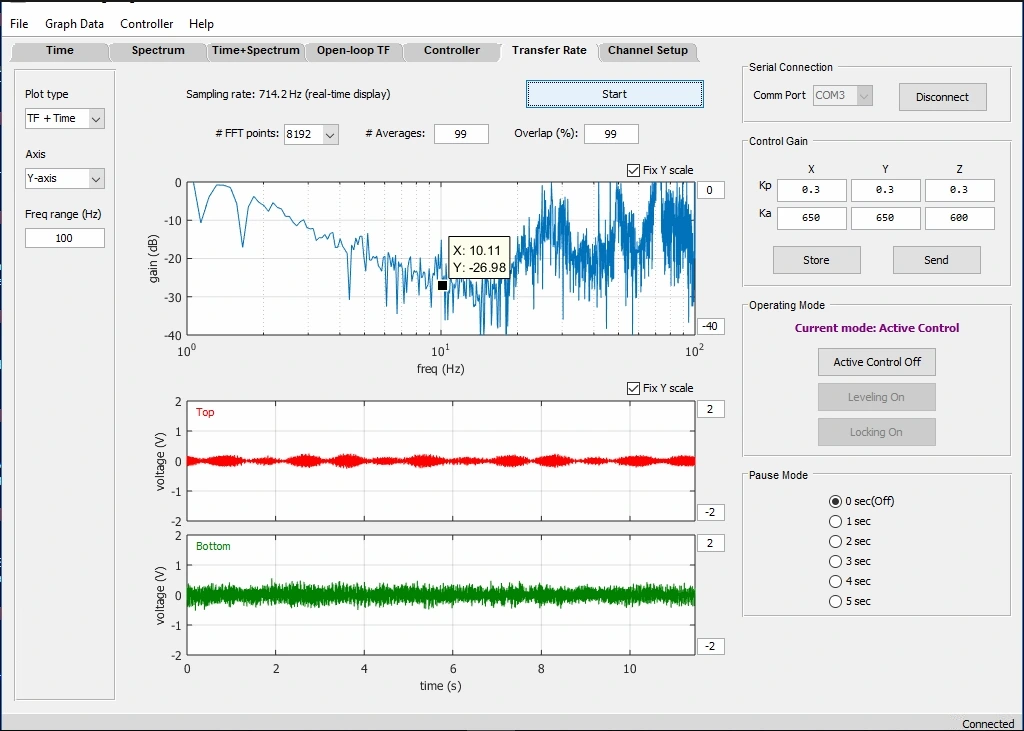

Y axis
