Installation Report

DVIA-M Series

08-07-2025

YIMO Guoyi Quantum CIQTEK High speed SEM HEM6000 DVIA-M1000 (240828R1-4) Installation Report

DVIA-M Series

Installation Report

YIMO

CIQTEK

HEM6000

High speed SEM

DVIA-M1000

240828R1-4

Overview

The DVIA-M1000 active vibration isolation platform is appropriately installed and functioning as intended.

Vibration Isolation System Information

Model: DVIA-M1000

Serial Number: 240828R1-4

Engineer

Chaewon Lee DAEIL SYSTEMS

Tuning Date

August 7, 2025

Report written date

25.08.07

End User

Guoyi Quantum

Number of Tuning Trial

3rd

Location

Guangzhou, China

Equipment

Manufacturer: CIQTEK

Equipment: High speed SEM

Model: HEM6000

Equipment Condition

The equipment is installed/IDLE

Tuning Request

Data and Image

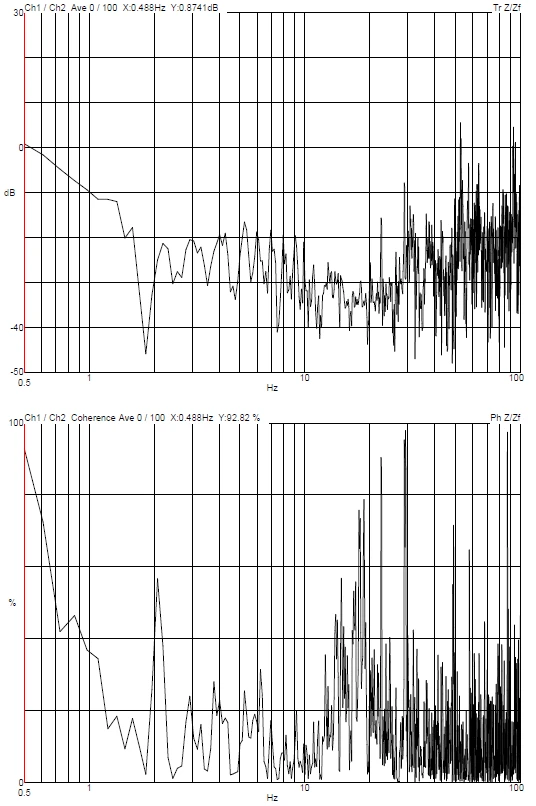

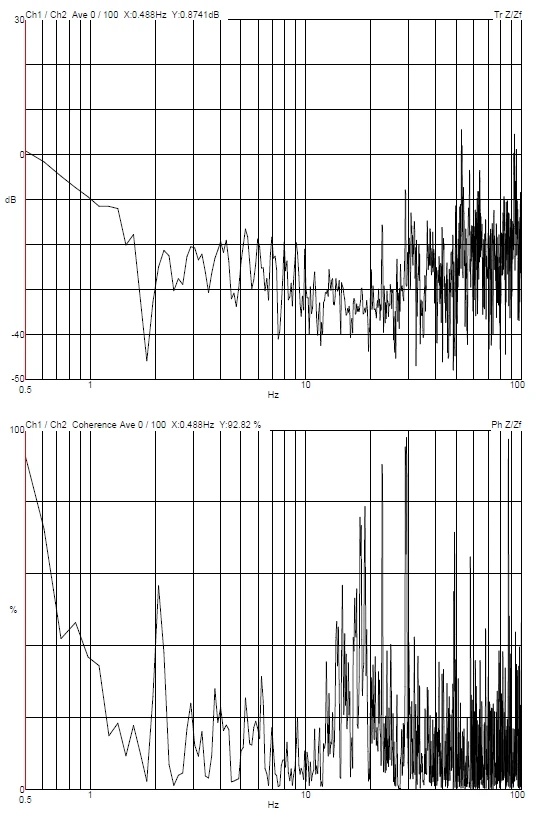

Vertical Transmissibility

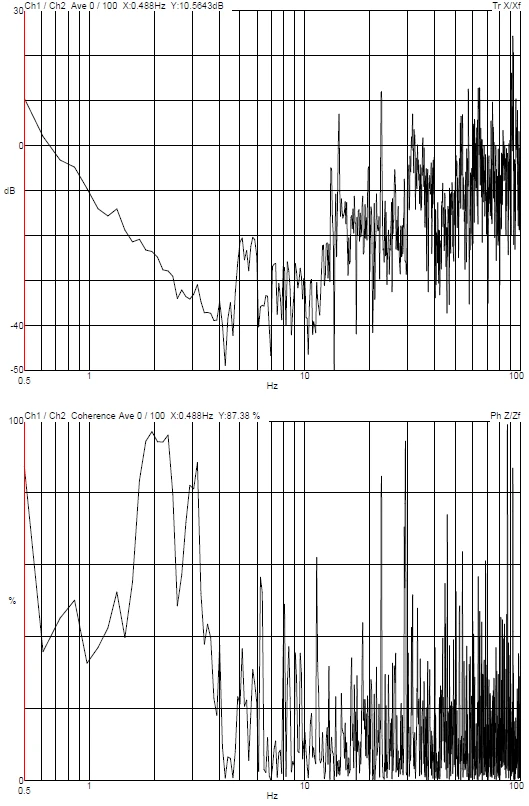

Left to Right Transmissibility

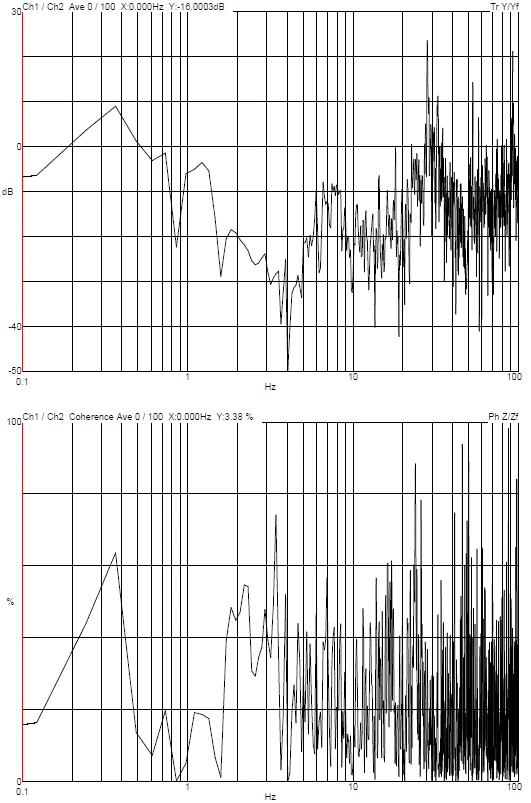

Front to Back Transmissibility

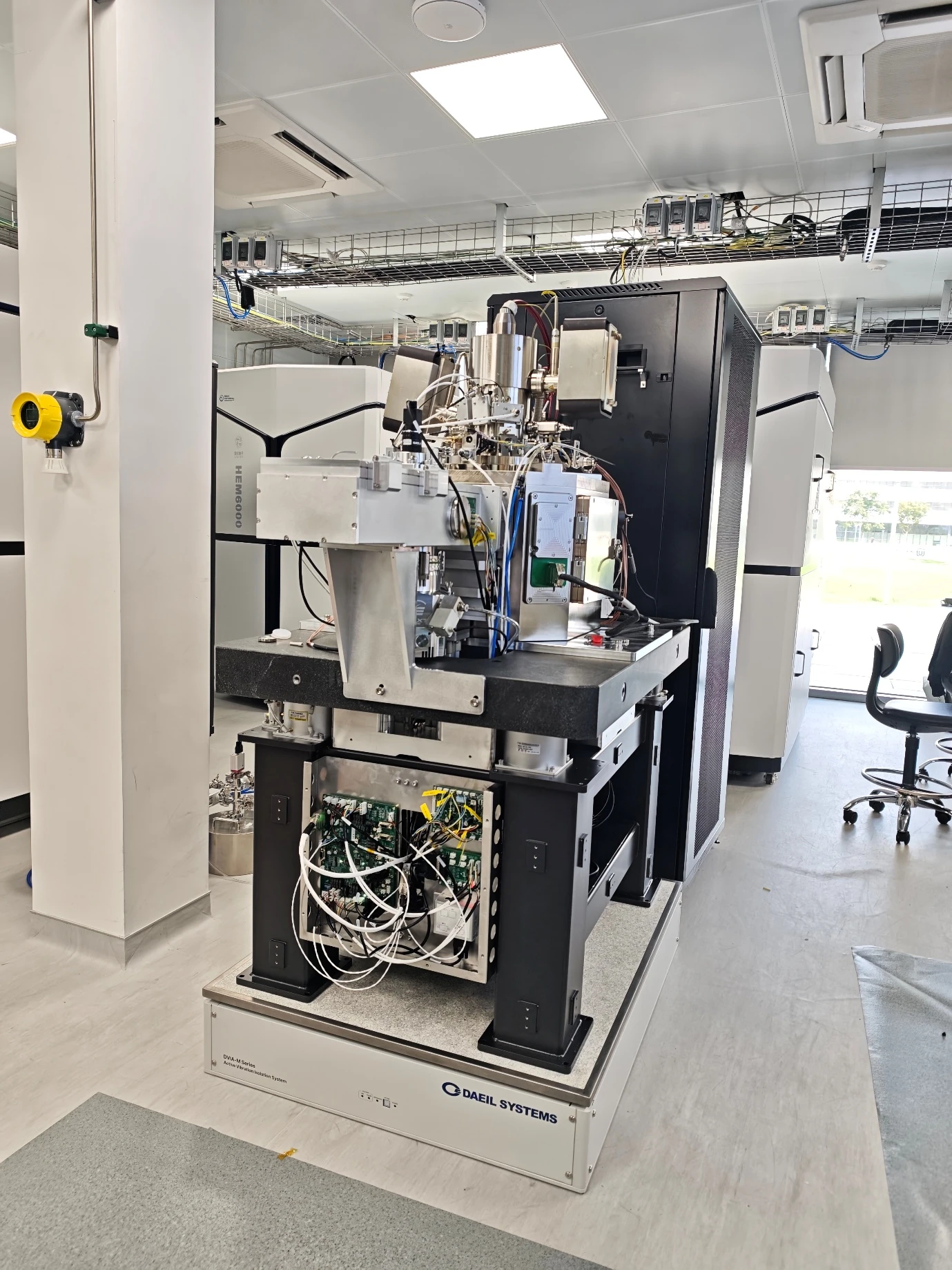

Equipment photo

Reference

Generic Vibration Criteria

Criterion Curve	Description	Amplitude μm/s (µin/s)	Detail Size μm
Workshop (ISO)	Distinctly perceptible vibration. Appropriate to workshops and non-sensitive areas.	800 (32,000)	N/A
Office (ISO)	Perceptible vibration. Appropriate to offices and non-sensitive areas.	400 (16,000)	N/A
Residential Area (ISO)	Barely perceptible vibration. Appropriate to sleep areas in most instances.	200 (8,000)	75
Operating Theatre (ISO)	Vibration not perceptible. Suitable for surgical suites, microscopes to 100x.	100 (4,000)	25
VC-A	Adequate for optical microscopes to 400x, microbalances, optical balances.	50 (2,000)	8
VC-B	Appropriate for inspection and lithography equipment to 3μm line widths.	25 (1,000)	3
VC-C	Appropriate for optical microscopes to 1000x, lithography equipment to 1μm.	12.5 (500)	1 - 3
VC-D	Suitable for demanding equipment including electron microscopes (SEMs/TEMs).	6.25 (250)	0.1 - 0.3
VC-E	For the most demanding systems including E-Beam lithography at nanometer scales.	3.12 (125)	< 0.1
VC-F	For extremely quiet research spaces. Not recommended as design criterion.	1.56 (62.5)	N/A
VC-G	For extremely quiet research spaces. Not recommended as design criterion.	0.78 (31.25)	N/A

Notes:

1. As measured in one-third octave bands over 8-80 Hz (VC-A/B) or 1-80 Hz (VC-C through VC-G).

2. Detail size refers to width in microelectronics fabrication or particle size in medical research.
