Installation Report
DVIA-M Series
11-06-2024

YIMO Zhejiang University Ningbo Institute of Technology Thermo Fisher FIB-SEM Scios 2 DVIA-M1000 (240509R7-2) Installation Report

DVIA-M Series
Installation Report
YIMO
Thermo Fisher
Scios 2
FIB-SEM
DVIA-M1000
240509R7-2

Contents

Overview

The DVIA-M1000 active vibration isolation platform is appropriately installed and functioning as intended.

Vibration Isolation System Information

Model: DVIA-M1000

Serial Number: 240509R7-2

Engineer

Chaewon Lee from DAEIL SYSTEMS

Tuning Date

October 15, 2024

Report written date

24.11.06

Prepared for

Zhejiang University Ningbo Institute of Technology

Number of Tuning Trial

1st

Location

Ningbo, China

Equipment

Manufacturer: Thermo Fisher

Equipment: FIB-SEM

Model: Scios 2

Equipment Condition

The equipment is installed/ Turn off

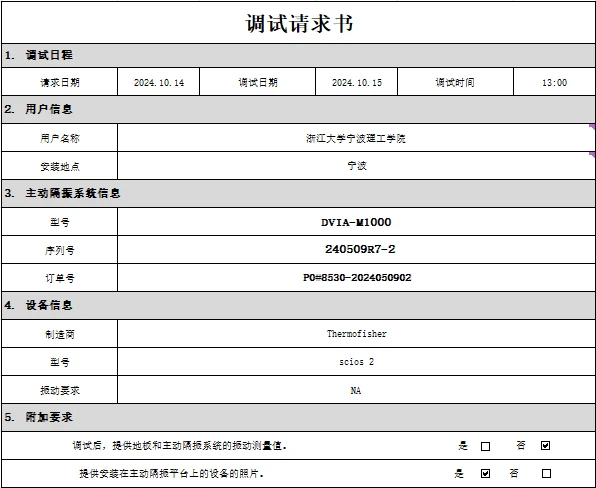

Tuning Request

Data and Image

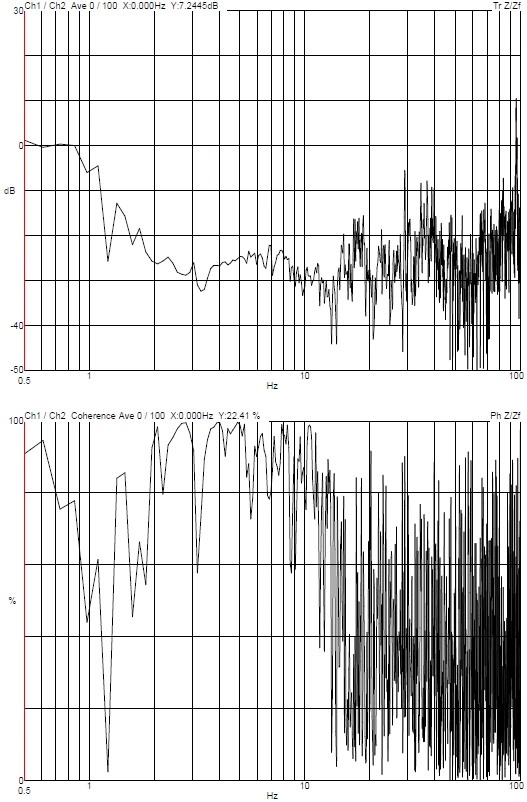

Vertical Transmissibility

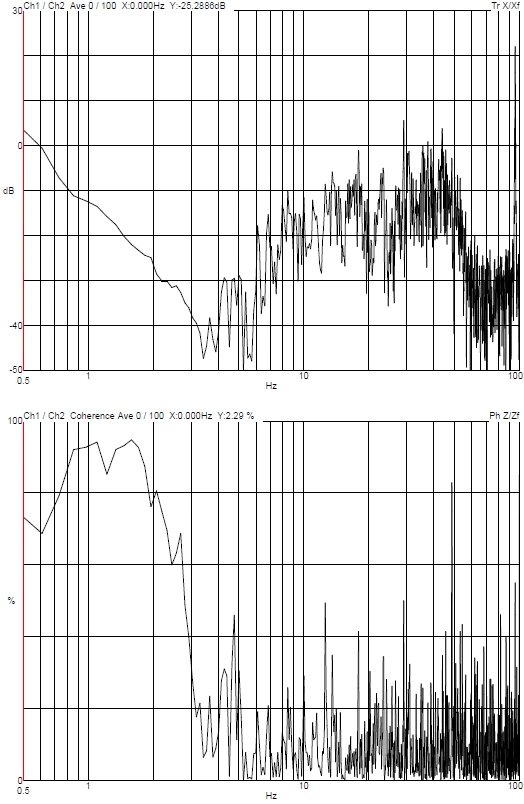

Left to Right Transmissibility

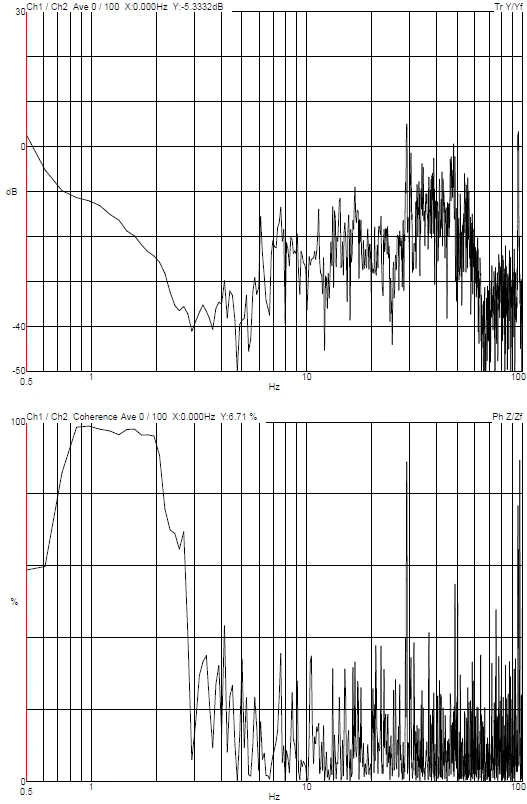

Front to Back Transmissibility

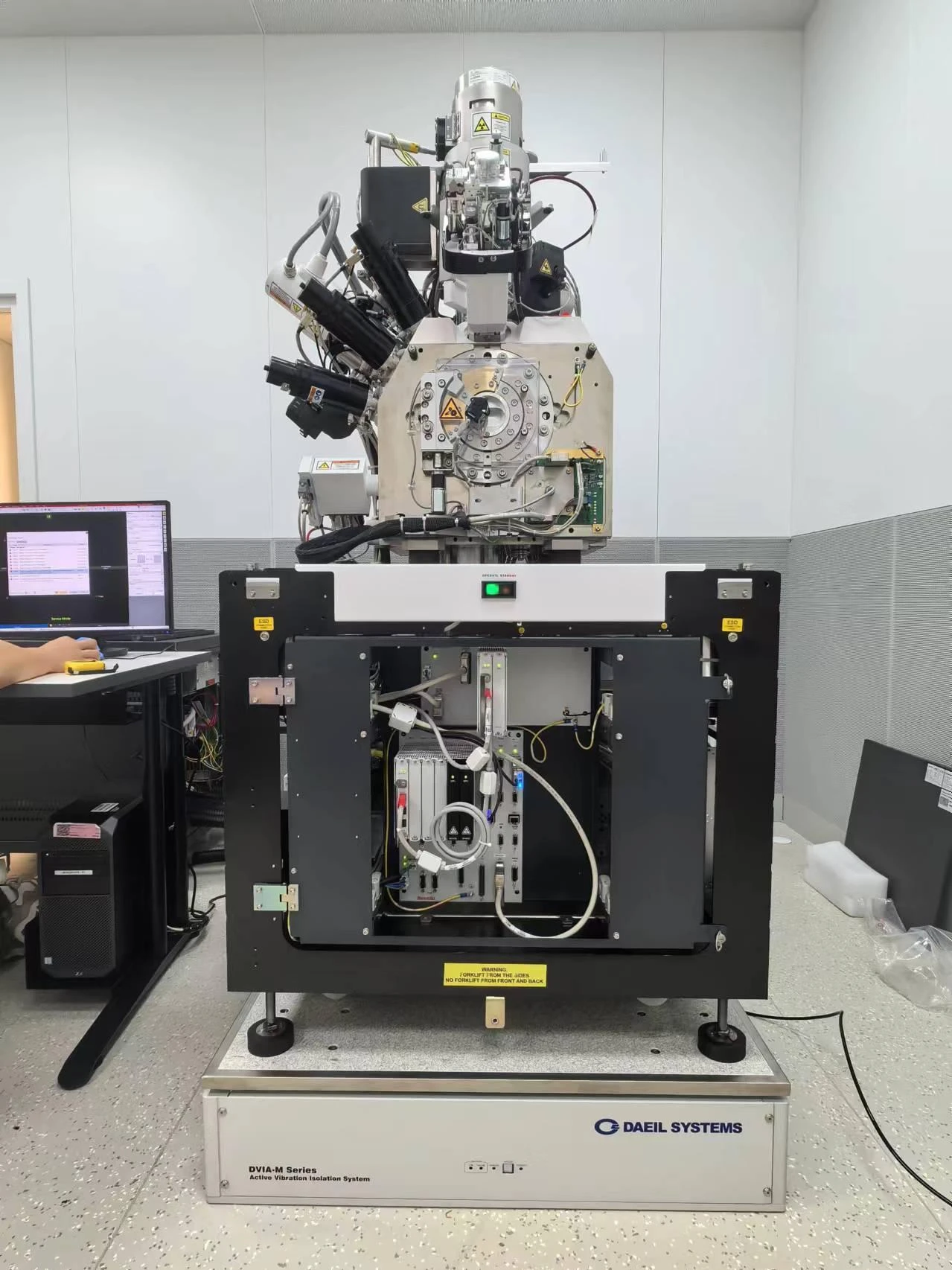

Equipment photo

Reference

Generic Vibration Criteria

Criterion CurveDescriptionAmplitude
μm/s (µin/s)		Detail Size
μm
Workshop (ISO)Distinctly perceptible vibration. Appropriate to workshops and non-sensitive areas.800 (32,000)N/A
Office (ISO)Perceptible vibration. Appropriate to offices and non-sensitive areas.400 (16,000)N/A
Residential Area (ISO)Barely perceptible vibration. Appropriate to sleep areas in most instances.200 (8,000)75
Operating Theatre (ISO)Vibration not perceptible. Suitable for surgical suites, microscopes to 100x.100 (4,000)25
VC-AAdequate for optical microscopes to 400x, microbalances, optical balances.50 (2,000)8
VC-BAppropriate for inspection and lithography equipment to 3μm line widths.25 (1,000)3
VC-CAppropriate for optical microscopes to 1000x, lithography equipment to 1μm.12.5 (500)1 - 3
VC-DSuitable for demanding equipment including electron microscopes (SEMs/TEMs).6.25 (250)0.1 - 0.3
VC-EFor the most demanding systems including E-Beam lithography at nanometer scales.3.12 (125)< 0.1
VC-FFor extremely quiet research spaces. Not recommended as design criterion.1.56 (62.5)N/A
VC-GFor extremely quiet research spaces. Not recommended as design criterion.0.78 (31.25)N/A

Notes:

1. As measured in one-third octave bands over 8-80 Hz (VC-A/B) or 1-80 Hz (VC-C through VC-G).

2. Detail size refers to width in microelectronics fabrication or particle size in medical research.

Share this Case Study

Case Study Information

Category
Installation Report
SeriesDVIA-M Series
Date11-06-2024
Tags
DVIA-M Series
Installation Report
YIMO
Thermo Fisher
Scios 2
FIB-SEM
DVIA-M1000
240509R7-2

Related Case Studies

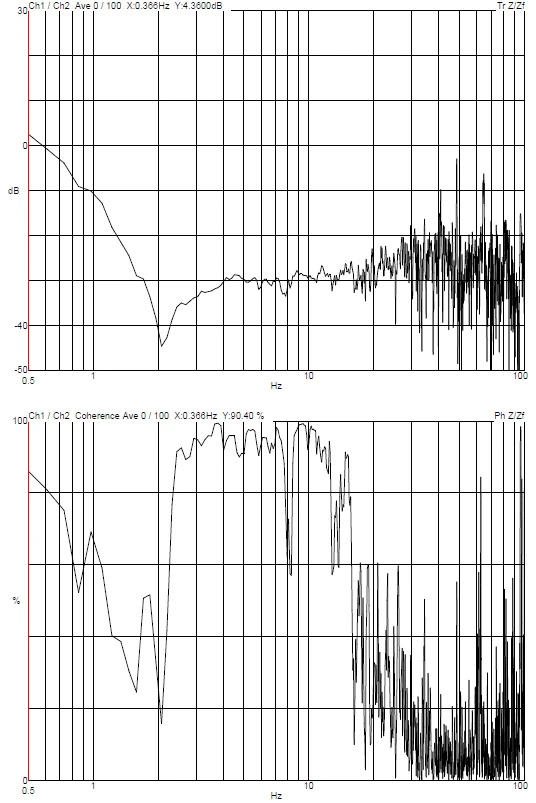

YIMO Zhejiang University Ningbo Thermo Fisher FIB-SEM Scios 2 DVIA-M1000 (240820R2) Installation Report
DVIA-M Series

YIMO Zhejiang University Ningbo Thermo Fisher FIB-SEM Scios 2 DVIA-M1000 (240820R2) Installation Report

11-06-2024Read more

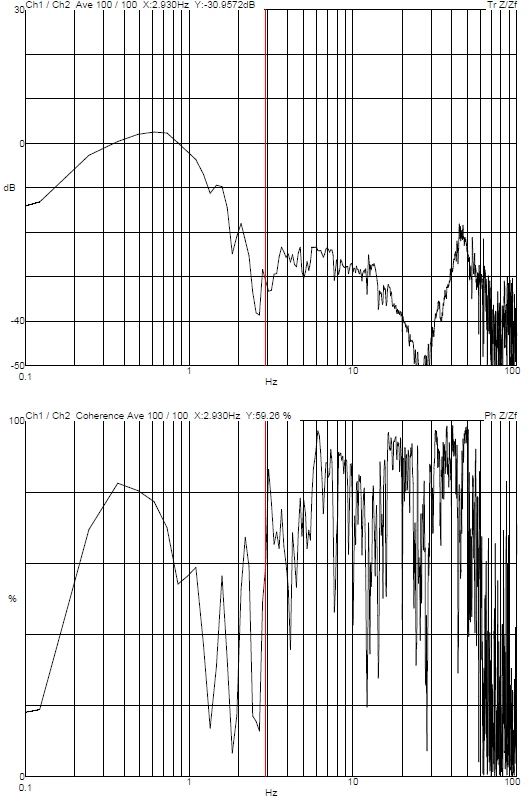

Welling Motor Thermo Fisher Scios 2 Hivac FIB-SEM DVIA-M1000 (240325R2) Installation Report
